Model # JGBS60RLK1SS Official GE gas range
Here are the diagrams and repair parts for Official GE JGBS60RLK1SS gas range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forJGBS60RLK1SS Ranges
- #235

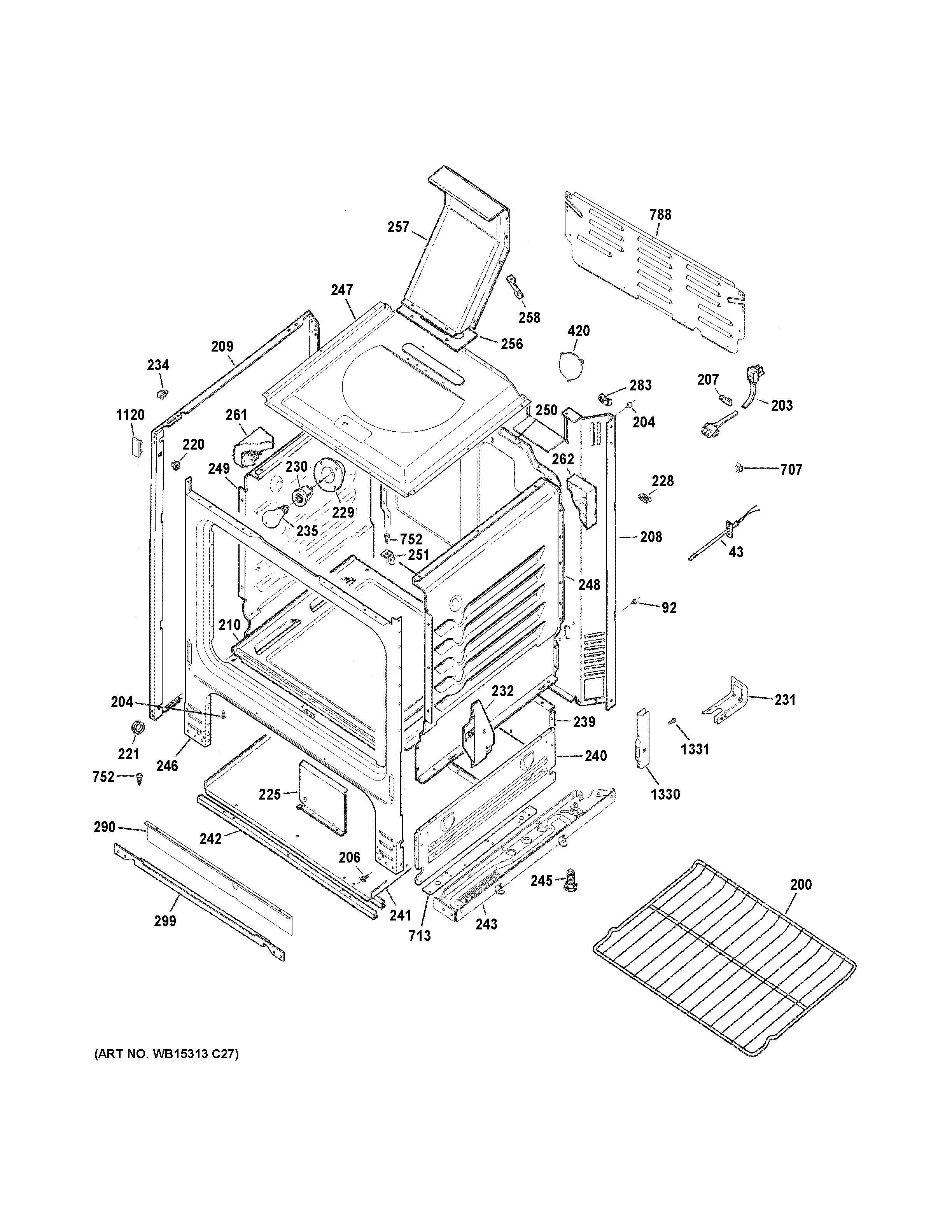

Body parts diagram
40a15bulbPart #STD372401
Replaced by #40A15
?Manufacturer substitutionThis part replaces STD372401. Substitute parts can look different from the original.$13.61 |13% OFF Phone Price : $15.61In Stock - #218

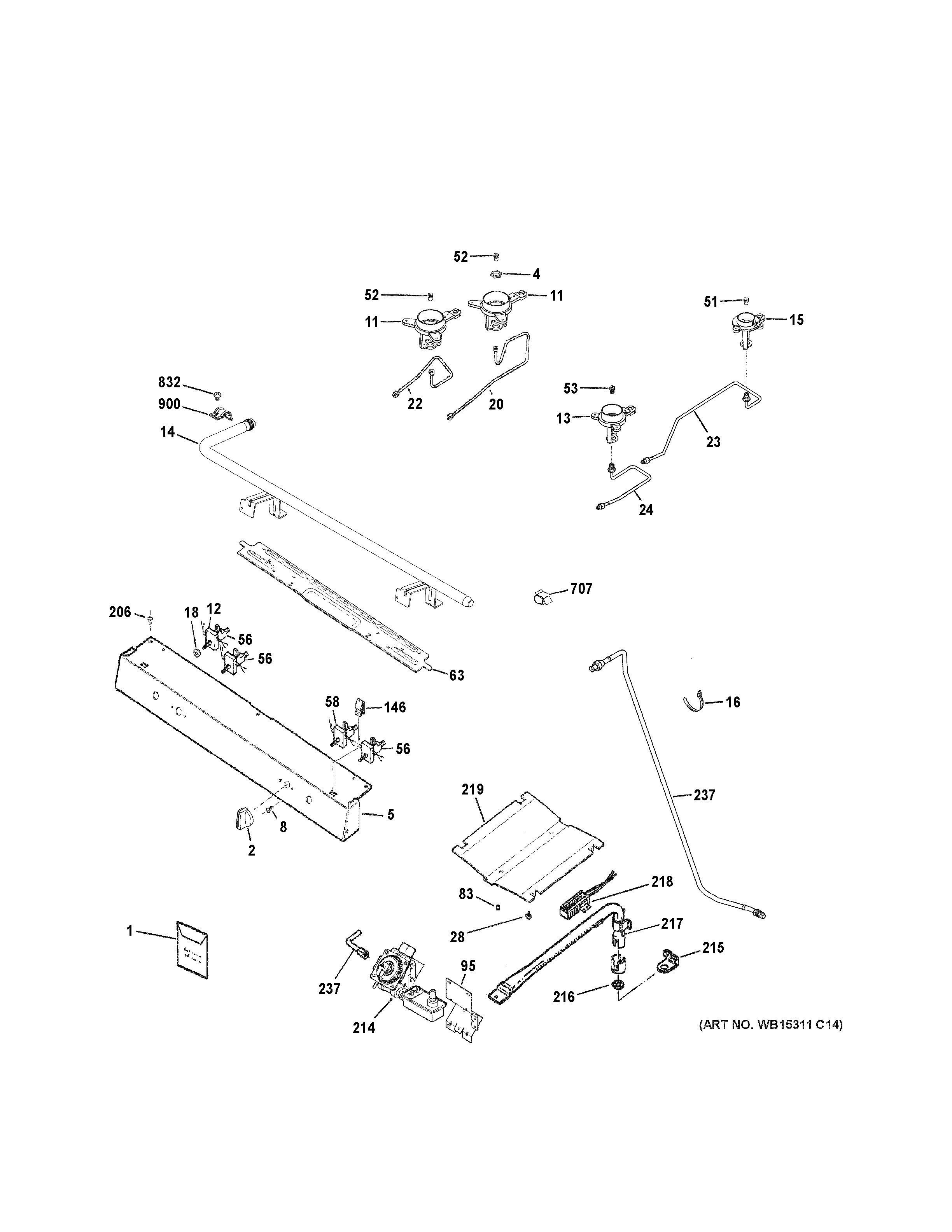

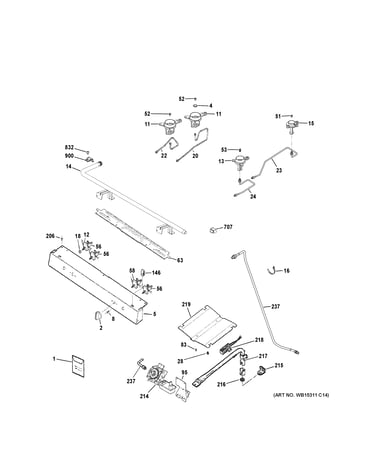

Gas & burner parts diagram
Bake burner ignitionPart #WB13K0021
Replaced by #WB13X40208
?Manufacturer substitutionThis part replaces WB13K0021. Substitute parts can look different from the original.$77.76 |7% OFF Phone Price : $83.76In Stock - #43
Body parts diagram
Range oven temperature sensorPart #WB20K10015
$47.47 |11% OFF Phone Price : $53.47In Stock - #150

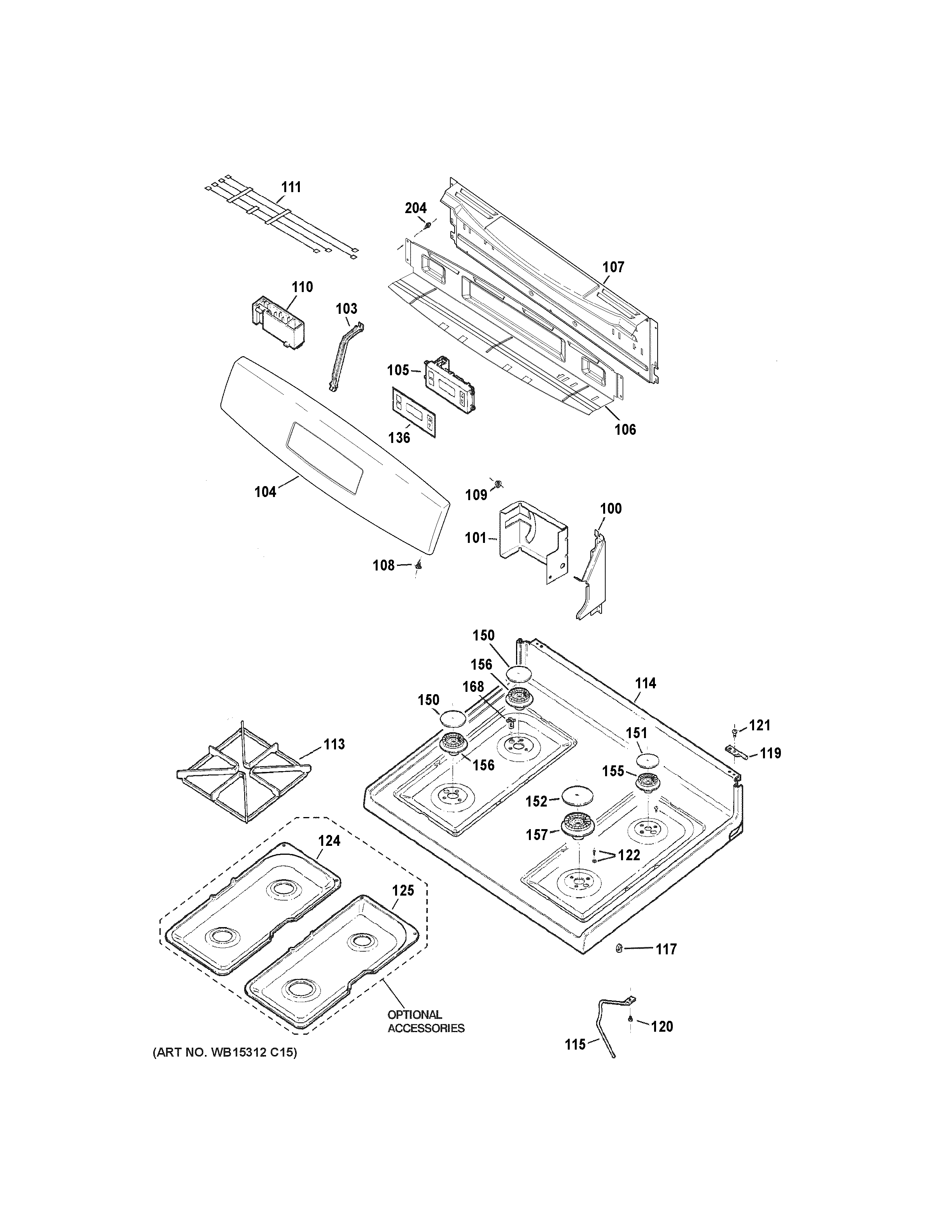

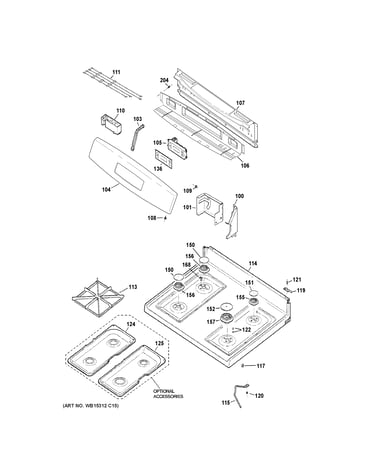

Control panel & cooktop diagram
Range surface burner capPart #WB29K10023
$22.76 |21% OFF Phone Price : $28.76In Stock - #28
Gas & burner parts diagram
Hex washer head screwPart #WB01K0050
Replaced by #WB1X1293
?Manufacturer substitutionThis part replaces WB01K0050. Substitute parts can look different from the original.This item is not returnable$8.70 |10% OFF Phone Price : $9.70In Stock - #338

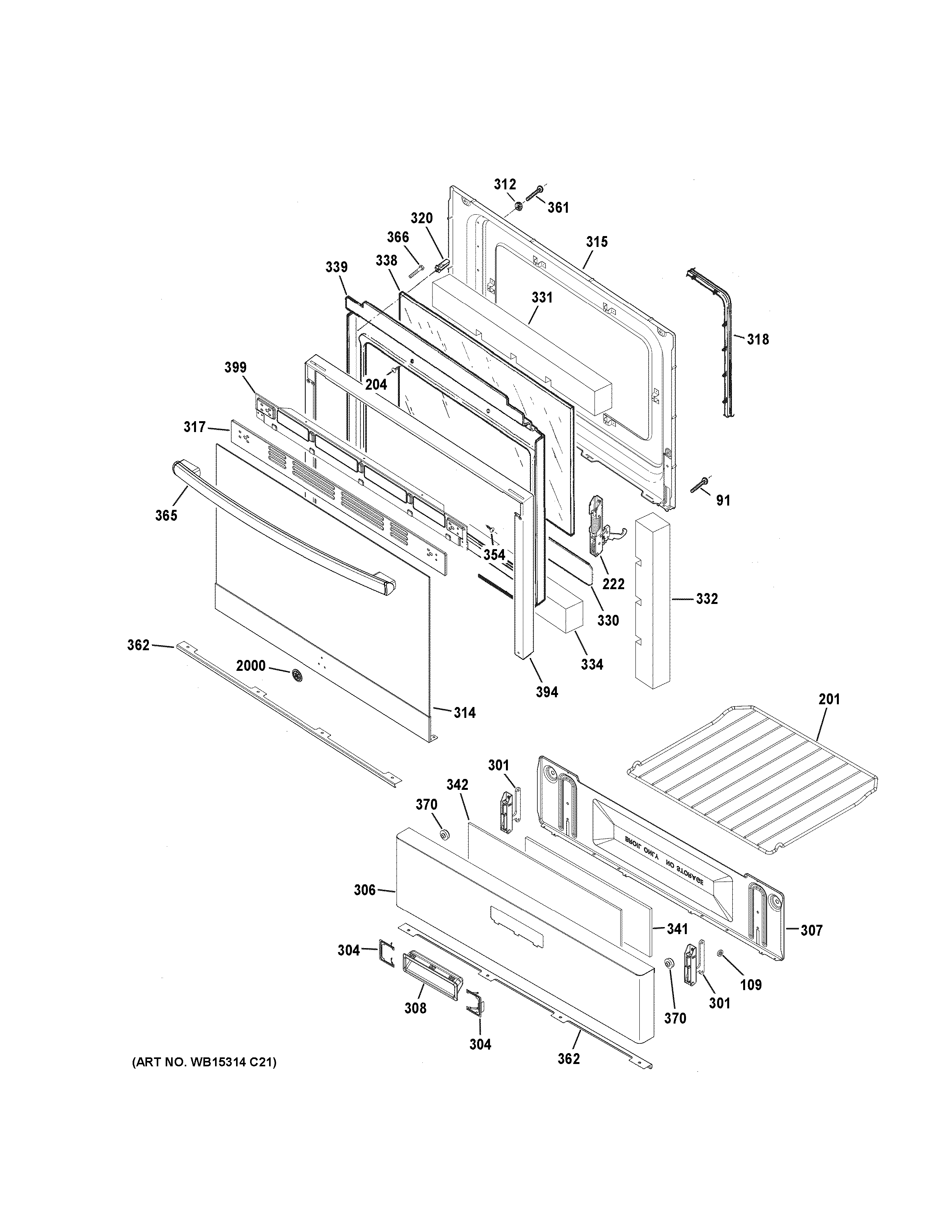

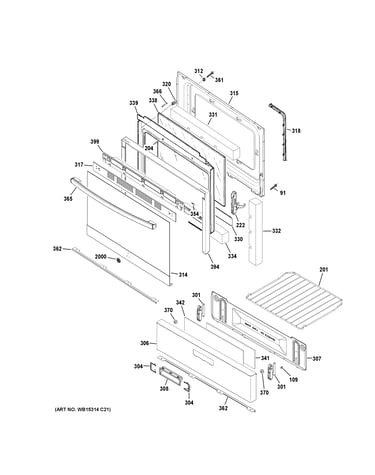

Door & drawer parts diagram
Range oven door outer glassPart #WB56X23809
$95.90 |11% OFF Phone Price : $107.90In Stock - #151
Control panel & cooktop diagram
Cap burner assemblyPart #WB29X24720
Replaced by #WB16X28654
?Manufacturer substitutionThis part replaces WB29X24720. Substitute parts can look different from the original.This item is not returnable$10.85 |16% OFF Phone Price : $12.85In Stock - #156
Control panel & cooktop diagram
Range surface burner, mediumPart #WB16X24724
This item is not returnable$23.67 |20% OFF Phone Price : $29.67In Stock - #230
Body parts diagram
Range light socketPart #WB08T10026
This item is not returnable$8.96 |10% OFF Phone Price : $9.96In Stock - #125
Control panel & cooktop diagram
Range drip pan, right (black)Part #WB34K10009
This item is not returnable$38.87 |13% OFF Phone Price : $44.87In Stock
