GE
Electric Range

Model # CHS900P3M2D1 Official GE electric range

Here are the diagrams and repair parts for Official GE CHS900P3M2D1 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

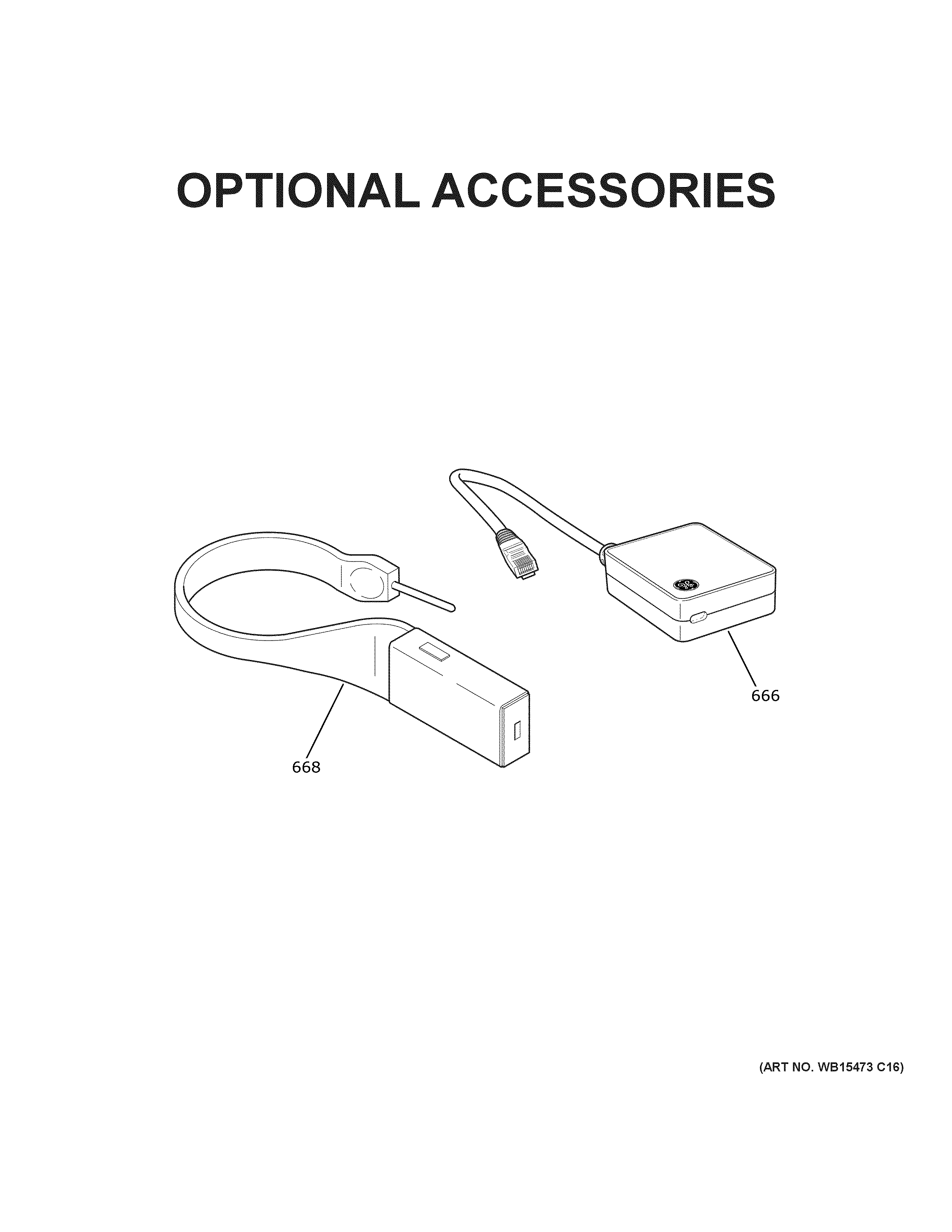

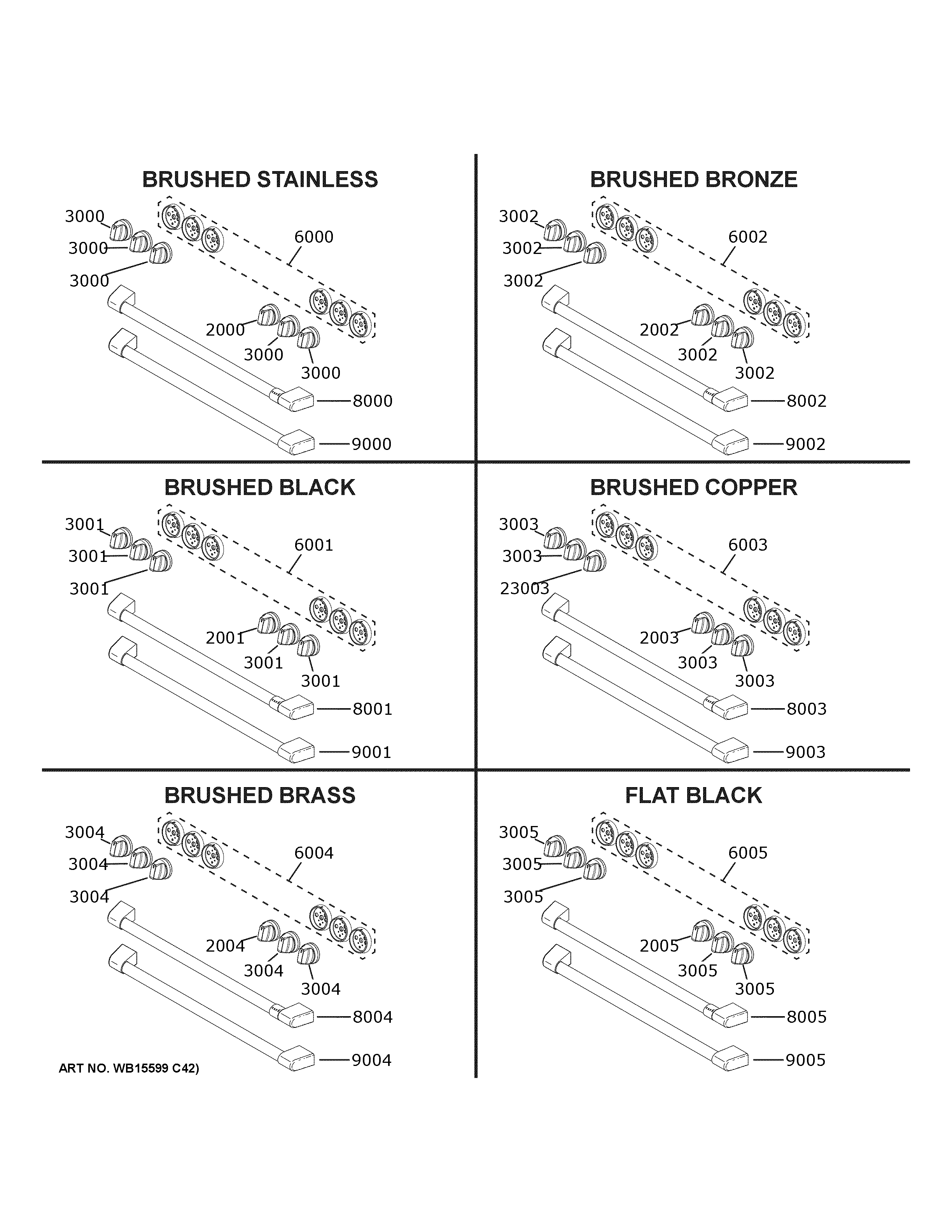

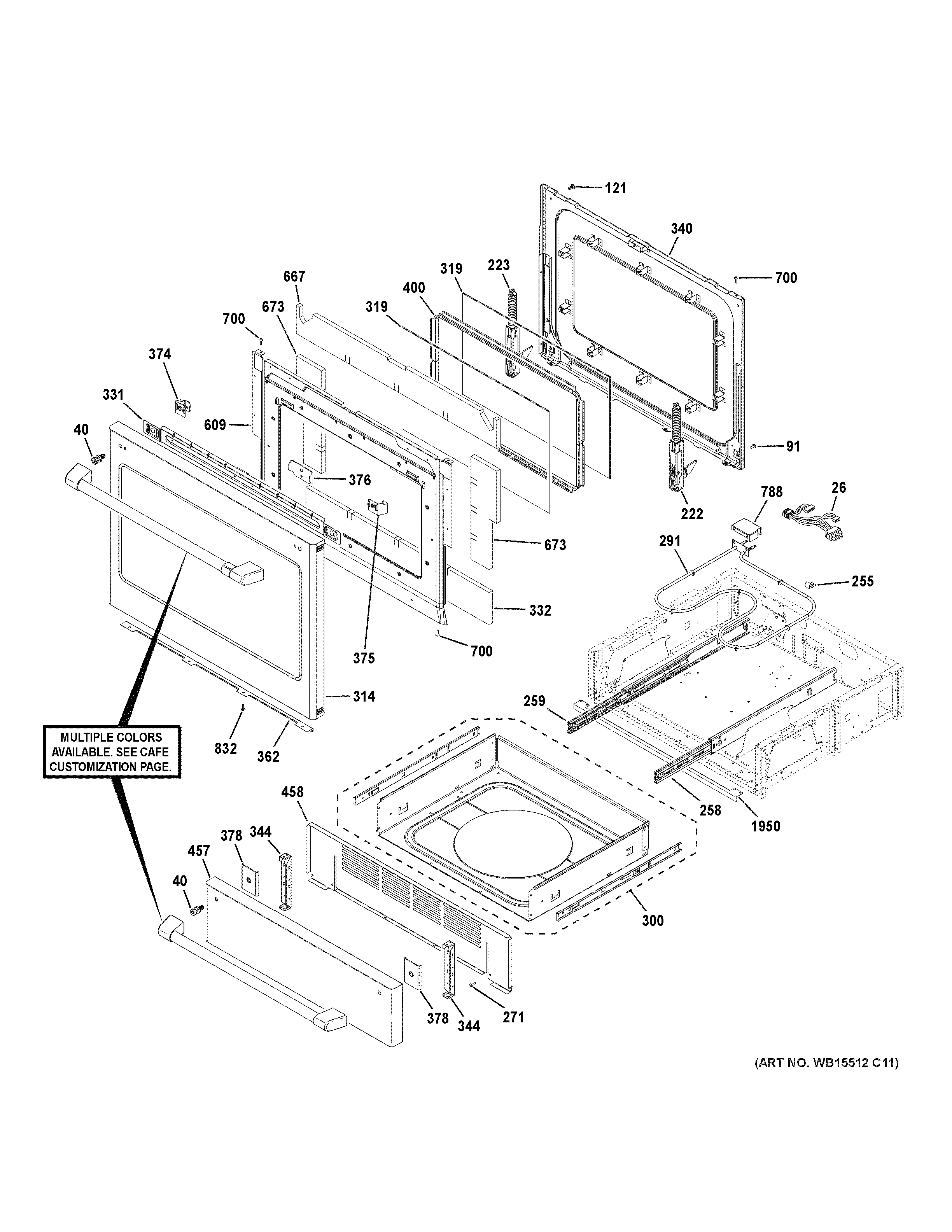

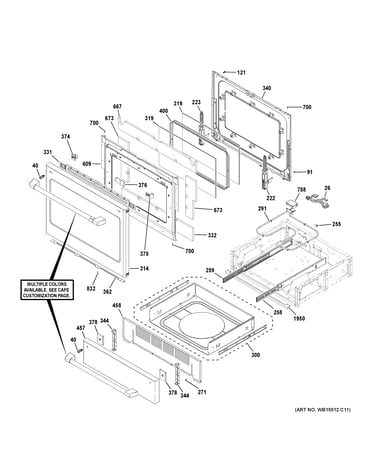

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Range Cooling Fan Sensor Board (replaces Wb27t11451, Wb27x23614) WB27X28659
#902

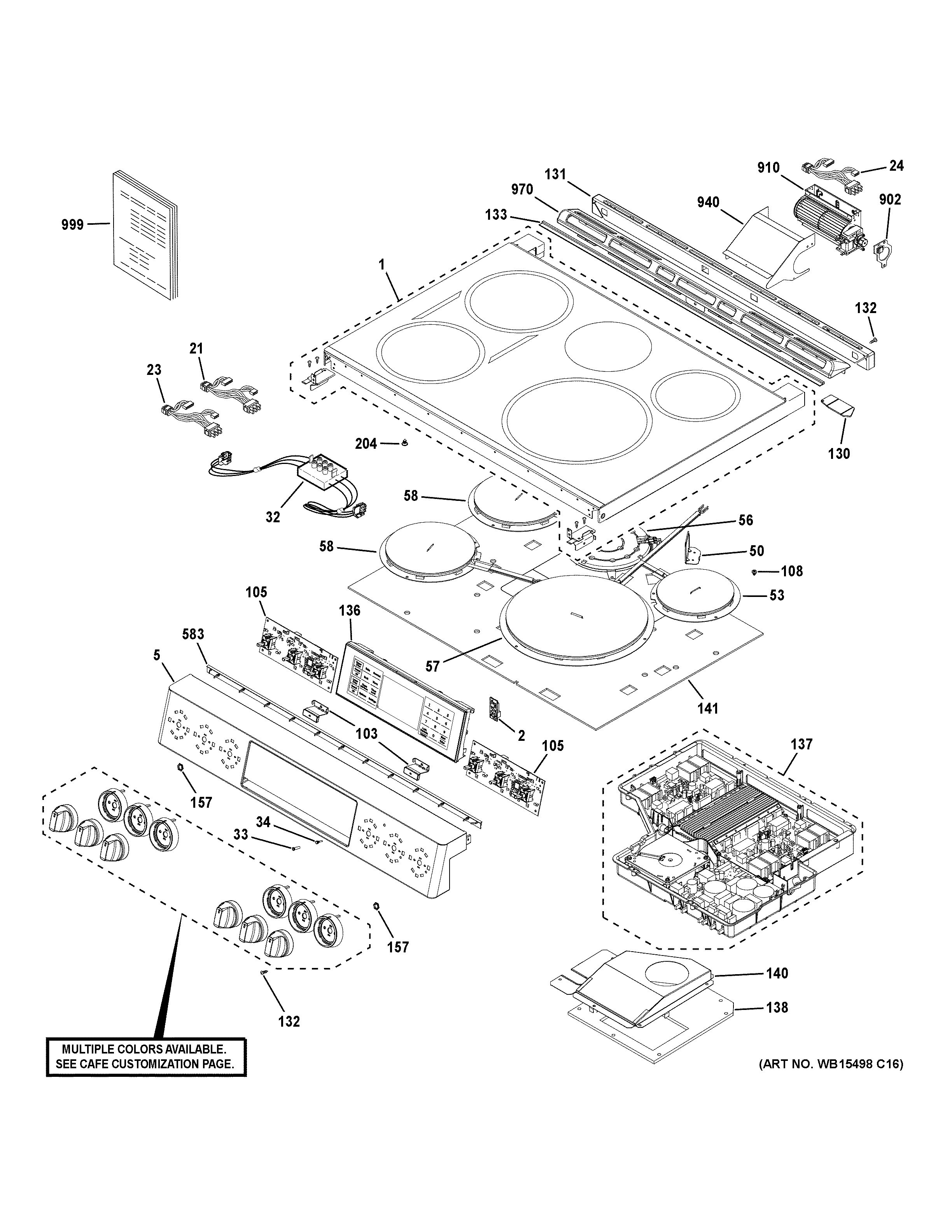

Control panel & cooktop diagram

Range cooling fan sensor board (replaces wb27t11451, wb27x23614)

Part #WB27X28659

BEST SELLER
This item is not returnable
$25.09 |
19% OFF Phone Price : $31.09
In Stock
Sensor WB24X5340
#43

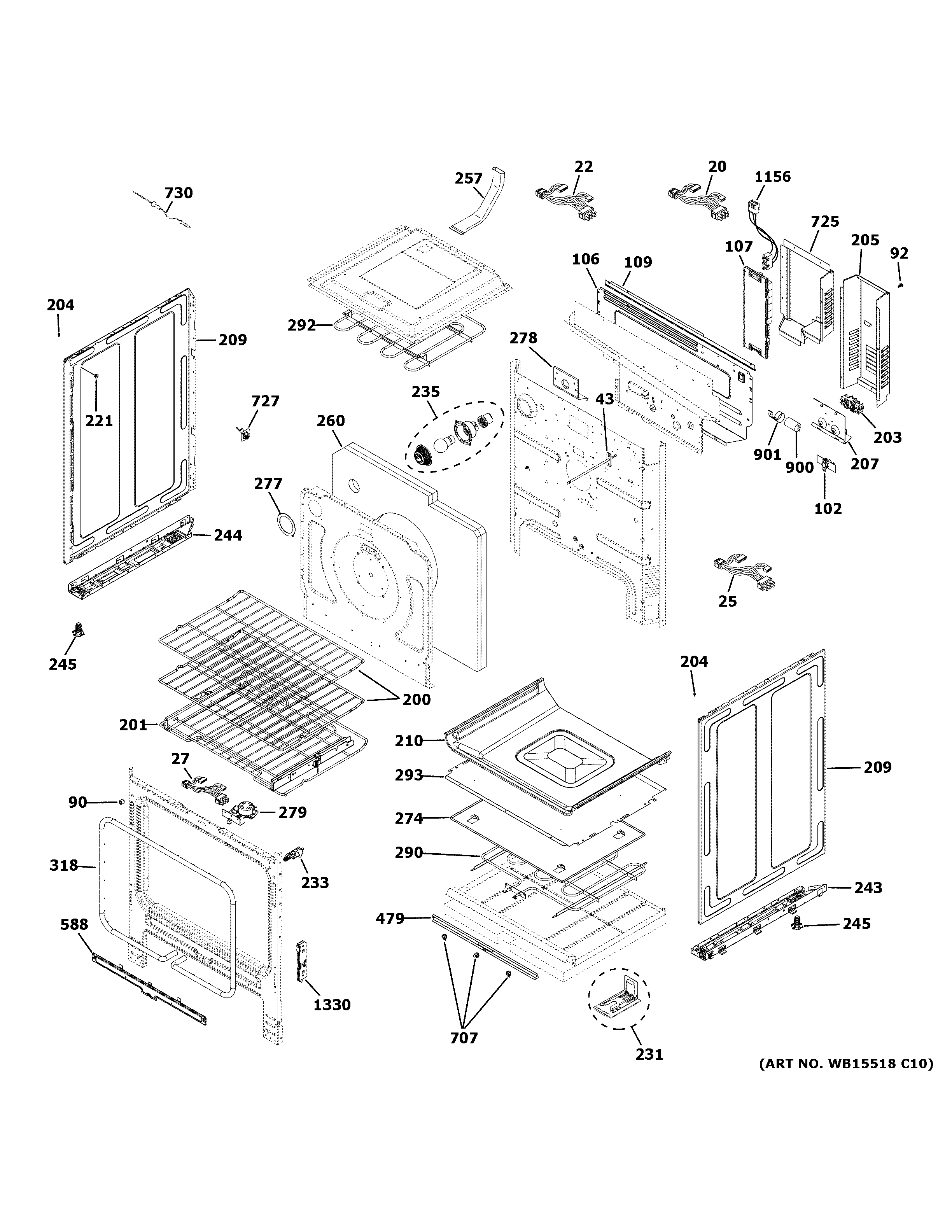

Body parts diagram

Sensor

Part #WB24X5340

Replaced by #WB23X5340

?
Manufacturer substitution
This part replaces WB24X5340. Substitute parts can look different from the original.
BEST SELLER
$129.99 |
8% OFF Phone Price : $141.99
In Stock
Blower Tangential WB26X29060
#910

Control panel & cooktop diagram

Blower tangential

Part #WB26X29060

Replaced by #WB26X32571

?
Manufacturer substitution
This part replaces WB26X29060. Substitute parts can look different from the original.
BEST SELLER
$139.96 |
8% OFF Phone Price : $151.96
In Stock
Nut WB02T10017
#729

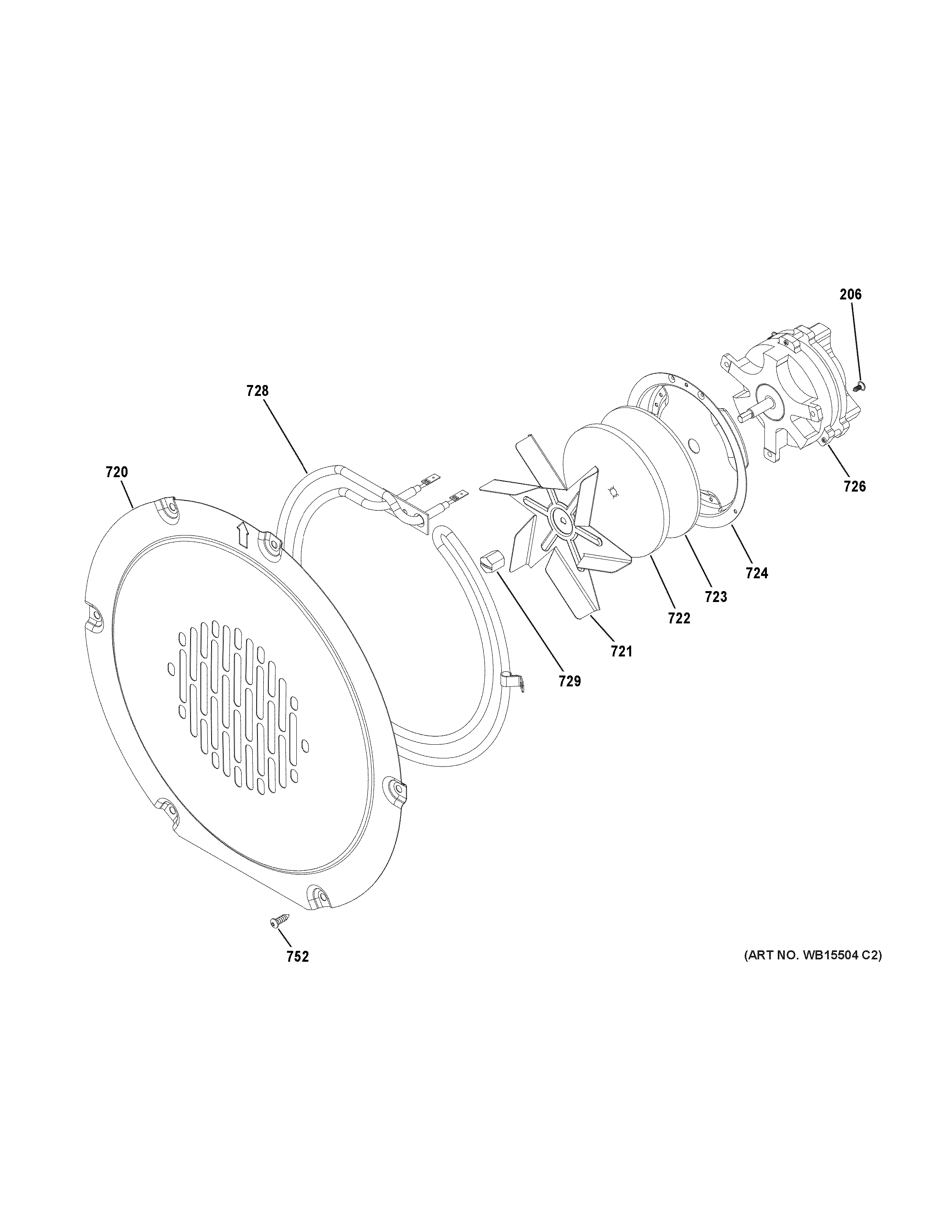

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Led / Encoder Board Kit WB27X32505
#105

Control panel & cooktop diagram

Led / encoder board kit

Part #WB27X32505

$257.85
In Stock
Element WB30X21490
#58

Control panel & cooktop diagram

Element

Part #WB30X21490

Replaced by #WB30X38226

?
Manufacturer substitution
This part replaces WB30X21490. Substitute parts can look different from the original.
$100.60
In Stock
Range Convection Fan Blade WB2X8351
#721

Convection fan diagram

Range convection fan blade

Part #WB2X8351

This item is not returnable
$24.28 |
20% OFF Phone Price : $30.28
In Stock
Board Wifi Cat Module WB27X29798
#2

Control panel & cooktop diagram

Board wifi cat module

Part #WB27X29798

Replaced by #WB27X33353

?
Manufacturer substitution
This part replaces WB27X29798. Substitute parts can look different from the original.
$46.78 |
11% OFF Phone Price : $52.78
In Stock
Bake Element WB44X21178
#290

Body parts diagram

Bake element

Part #WB44X21178

$123.28
In Stock
Element Induction 3700w WB30X28699
#57

Control panel & cooktop diagram

Element induction 3700w

Part #WB30X28699

$223.36
In Stock
