Model # 973271990 Official Craftsman 1/2" cordless drill/driver

Here are the diagrams and repair parts for Official Craftsman 973271990 1/2" cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

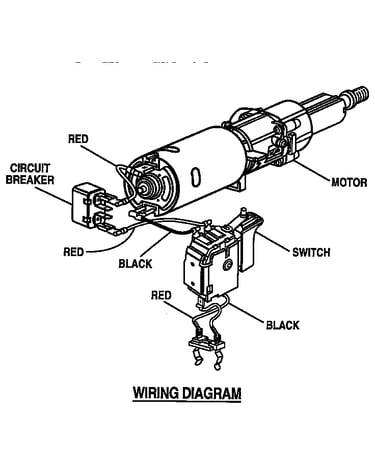

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Ckt Breakr 975459-000
#6

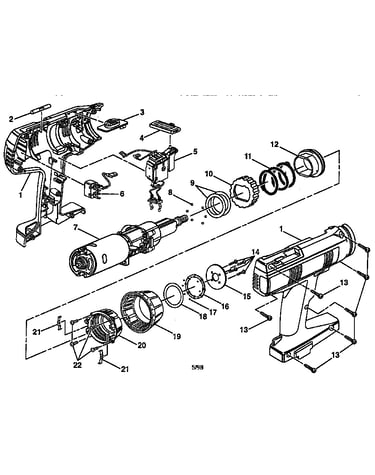

Motor and housing assembly diagram

Ckt breakr

Part #975459-000

The manufacturer no longer makes this part, and there's no substitute part

Retainer 974401-000
#15

Motor and housing assembly diagram

Retainer

Part #974401-000

The manufacturer no longer makes this part, and there's no substitute part

Charger 975283-001
#7

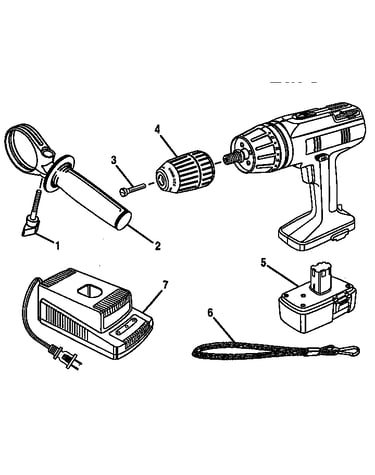

Unit parts diagram

Charger

Part #975283-001

The manufacturer no longer makes this part, and there's no substitute part

Spring 975455-000
#11

Motor and housing assembly diagram

Spring

Part #975455-000

The manufacturer no longer makes this part, and there's no substitute part

Wing Screw 975377-000
#1

Unit parts diagram

Wing screw

Part #975377-000

The manufacturer no longer makes this part, and there's no substitute part

Clutch Hub 975456-000
#12

Motor and housing assembly diagram

Clutch hub

Part #975456-000

The manufacturer no longer makes this part, and there's no substitute part

Ring 975458-000
#10

Motor and housing assembly diagram

Ring

Part #975458-000

The manufacturer no longer makes this part, and there's no substitute part

Washer 974368-000
#18

Motor and housing assembly diagram

Washer

Part #974368-000

The manufacturer no longer makes this part, and there's no substitute part

Housing 975451-000
#1

Motor and housing assembly diagram

Housing

Part #975451-000

The manufacturer no longer makes this part, and there's no substitute part

Carry Case 975388-000
#8

Unit parts diagram

Carry case

Part #975388-000

The manufacturer no longer makes this part, and there's no substitute part
