Model # TAX4DNTWH Official GE refrigerator - t series

Here are the diagrams and repair parts for Official GE TAX4DNTWH refrigerator - t series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Dryer Assembly WR86X86
Dryer assembly

Part #WR86X86

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X86. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Power Cord WR23X108
Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Screw Com WR1X1979
#37

Unit parts diagram

Screw com

Part #WR1X1979

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Compressor WR87K01
#36

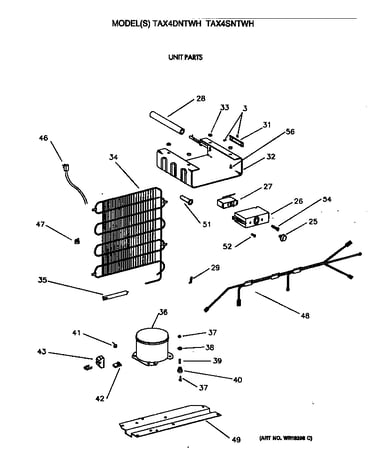

Unit parts diagram

Refrigerator compressor

Part #WR87K01

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Relay WR7K01

#NI

All parts diagram

Refrigerator relay

Part #WR7K01

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Freezer Door Shelf Rail WR71K03
#8

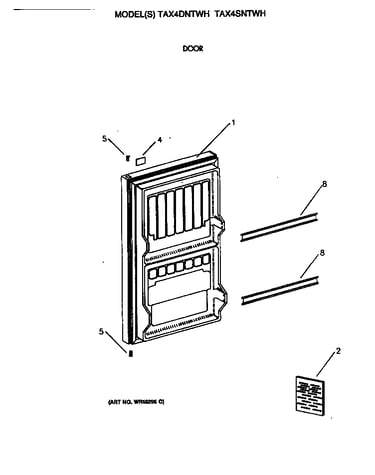

Door diagram

Refrigerator freezer door shelf rail

Part #WR71K03

The manufacturer no longer makes this part, and there's no substitute part

Pan Veg 3.7' Sanyo WR32K03
#60

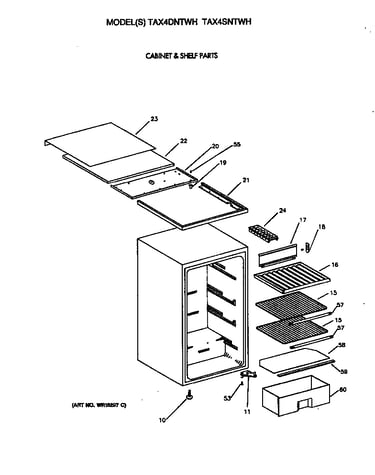

Cabinet & shelf parts diagram

Pan veg 3.7' sanyo

Part #WR32K03

The manufacturer no longer makes this part, and there's no substitute part

Cover Veg Pan WR32K01
#58

Cabinet & shelf parts diagram

Cover veg pan

Part #WR32K01

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Use And Care Guide 49-6798
#999

Door diagram

Refrigerator use and care guide

Part #49-6798

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Trim WR17X2906
#21

Cabinet & shelf parts diagram

Refrigerator trim

Part #WR17X2906

The manufacturer no longer makes this part, and there's no substitute part
