Model # GDE9900 Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag GDE9900 washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

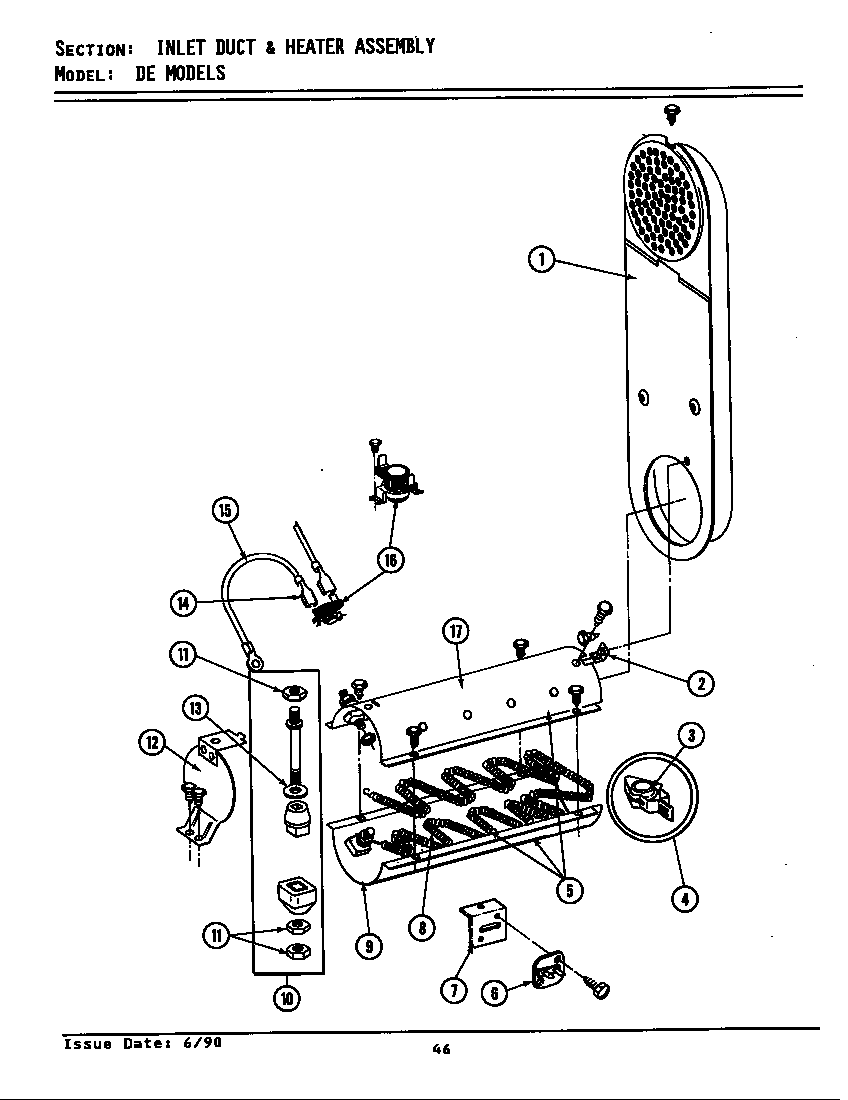

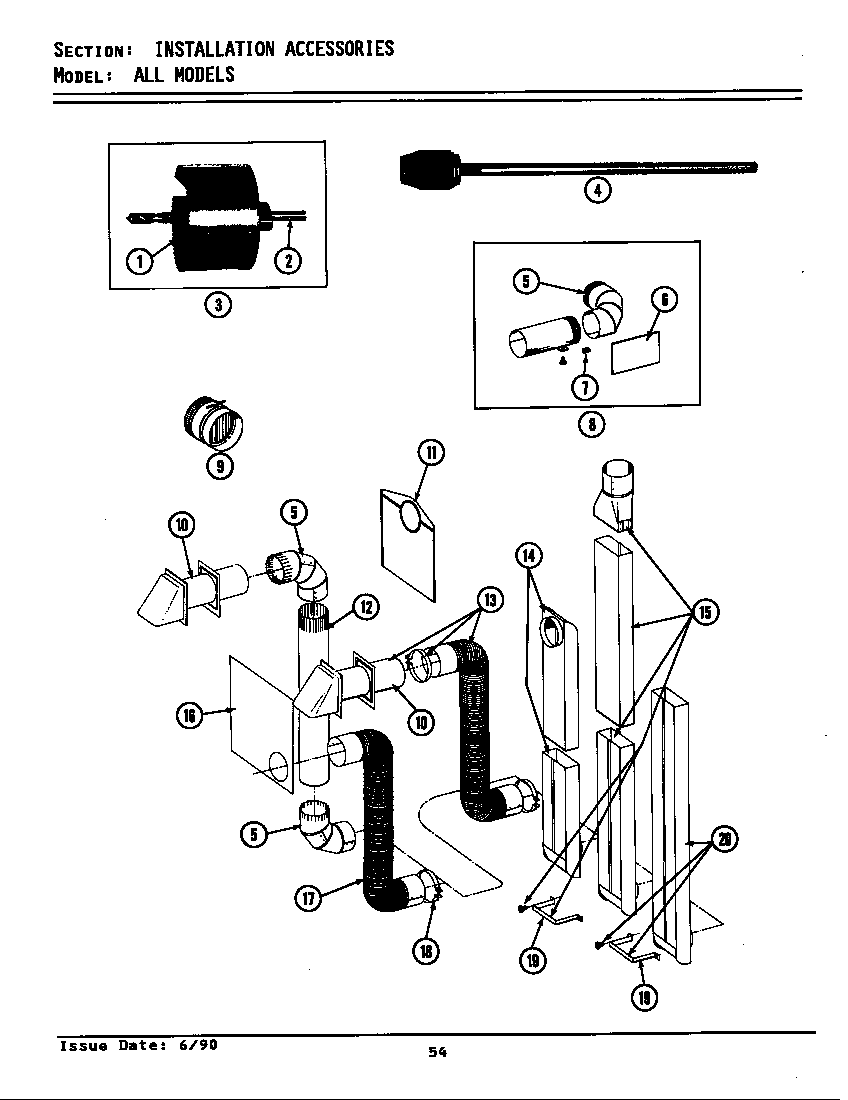

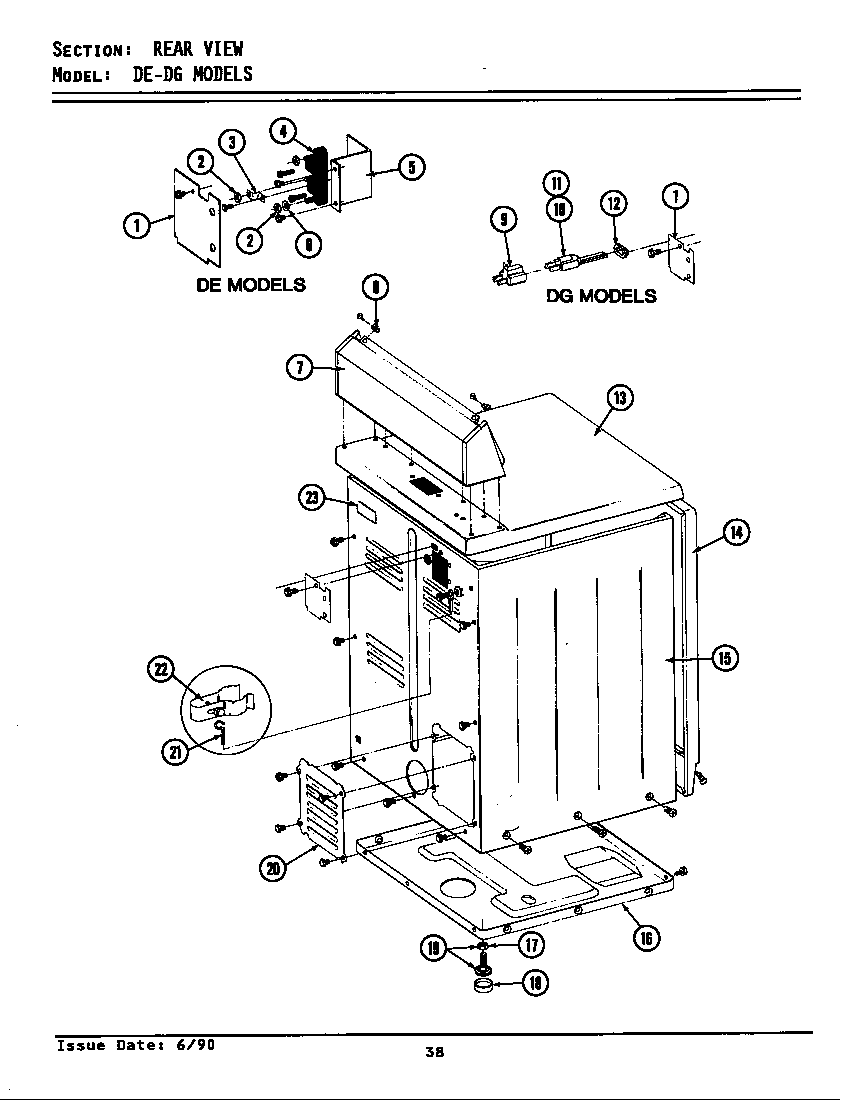

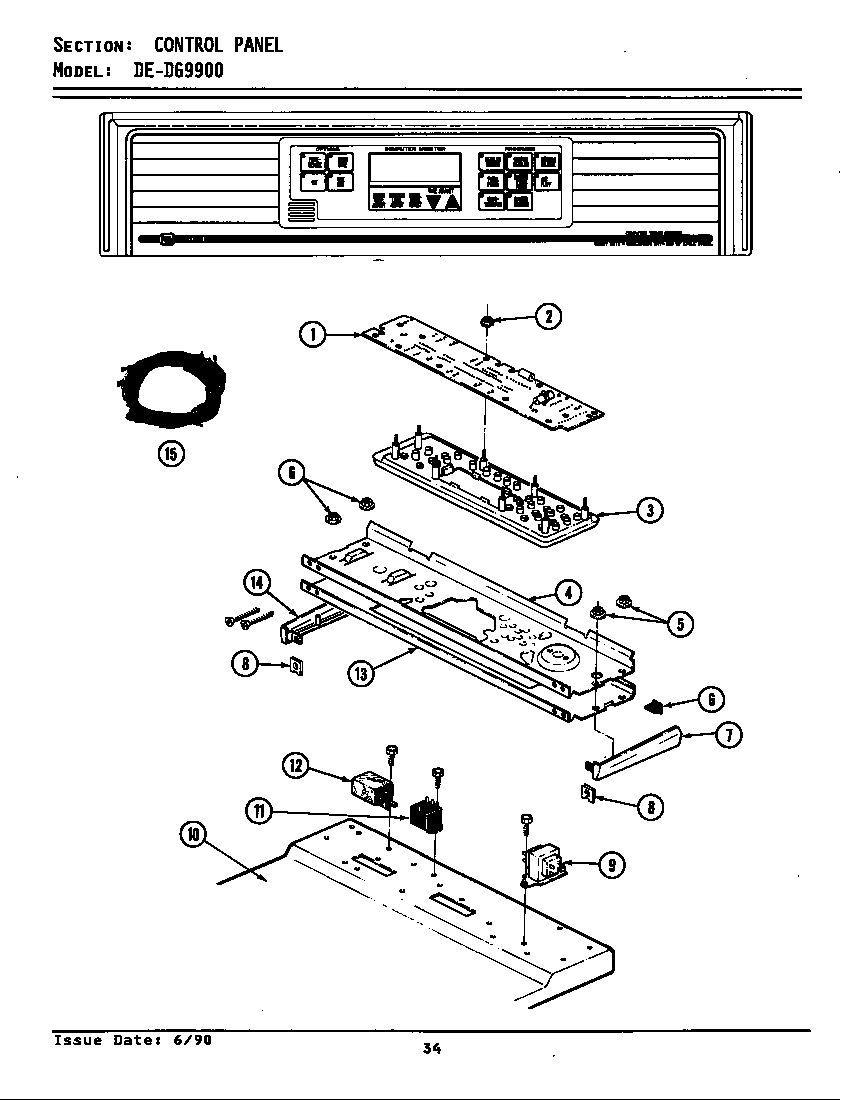

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 173 parts  |
Roller W/bea 303373
#16

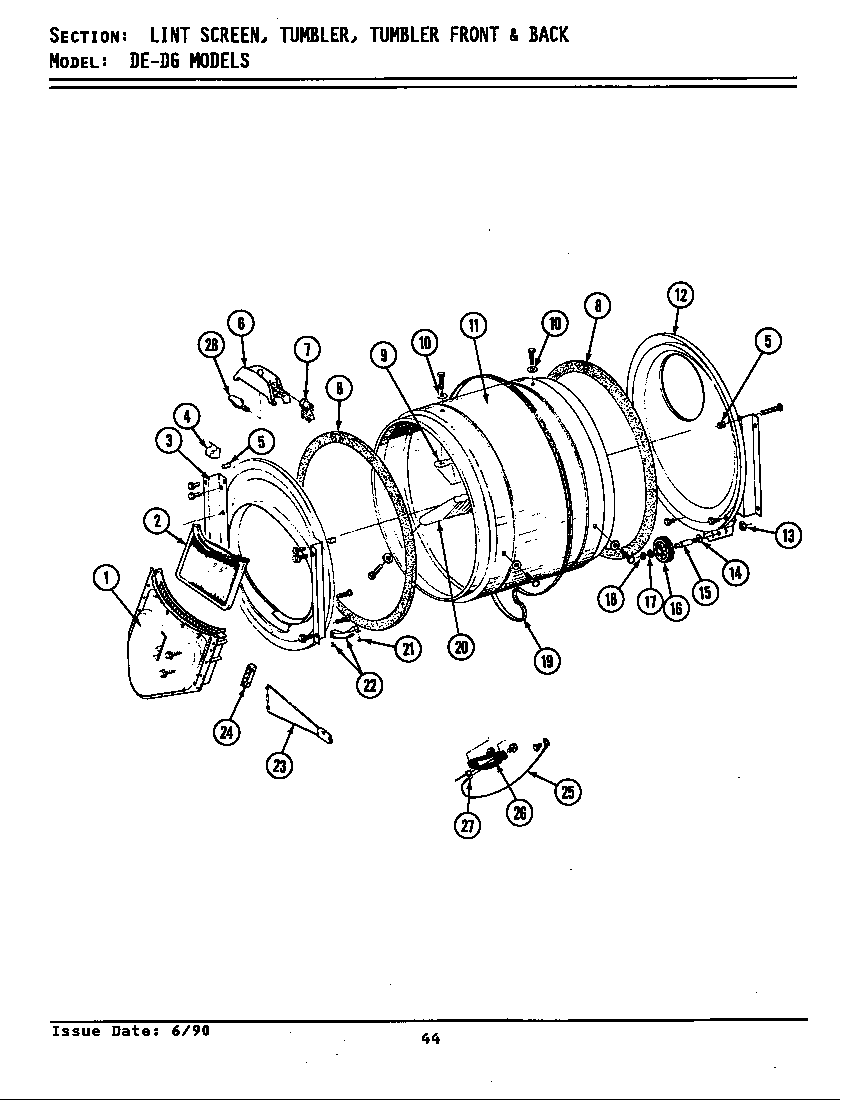

Lint screen, tumbler (front & back) diagram

Roller w/bea

Part #303373

Replaced by #12001541

?
Manufacturer substitution
This part replaces 303373. Substitute parts can look different from the original.
BEST SELLER
$27.69 |
18% OFF Phone Price : $33.69
In Stock
Impeller 303836
#3

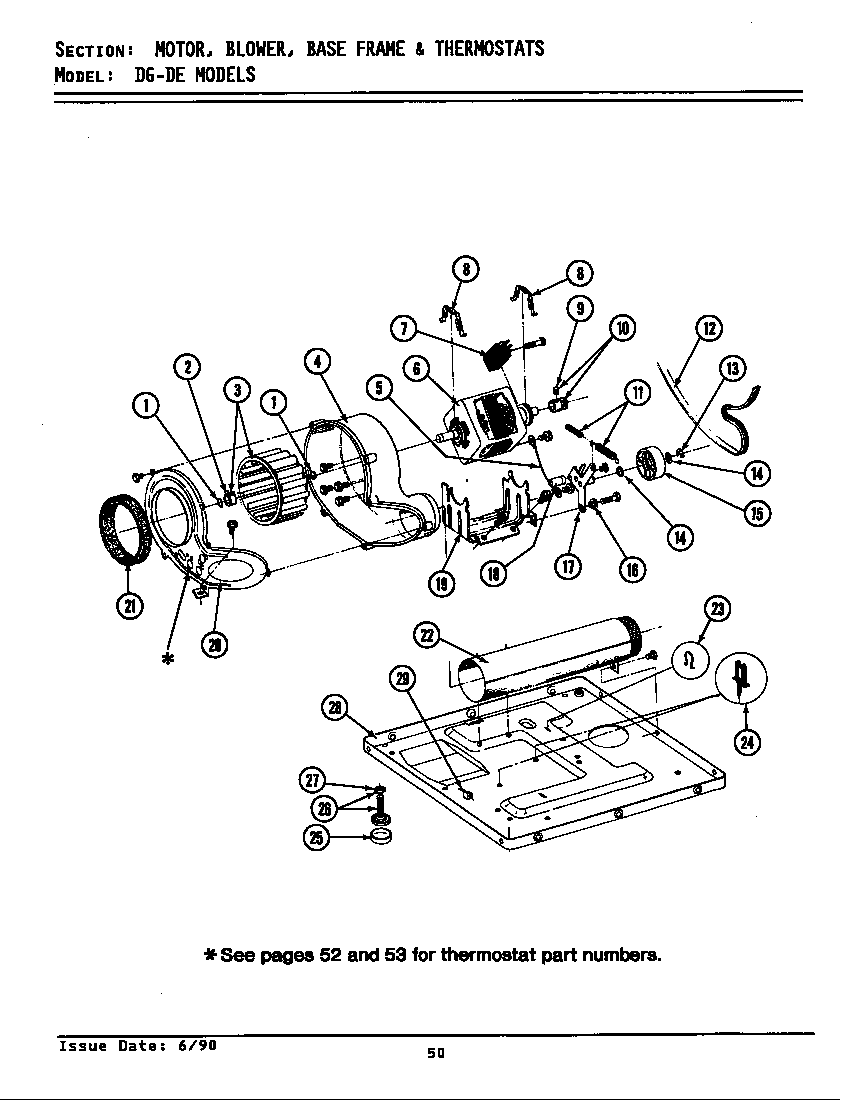

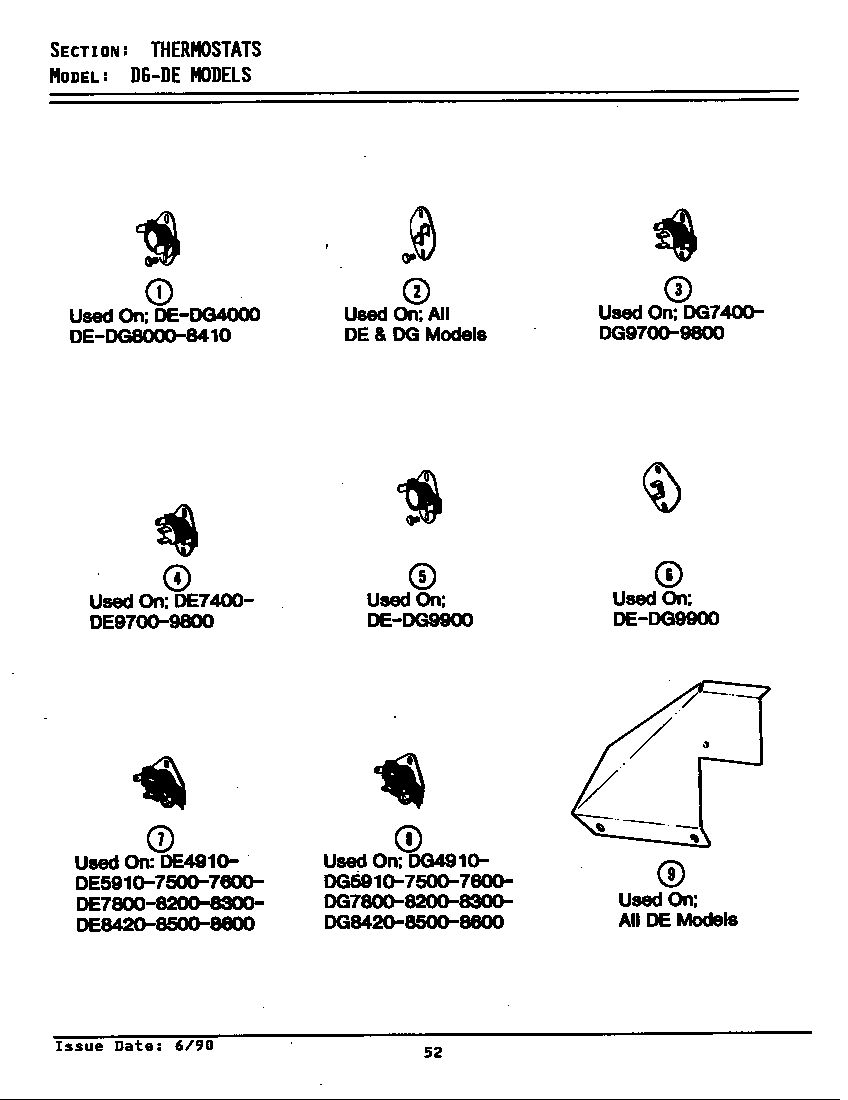

Motor, blower, base frame & thermostats diagram

Impeller

Part #303836

Replaced by #Y303836

?
Manufacturer substitution
This part replaces 303836. Substitute parts can look different from the original.
BEST SELLER
$22.39 |
21% OFF Phone Price : $28.39
In Stock
Dryer Drum Belt 312959
Dryer drum belt

Part #312959

Replaced by #WPY312959

?
Manufacturer substitution
This part replaces 312959. Substitute parts can look different from the original.
BEST SELLER
$31.25 |
16% OFF Phone Price : $37.25
In Stock
Dryer Drum Support Roller Retainer 410233
Dryer drum support roller retainer

Part #410233

Replaced by #WP9703438

?
Manufacturer substitution
This part replaces 410233. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.79 |
21% OFF Phone Price : $4.79
In Stock
Dryer Drum Bearing Kit (replaces 312940, 312941) 306508
#22

Lint screen, tumbler (front & back) diagram

Dryer drum bearing kit (replaces 312940, 312941)

Part #306508

BEST SELLER
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Tumbler Shaft 312948
#15

Lint screen, tumbler (front & back) diagram

Tumbler shaft

Part #312948

Replaced by #WP6-3129480

?
Manufacturer substitution
This part replaces 312948. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.19 |
12% OFF Phone Price : $8.19
In Stock
Screw 313559
Screw

Part #313559

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 313559. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Washer Screw 211294
Washer screw

Part #211294

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 211294. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Door Switch 305753
#10

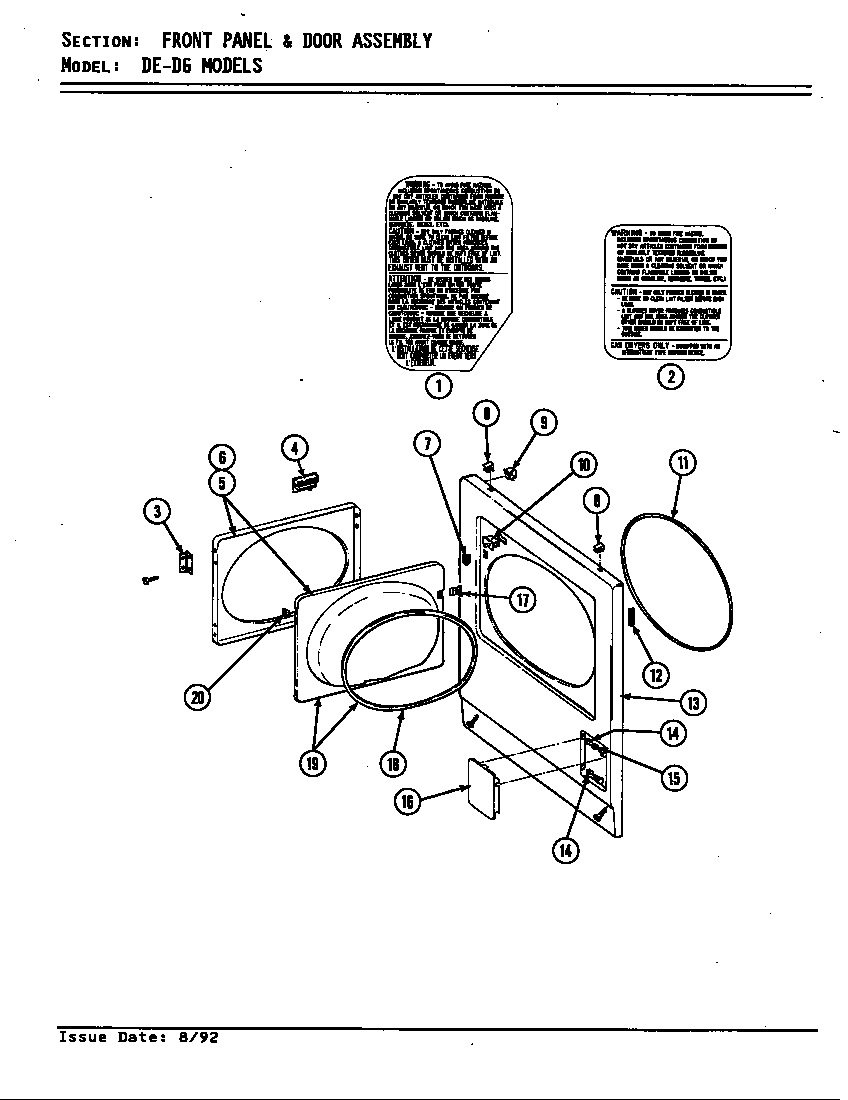

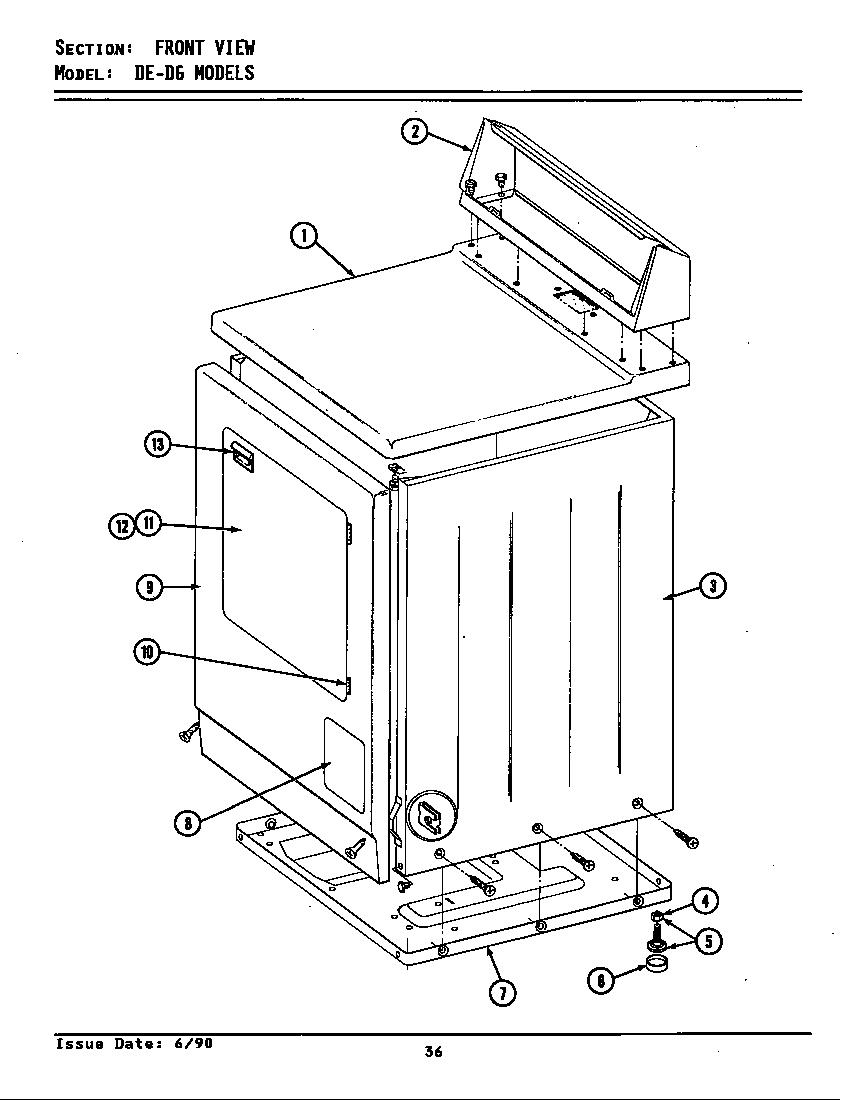

Front panel & door assembly diagram
