Model # 12-3219-00-01 Official Tappan gas wall oven - lt32489290
Here are the diagrams and repair parts for Official Tappan 12-3219-00-01 gas wall oven - lt32489290, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

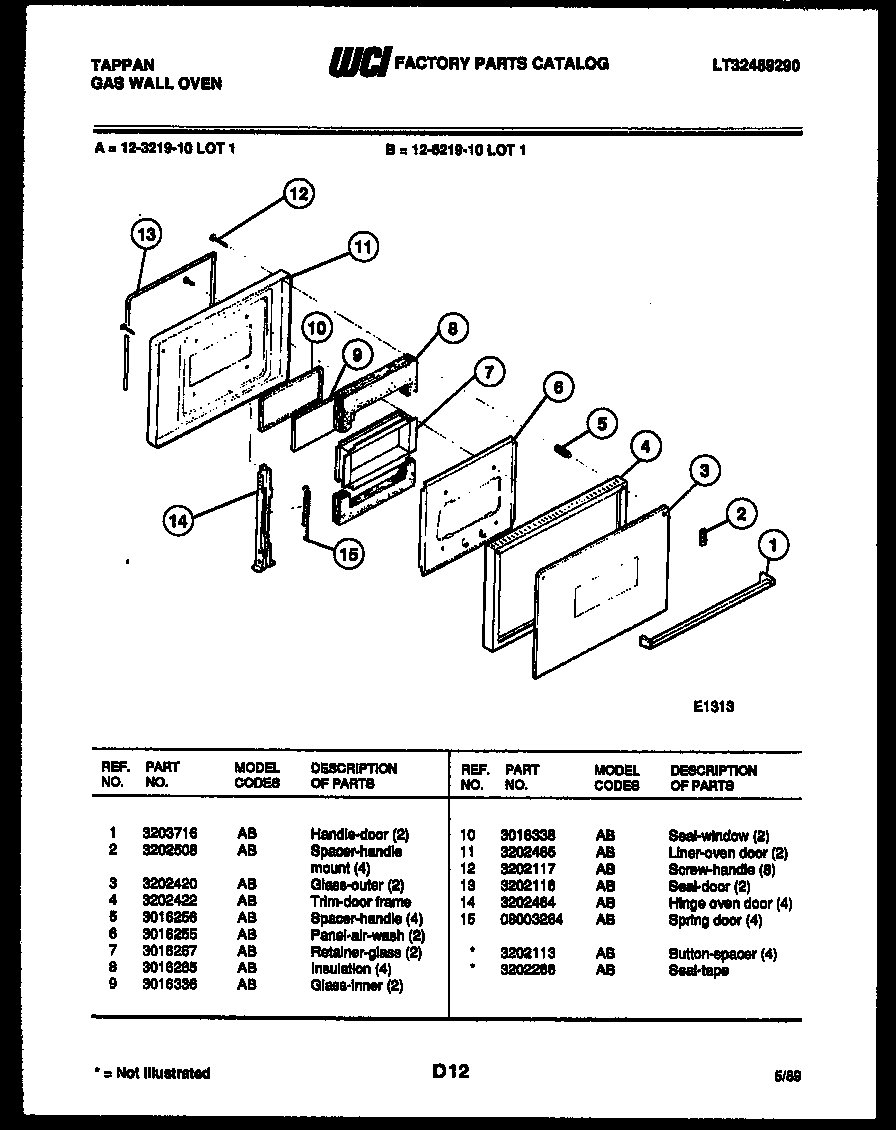

SELECT DIAGRAM
Browse Parts for
12-3219-00-01 Wall Ovens
#8

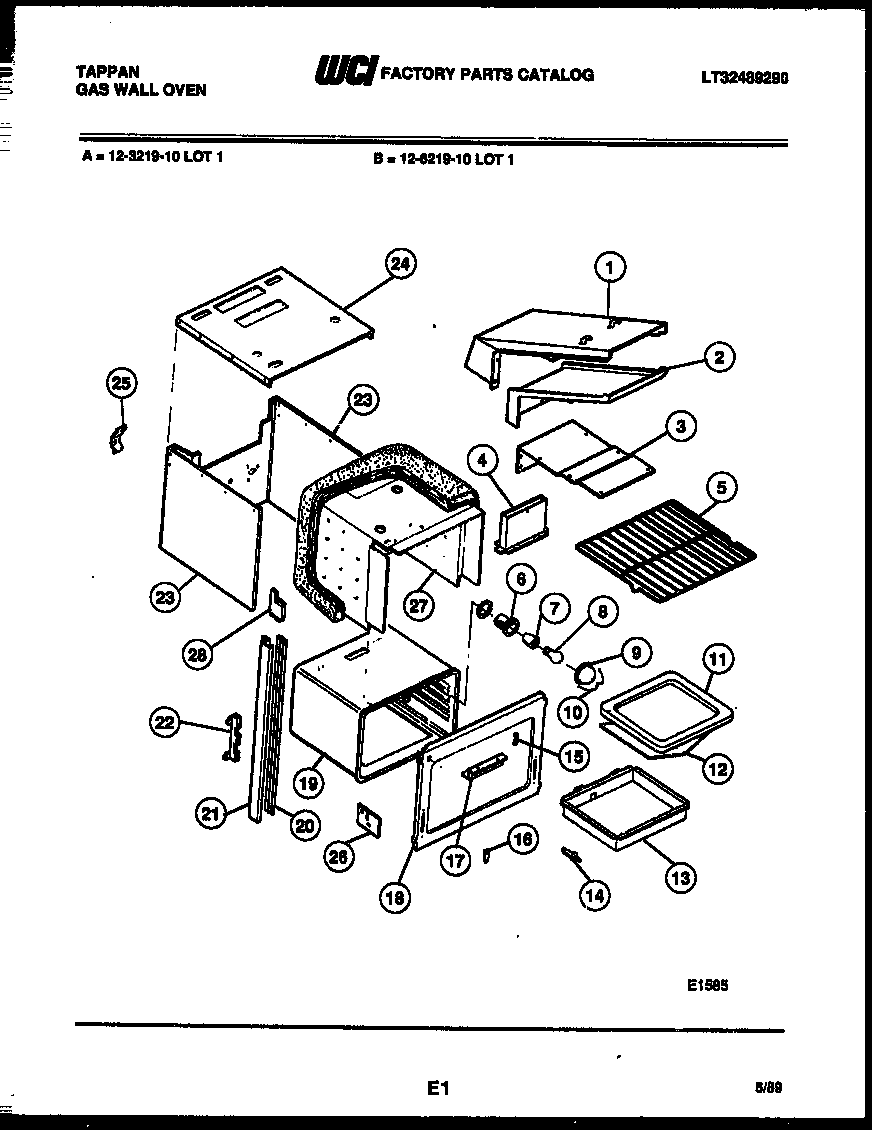

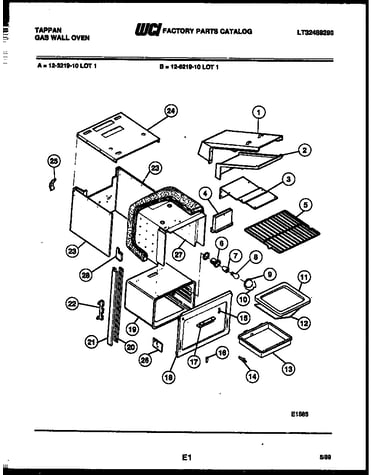

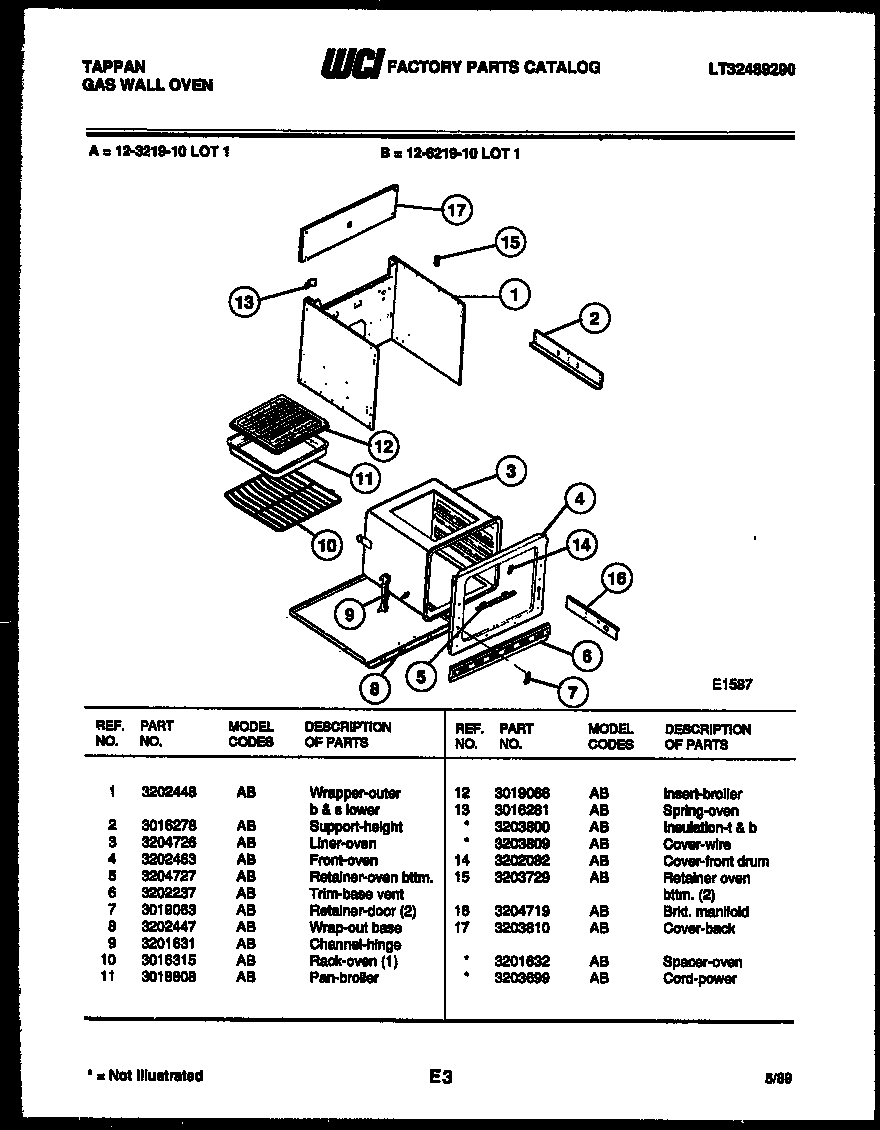

Body parts diagram
Light
Part #3013071
Replaced by #316538904
?
Manufacturer substitution
This part replaces 3013071. Substitute parts can look different from the original.
$15.66 |
11% OFF Phone Price : $17.66
In Stock
#9
Body parts diagram
Cover
Part #08011086
Replaced by #5304524341
?
Manufacturer substitution
This part replaces 08011086. Substitute parts can look different from the original.
$13.90 |
13% OFF Phone Price : $15.90
In Stock
#12

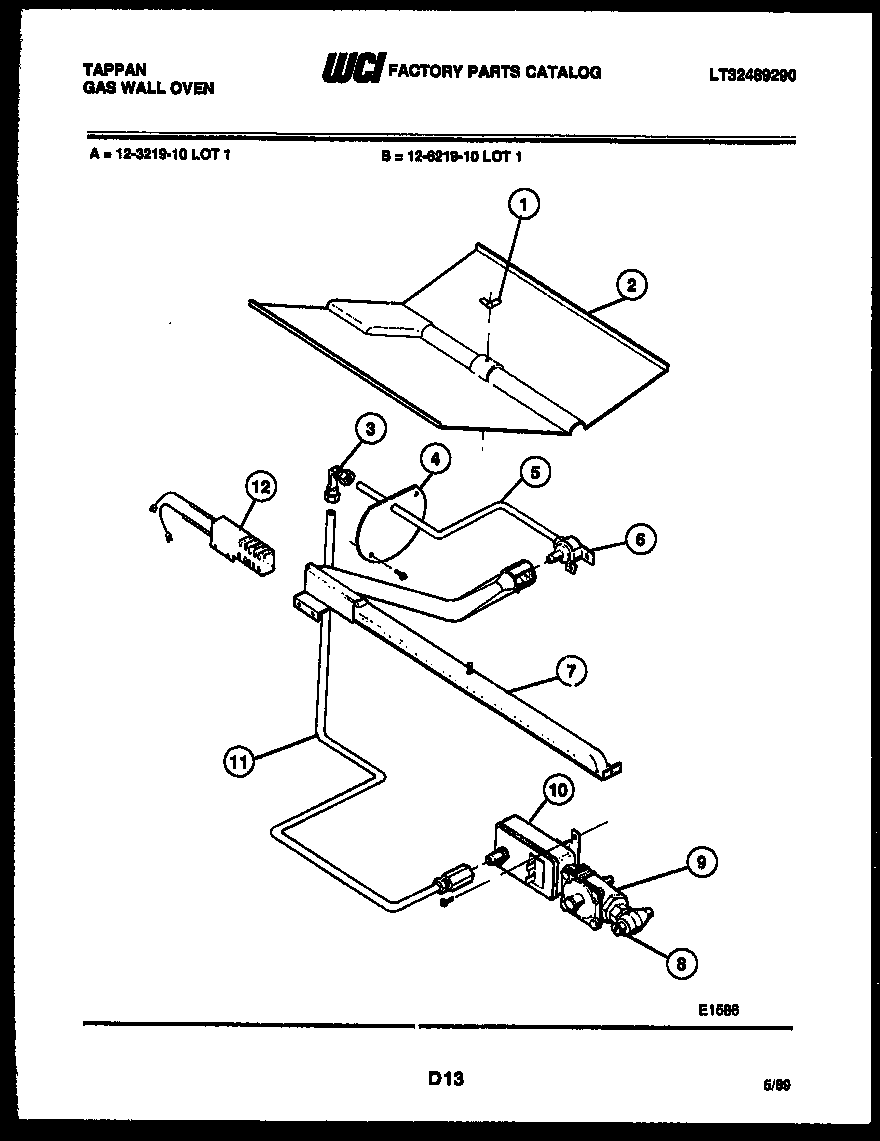

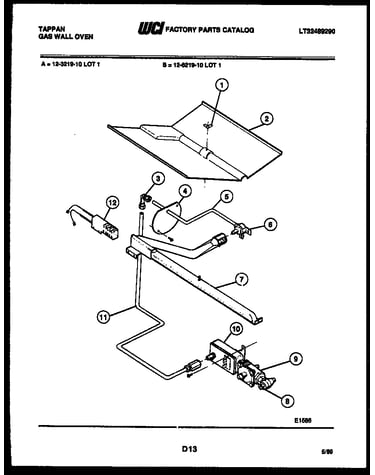

Gas control diagram
Igniter
Part #3204718
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
White-westinghouse cord
Part #3203699
$45.65
In Stock
Wall oven door hinge receiver
Part #3201631
$114.40
In Stock
#11
Gas control diagram
Tube
Part #3203805
$14.99
In Stock
#3
Body parts diagram
White-westinghouse shield
Part #3203686
$10.99
In Stock
#7
Body parts diagram
Receptacle
Part #08011085
Replaced by #316116400
?
Manufacturer substitution
This part replaces 08011085. Substitute parts can look different from the original.
$42.01 |
12% OFF Phone Price : $48.01
In Stock
#9

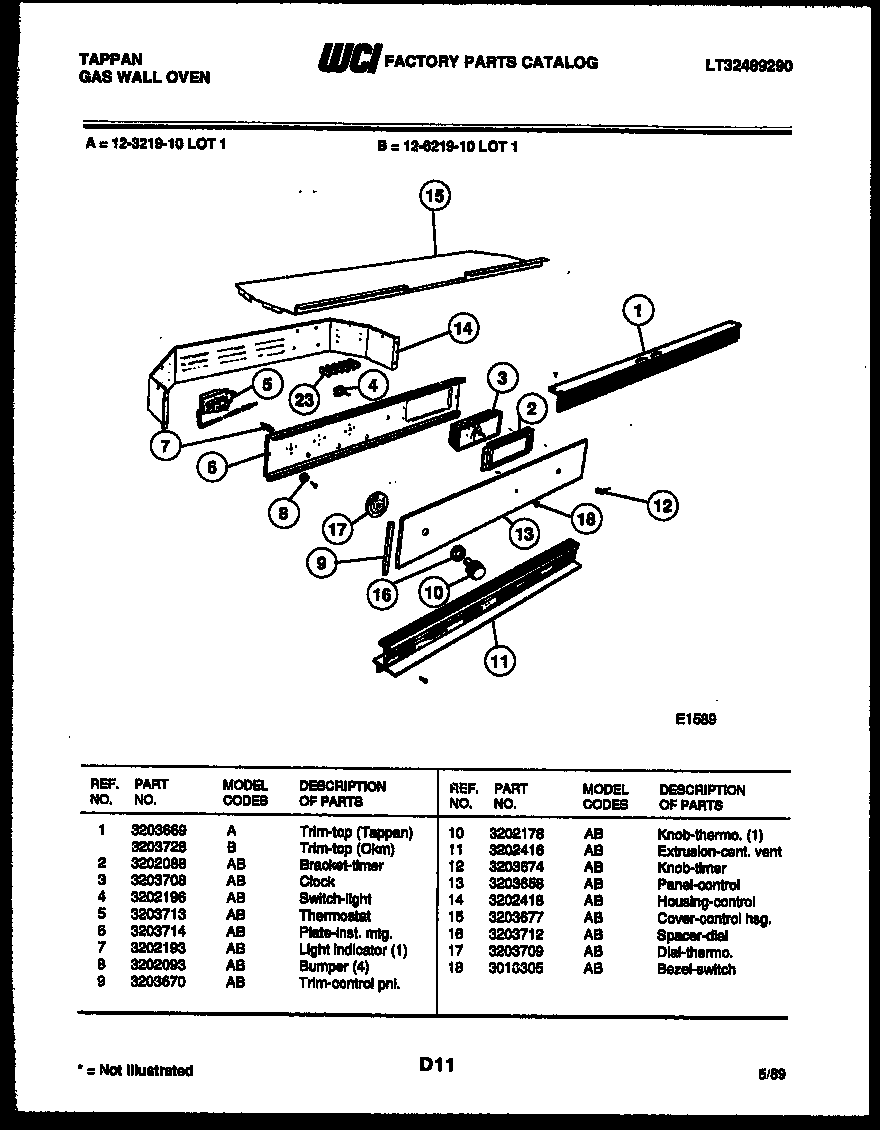

Control panel diagram
Trim
Part #3203670
Replaced by #08017099
?
Manufacturer substitution
This part replaces 3203670. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Rack
Part #3016315
Replaced by #318345216
?
Manufacturer substitution
This part replaces 3016315. Substitute parts can look different from the original.
$78.17 |
7% OFF Phone Price : $84.17
In Stock
Most common symptoms to help you fix your wall oven
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Most common repair guides to help fix your wall oven
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
How to replace a wall oven door outer glass panel
Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …
Repair difficulty
Time required
45 minutes or less
How to replace a wall oven control thermostat
Get your oven temperature under your control by replacing a faulty oven control thermostat.…
Repair difficulty
Time required
60 minutes or less
How to replace a wall oven thermal fuse
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Repair difficulty
Time required
60 minutes or less
