Whirlpool
Electric Cooktop

Model # RC8536XTW0 Official Whirlpool electric cooktop

Here are the diagrams and repair parts for Official Whirlpool RC8536XTW0 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Infinite Switch 4164370
#11

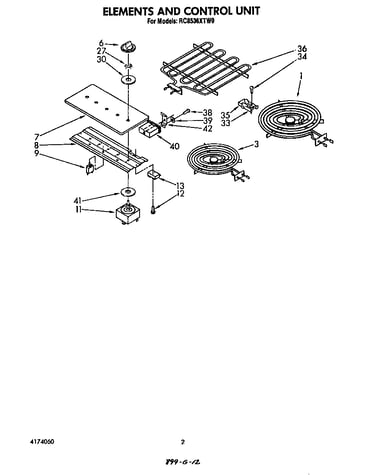

Elements and control diagram

Infinite switch

Part #4164370

Replaced by #W10900107

?
Manufacturer substitution
This part replaces 4164370. Substitute parts can look different from the original.
BEST SELLER
$39.99 |
13% OFF Phone Price : $45.99
In Stock
Surface Element 4163771
#1

Elements and control diagram

Surface element

Part #4163771

Replaced by #WP660533

?
Manufacturer substitution
This part replaces 4163771. Substitute parts can look different from the original.
$25.41 |
19% OFF Phone Price : $31.41
In Stock
Burner Bowl 4164315
#5

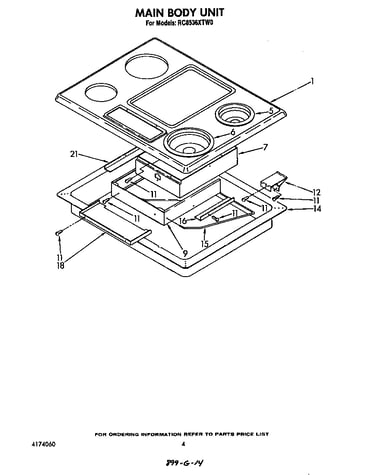

Main body diagram

Burner bowl

Part #4164315

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 4164315. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Burner Bowl 4164314
#6

Main body diagram

Burner bowl

Part #4164314

Replaced by #W10196405RW

?
Manufacturer substitution
This part replaces 4164314. Substitute parts can look different from the original.
This item is not returnable
$10.52 |
16% OFF Phone Price : $12.52
In Stock
Surface Element 4164222
#3

Elements and control diagram

Surface element

Part #4164222

Replaced by #WPY04100165

?
Manufacturer substitution
This part replaces 4164222. Substitute parts can look different from the original.
$38.66 |
13% OFF Phone Price : $44.66
In Stock
Surface Body 4164317
#35

Elements and control diagram

Surface body

Part #4164317

Replaced by #330031

?
Manufacturer substitution
This part replaces 4164317. Substitute parts can look different from the original.
$10.32 |
16% OFF Phone Price : $12.32
In Stock
Screw 4159431
#1E

Main body diagram

Screw

Part #4159431

Replaced by #4159431

?
Manufacturer substitution
This part replaces 4159431. Substitute parts can look different from the original.
This item is not returnable
$3.93
In Stock
Grill Element 3177251
#36

Elements and control diagram

Grill element

Part #3177251

The manufacturer no longer makes this part, and there's no substitute part

Installation Instructions LIT3177126

#NI

All parts diagram

Installation instructions

Part #LIT3177126

The manufacturer no longer makes this part, and there's no substitute part

Control Cover 4173215
#16

Main body diagram

Control cover

Part #4173215

The manufacturer no longer makes this part, and there's no substitute part
