Frigidaire
Top-Mount Refrigerator

Model # FCDF135E2 Official Frigidaire refrigerator - 5995210357

Here are the diagrams and repair parts for Official Frigidaire FCDF135E2 refrigerator - 5995210357, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

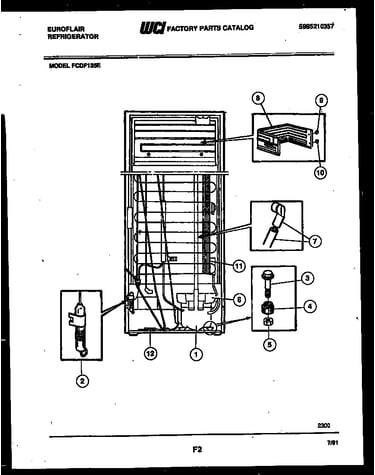

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Nut 3015516
#18

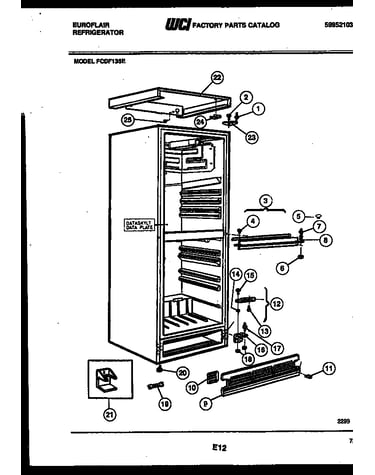

Cabinet parts diagram

Nut

Part #3015516

This item is not returnable
$2.49
In Stock
Refrigerator Support 5303277370
#8

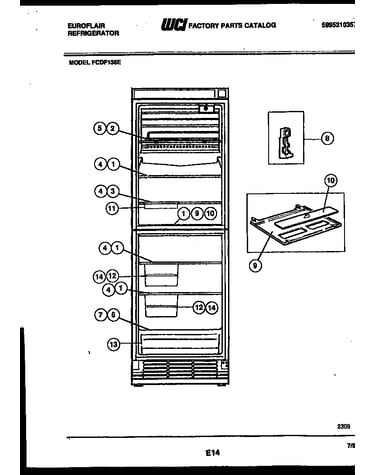

Shelves and supports diagram

Refrigerator support

Part #5303277370

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Plug 5303277359
#5

Cabinet parts diagram

Refrigerator plug

Part #5303277359

The manufacturer no longer makes this part, and there's no substitute part

Nut 3015500
#8

Cabinet parts diagram

Nut

Part #3015500

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Cover 5303277368
#18

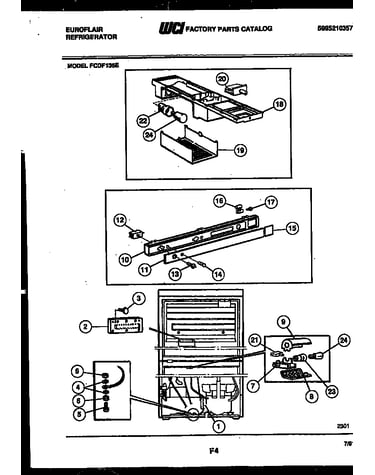

Lighting and control parts diagram

Refrigerator cover

Part #5303277368

The manufacturer no longer makes this part, and there's no substitute part

Knob 5303015530
#13

Lighting and control parts diagram

Knob

Part #5303015530

The manufacturer no longer makes this part, and there's no substitute part

Screw 3015553
#5

Lighting and control parts diagram

Screw

Part #3015553

The manufacturer no longer makes this part, and there's no substitute part

Strip 3015476
#11

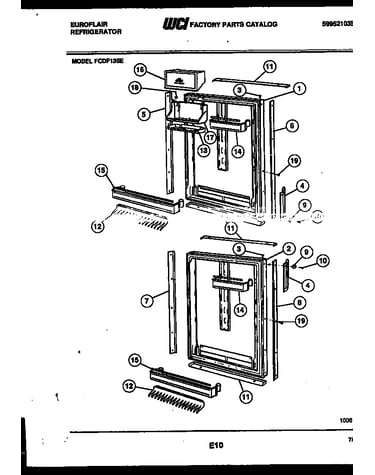

Door parts diagram

Strip

Part #3015476

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Panel 5303279388
#3

Cabinet parts diagram

Refrigerator panel

Part #5303279388

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Overload Relay 3015871
#1

Lighting and control parts diagram

Refrigerator overload relay

Part #3015871

The manufacturer no longer makes this part, and there's no substitute part
