Model # ERSD48NGH Official Dacor range

Here are the diagrams and repair parts for Official Dacor ERSD48NGH range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

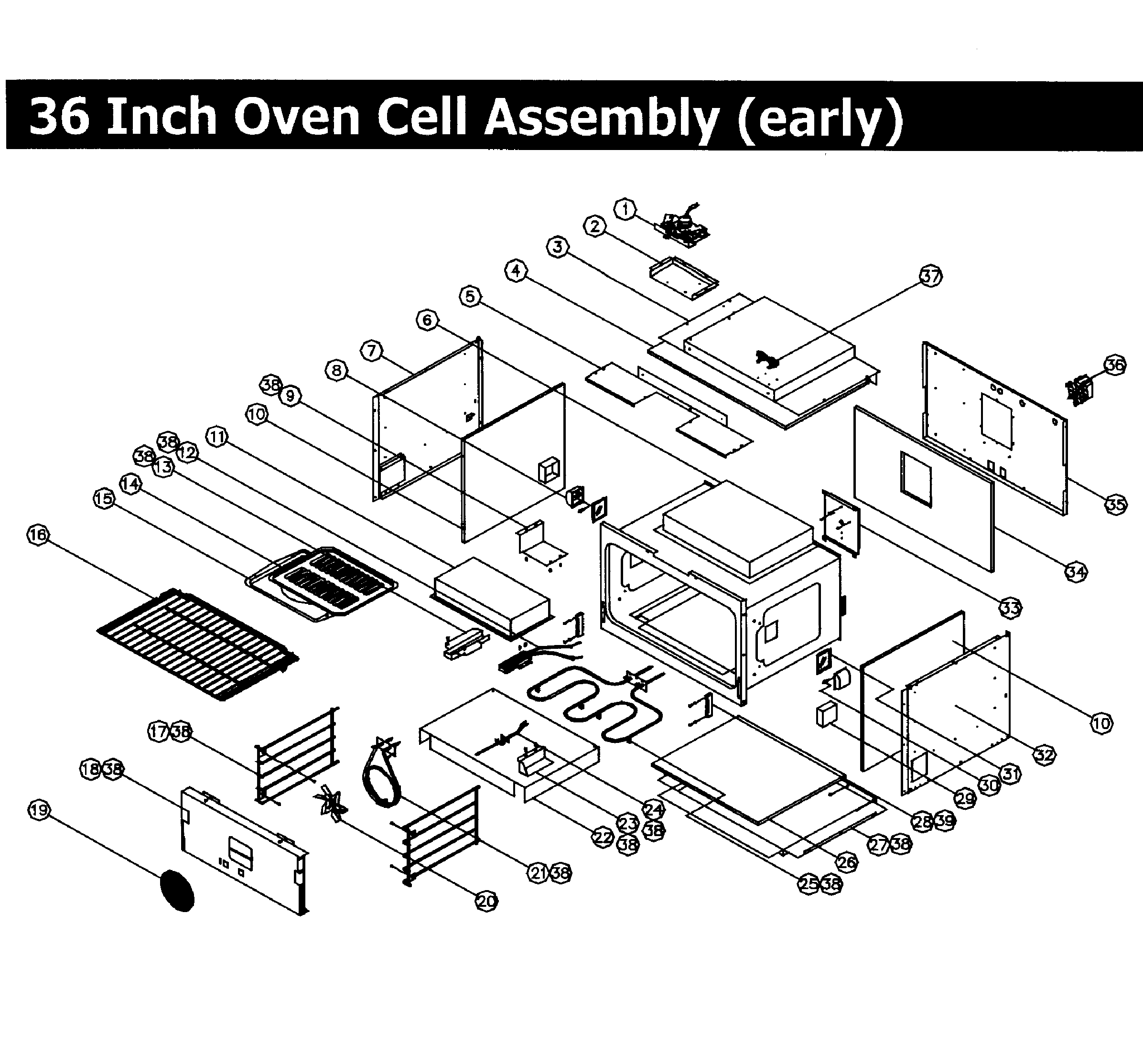

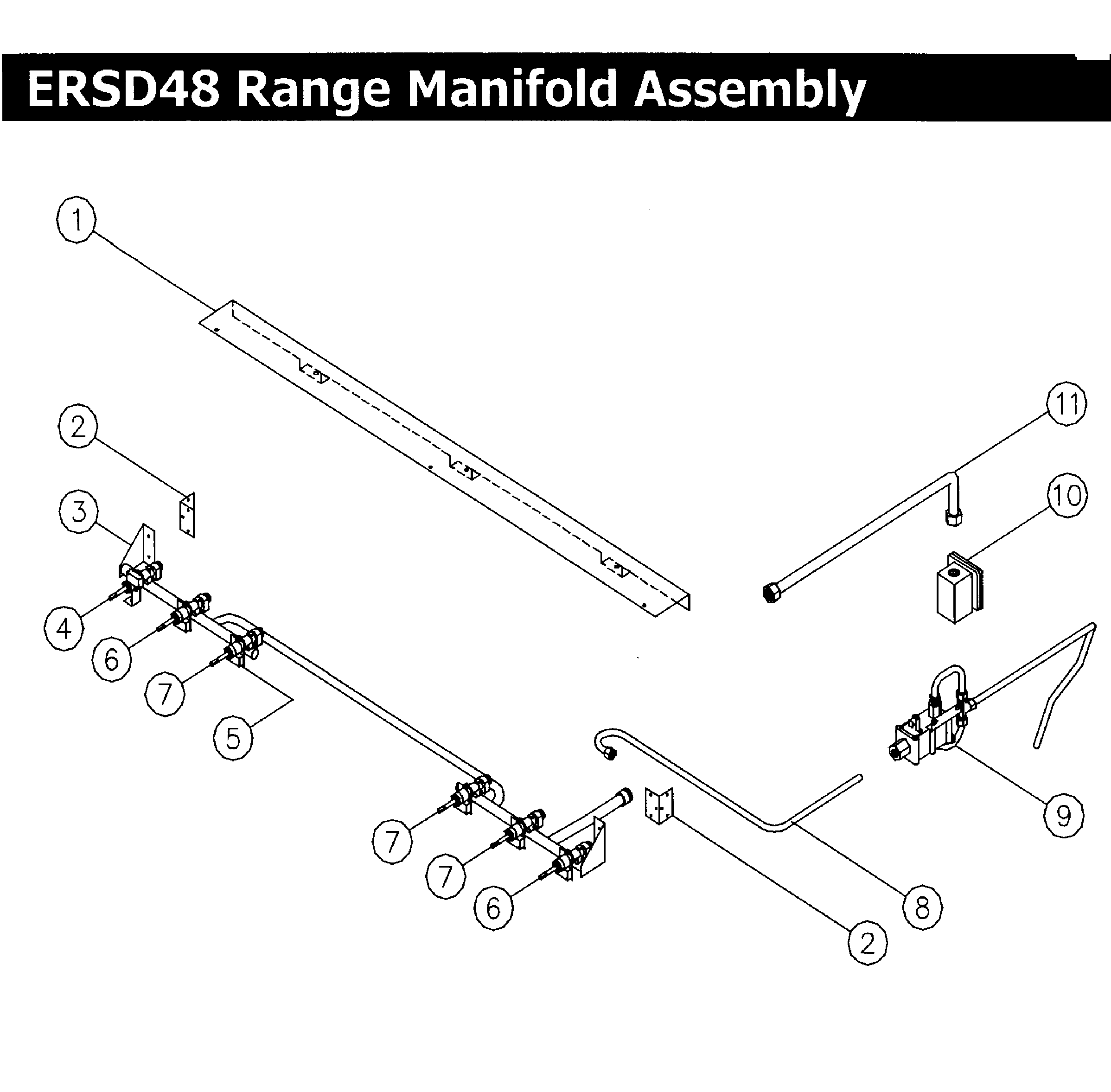

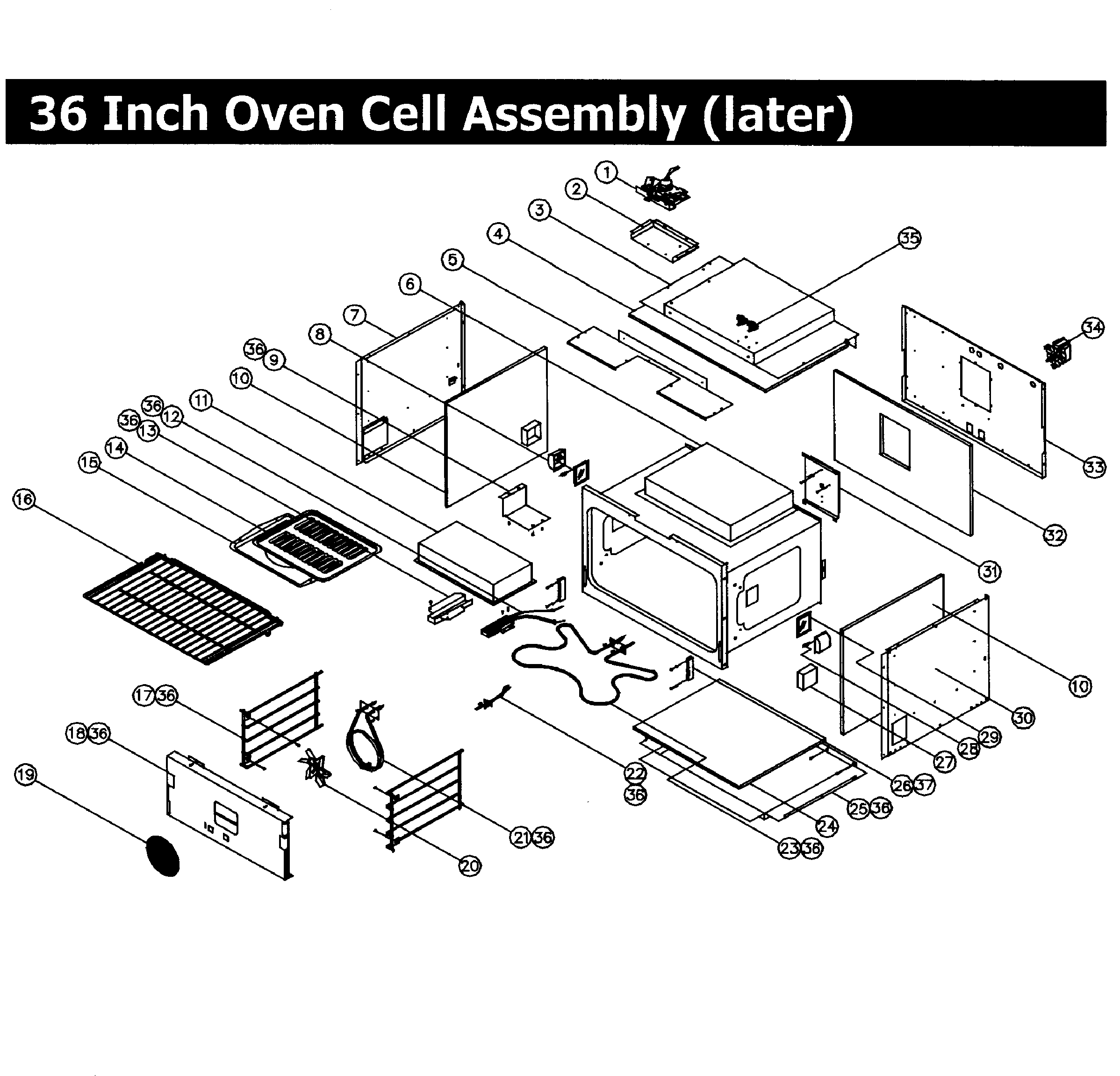

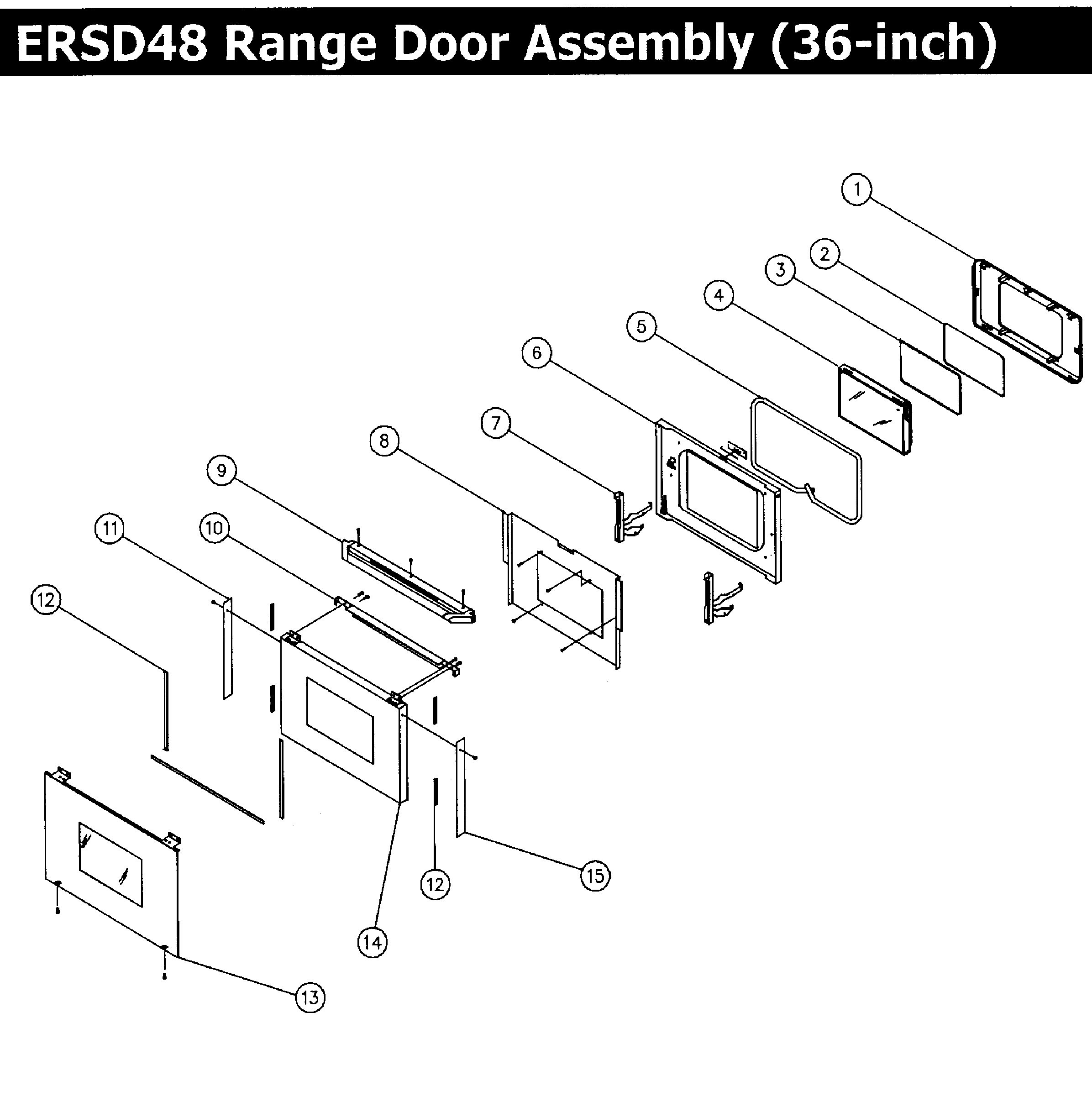

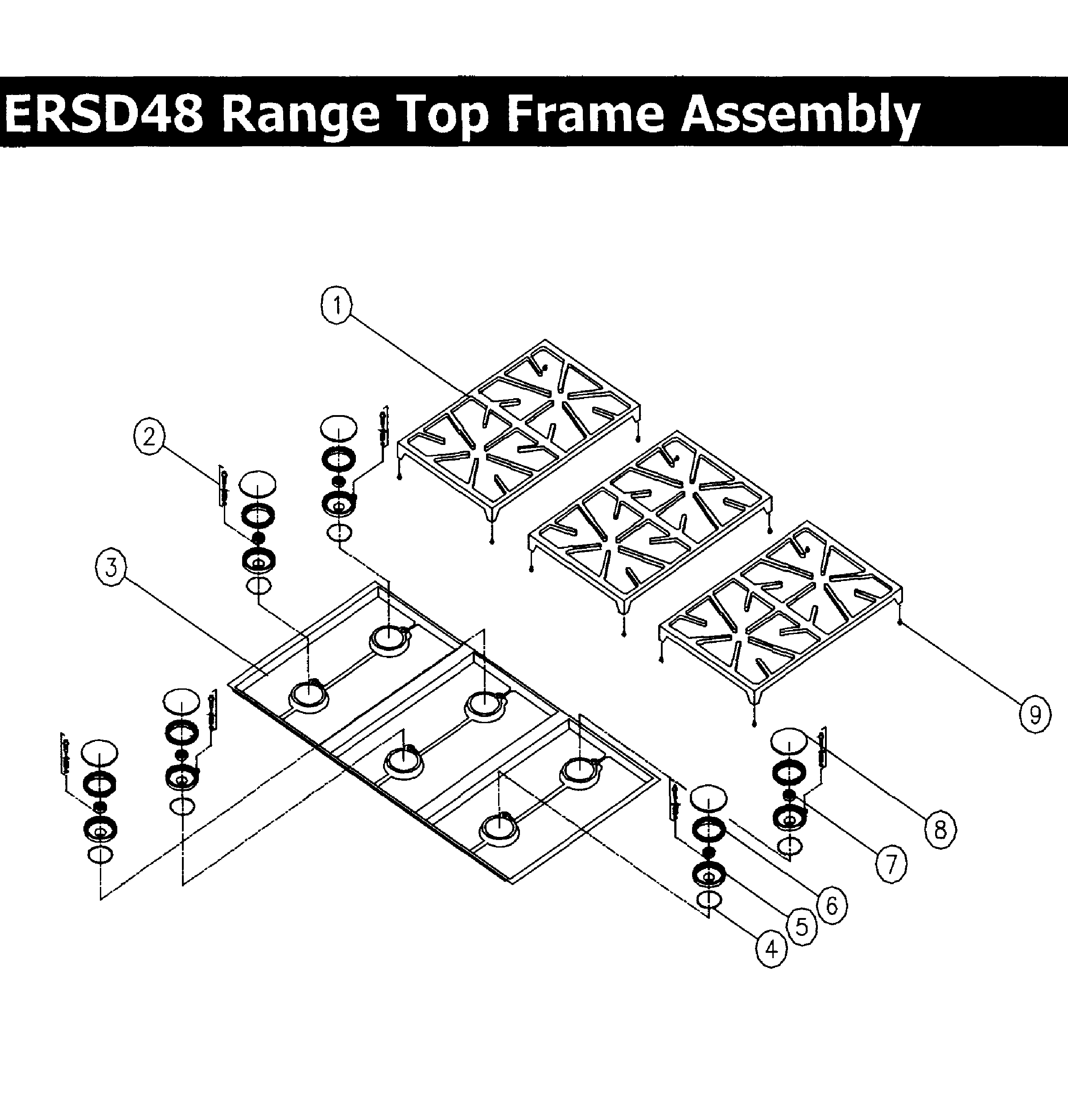

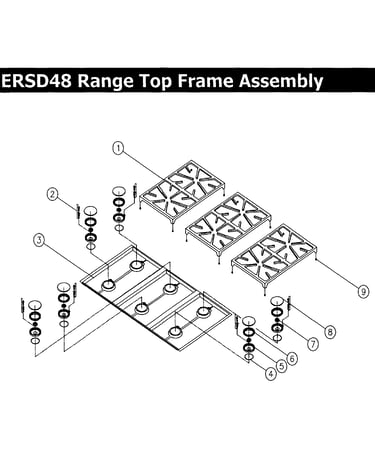

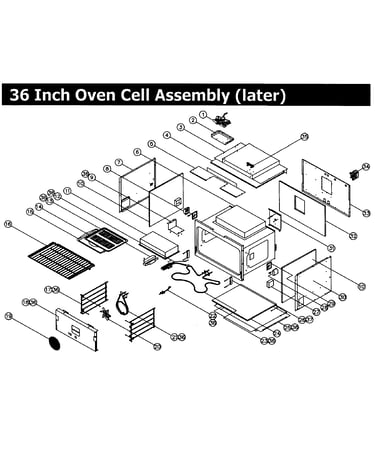

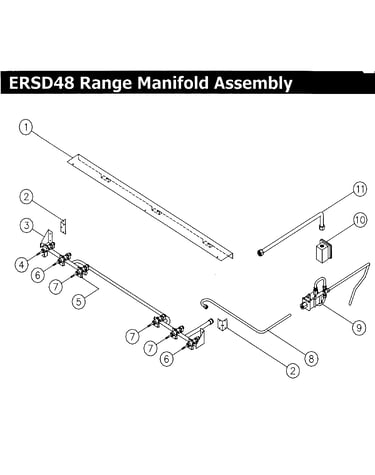

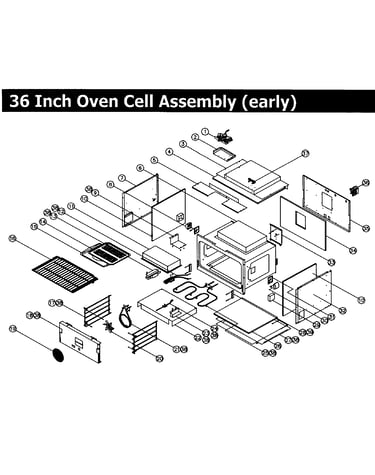

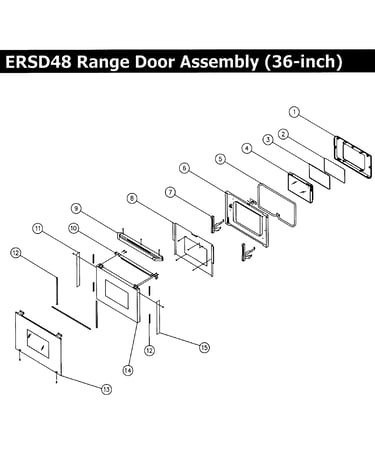

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Range Spark Module 86528
#4

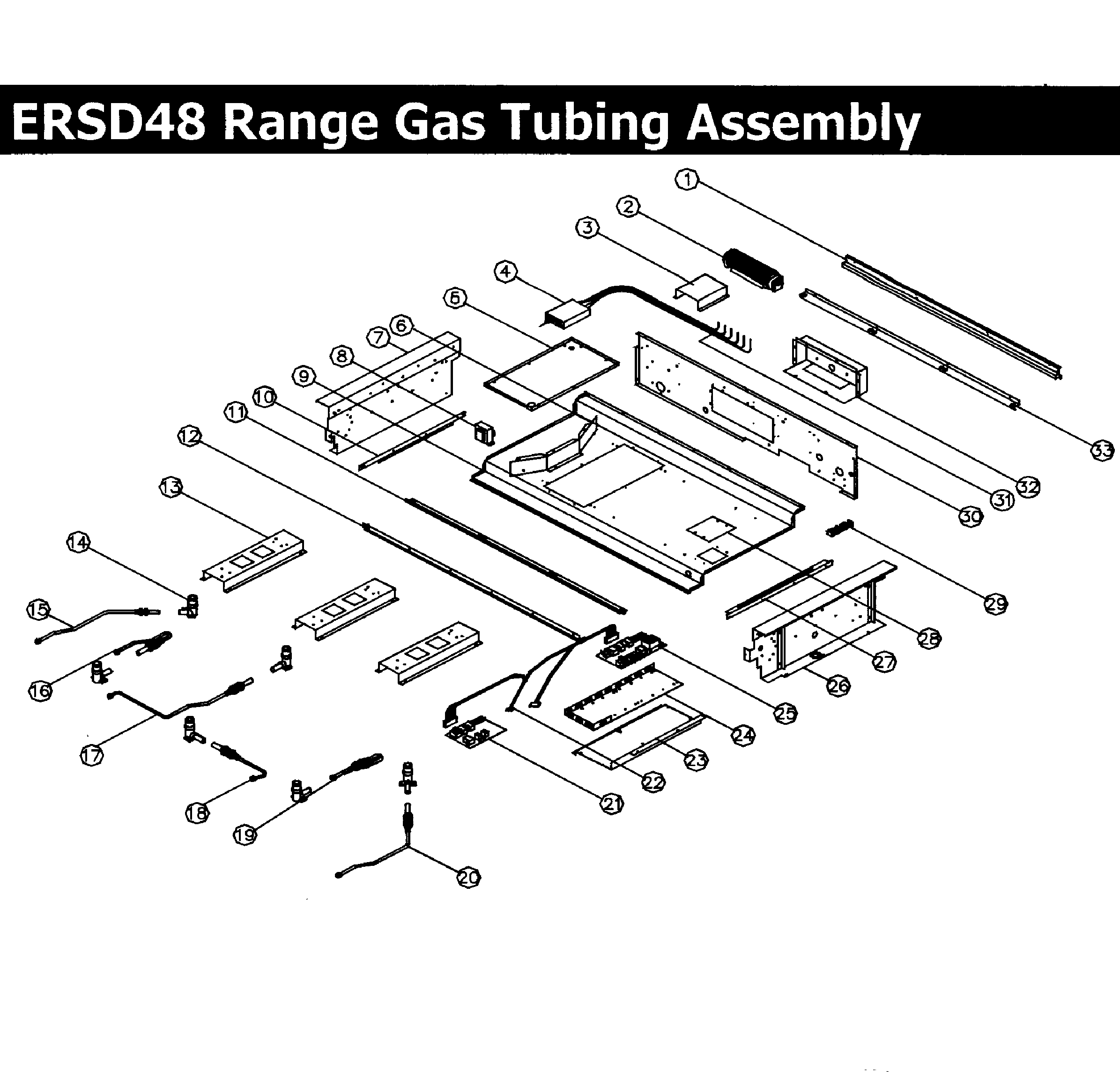

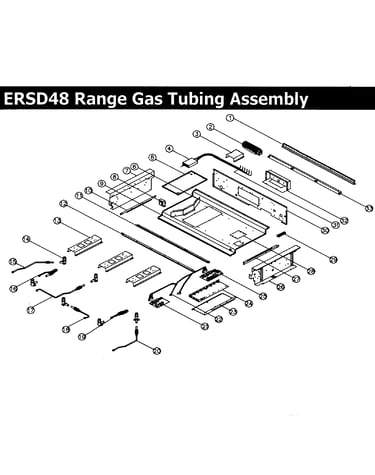

Gas tubing diagram

Range spark module

Part #86528

$161.99
In Stock
Range Surface Burner Knob 62021B
#5

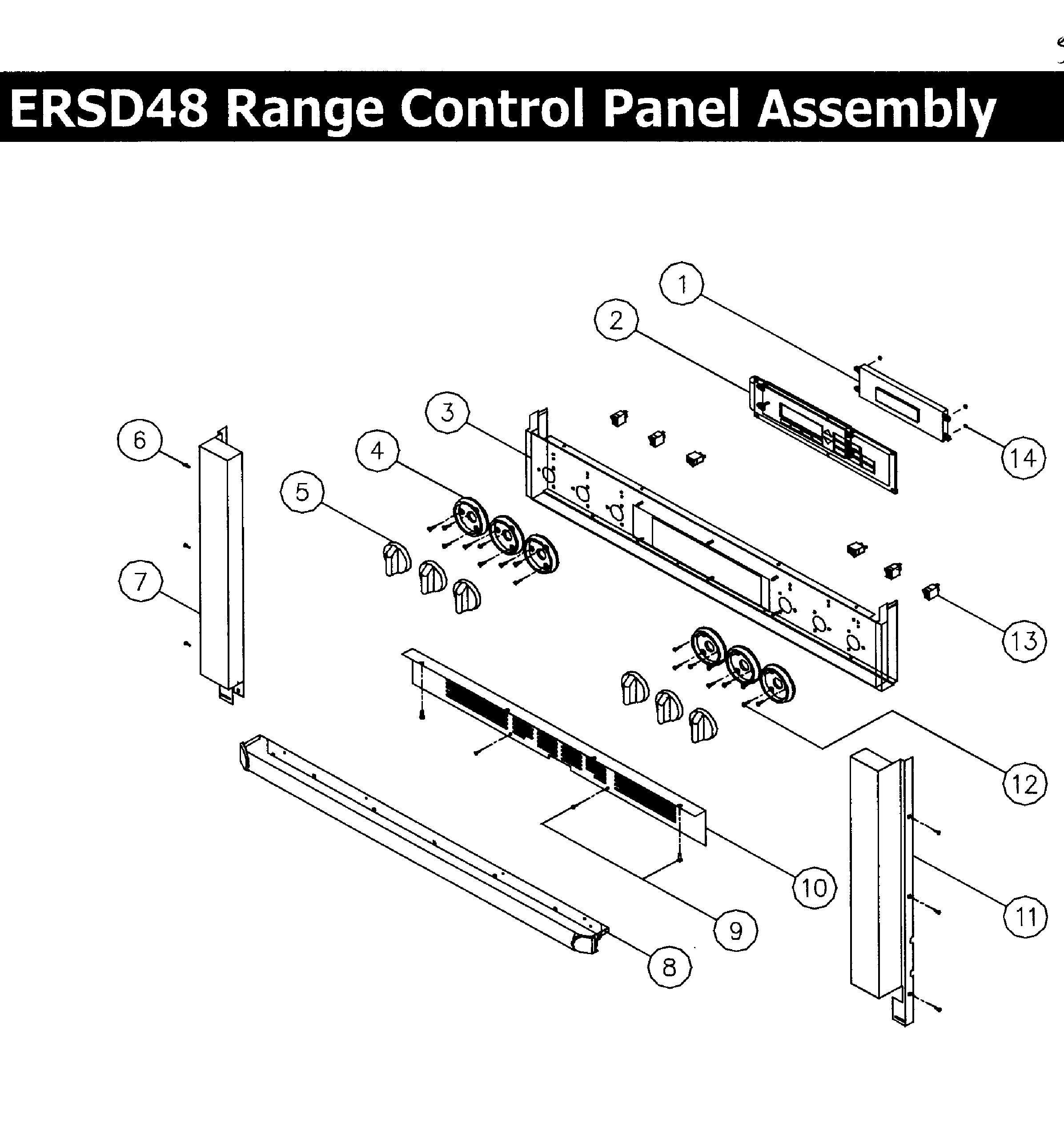

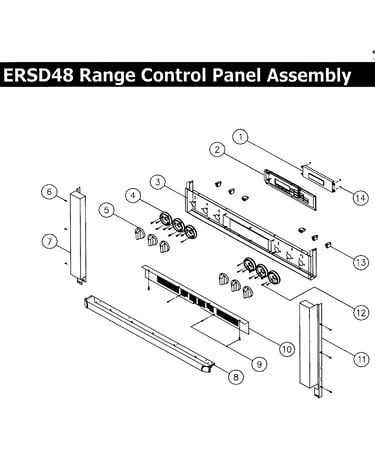

Control panel diagram

Range surface burner knob

Part #62021B

$12.49
In Stock
Appliance Screw 83534
Appliance screw

Part #83534

This item is not returnable
$2.16
Back Order
Oven Rack 62298
#12

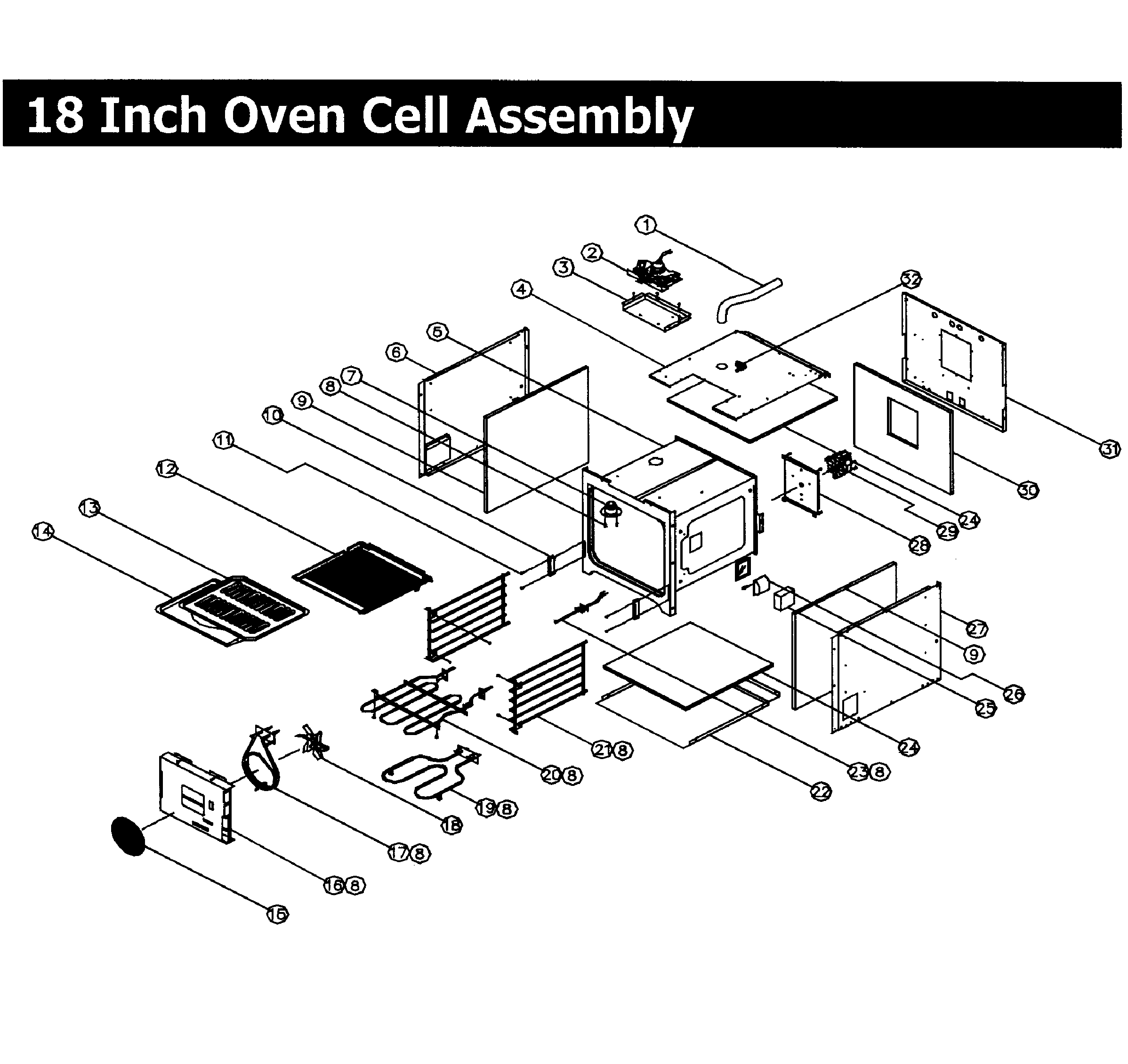

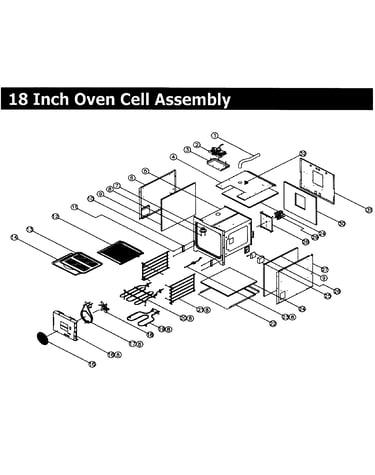

Cell 18 diagram

Oven rack

Part #62298

Replaced by #62782

?
Manufacturer substitution
This part replaces 62298. Substitute parts can look different from the original.
$81.99
Back Order
Drive Shield 26576
#18

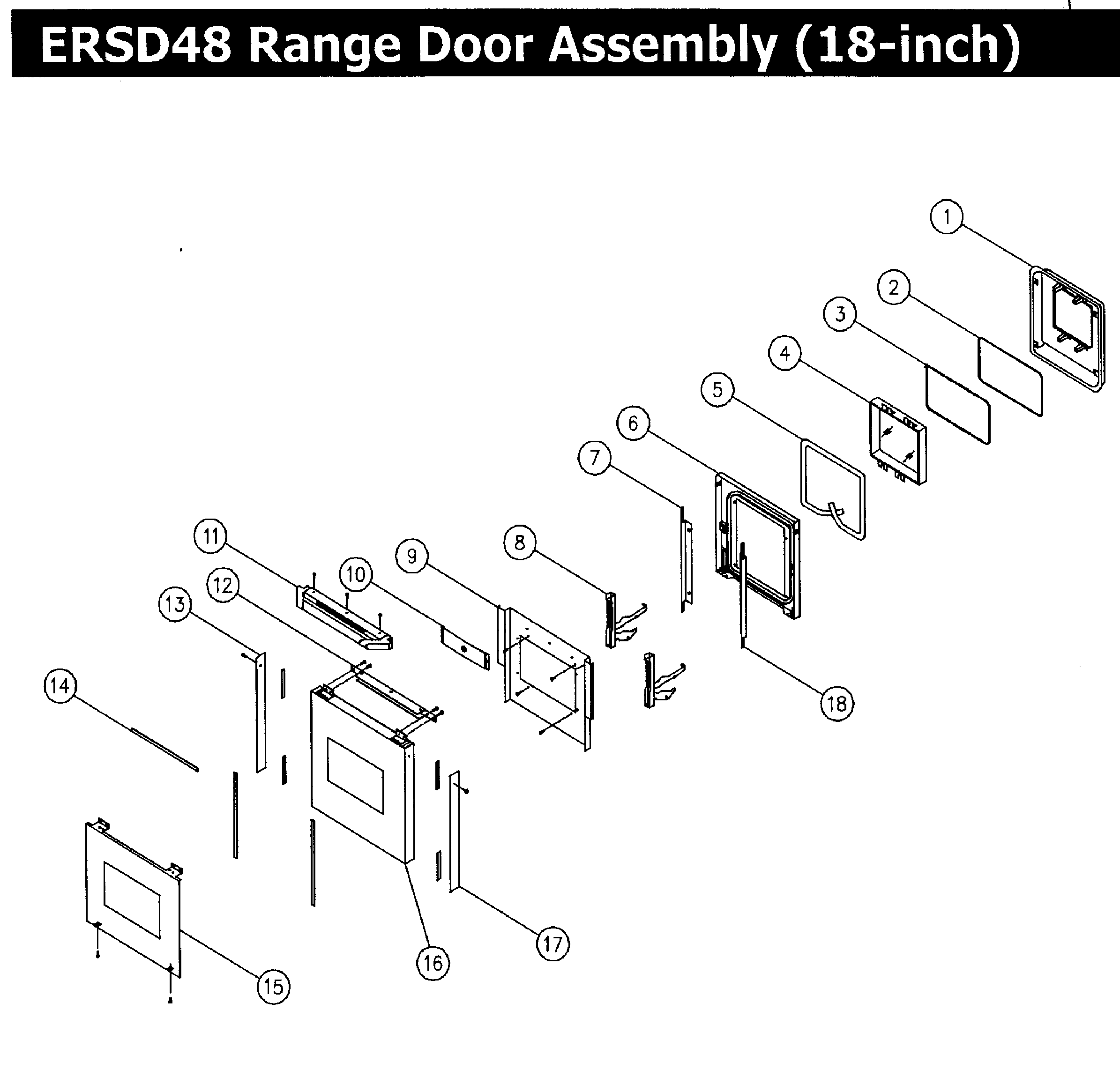

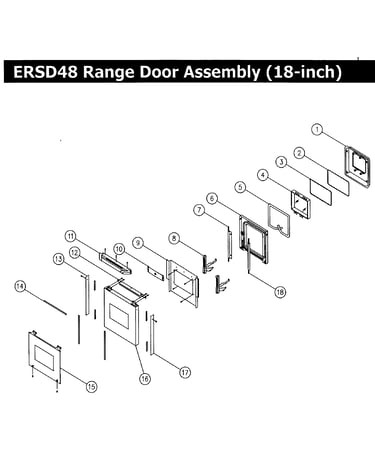

Door 18 diagram

Drive shield

Part #26576

This item is not returnable
$6.49
In Stock
Panel 26979B
#12

Door 18 diagram

Panel

Part #26979B

$23.99
In Stock
Insulation 80049
#30

Cell 18 diagram

Insulation

Part #80049

$36.99
In Stock
Range Leveling Leg Insert 66813
#NI

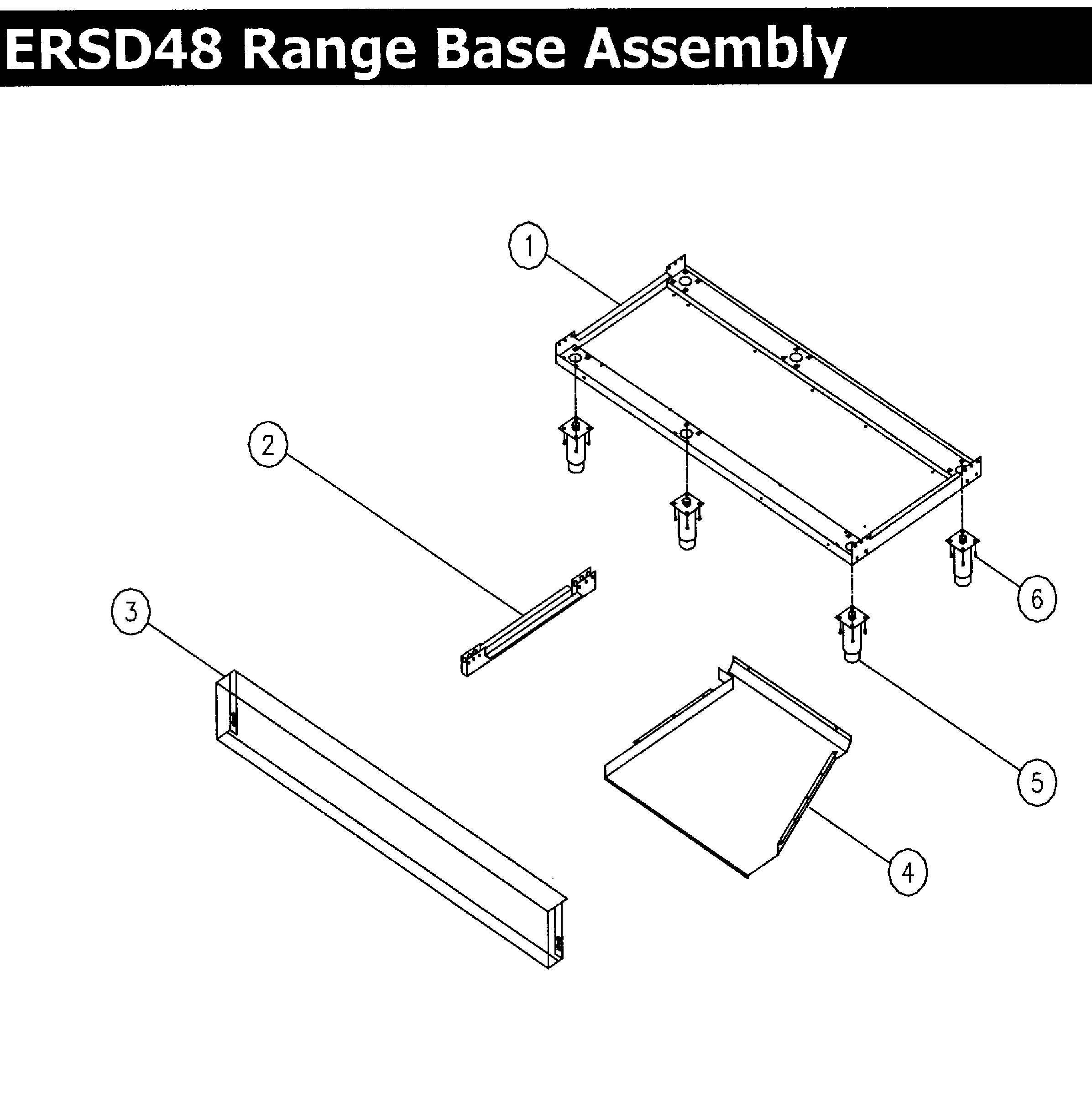

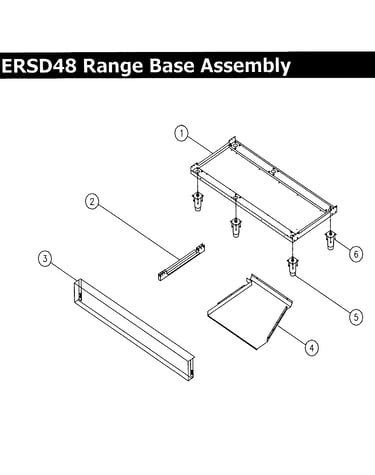

Range base diagram

Range leveling leg insert

Part #66813

$8.99
In Stock
Rack Support 62273
Rack support

Part #62273

$31.49
In Stock
Panel 26955
#11

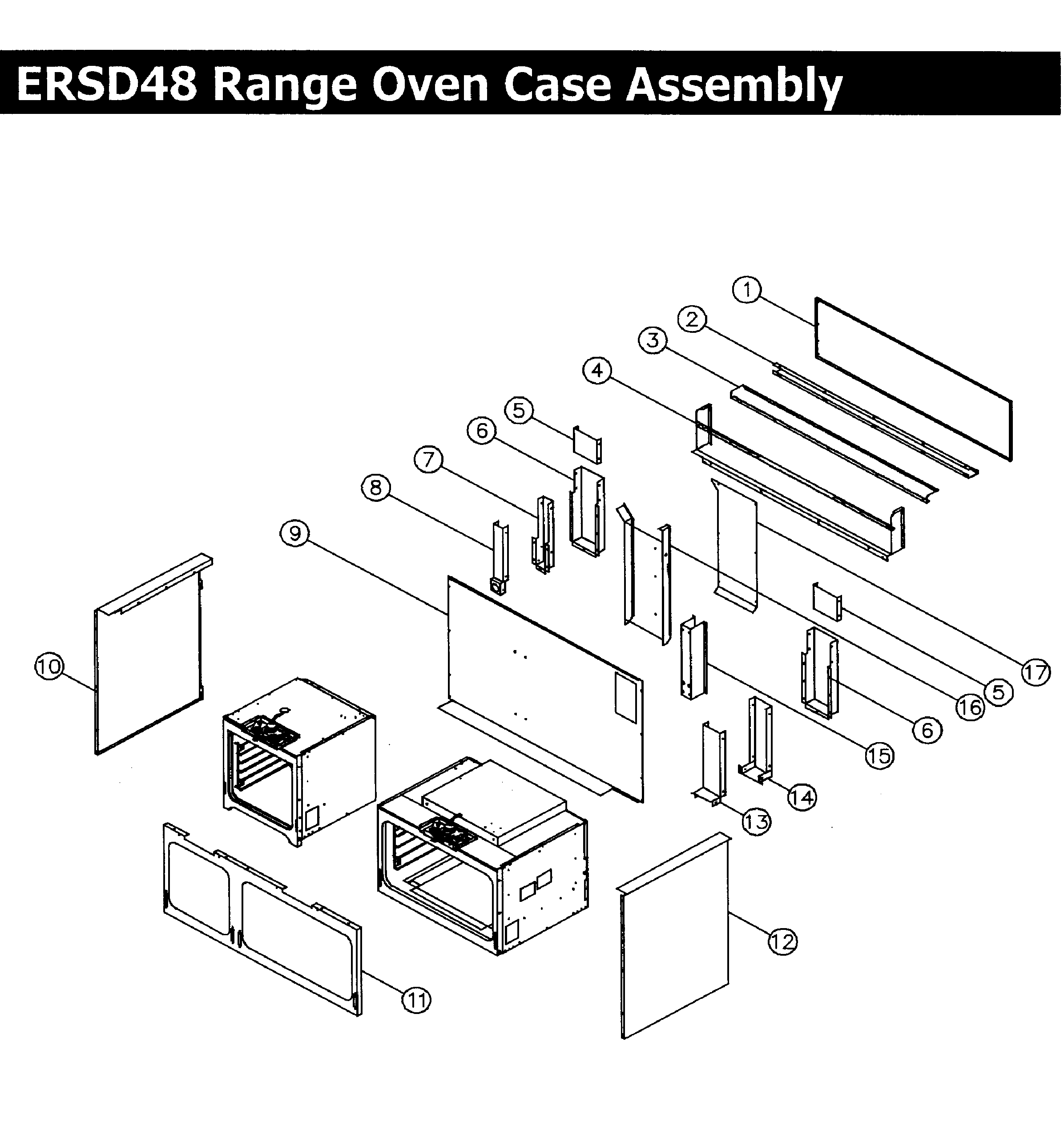

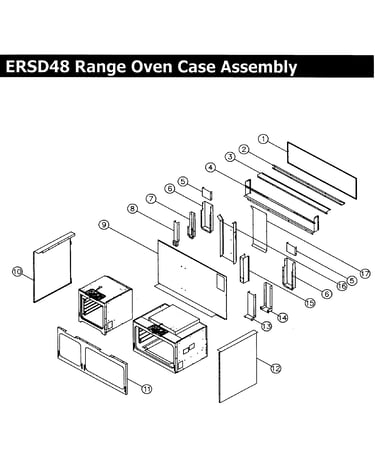

Oven case diagram

Panel

Part #26955

$220.99
In Stock
