Model # 867767842 Official Kenmore gas-fired horizontal furnace

Here are the diagrams and repair parts for Official Kenmore 867767842 gas-fired horizontal furnace, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
867767842 Gas-Fired Horizontal Furnace
Thermocouple 92097
#13

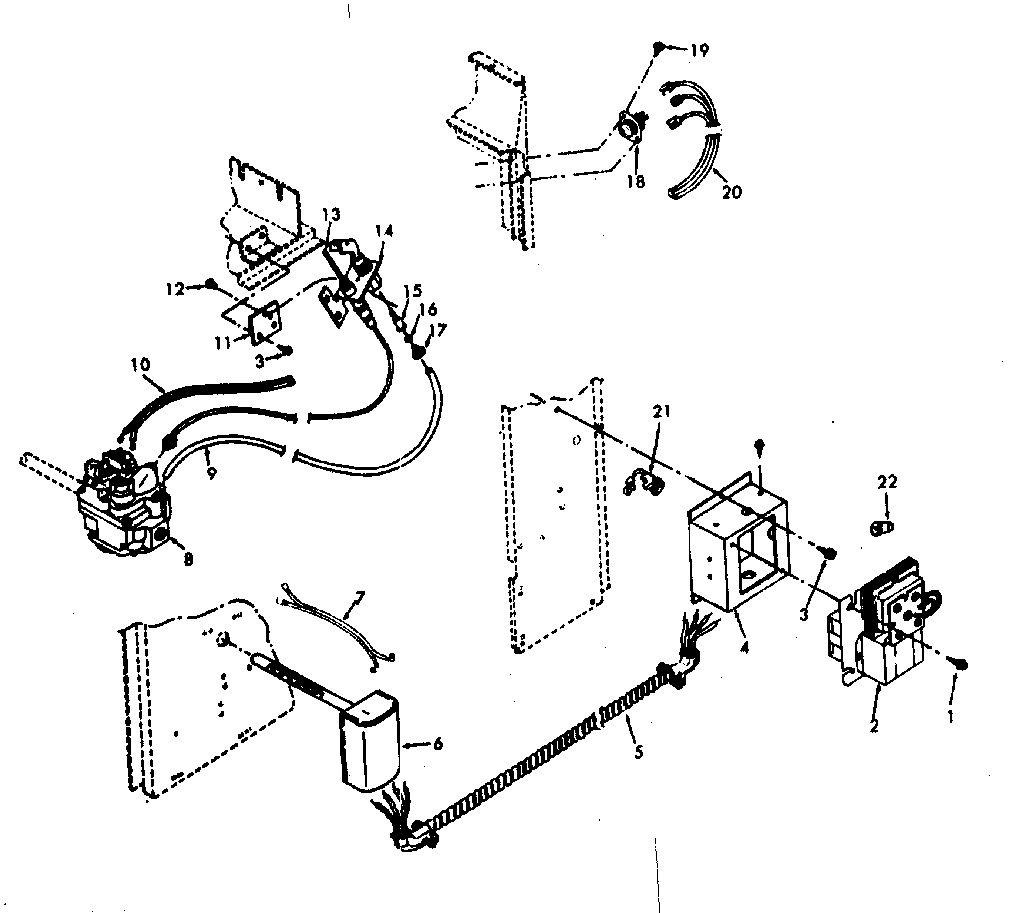

Electrical diagram

Thermocouple

Part #92097

Replaced by #H06E-36

?
Manufacturer substitution
This part replaces 92097. Substitute parts can look different from the original.
$14.91 |
12% OFF Phone Price : $16.91
Back Order
Furnace Blower Fan Wheel 600586
#21A

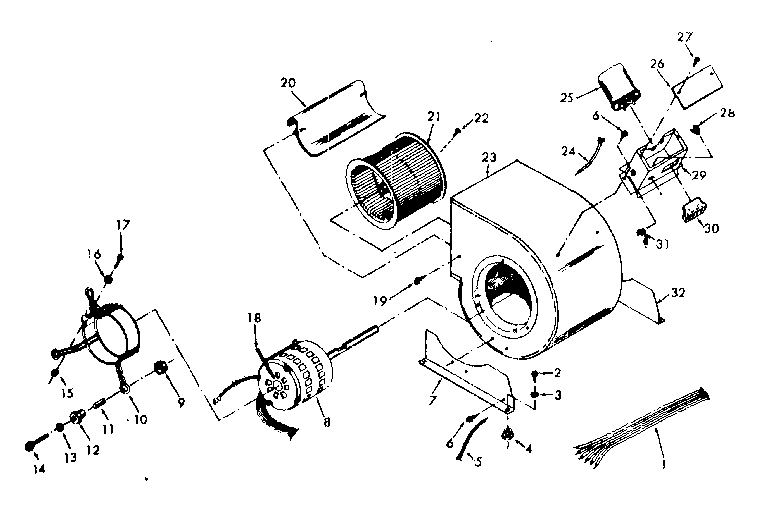

Blower diagram

Furnace blower fan wheel

Part #600586

$127.13 |
9% OFF Phone Price : $139.13
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#21B

Blower diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
8% OFF Phone Price : $142.20
In Stock
Blower Motor 604006
#24

Blower diagram

Blower motor

Part #604006

Replaced by #1012514

?
Manufacturer substitution
This part replaces 604006. Substitute parts can look different from the original.
$345.23 |
$12.00 OFF Phone Price : $357.23
In Stock
Capacitor 87964
#25B

Blower diagram

Capacitor

Part #87964

Replaced by #12910

?
Manufacturer substitution
This part replaces 87964. Substitute parts can look different from the original.
$8.37 |
11% OFF Phone Price : $9.37
In Stock
Motor 604005
#8

Blower diagram

Motor

Part #604005

$928.46
In Stock
Restrictor 600088
#18E

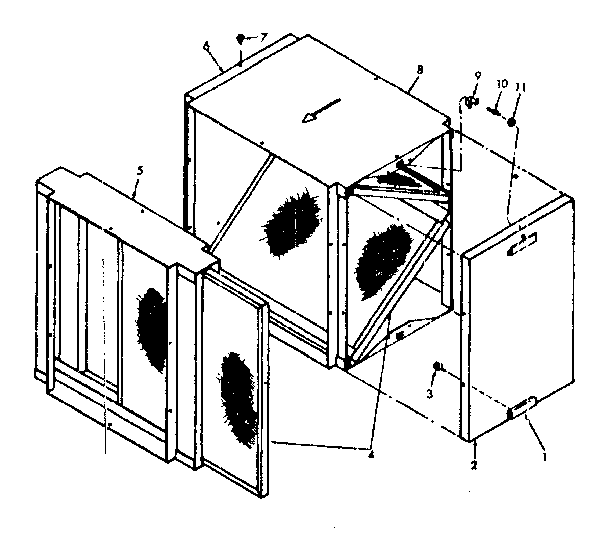

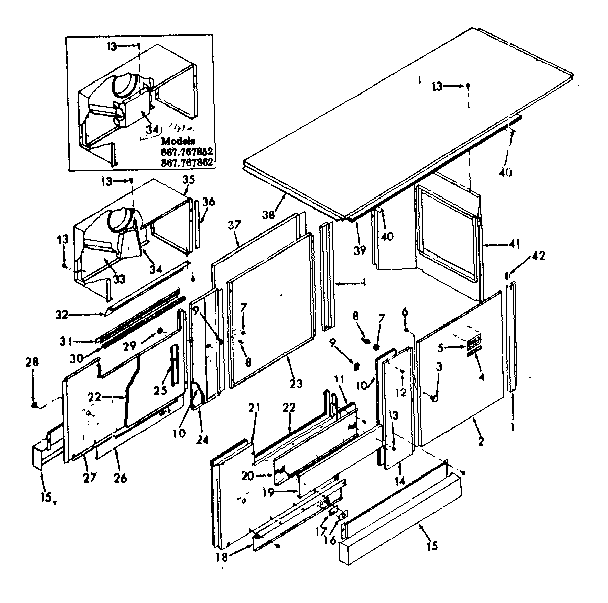

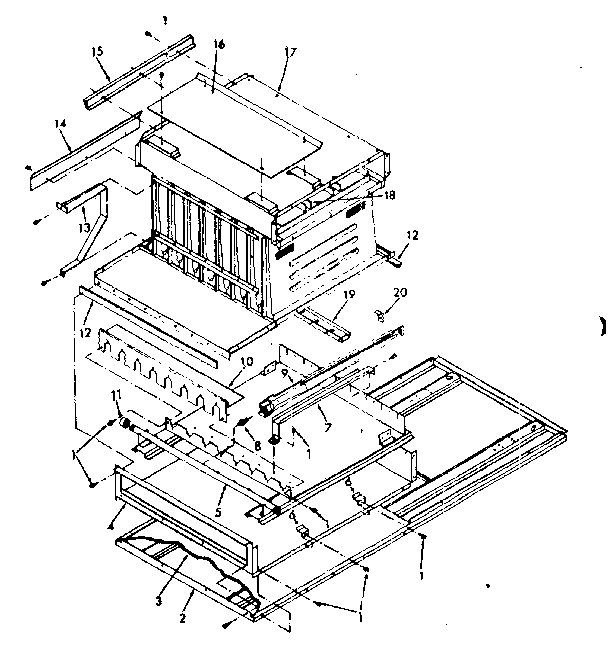

Cabinet diagram

Restrictor

Part #600088

$78.64
In Stock
Furnace Blower Wheel 89726
#21D

Blower diagram

Furnace blower wheel

Part #89726

$218.43 |
5% OFF Phone Price : $230.43
In Stock
Insulation 601177
Insulation

Part #601177

$2467.88
In Stock
Furnace Blower Foot 600084
#32B

Blower diagram

Furnace blower foot

Part #600084

$196.27
In Stock
