Electric Range

Model # ACF4265AC0-PACF4265AC1 Official Amana electric range

Here are the diagrams and repair parts for Official Amana ACF4265AC0-PACF4265AC1 electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

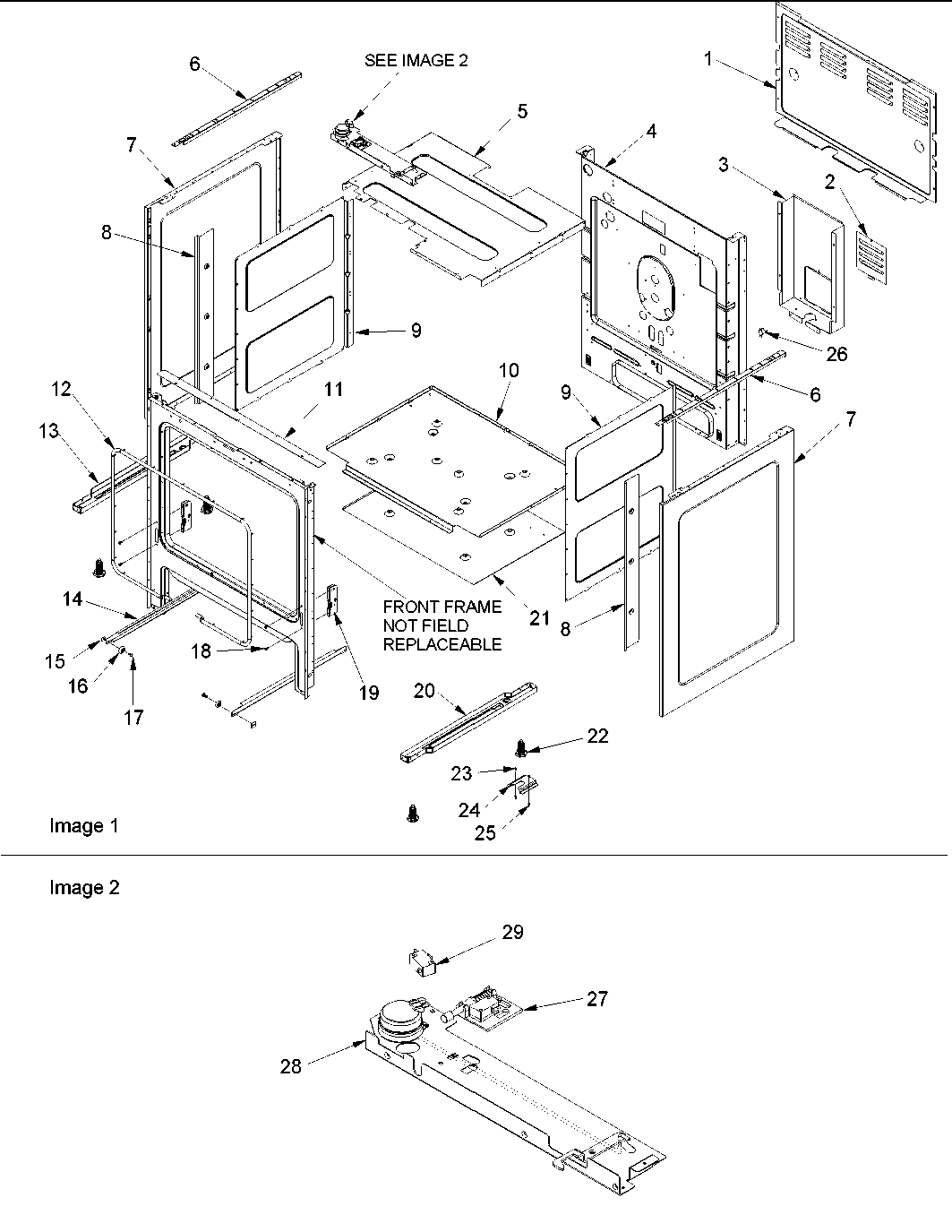

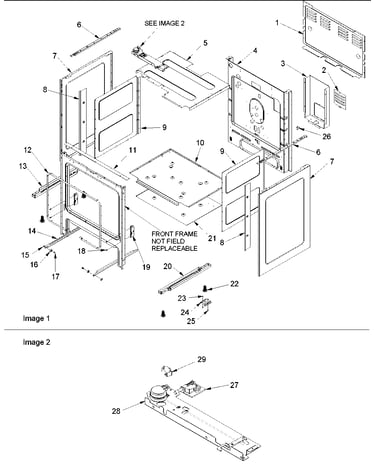

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
ACF4265AC0-PACF4265AC1 Ranges
Lamp 0042175
#999

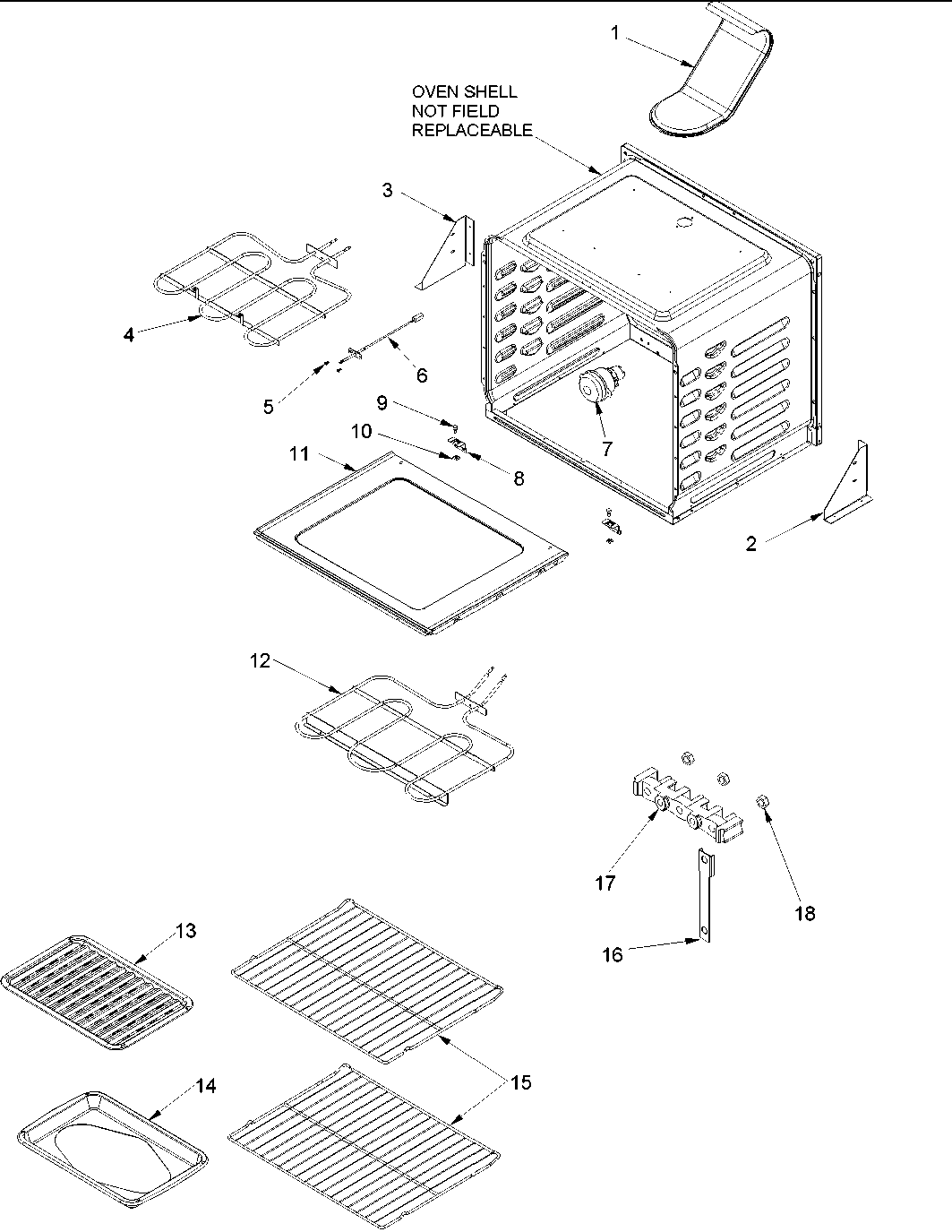

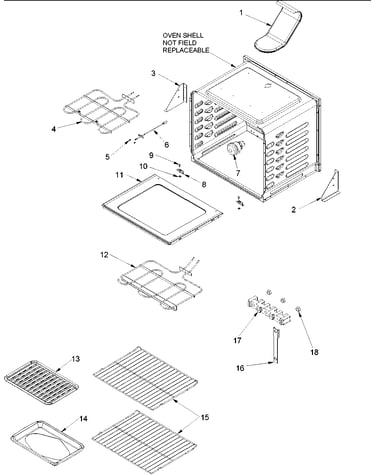

Cavity diagram

Lamp

Part #0042175

Replaced by #40A15

?
Manufacturer substitution
This part replaces 0042175. Substitute parts can look different from the original.
1.72 (18)
BEST SELLER
$15.31 |
12% OFF Phone Price : $17.31
In Stock
Ribon Elemnt 31939001
#5

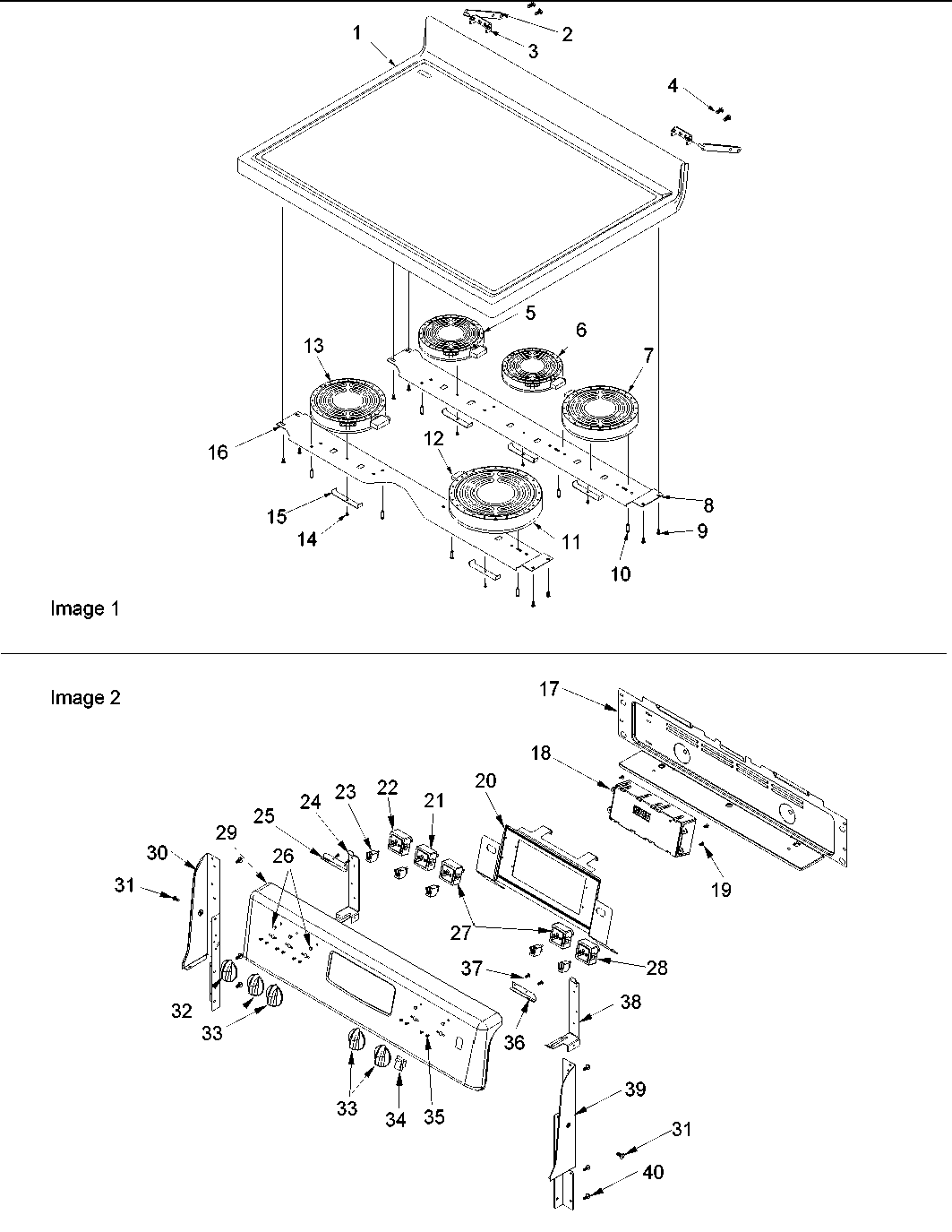

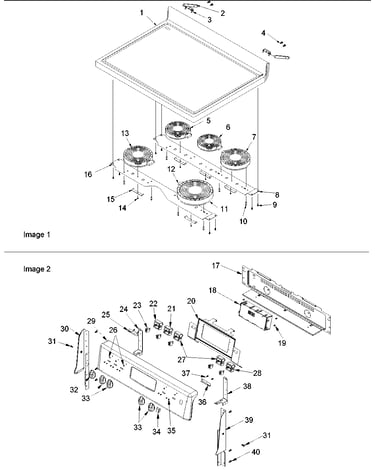

Main top and backguard diagram

Ribon elemnt

Part #31939001

Replaced by #W10823699

?
Manufacturer substitution
This part replaces 31939001. Substitute parts can look different from the original.
3 (9)
$72.35 |
8% OFF Phone Price : $78.35
In Stock
Element 31939101
#13

Main top and backguard diagram

Element

Part #31939101

Replaced by #W10823710

?
Manufacturer substitution
This part replaces 31939101. Substitute parts can look different from the original.
$160.56 |
7% OFF Phone Price : $172.56
In Stock
Terminal Block 0306378
#17

Cavity diagram

Terminal block

Part #0306378

Replaced by #WP8203546

?
Manufacturer substitution
This part replaces 0306378. Substitute parts can look different from the original.
3.5 (2)
This item is not returnable
$16.75 |
11% OFF Phone Price : $18.75
In Stock
Element 32054701
#11

Main top and backguard diagram

Element

Part #32054701

Replaced by #W10823726

?
Manufacturer substitution
This part replaces 32054701. Substitute parts can look different from the original.
$128.56 |
9% OFF Phone Price : $140.56
In Stock
Heat Shield 31941402
#9

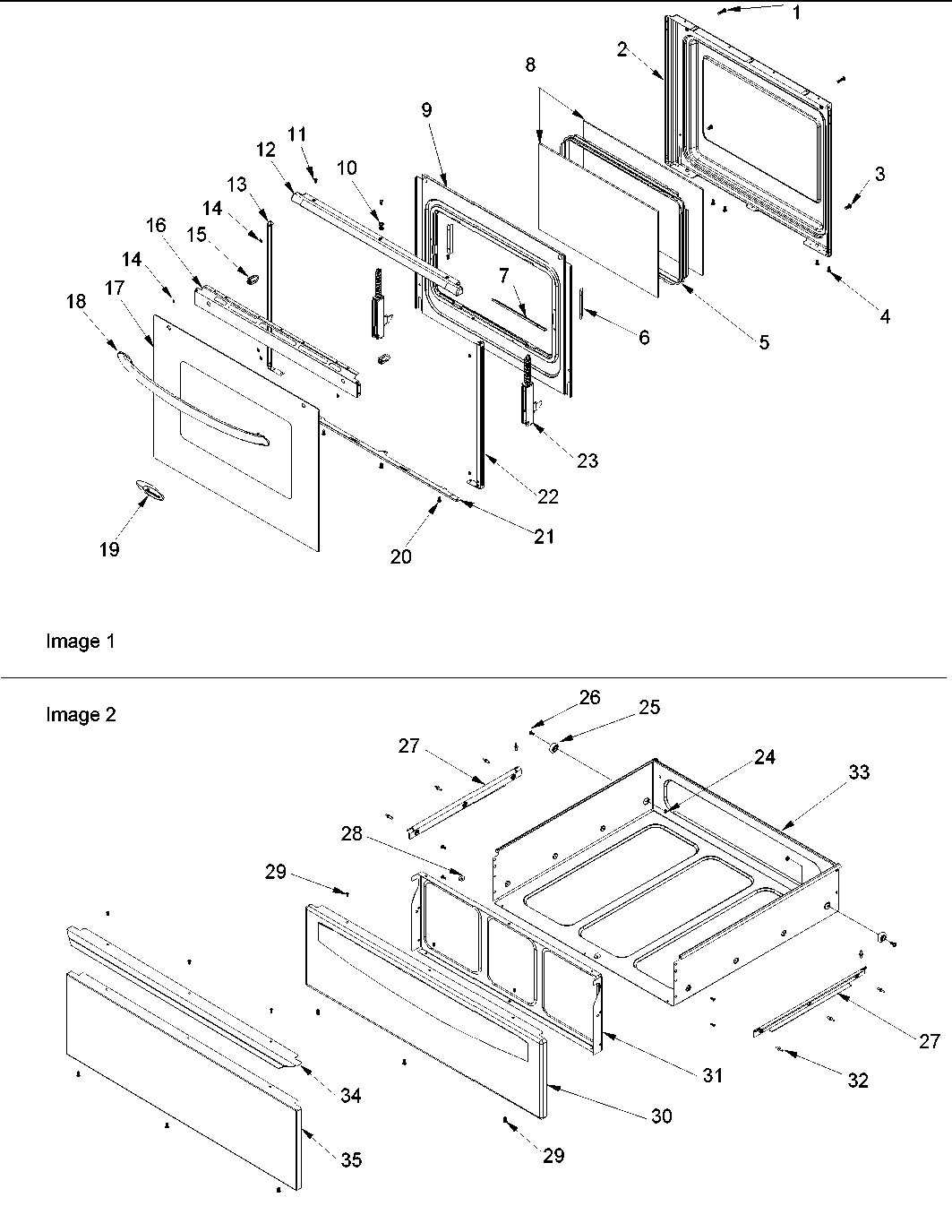

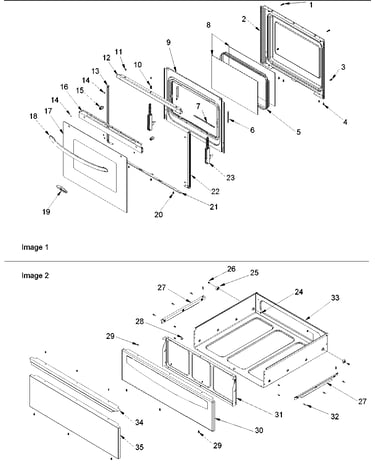

Oven door and storage drawer diagram

Heat shield

Part #31941402

Replaced by #31941402

?
Manufacturer substitution
This part replaces 31941402. Substitute parts can look different from the original.
$21.20
In Stock
Indicator Light 31722801
#23

Main top and backguard diagram

Indicator light

Part #31722801

Replaced by #WP903115

?
Manufacturer substitution
This part replaces 31722801. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw 31750410
#37

Main top and backguard diagram

Screw

Part #31750410

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 31750410. Substitute parts can look different from the original.
This item is not returnable
$15.11 |
16% OFF Phone Price : $17.95
In Stock
Screw 31750701
Screw

Part #31750701

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 31750701. Substitute parts can look different from the original.
This item is not returnable
$15.11 |
16% OFF Phone Price : $17.95
In Stock
Nameplate 31985401
#19

Oven door and storage drawer diagram

Nameplate

Part #31985401

Replaced by #Y12528501

?
Manufacturer substitution
This part replaces 31985401. Substitute parts can look different from the original.
$36.87
In Stock
