Model # DW840 TYPE 1 Official DeWalt angle grinder

Here are the diagrams and repair parts for Official DeWalt DW840-TYPE-1 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Flange 403121-01
#140

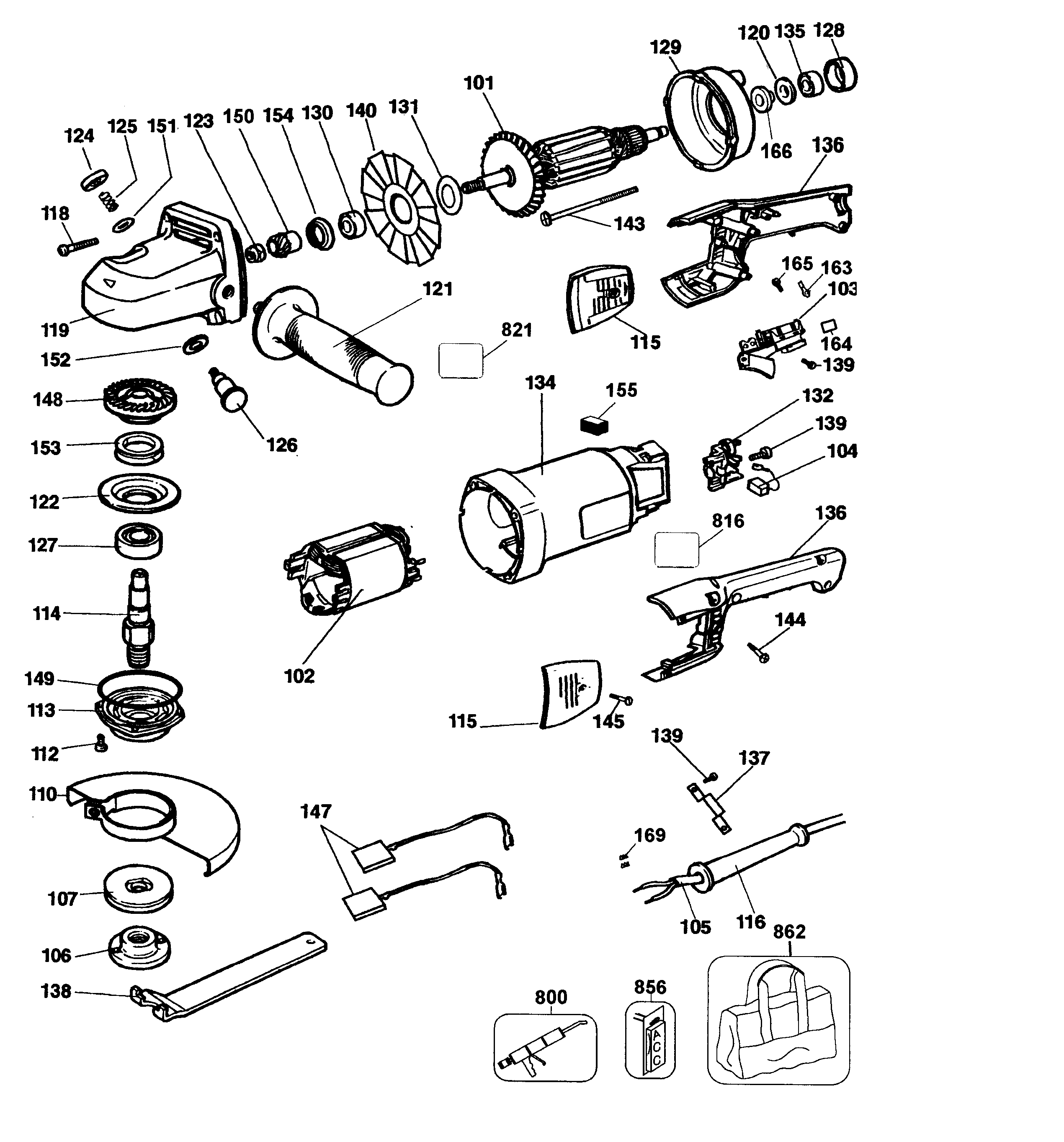

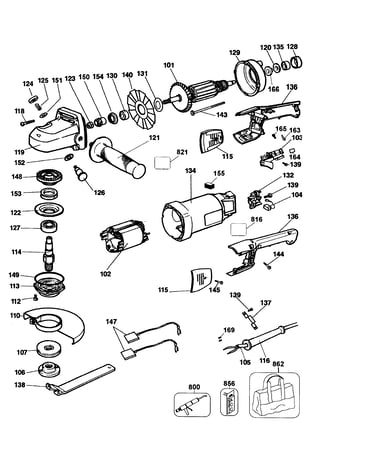

Grinder assy diagram

Flange

Part #403121-01

The manufacturer no longer makes this part, and there's no substitute part

Circular Saw Power Cord 330079-98
#105

Grinder assy diagram

Circular saw power cord

Part #330079-98

The manufacturer no longer makes this part, and there's no substitute part

Washer 930753-00
#131

Grinder assy diagram

Washer

Part #930753-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Side Handle N239381
#121

Grinder assy diagram

Angle grinder side handle

Part #N239381

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Spindle Lock 391018-00
#126

Grinder assy diagram

Angle grinder spindle lock

Part #391018-00

The manufacturer no longer makes this part, and there's no substitute part

7x1/4 Fast DW4719
#856

Grinder assy diagram

7x1/4 fast

Part #DW4719

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Screw 562097-12
#143

Grinder assy diagram

Craftsman screw

Part #562097-12

The manufacturer no longer makes this part, and there's no substitute part

O-ring 403123-01
#149

Grinder assy diagram

O-ring

Part #403123-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 387746-00
#165

Grinder assy diagram

Screw

Part #387746-00

The manufacturer no longer makes this part, and there's no substitute part

Cord Clamp 930103-00
#137

Grinder assy diagram

Cord clamp

Part #930103-00

The manufacturer no longer makes this part, and there's no substitute part
