York
Heating & Cooling Combined Unit

Model # D1NA036N05658 Official York heating & cooling

Here are the diagrams and repair parts for Official York D1NA036N05658 heating & cooling, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Capacitor 024-20043-000

#10

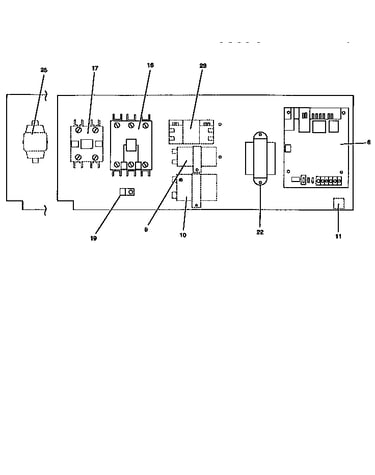

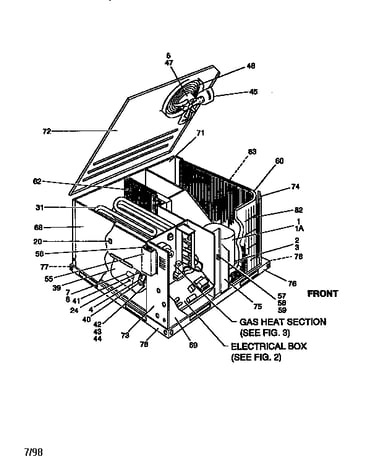

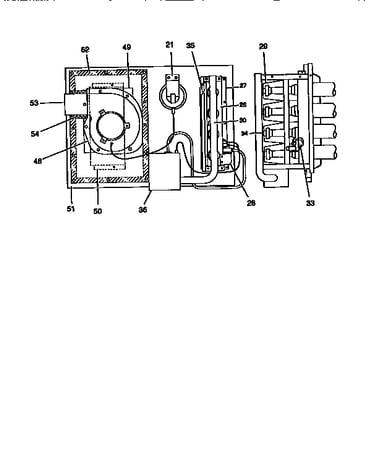

All parts diagram

Capacitor

Part #024-20043-000

Replaced by #12005

?
Manufacturer substitution
This part replaces 024-20043-000. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Air Pressure 024-25975-000

#21

All parts diagram

Air pressure

Part #024-25975-000

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 025-32632-000

#36A

All parts diagram

Gas valve

Part #025-32632-000

Replaced by #SV9501M2528

?
Manufacturer substitution
This part replaces 025-32632-000. Substitute parts can look different from the original.
$641.87
In Stock
Blower Wheel 026-32088-003

#40

All parts diagram

Blower wheel

Part #026-32088-003

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 025-30859-000

#36

All parts diagram

Gas valve

Part #025-30859-000

Replaced by #SV9501M2528

?
Manufacturer substitution
This part replaces 025-30859-000. Substitute parts can look different from the original.
$641.87
In Stock
Accessories-non-electrical, Low Nox Kit 1LN0801

#NI

All parts diagram

Accessories-non-electrical, low nox kit

Part #1LN0801

The manufacturer no longer makes this part, and there's no substitute part

Contactor (indoor Blower Motor) 024-25591-700

#17

All parts diagram

Contactor (indoor blower motor)

Part #024-25591-700

The manufacturer no longer makes this part, and there's no substitute part

Gasket Motor 028-12467-000

#49

All parts diagram

Gasket motor

Part #028-12467-000

The manufacturer no longer makes this part, and there's no substitute part

Com Isolator 028-10581-000

#2

All parts diagram

Com isolator

Part #028-10581-000

The manufacturer no longer makes this part, and there's no substitute part

Cap Run 024-21062-000

#8

All parts diagram

Cap run

Part #024-21062-000

The manufacturer no longer makes this part, and there's no substitute part
