Samsung
Bottom-Mount Refrigerator

Model # RF26XAERS/XAA-00 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RF26XAERS-XAA-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

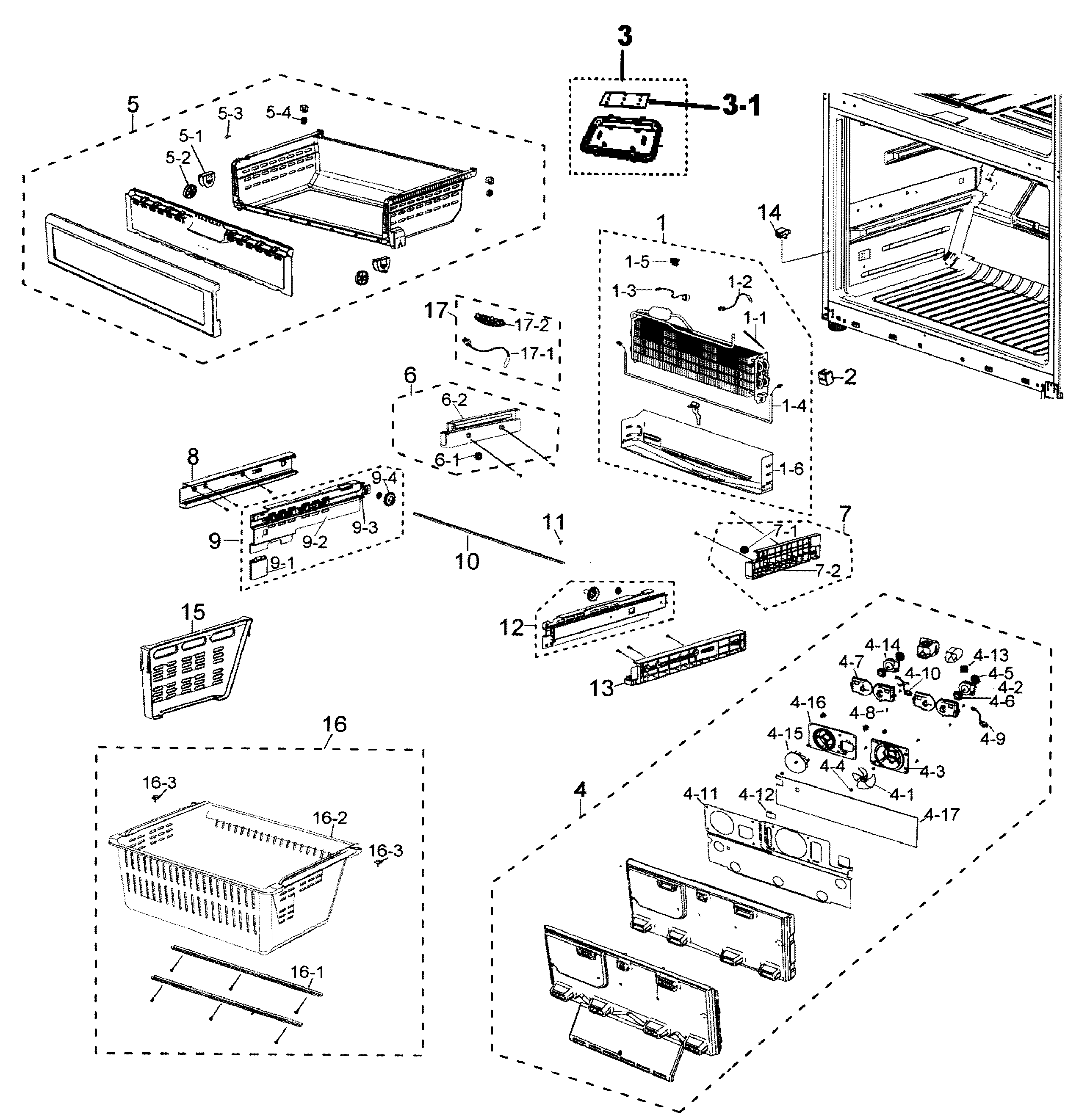

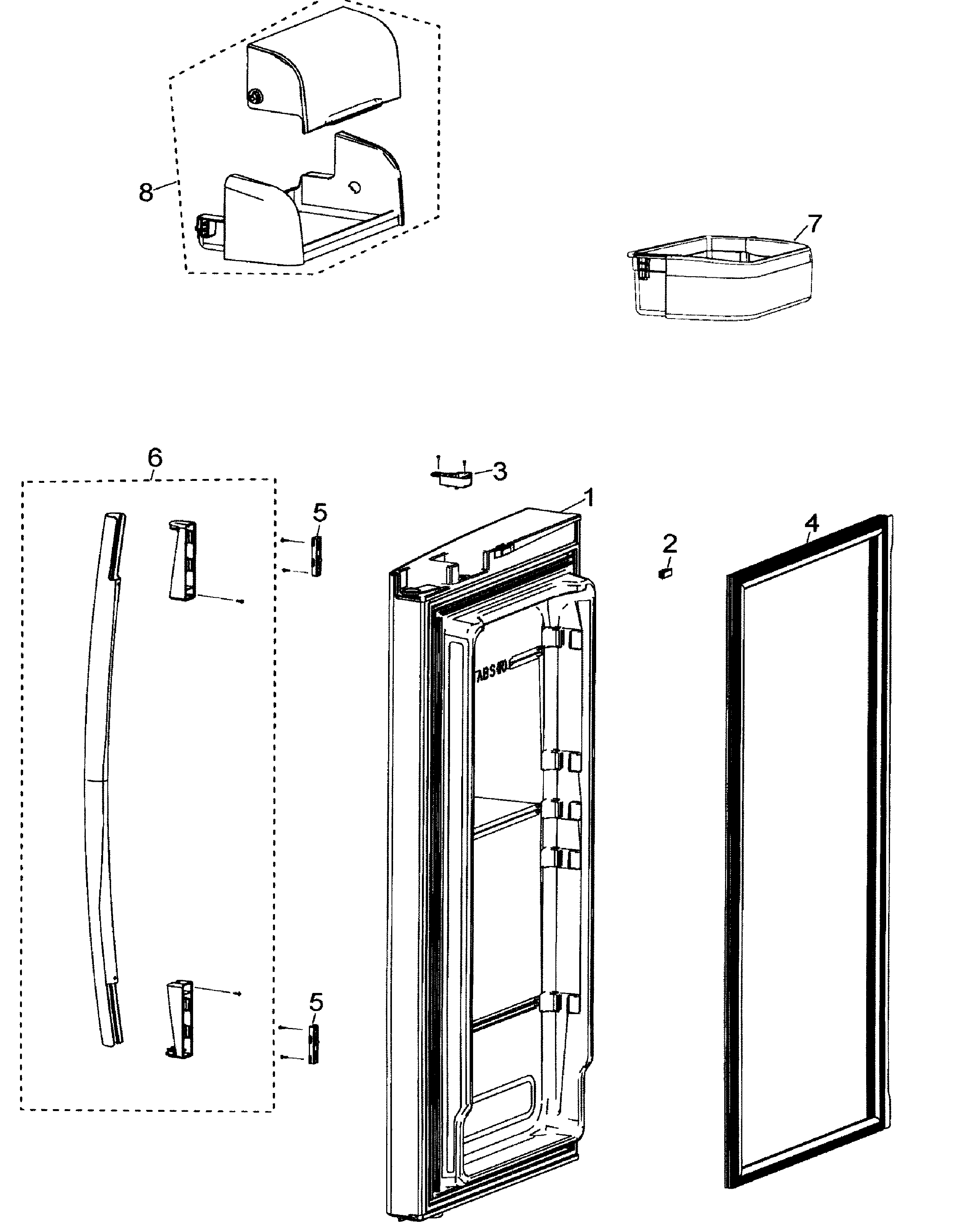

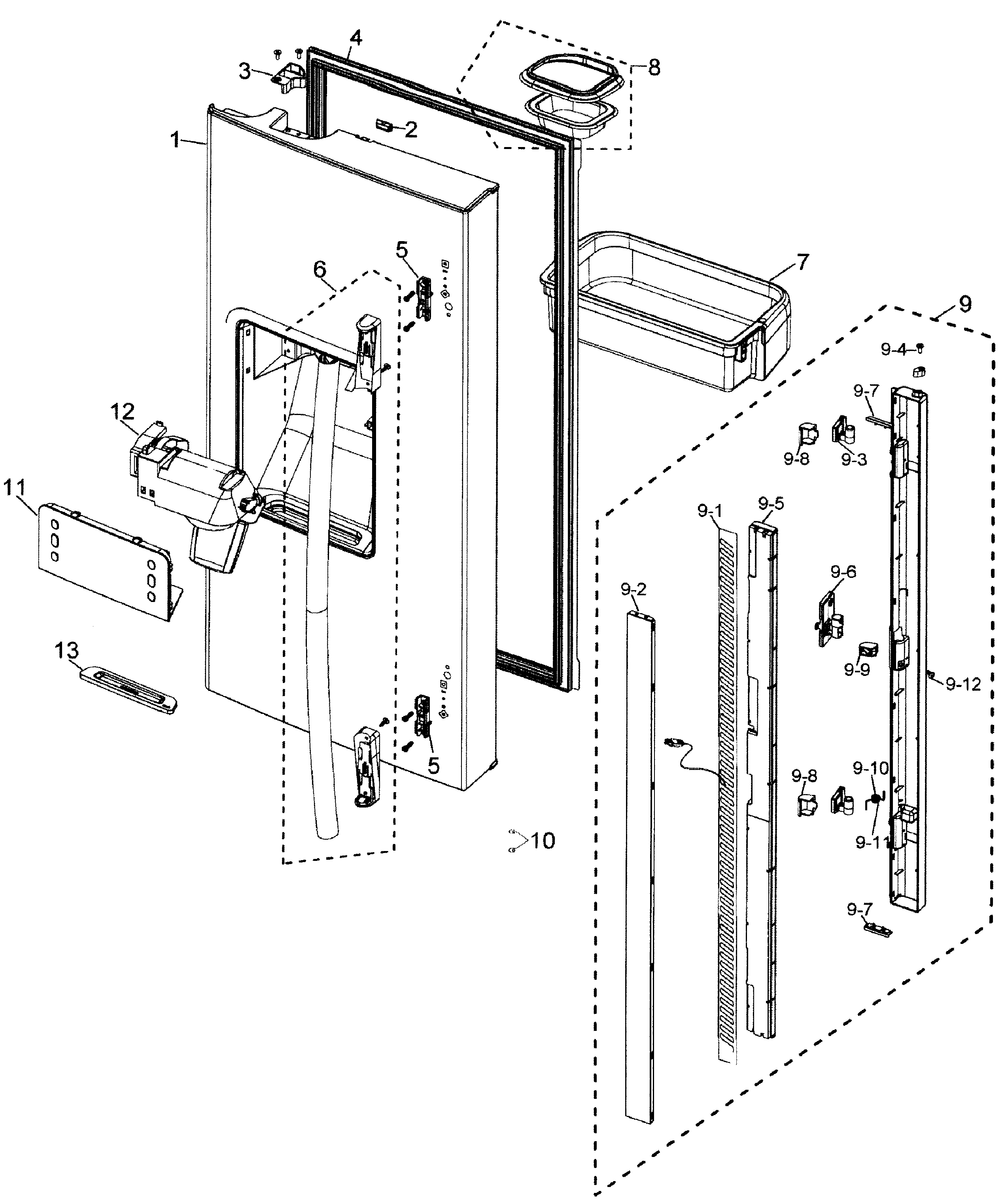

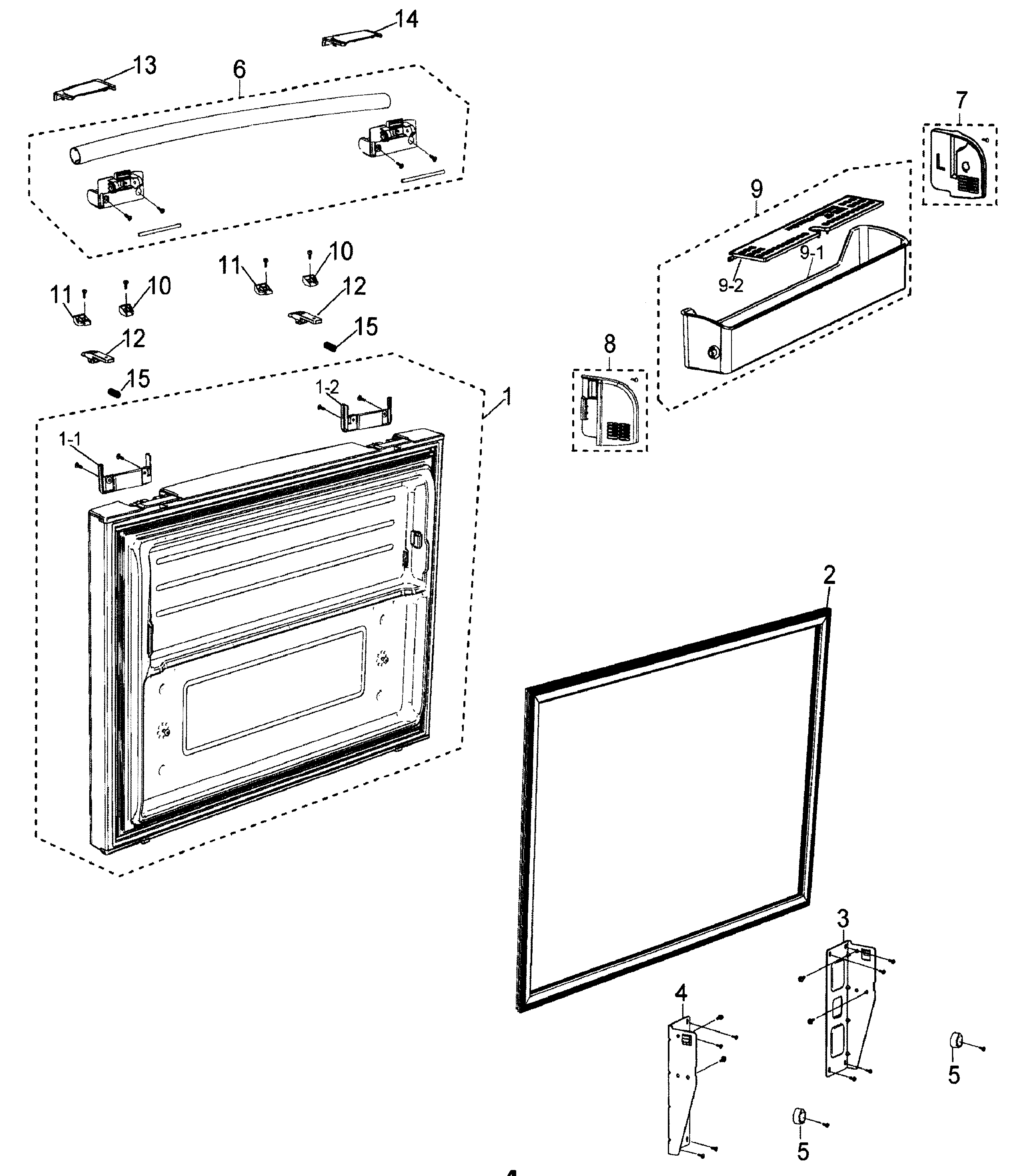

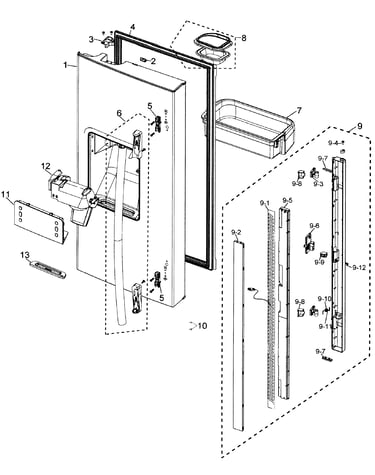

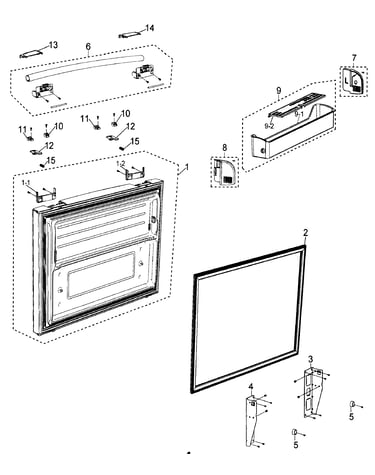

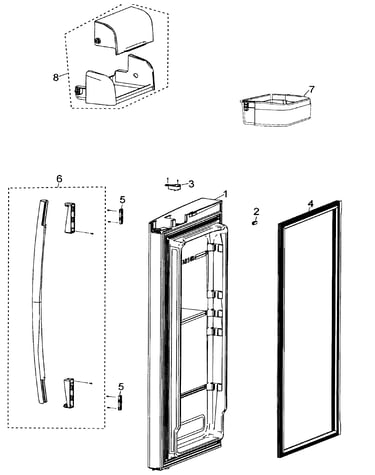

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 201 parts  |
Refrigerator Ice Maker Assembly DA97-07365A
#23

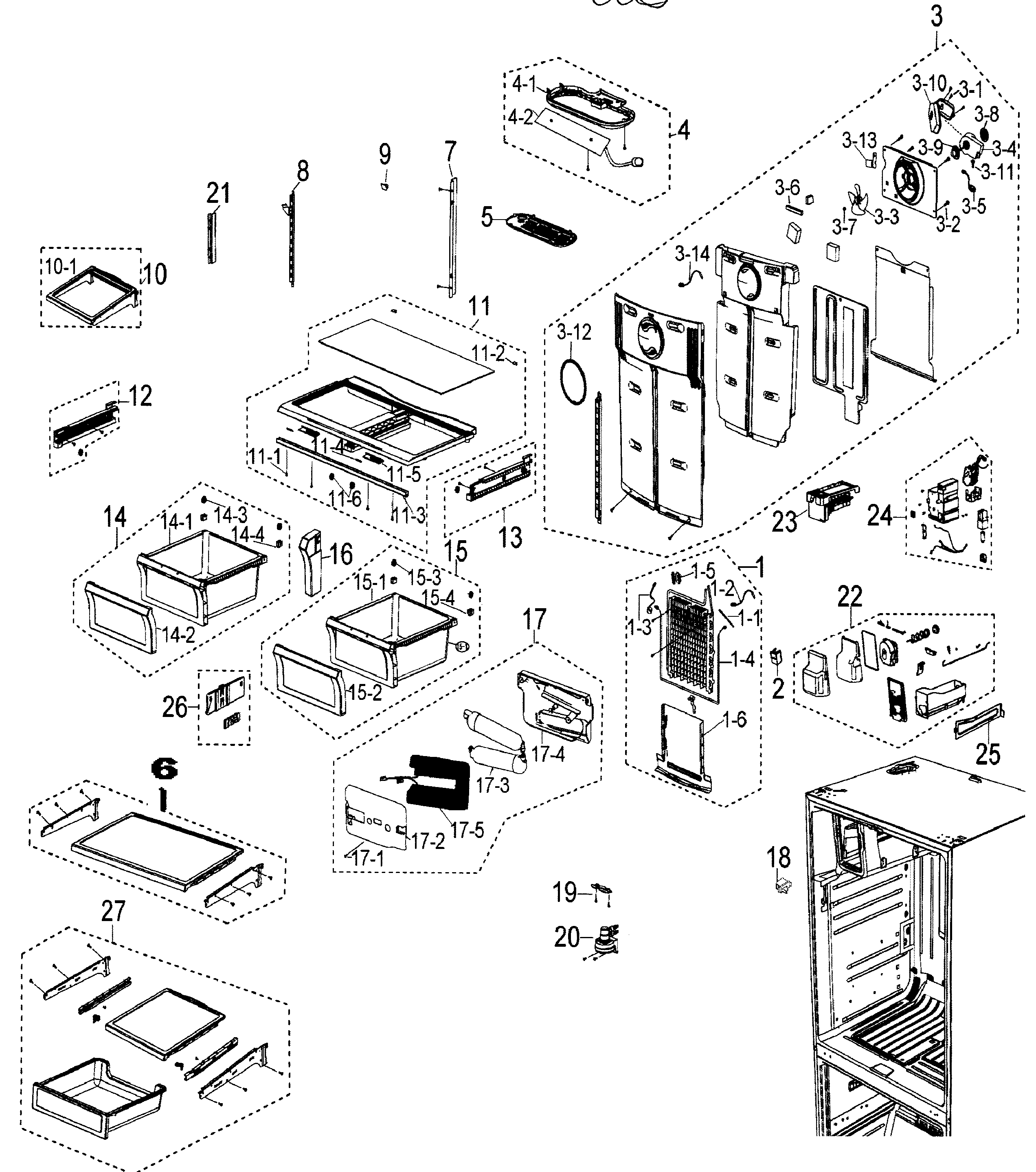

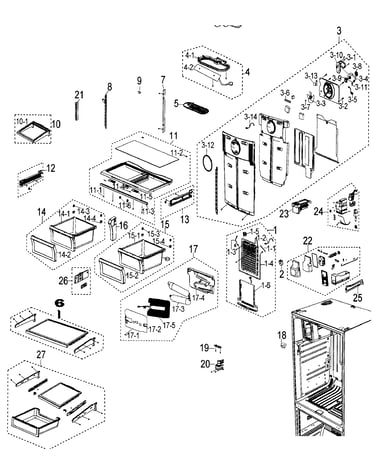

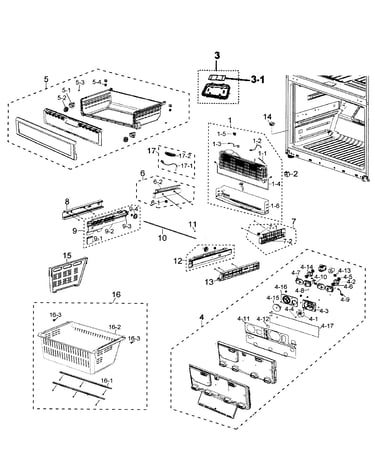

Refrigerator diagram

Refrigerator ice maker assembly

Part #DA97-07365A

Replaced by #DA97-07365G

?
Manufacturer substitution
This part replaces DA97-07365A. Substitute parts can look different from the original.
BEST SELLER
$137.32 |
8% OFF Phone Price : $149.32
In Stock
Refrigerator Defrost Sensor (replaces Da32-000006s, Da32-000065) DA32-00006S
Refrigerator defrost sensor (replaces da32-000006s, da32-000065)

Part #DA32-00006S

BEST SELLER
$25.40 |
19% OFF Phone Price : $31.40
In Stock
Refrigerator Compressor (replaces Bk190cl2c/e01, Bk190cl2ce01, Bk190cl2ce02) BK190CL2C/E02
#17

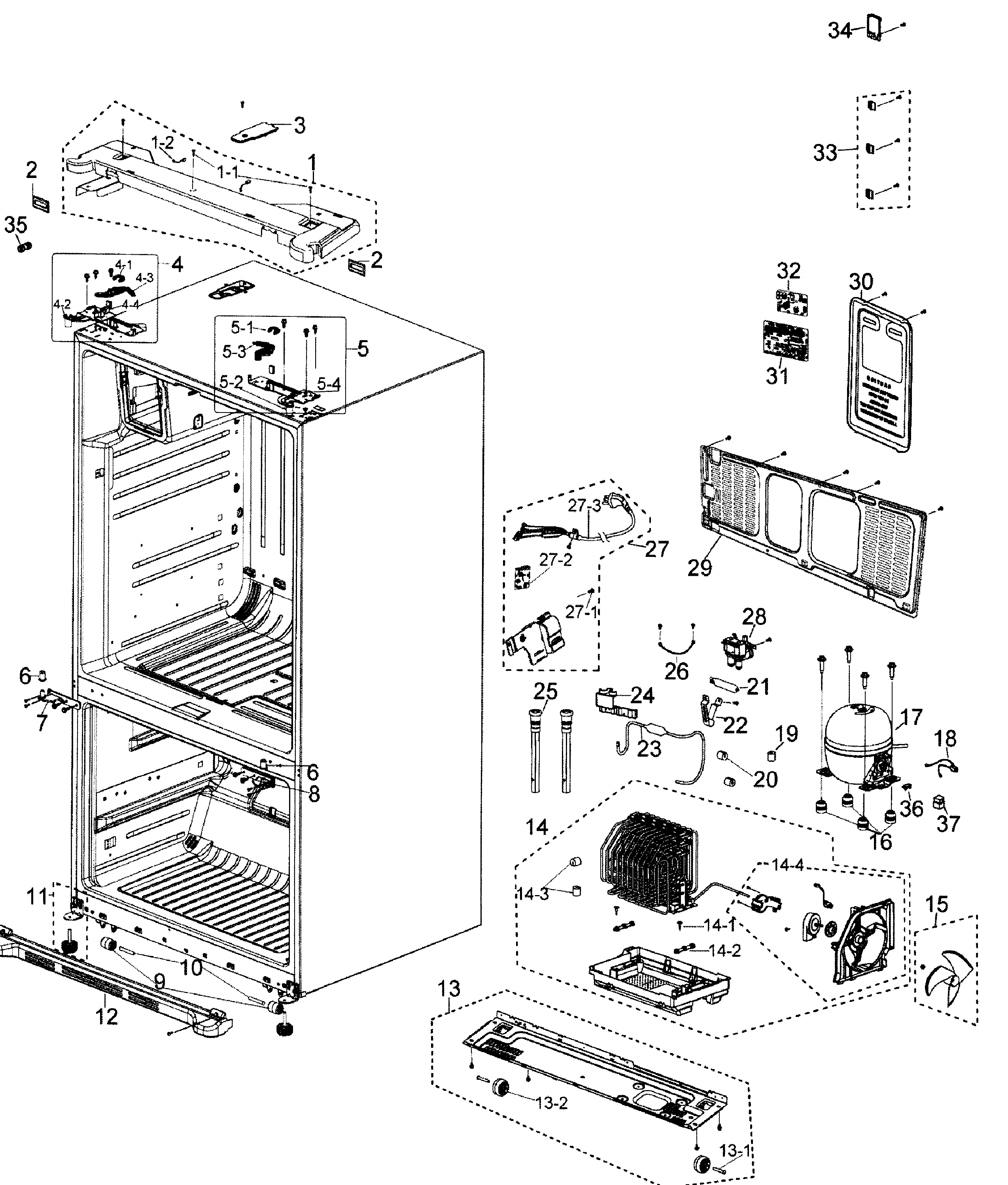

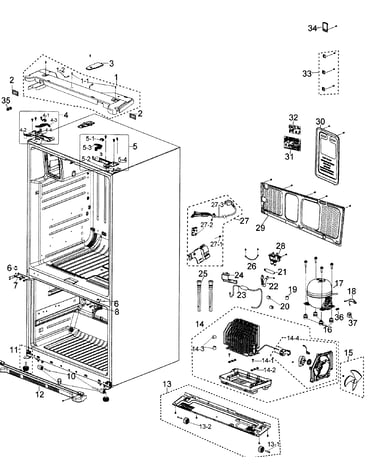

Cabinet diagram

Refrigerator compressor (replaces bk190cl2c/e01, bk190cl2ce01, bk190cl2ce02)

Part #BK190CL2C/E02

BEST SELLER
$278.27 |
$12.00 OFF Phone Price : $290.27
Back Order
Refrigerator Evaporator Fan Motor (replaces Da31-00146c) DA31-00146H
Refrigerator evaporator fan motor (replaces da31-00146c)

Part #DA31-00146H

BEST SELLER
$94.15 |
8% OFF Was : $102.34
In Stock
Kenmore Pro Refrigerator Temperature Sensor DA32-10105X
#3-14

Refrigerator diagram

Kenmore pro refrigerator temperature sensor

Part #DA32-10105X

BEST SELLER
$21.18 |
22% OFF Phone Price : $27.18
In Stock
Refrigerator Shelf Support End Cap DA61-04809A
#11-2

Refrigerator diagram

Refrigerator shelf support end cap

Part #DA61-04809A

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Refrigerator Compressor Overload Protector DA34-00004D
#36

Cabinet diagram

Refrigerator compressor overload protector

Part #DA34-00004D

BEST SELLER
$43.34 |
12% OFF Phone Price : $49.34
In Stock
Refrigerator Water Inlet Valve Assembly (replaces Da62-02219a, Da62-02291b, Da97-07827e) DA97-07827B
#28

Cabinet diagram

Refrigerator water inlet valve assembly (replaces da62-02219a, da62-02291b, da97-07827e)

Part #DA97-07827B

BEST SELLER
$121.33 |
9% OFF Was : $133.33
In Stock
Refrigerator Water Filter Head (replaces Da97-06317e) DA97-06317A
#20

Refrigerator diagram

Refrigerator water filter head (replaces da97-06317e)

Part #DA97-06317A

BEST SELLER
$92.21 |
6% OFF Phone Price : $98.21
In Stock
Refrigerator Gasket DA97-07191A
Refrigerator gasket

Part #DA97-07191A

Replaced by #DA63-06542A

?
Manufacturer substitution
This part replaces DA97-07191A. Substitute parts can look different from the original.
BEST SELLER
$104.78 |
10% OFF Phone Price : $116.78
In Stock
