Model # A05LH5K1 Official Frigidaire room air conditioner - lf34089200

Here are the diagrams and repair parts for Official Frigidaire A05LH5K1 room air conditioner - lf34089200, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

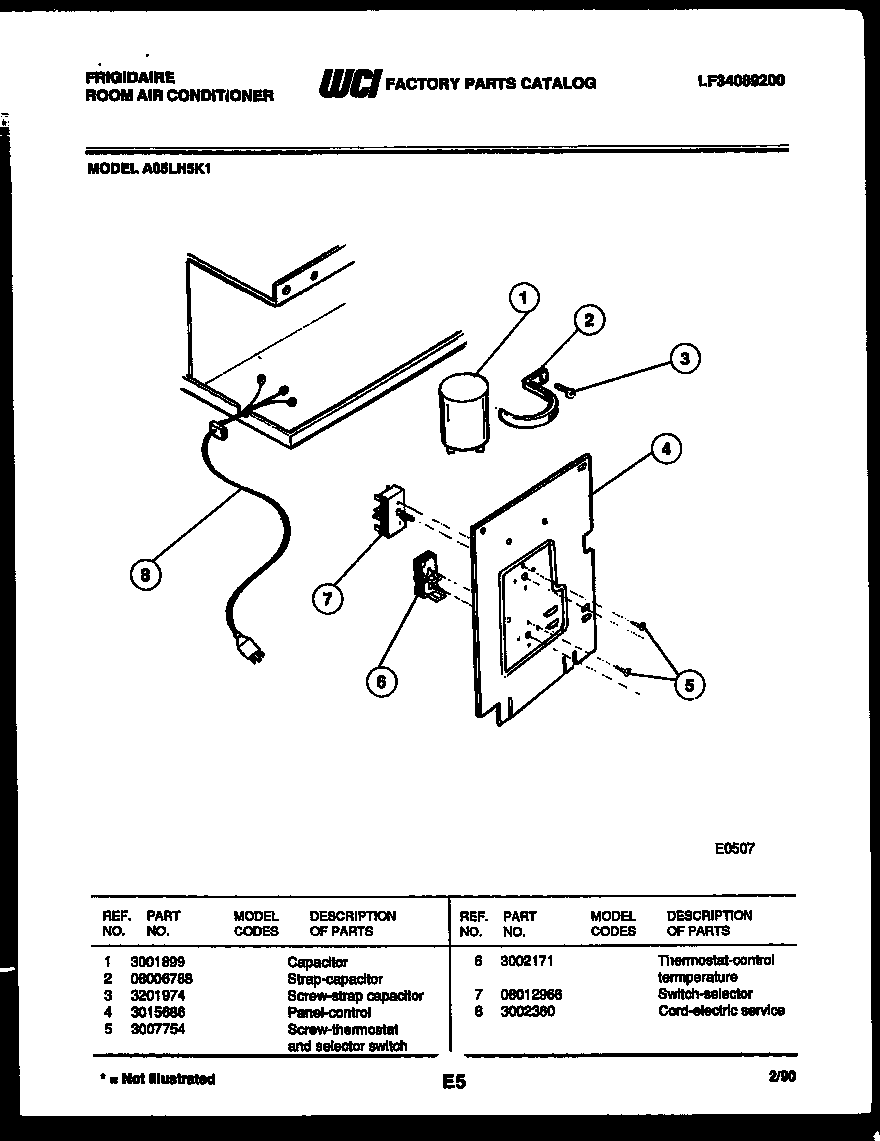

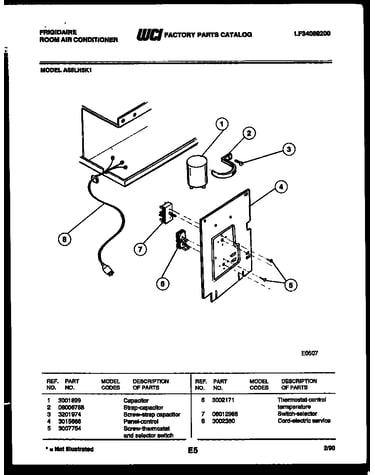

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Filter 08004930
#3

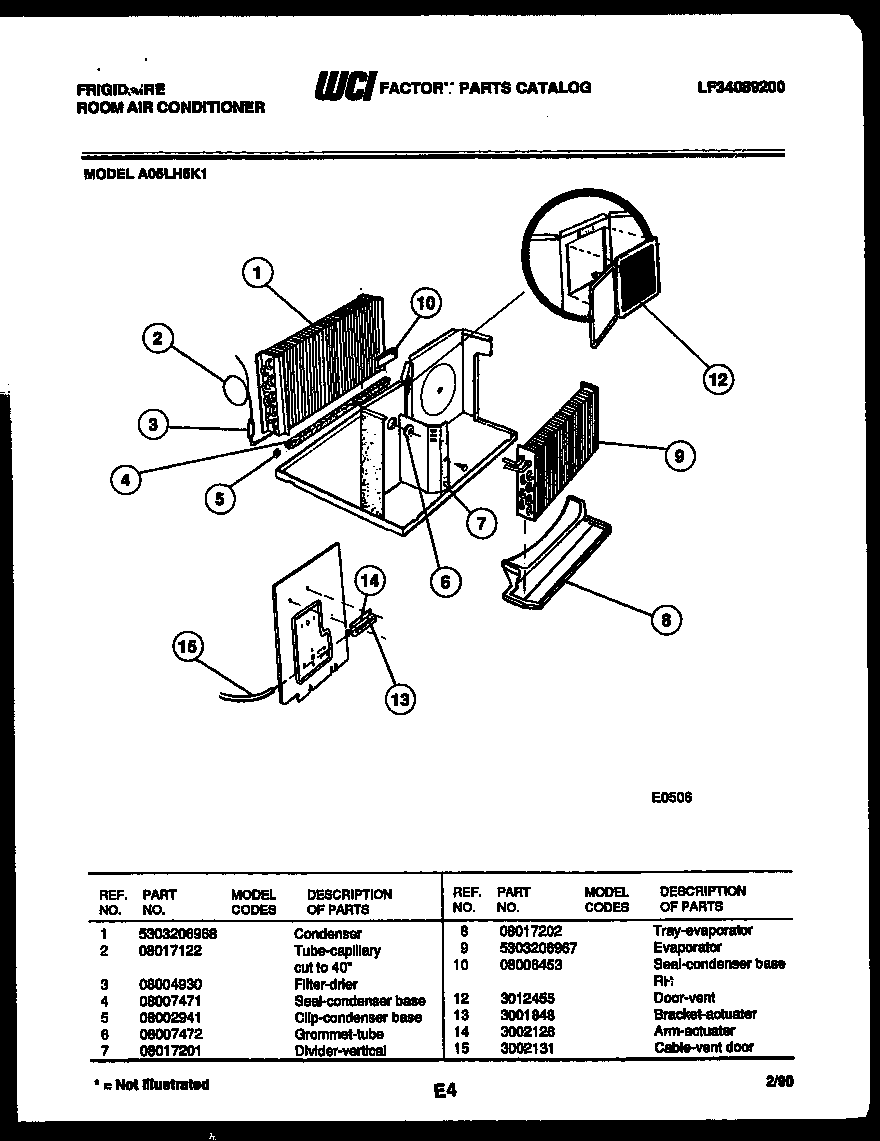

Unit parts diagram

Filter

Part #08004930

Replaced by #5300265301

?
Manufacturer substitution
This part replaces 08004930. Substitute parts can look different from the original.
$212.62
In Stock
Screw 08007473
#9

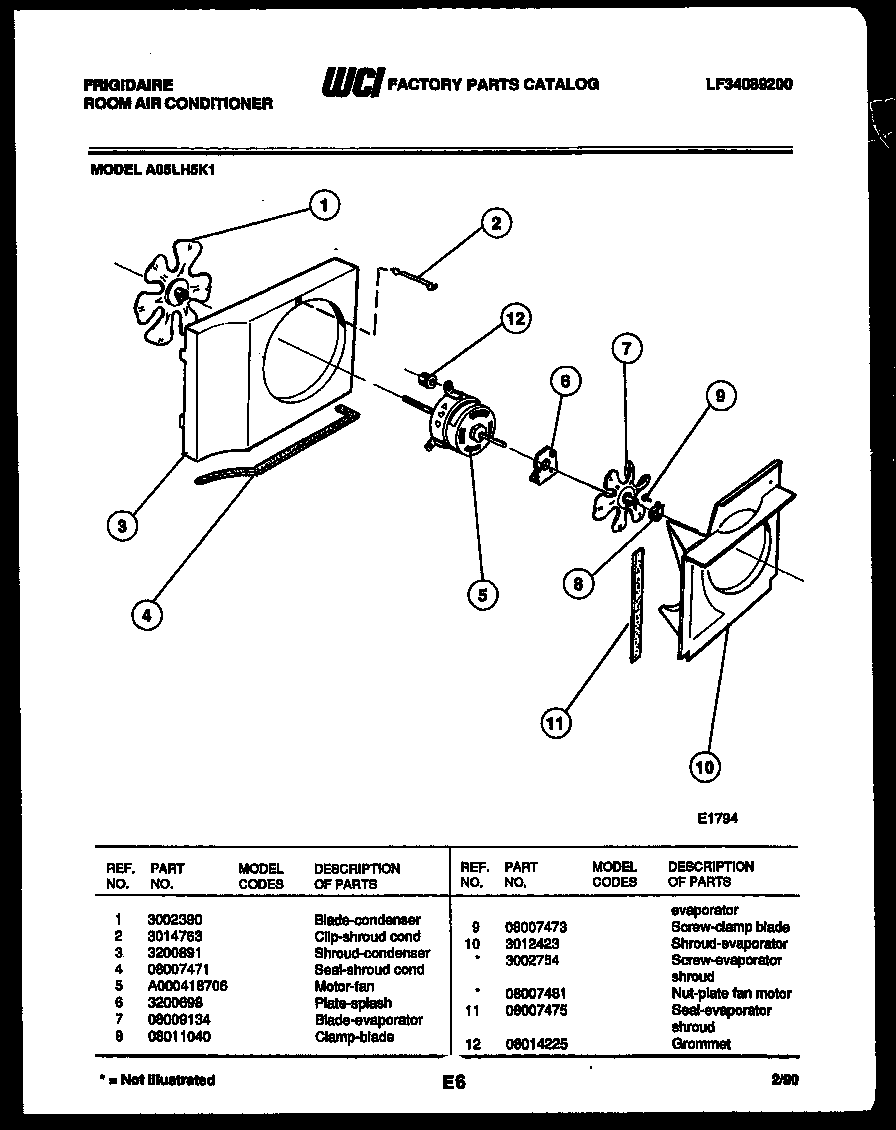

Air handling parts diagram

Screw

Part #08007473

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 08007473. Substitute parts can look different from the original.
$13.26
In Stock
Louver 08017364
#6

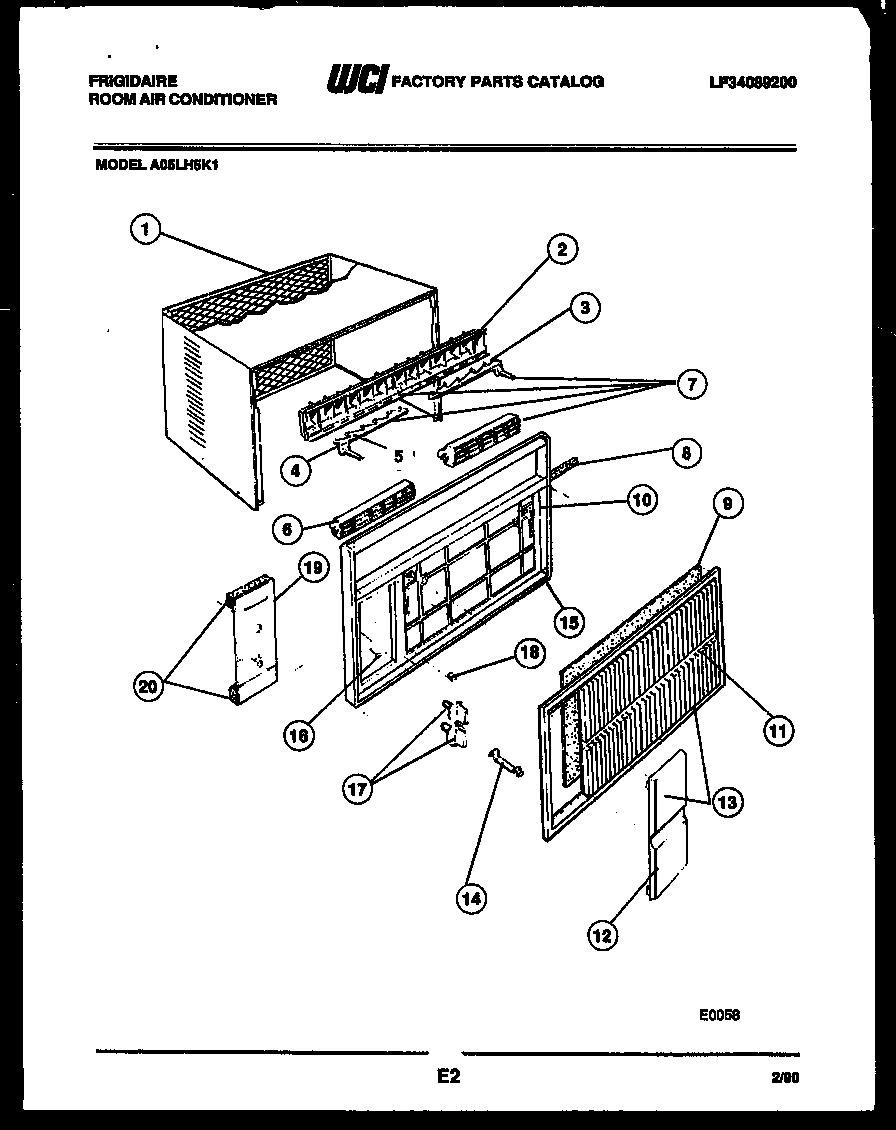

Cabinet parts diagram

Louver

Part #08017364

This item is not returnable
$4.99
In Stock
Screw 08012954
Screw

Part #08012954

This item is not returnable
$2.16
In Stock
Kelvinator Room Air Conditioner Lock Nut 08007481
#10B

Air handling parts diagram

Kelvinator room air conditioner lock nut

Part #08007481

This item is not returnable
$5.74
In Stock
Kenmore Support (replaces 000253701, 000253701, 253701, 253701, A000253701, Wa253701) 08007493
#15

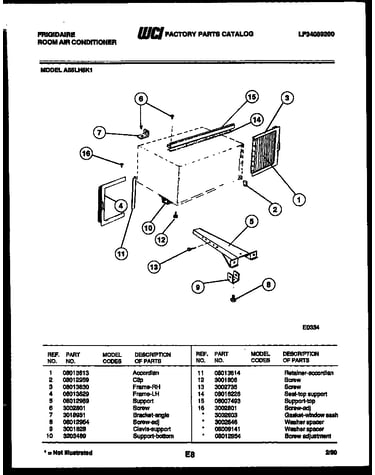

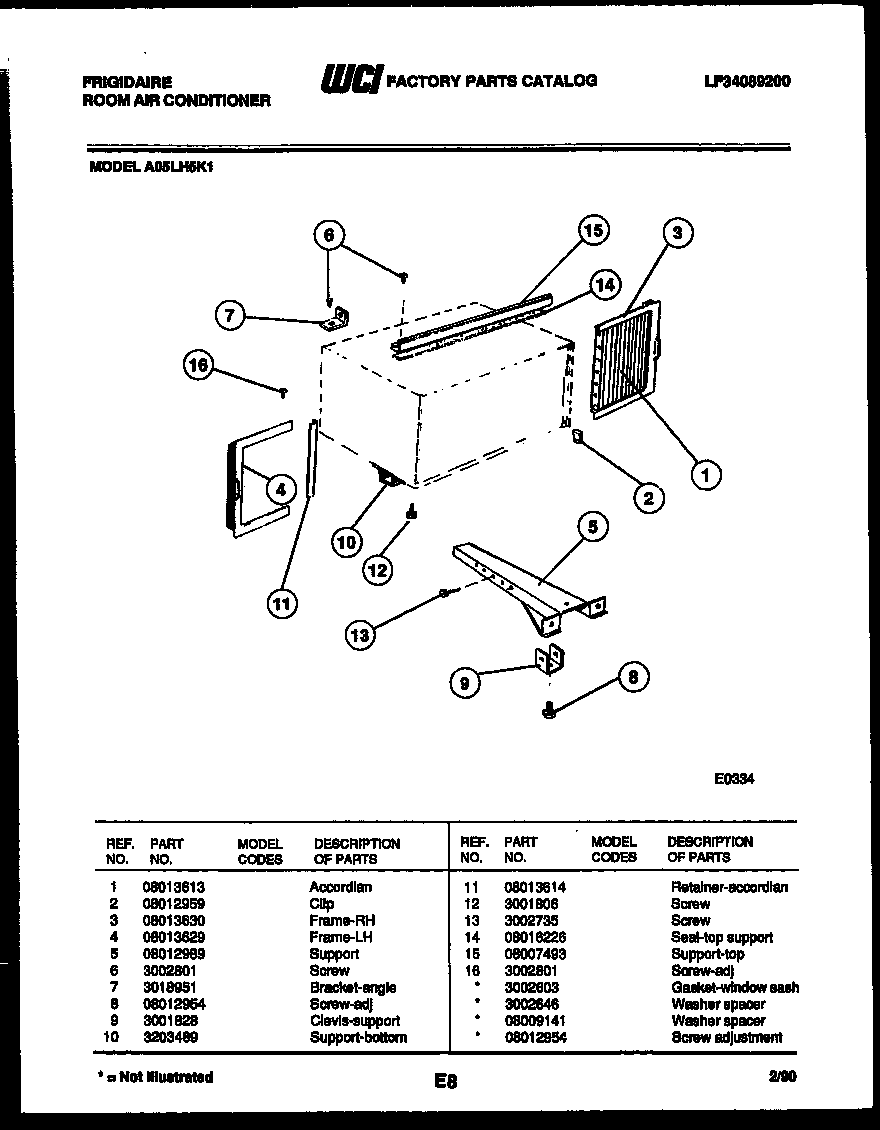

Window mounting parts diagram

Kenmore support (replaces 000253701, 000253701, 253701, 253701, a000253701, wa253701)

Part #08007493

$12.99
In Stock
Gasket 3002603

#NI

All parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Spring 08002987
#8

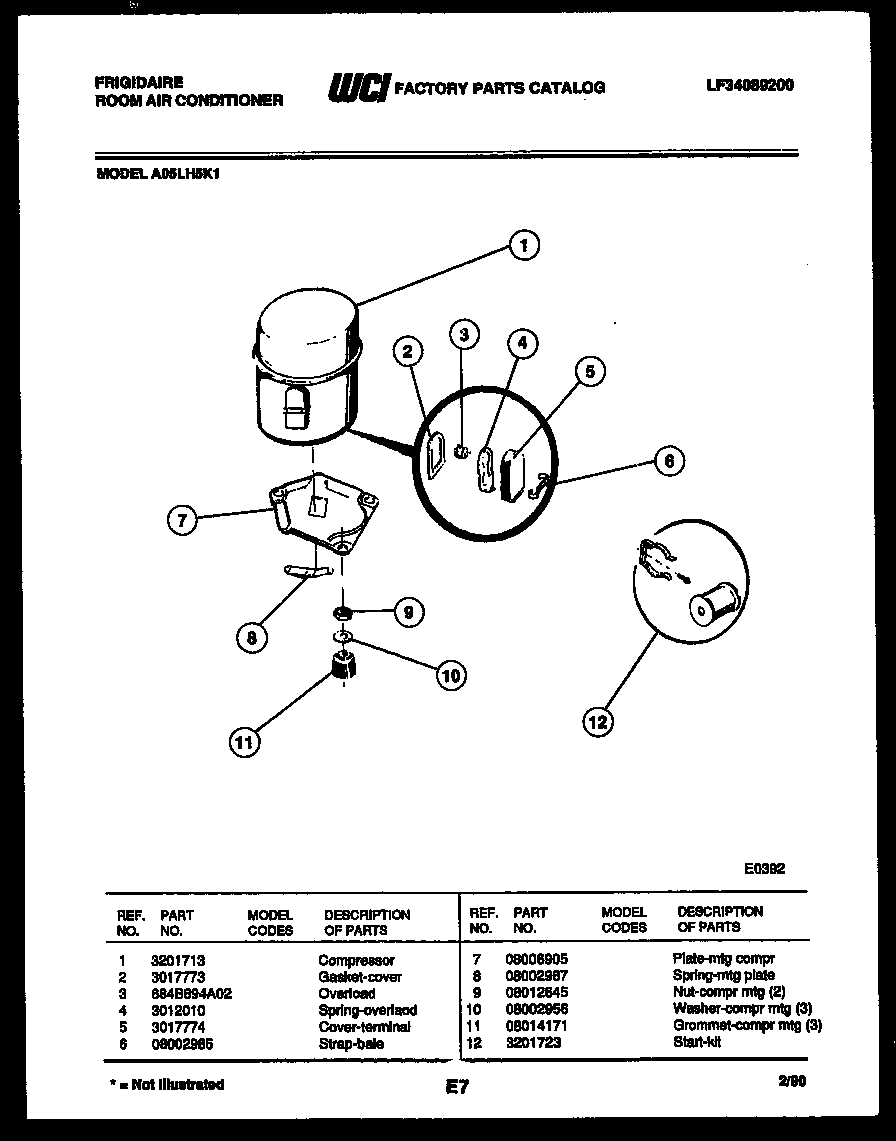

Compressor parts diagram

Spring

Part #08002987

Replaced by #5308002987

?
Manufacturer substitution
This part replaces 08002987. Substitute parts can look different from the original.
$7.99
In Stock
Door 3012455
#12

Unit parts diagram

Door

Part #3012455

Replaced by #5303012455

?
Manufacturer substitution
This part replaces 3012455. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Front 08017187
#15

Cabinet parts diagram

Front

Part #08017187

The manufacturer no longer makes this part, and there's no substitute part
