Kenmore Elite
Electric Wall Oven

Model # 79049074401 Official Kenmore Elite wall oven

Here are the diagrams and repair parts for Official Kenmore Elite 79049074401 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

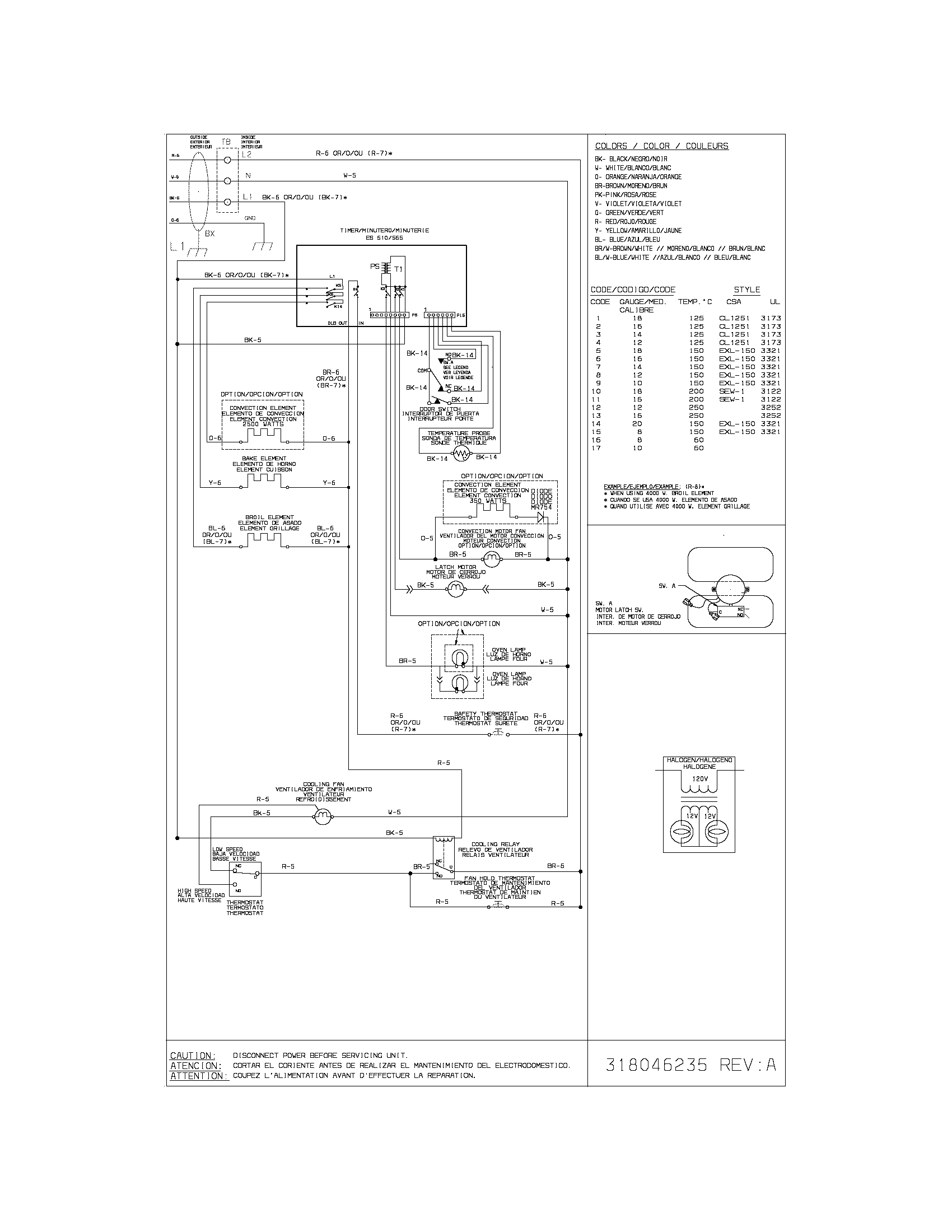

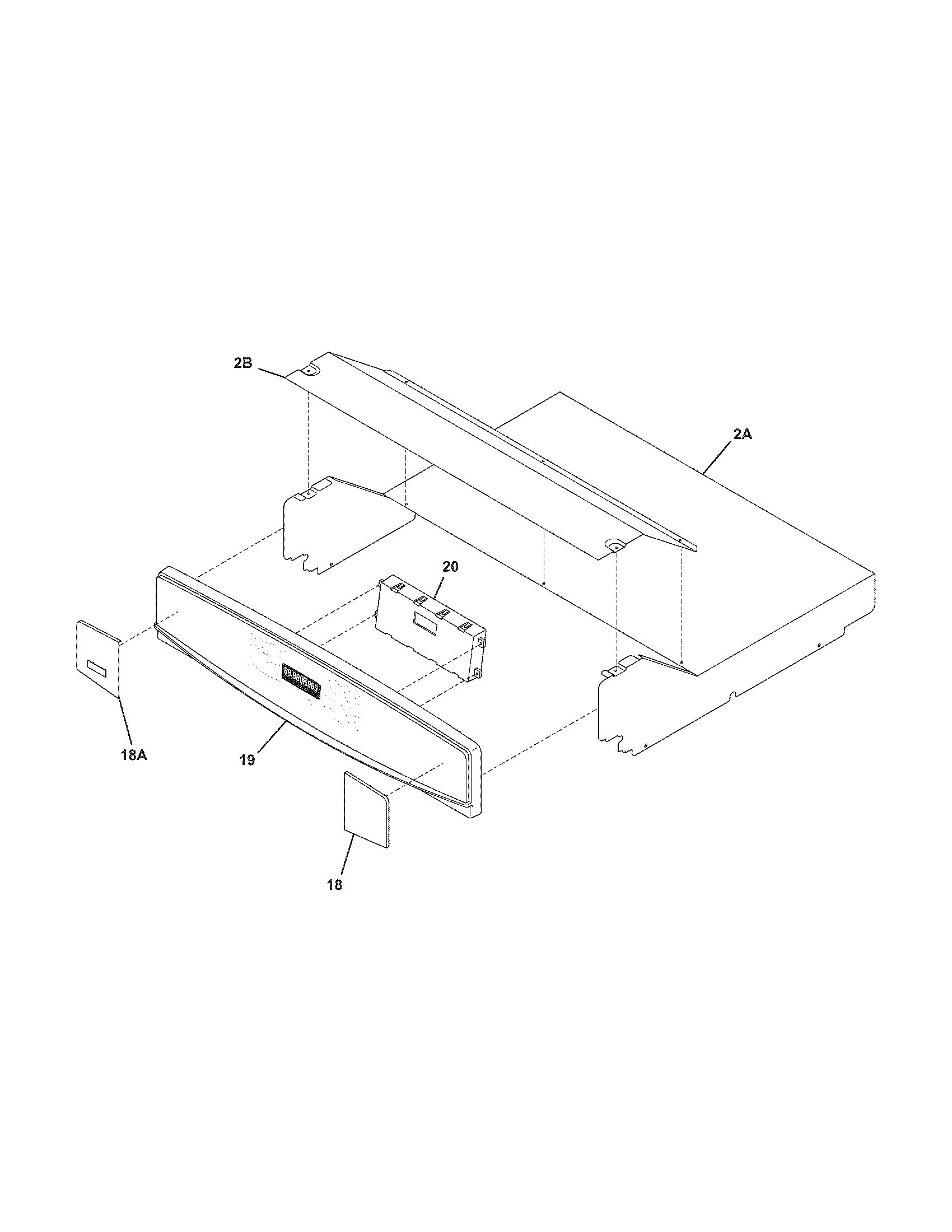

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Frigidaire Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

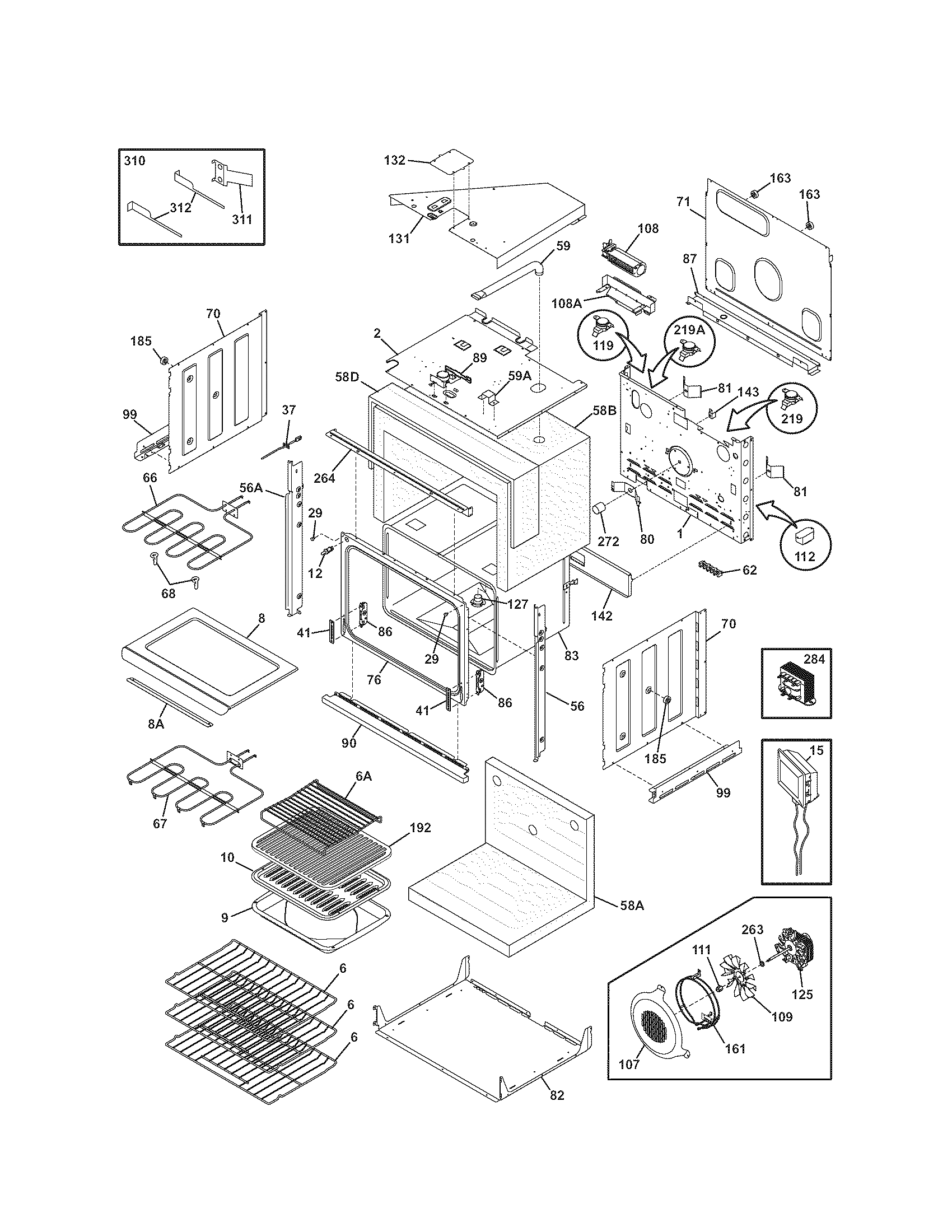

Body diagram

Frigidaire range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Element 318254901
#67

Body diagram

Element

Part #318254901

Replaced by #318254906

?
Manufacturer substitution
This part replaces 318254901. Substitute parts can look different from the original.
BEST SELLER
$154.69 |
7% OFF Phone Price : $166.69
In Stock
Range Oven Door Inner Glass 316117500
#8

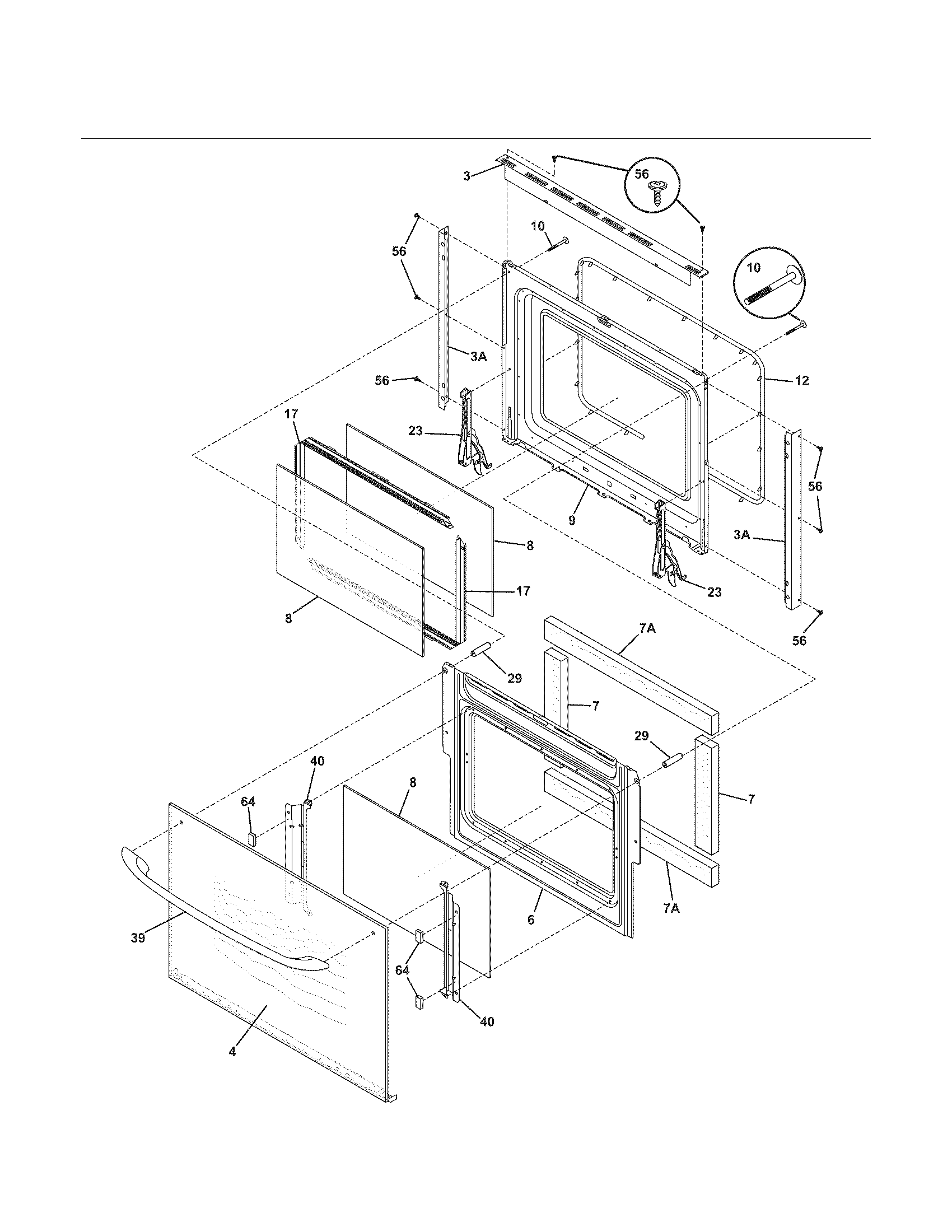

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Washer 316136500
#263

Body diagram

Washer

Part #316136500

Replaced by #316008401

?
Manufacturer substitution
This part replaces 316136500. Substitute parts can look different from the original.
BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Crosley Range High-limit Thermostat 318003614
#219

Body diagram

Crosley range high-limit thermostat

Part #318003614

BEST SELLER
$69.03 |
8% OFF Phone Price : $75.03
In Stock
Oven Element 318255800
#66

Body diagram

Oven element

Part #318255800

Replaced by #318255807

?
Manufacturer substitution
This part replaces 318255800. Substitute parts can look different from the original.
BEST SELLER
$195.27 |
6% OFF Phone Price : $207.27
In Stock
Wall Oven Removal Tool, Right (replaces 318246700, 7318246702) 318246702
#312

Body diagram

Wall oven removal tool, right (replaces 318246700, 7318246702)

Part #318246702

BEST SELLER
This item is not returnable
$9.60 |
9% OFF Phone Price : $10.60
In Stock
Switch 318089917
#12

Body diagram

Switch

Part #318089917

Replaced by #316445501

?
Manufacturer substitution
This part replaces 318089917. Substitute parts can look different from the original.
$63.47 |
9% OFF Phone Price : $69.47
In Stock
Element 318255500
#161

Body diagram

Element

Part #318255500

Replaced by #318255511

?
Manufacturer substitution
This part replaces 318255500. Substitute parts can look different from the original.
$97.49 |
11% OFF Phone Price : $109.49
In Stock
Range Oven Door Middle Glass Spacer 316402403
#17

Door diagram

Range oven door middle glass spacer

Part #316402403

Replaced by #5304504811

?
Manufacturer substitution
This part replaces 316402403. Substitute parts can look different from the original.
This item is not returnable
$25.52 |
19% OFF Phone Price : $31.52
In Stock
