Model # SPHO60001A/P9999209C Official Amana package unit with accessories - spho series

Here are the diagrams and repair parts for Official Amana SPHO60001A-P9999209C package unit with accessories - spho series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 216 parts |

Screw

Part #M0211317

Replaced by #WP489464

This item is not returnable

$6.60 |

13% OFF Phone Price : $7.60

In Stock

Qty

#14

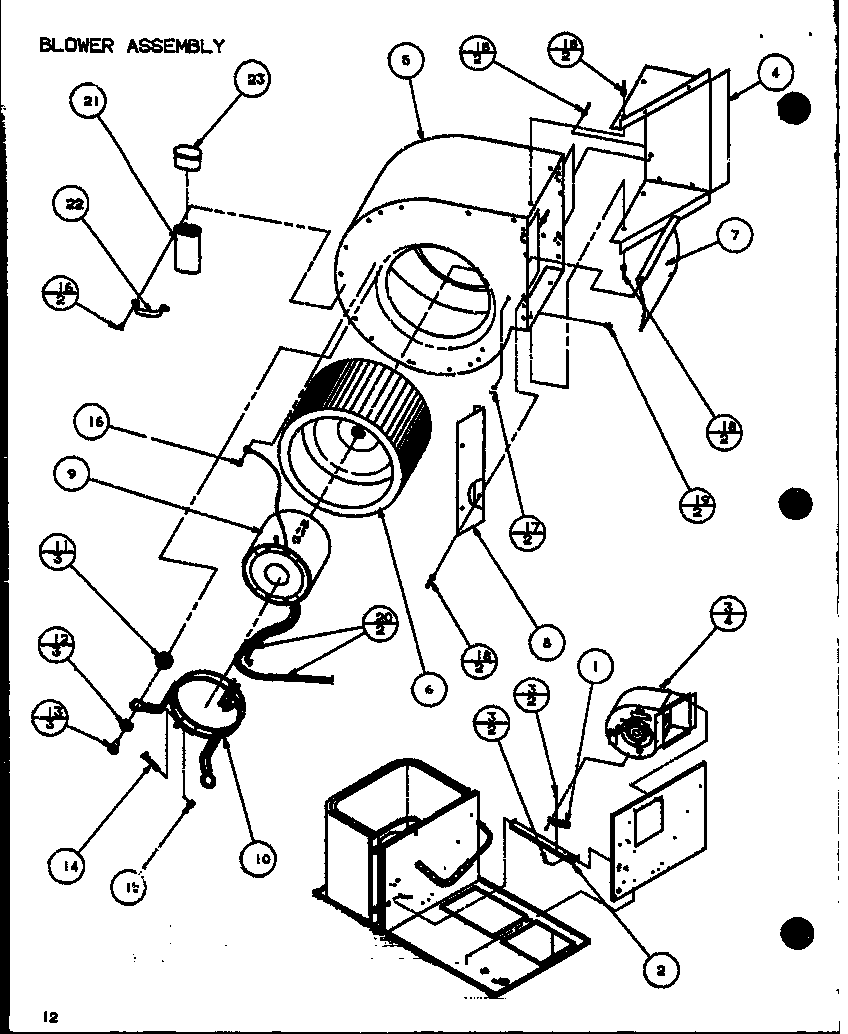

Blower assembly (spho42001a/p9999205c) (spho42003a/p9999206c) (spho48001a/p9999207c) (spho48003a/p9999208c) (spho60001a/p9999209c) (spho60003a/p9999210c) diagram

Screw

Part #M0267144

Replaced by #3400241

$12.49

In Stock

Qty

#16

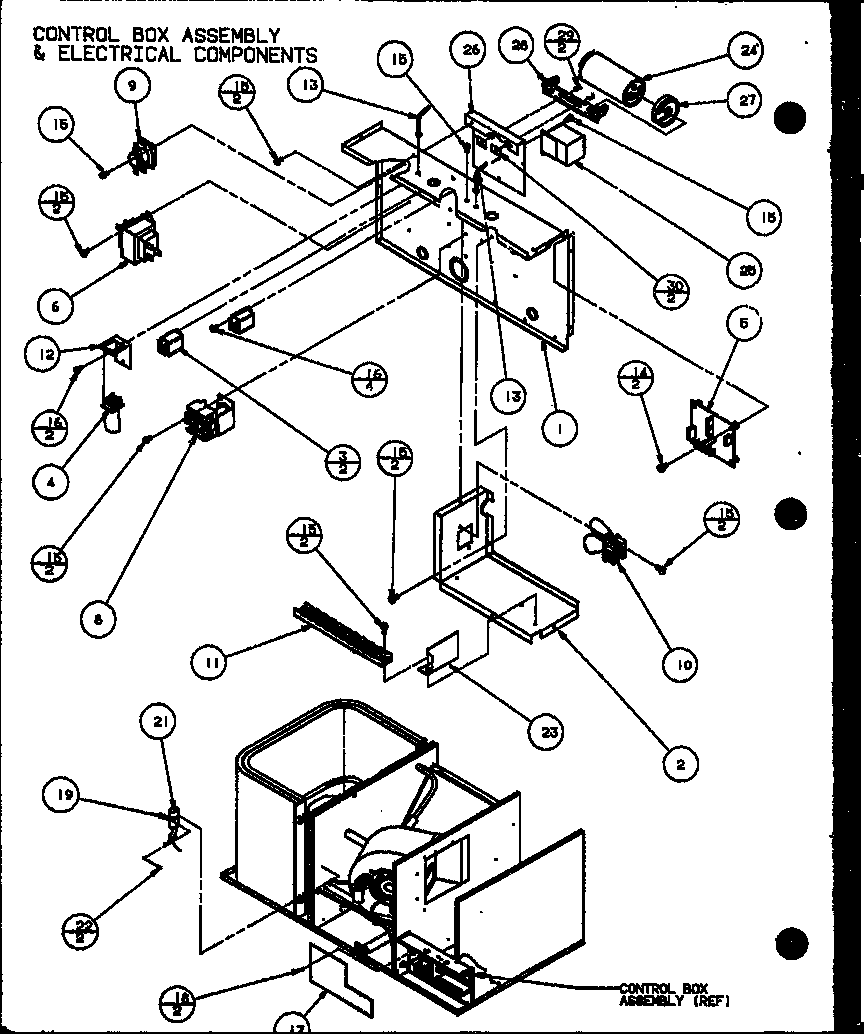

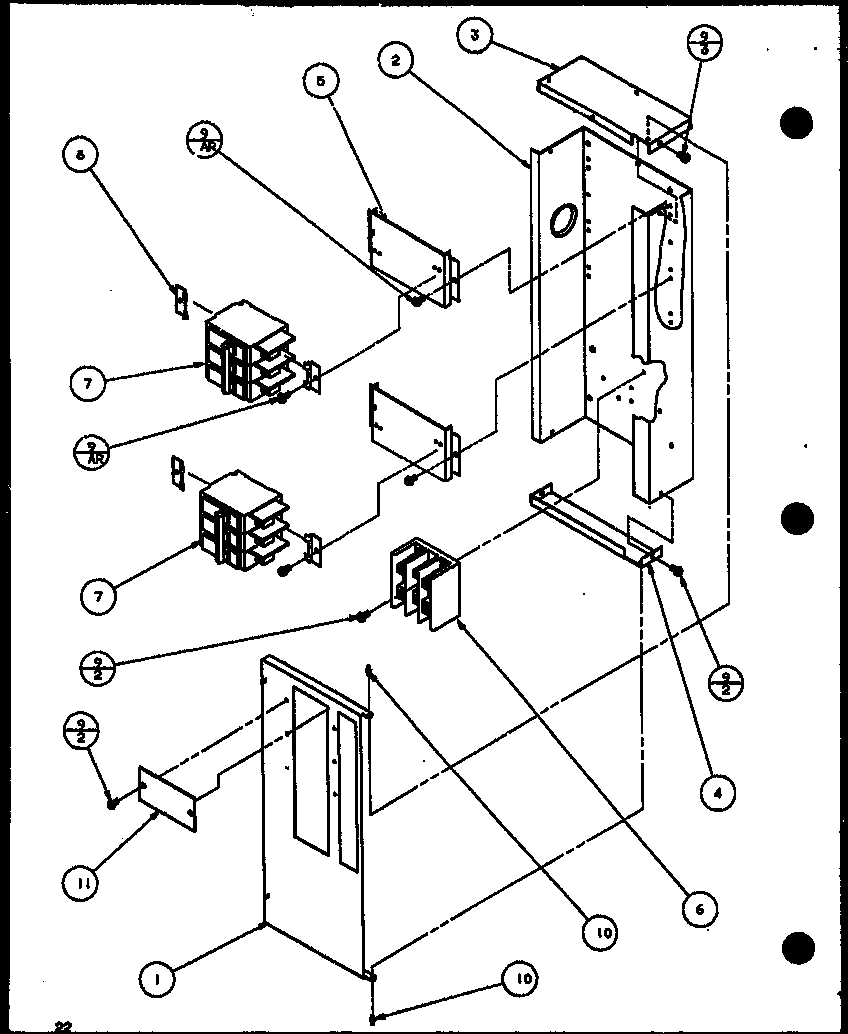

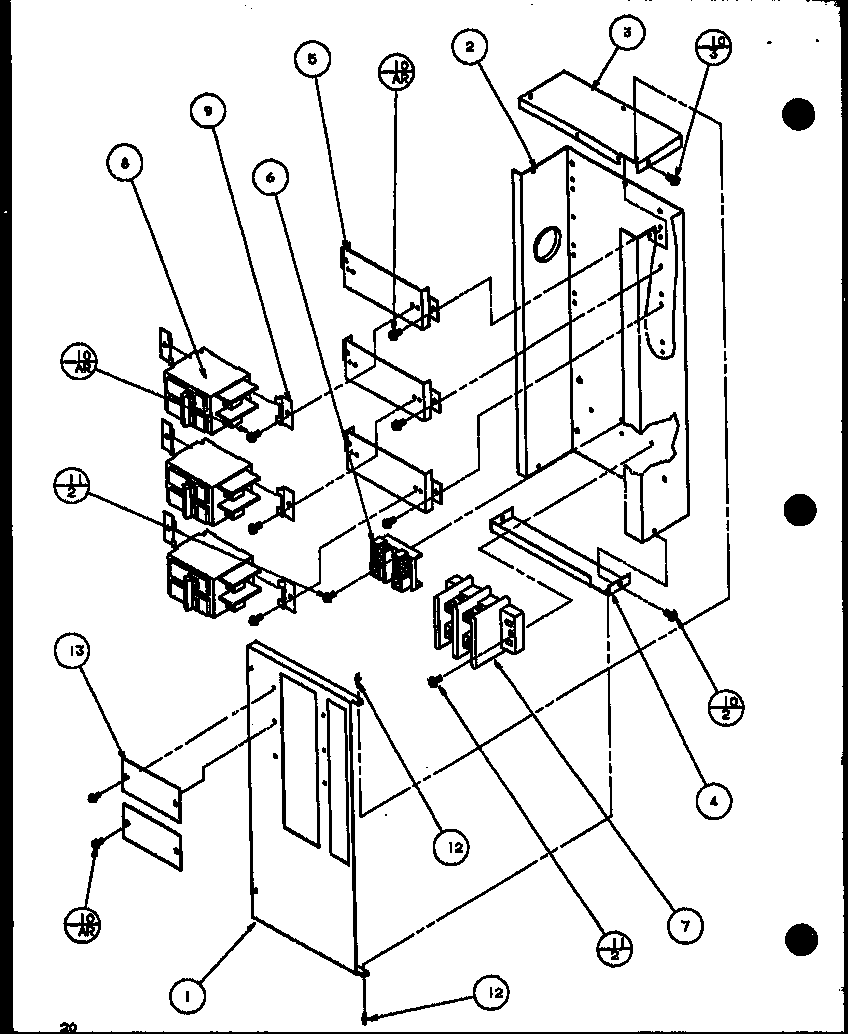

Control box assembly & electrical components (spho42001a/p9999205c) (spho42003a/p9999206c) (spho48001a/p9999207c) (spho48003a/p9999208c) (spho60001a/p9999209c) (spho60003a/p9999210c) diagram

Screw

Part #M0216515

Replaced by #WP489349

This item is not returnable

$4.46 |

18% OFF Phone Price : $5.46

In Stock

Qty

#15

Blower assembly (spho42001a/p9999205c) (spho42003a/p9999206c) (spho48001a/p9999207c) (spho48003a/p9999208c) (spho60001a/p9999209c) (spho60003a/p9999210c) diagram

Use m2820-15

Part #M0282013

Replaced by #WP487939

This item is not returnable

$4.39 |

19% OFF Phone Price : $5.39

In Stock

Qty

#11

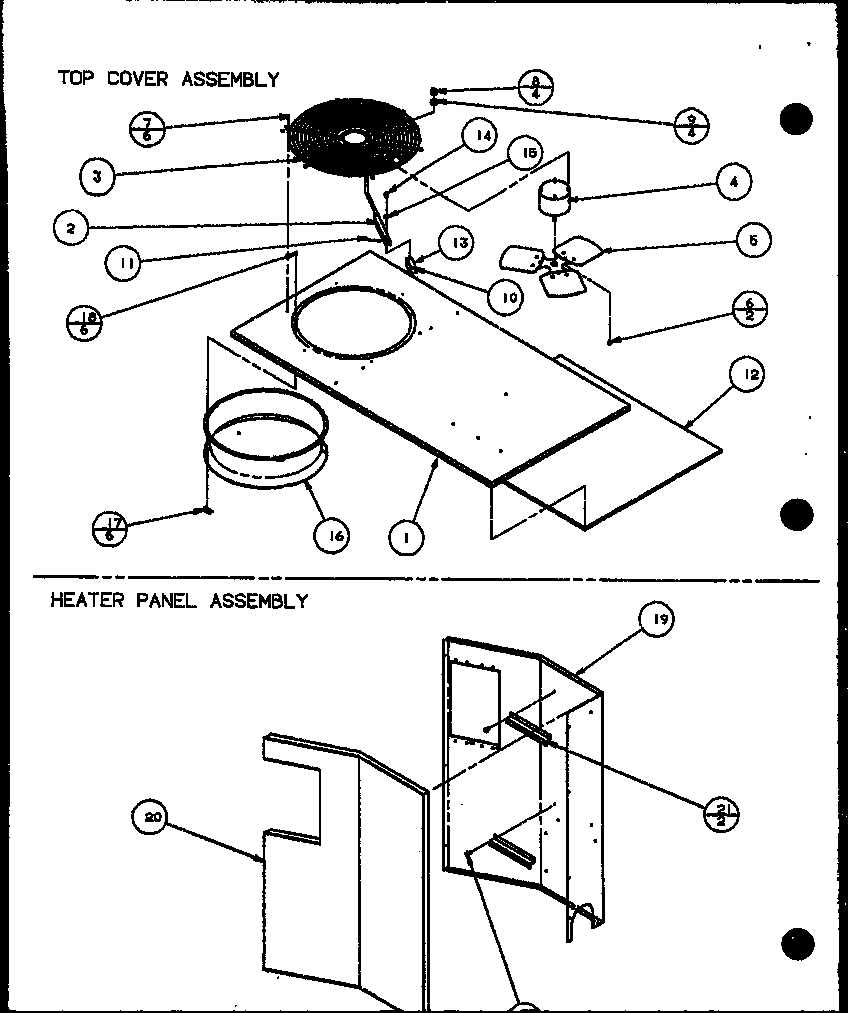

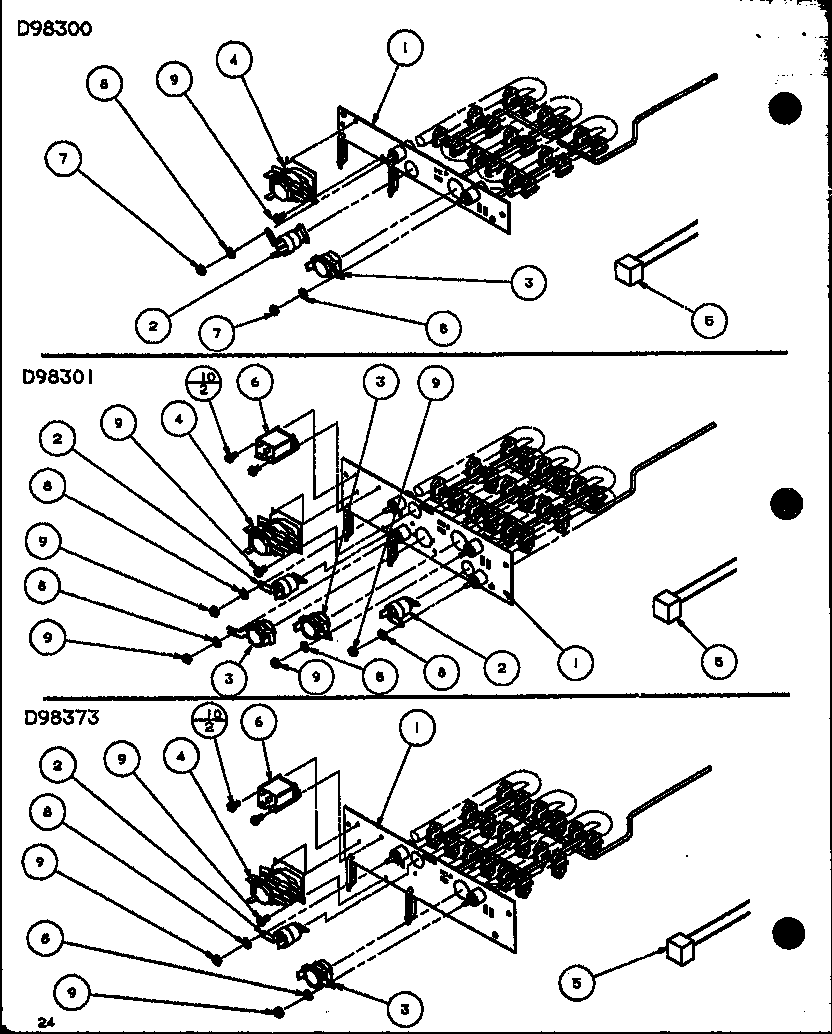

Top cover assembly/heater panel assembly (spho42001a/p9999205c) (spho42003a/p9999206c) (spho48001a/p9999207c) (spho48003a/p9999208c) (spho60001a/p9999209c) (spho60003a/p9999210c) diagram

Tie

Part #M0321202

Replaced by #WPW10339879

This item is not returnable

$4.37 |

19% OFF Phone Price : $5.37

In Stock

Qty

#19

Blower assembly (spho42001a/p9999205c) (spho42003a/p9999206c) (spho48001a/p9999207c) (spho48003a/p9999208c) (spho60001a/p9999209c) (spho60003a/p9999210c) diagram

Screw

Part #M0211016

Replaced by #M0211016

This item is not returnable

$3.40

In Stock

Qty

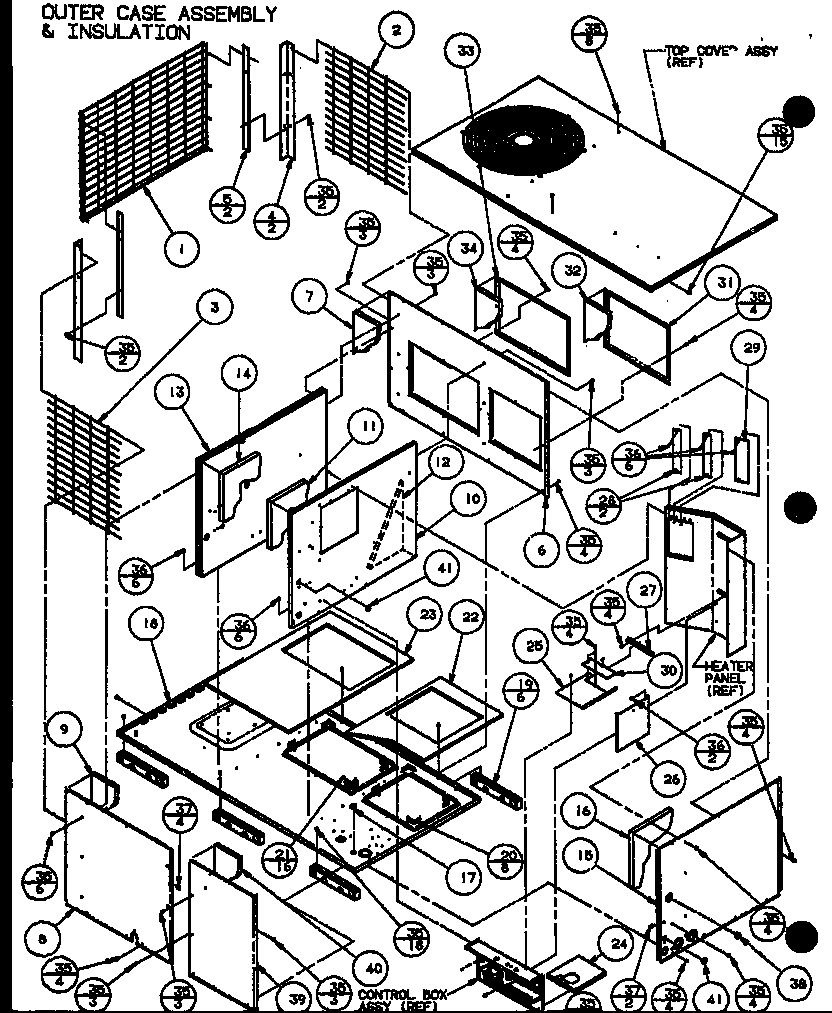

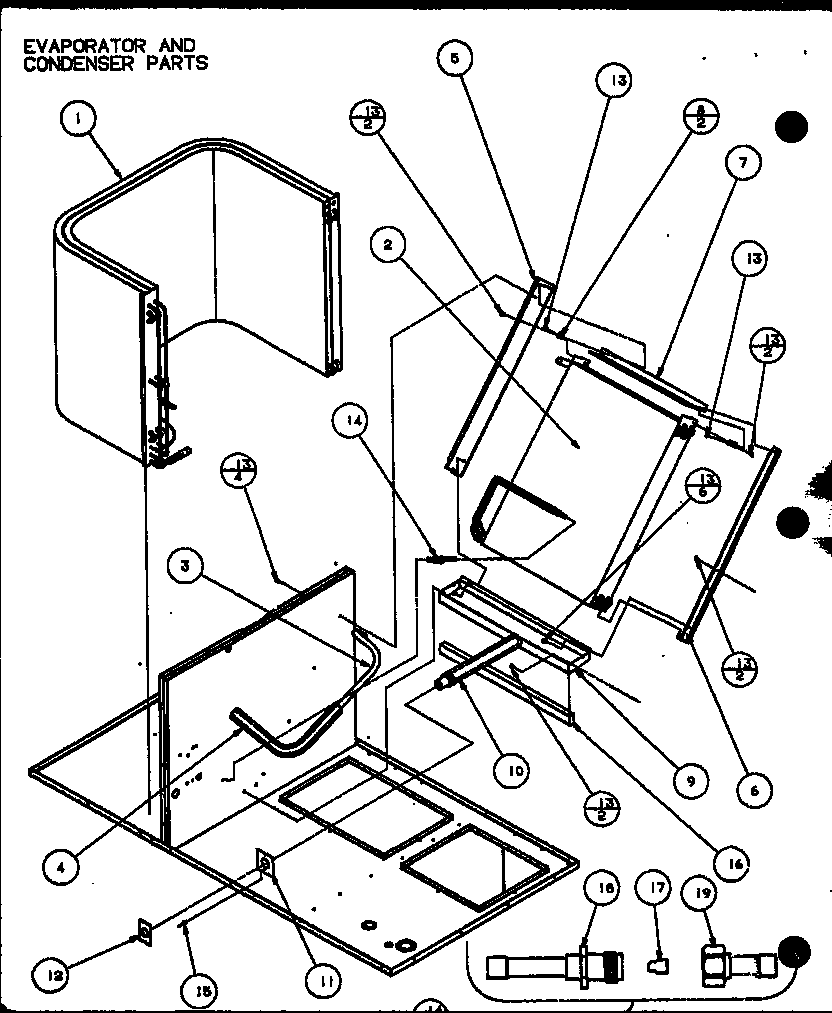

Outer case assembly & insulation (spho42001a/p9999205c) (spho42003a/p9999206c) (spho48001a/p9999207c) (spho48003a/p9999208c) (spho60001a/p9999209c) (spho60003a/p9999210c) diagram

Insulation

Part #D9822611

The manufacturer no longer makes this part, and there's no substitute part

Outer case assembly & insulation (spho42001a/p9999205c) (spho42003a/p9999206c) (spho48001a/p9999207c) (spho48003a/p9999208c) (spho60001a/p9999209c) (spho60003a/p9999210c) diagram

Evaporator cover assembly

Part #D9820004

The manufacturer no longer makes this part, and there's no substitute part

Outer case assembly & insulation (spho42001a/p9999205c) (spho42003a/p9999206c) (spho48001a/p9999207c) (spho48003a/p9999208c) (spho60001a/p9999209c) (spho60003a/p9999210c) diagram

Grille, condenser left

Part #D9828901

The manufacturer no longer makes this part, and there's no substitute part

#38

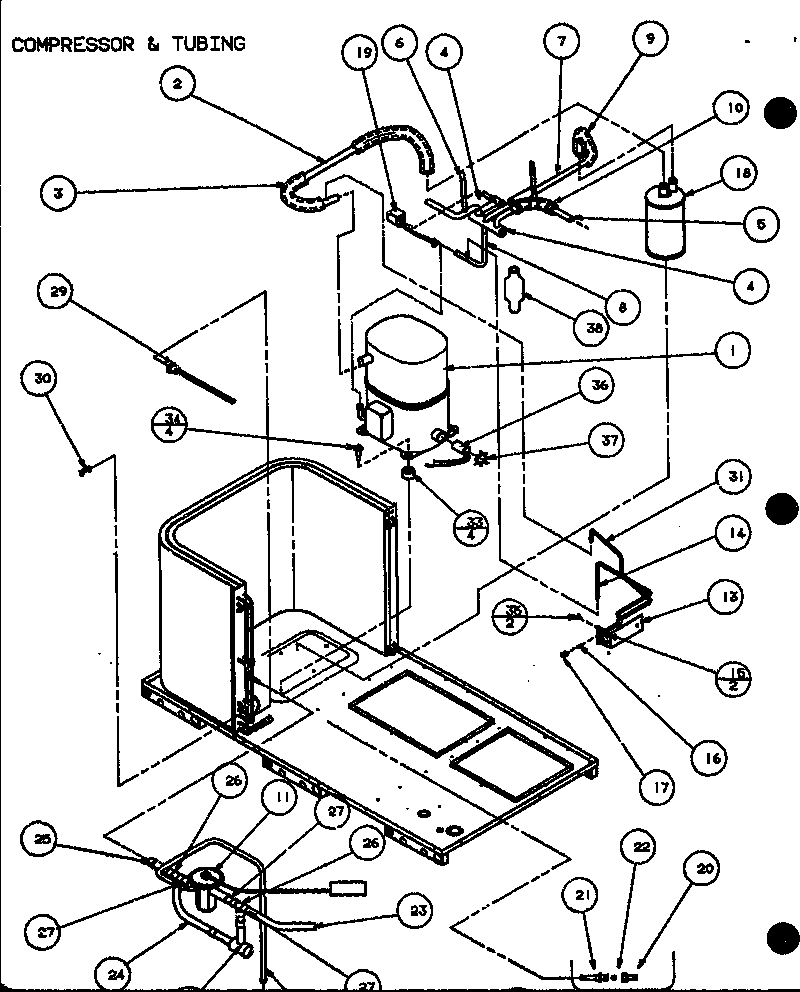

Compressor & tubing (spho42001a/p9999205c) (spho42003a/p9999206c) (spho48001a/p9999207c) (spho48003a/p9999208c) (spho60001a/p9999209c) (spho60003a/p9999210c) diagram

Strainer

Part #B5109101

The manufacturer no longer makes this part, and there's no substitute part
