Countertop Microwave

Model # KCMS125ESB0 Official KitchenAid full size microwave

Here are the diagrams and repair parts for Official KitchenAid KCMS125ESB0 full size microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

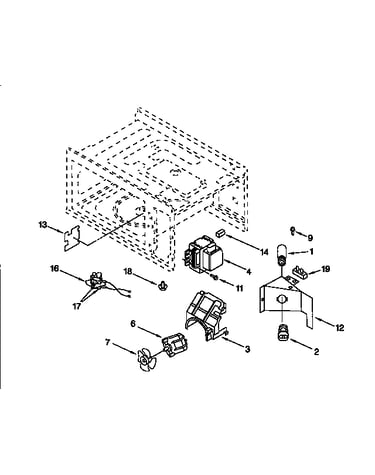

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
KCMS125ESB0 Microwaves
Switch 4313055
Switch

Part #4313055

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4313055. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Adhesive 482338

#NI

All parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Screw 4174784
Screw

Part #4174784

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 4174784. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red) 242831

#NI

All parts diagram

Cooking appliance 14-gauge splicing wire, 200-degree c (red)

Part #242831

$318.95
In Stock
Appliance Touch-up Paint, 6-oz (citrine White) 261900

#NI

All parts diagram

Appliance touch-up paint, 6-oz (citrine white)

Part #261900

$23.19 |
21% OFF Phone Price : $29.19
In Stock
Switch 4313105
#1

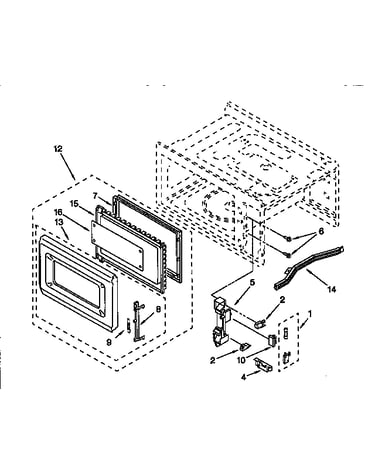

Door and latch diagram

Switch

Part #4313105

$30.49
In Stock
Spring 4313631
#4

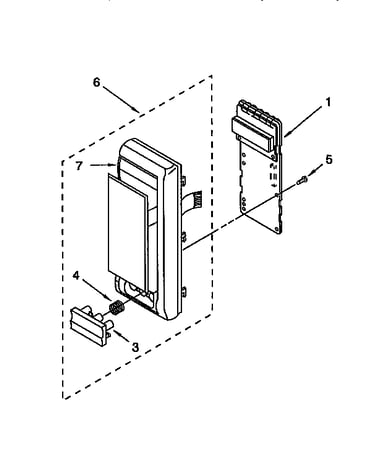

Control panel diagram

Spring

Part #4313631

Replaced by #8205529

?
Manufacturer substitution
This part replaces 4313631. Substitute parts can look different from the original.
$18.86
In Stock
Glass Tray 4313640
#6

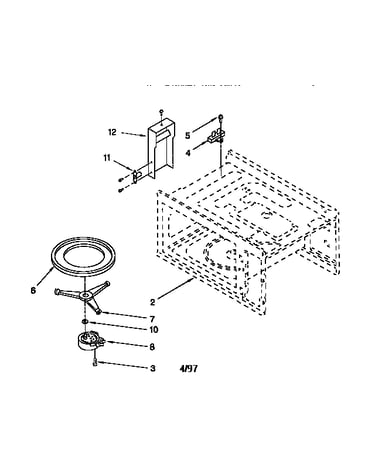

Cavity and turntable diagram

Glass tray

Part #4313640

Replaced by #WP8184775

?
Manufacturer substitution
This part replaces 4313640. Substitute parts can look different from the original.
$68.59 |
8% OFF Phone Price : $74.59
In Stock
Technical Sheet LIT4313776

#NI

All parts diagram

Technical sheet

Part #LIT4313776

The manufacturer no longer makes this part, and there's no substitute part

Wall Oven Touch-up Paint 261869

#NI

All parts diagram

Wall oven touch-up paint

Part #261869

Replaced by #WP261869

?
Manufacturer substitution
This part replaces 261869. Substitute parts can look different from the original.
This item is not returnable
$9.99 |
9% OFF Phone Price : $10.99
In Stock
