Dynasty
Gas Grill

Model # DBQ30L Official Dynasty gas grill

Here are the diagrams and repair parts for Official Dynasty DBQ30L gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Broiler Pan 70001090
#9

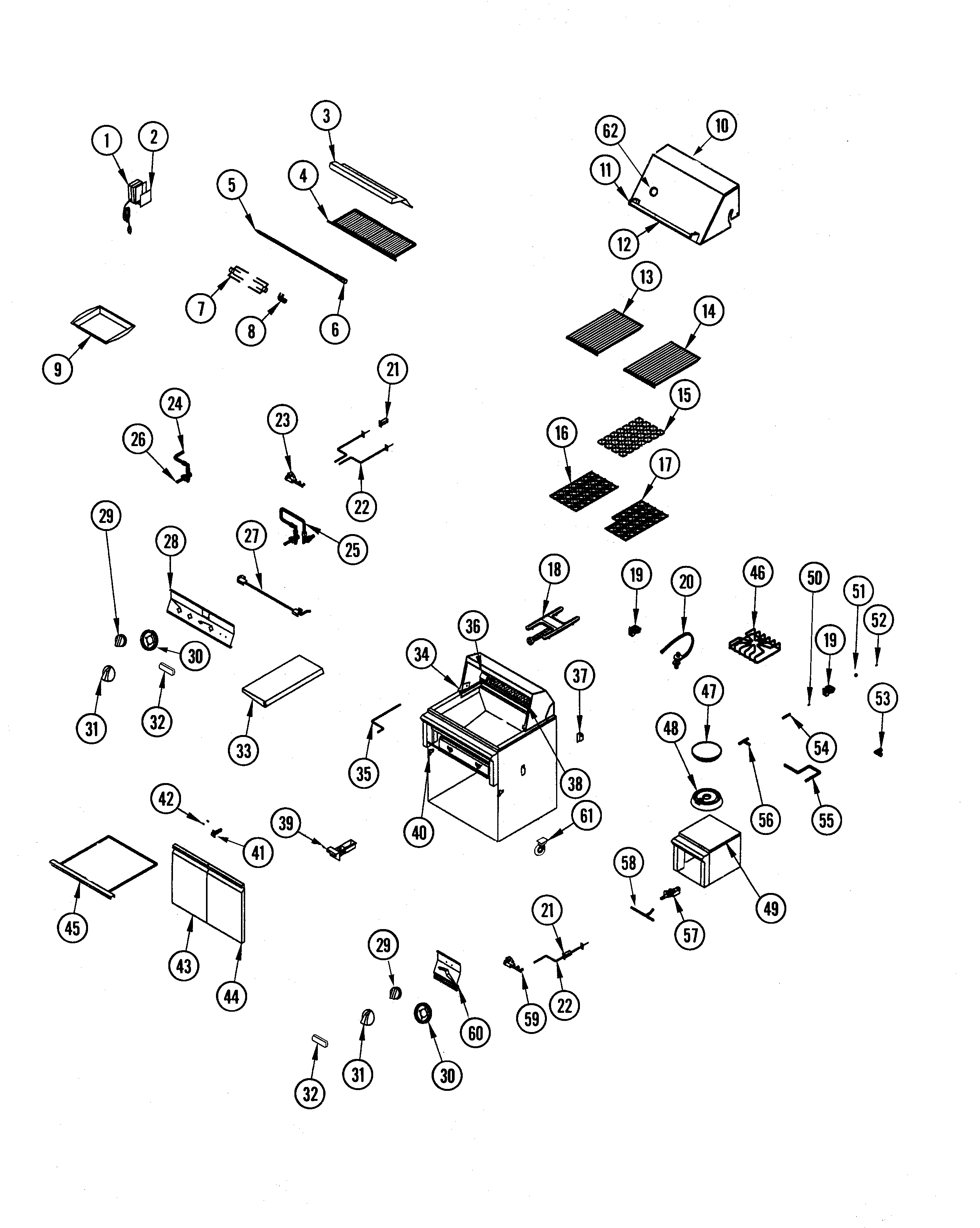

Body diagram

Broiler pan

Part #70001090

Replaced by #4396923

?
Manufacturer substitution
This part replaces 70001090. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Handle Hood 70002052
#12A

Body diagram

Handle hood

Part #70002052

$82.40
In Stock
Screw 70002077
#42

Body diagram

Screw

Part #70002077

The manufacturer no longer makes this part, and there's no substitute part

Rotisserie Motor 70001343
#1

Body diagram

Rotisserie motor

Part #70001343

The manufacturer no longer makes this part, and there's no substitute part

Deflector, H 70002035
#3

Body diagram

Deflector, h

Part #70002035

The manufacturer no longer makes this part, and there's no substitute part

Caster 70001734
#61A

Body diagram

Caster

Part #70001734

The manufacturer no longer makes this part, and there's no substitute part

Panel 70002098
#60A

Body diagram

Panel

Part #70002098

The manufacturer no longer makes this part, and there's no substitute part

Igniter Hood 70002072
#36A

Body diagram

Igniter hood

Part #70002072

The manufacturer no longer makes this part, and there's no substitute part

Pan, Drip (3 70002082
#45

Body diagram

Pan, drip (3

Part #70002082

The manufacturer no longer makes this part, and there's no substitute part

Burner Valve 70002059
Burner valve

Part #70002059

The manufacturer no longer makes this part, and there's no substitute part
