Model # 5500-B SERIES Official Okuma generator

Here are the diagrams and repair parts for Official Okuma 5500-B-SERIES generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

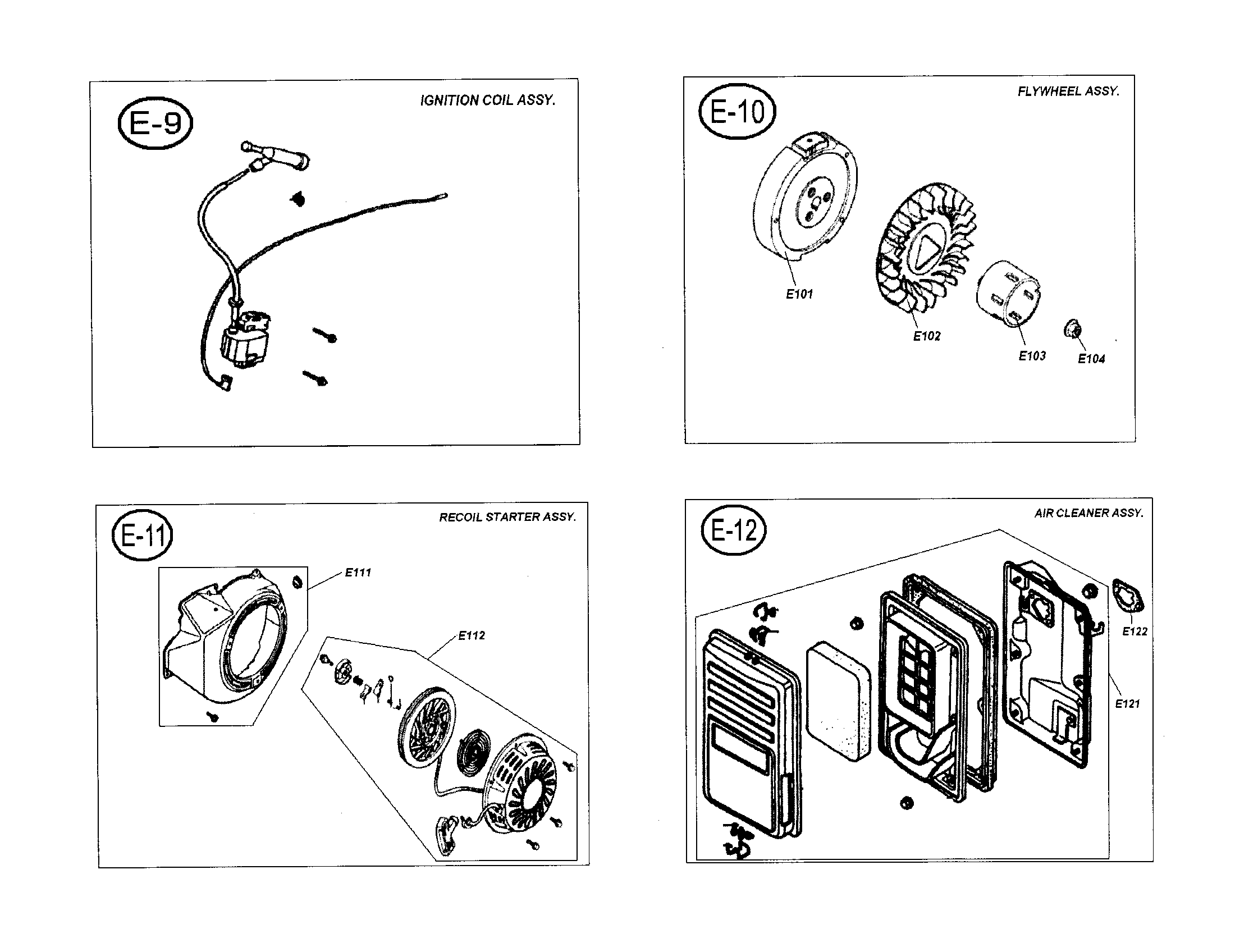

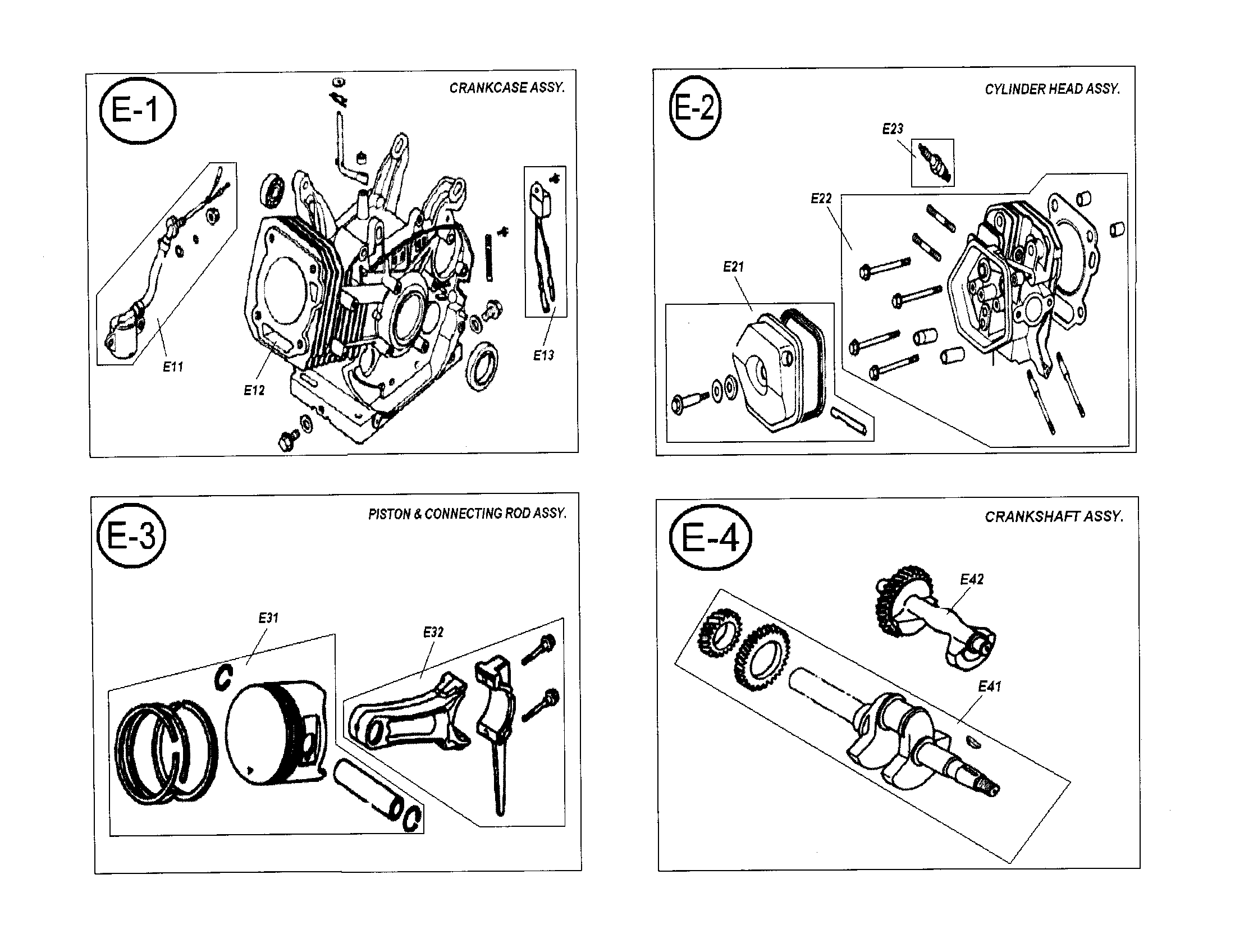

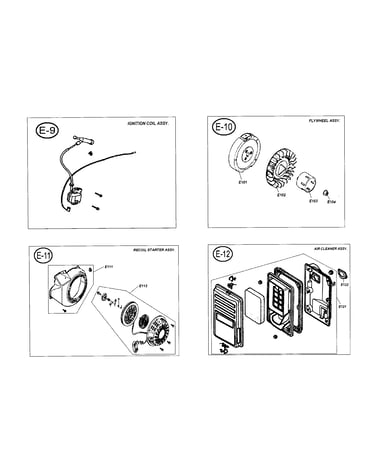

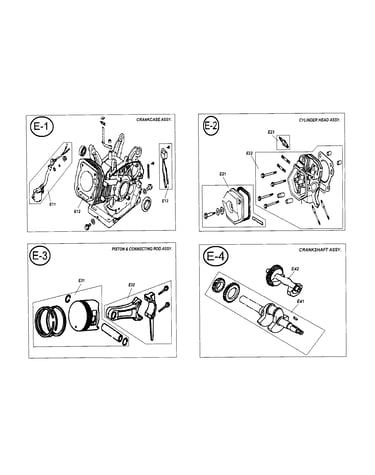

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |

Lawn & Garden Equipment Bolt P54534
#54

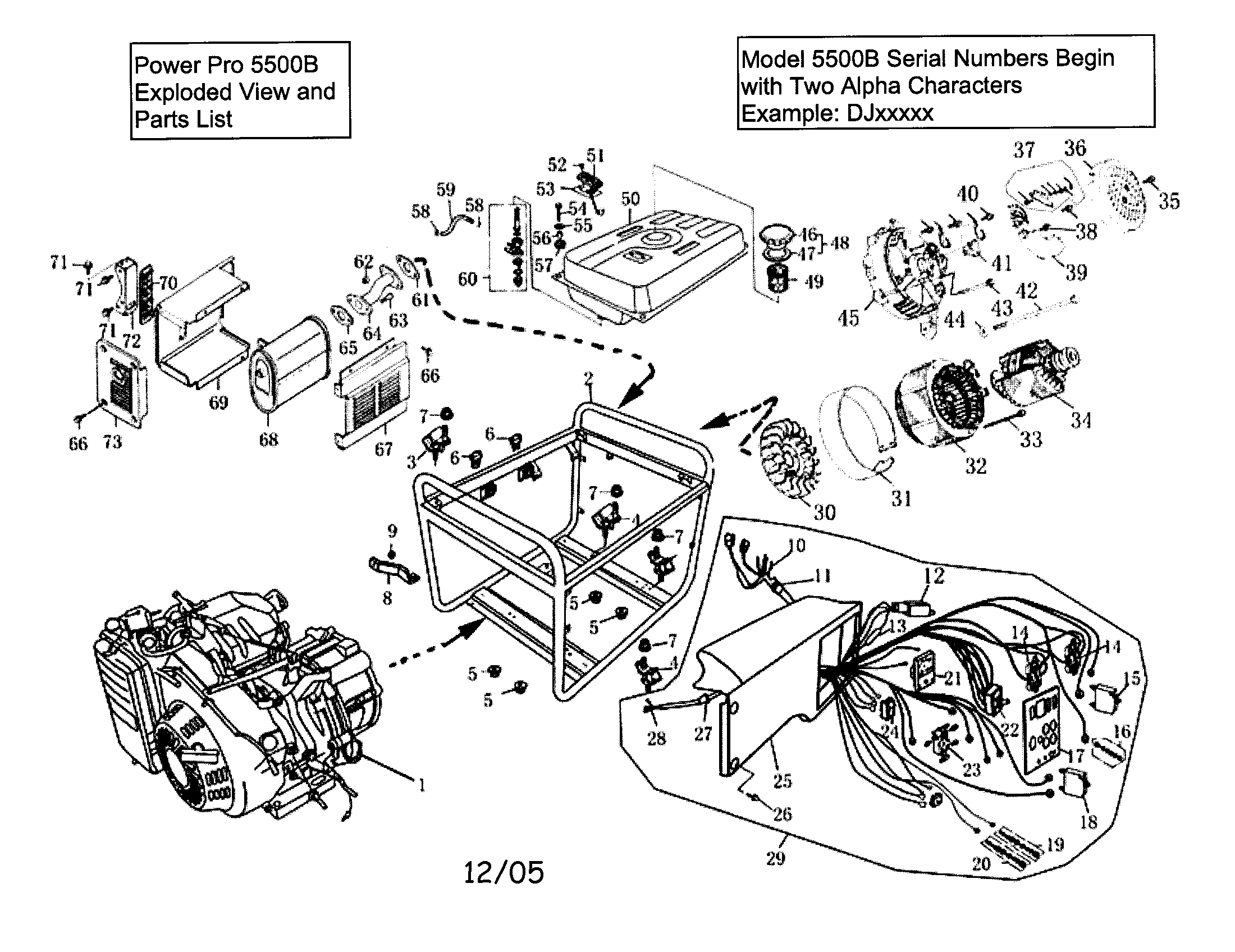

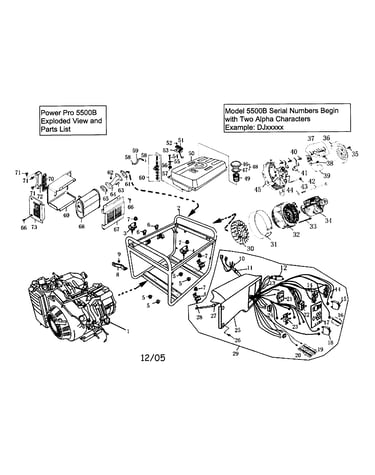

Frame/stator/rotor/control panel diagram

Lawn & garden equipment bolt

Part #P54534

The manufacturer no longer makes this part, and there's no substitute part

Fuel Filter P54524
#49

Frame/stator/rotor/control panel diagram

Fuel filter

Part #P54524

The manufacturer no longer makes this part, and there's no substitute part

Generator Screw P54530
#52

Frame/stator/rotor/control panel diagram

Generator screw

Part #P54530

The manufacturer no longer makes this part, and there's no substitute part

Gas Cap P54855
#48

Frame/stator/rotor/control panel diagram

Gas cap

Part #P54855

The manufacturer no longer makes this part, and there's no substitute part

Check Valve P54802
#E71

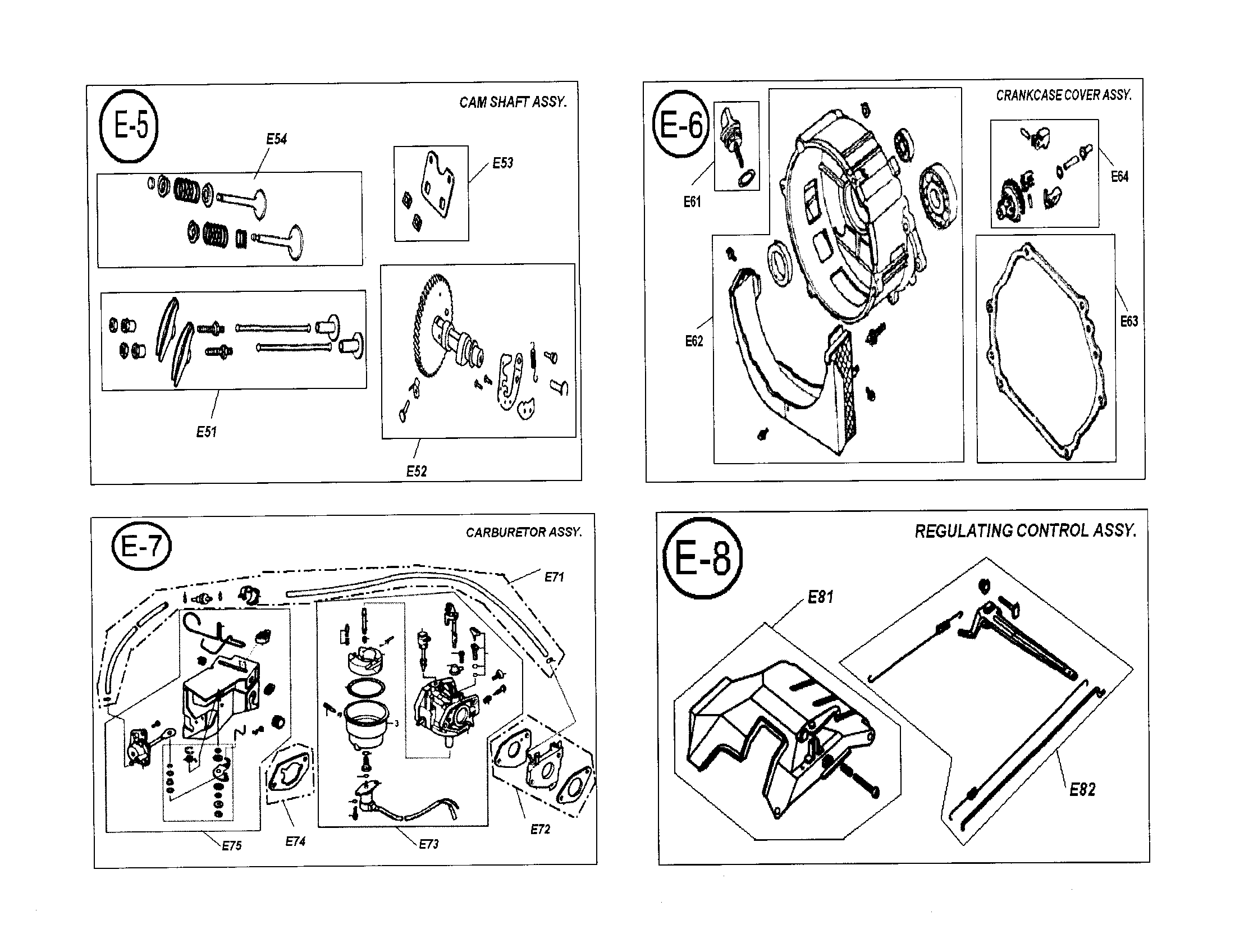

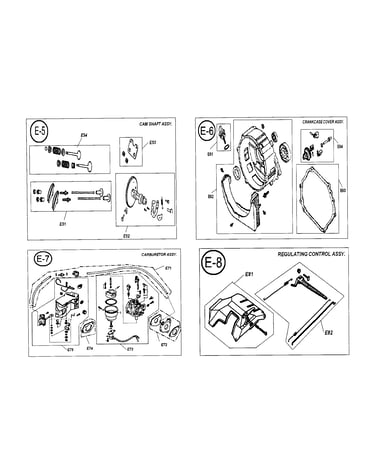

Carburetor/cam shaft diagram

Check valve

Part #P54802

The manufacturer no longer makes this part, and there's no substitute part

Pipe Comp. E P54554
#64

Frame/stator/rotor/control panel diagram

Pipe comp. e

Part #P54554

The manufacturer no longer makes this part, and there's no substitute part

Tapping Screw P54496
#35

Frame/stator/rotor/control panel diagram

Tapping screw

Part #P54496

The manufacturer no longer makes this part, and there's no substitute part

Generator Fuel Line P54544
#59

Frame/stator/rotor/control panel diagram

Generator fuel line

Part #P54544

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Bolt P54276
#14

Frame/stator/rotor/control panel diagram

Lawn & garden equipment bolt

Part #P54276

The manufacturer no longer makes this part, and there's no substitute part

Generator Fuel Gauge Assembly P54528
#51

Frame/stator/rotor/control panel diagram

Generator fuel gauge assembly

Part #P54528

The manufacturer no longer makes this part, and there's no substitute part
