Model # ZR800A Official Canon digital camcorder

Here are the diagrams and repair parts for Official Canon ZR800A digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

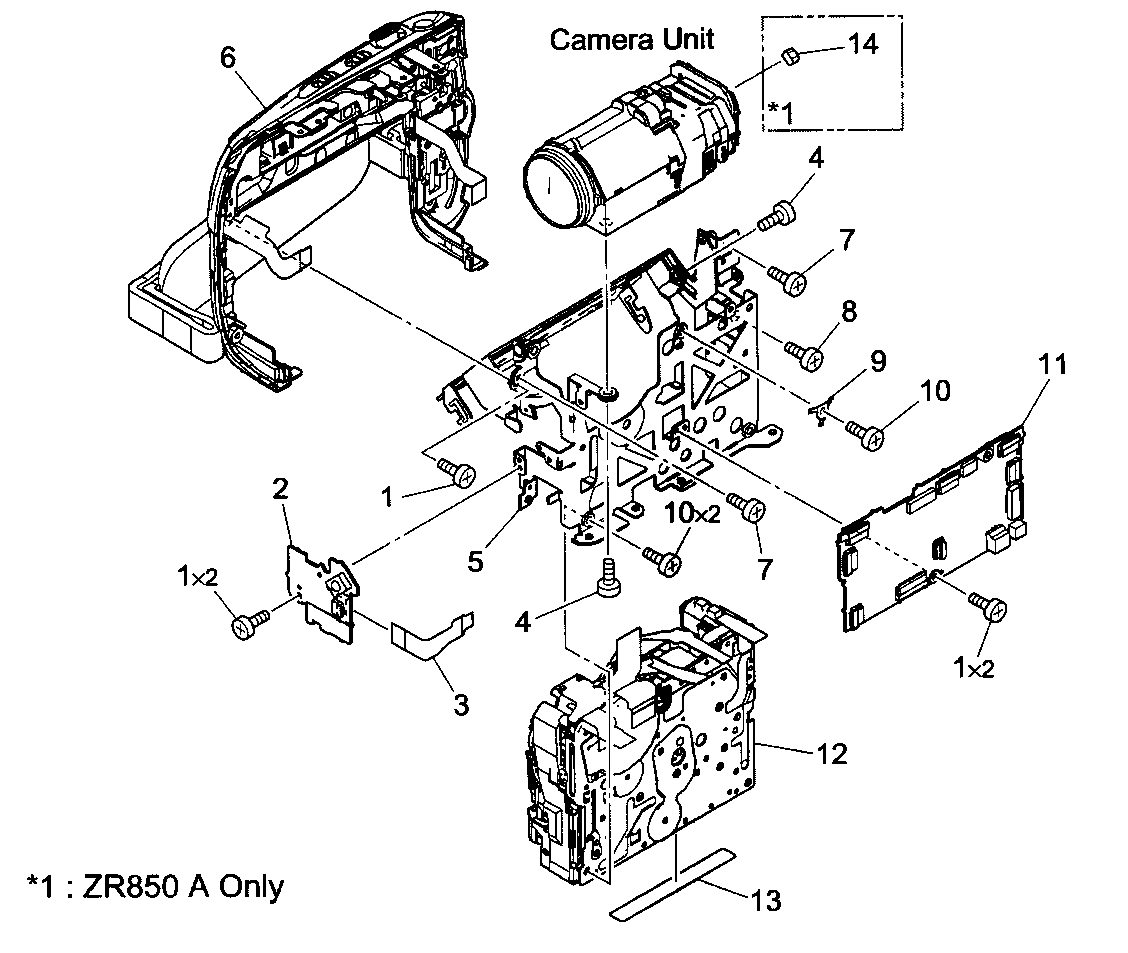

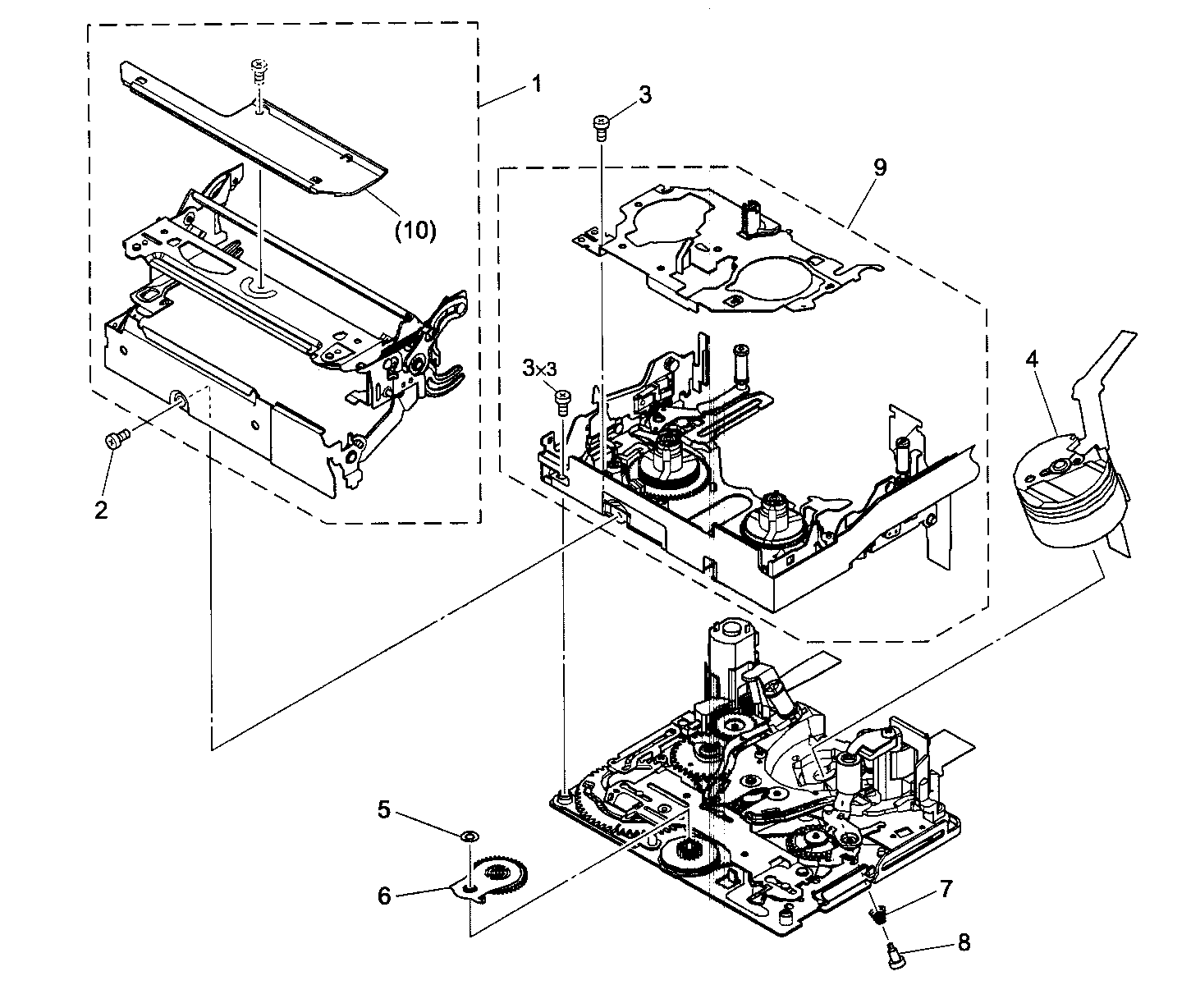

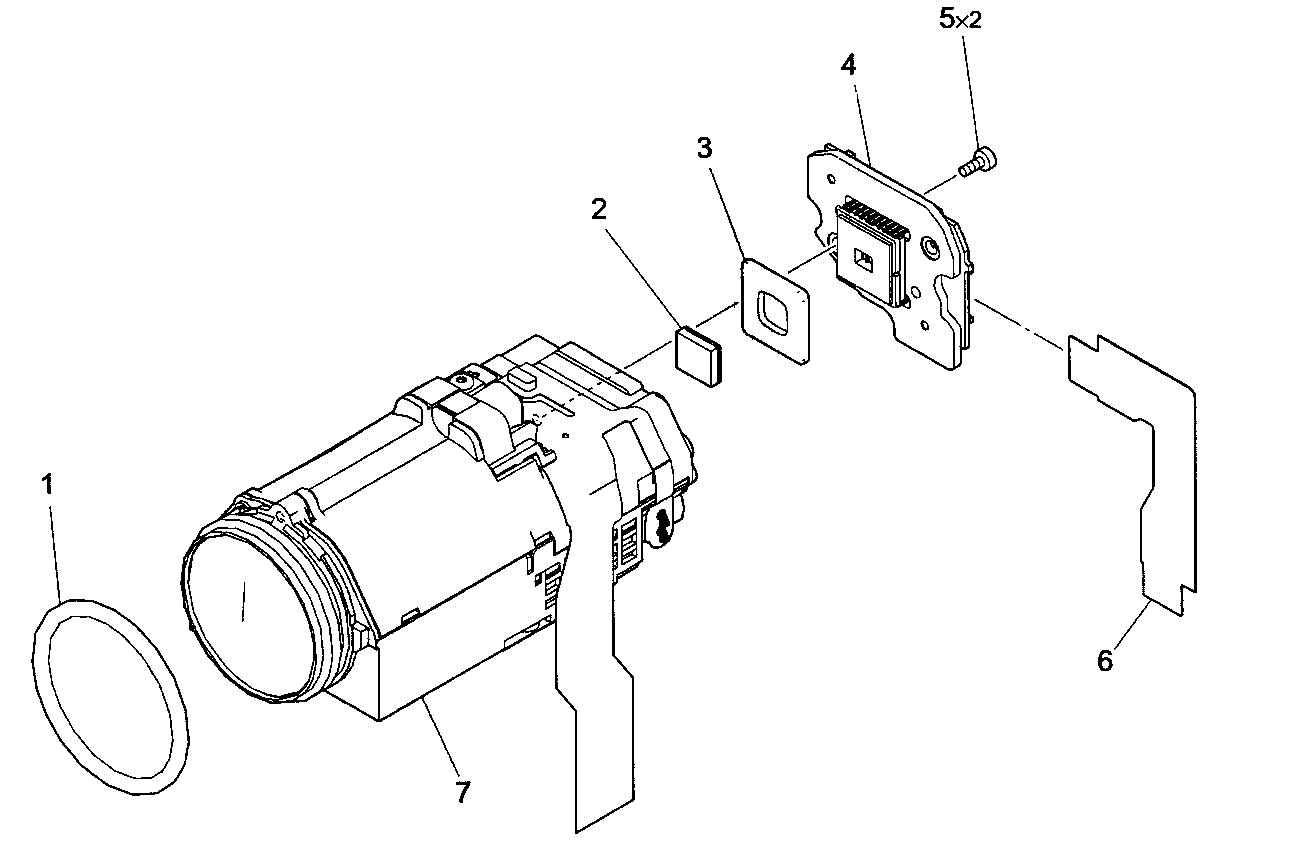

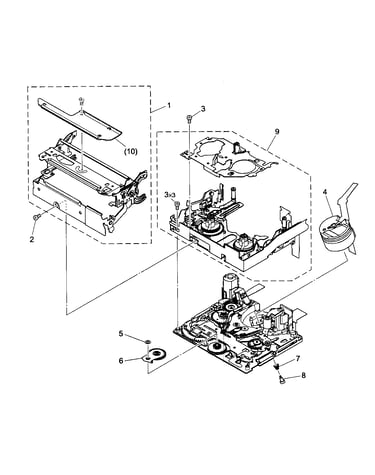

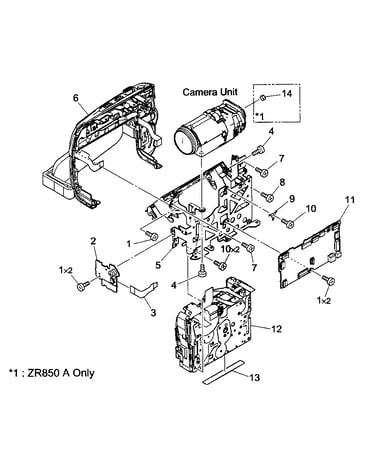

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Lcd Cover DA3-6181-000
#2

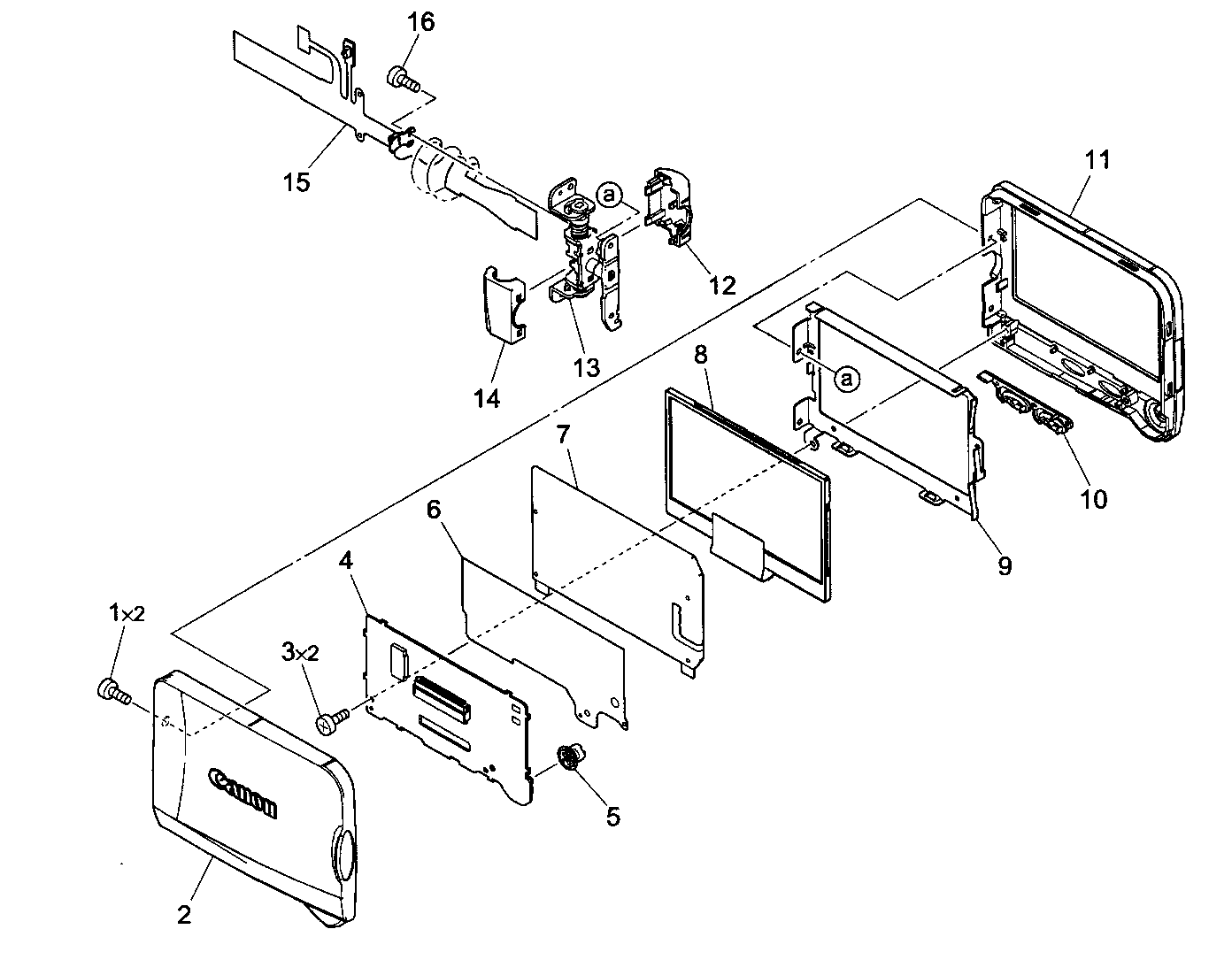

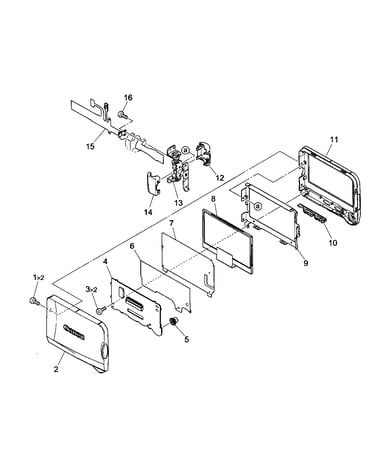

Lcd unit diagram

Lcd cover

Part #DA3-6181-000

The manufacturer no longer makes this part, and there's no substitute part

Lcd Dsp WG2-5292-000
#8A

Lcd unit diagram

Lcd dsp

Part #WG2-5292-000

The manufacturer no longer makes this part, and there's no substitute part

Cover DA3-6195-000
#6

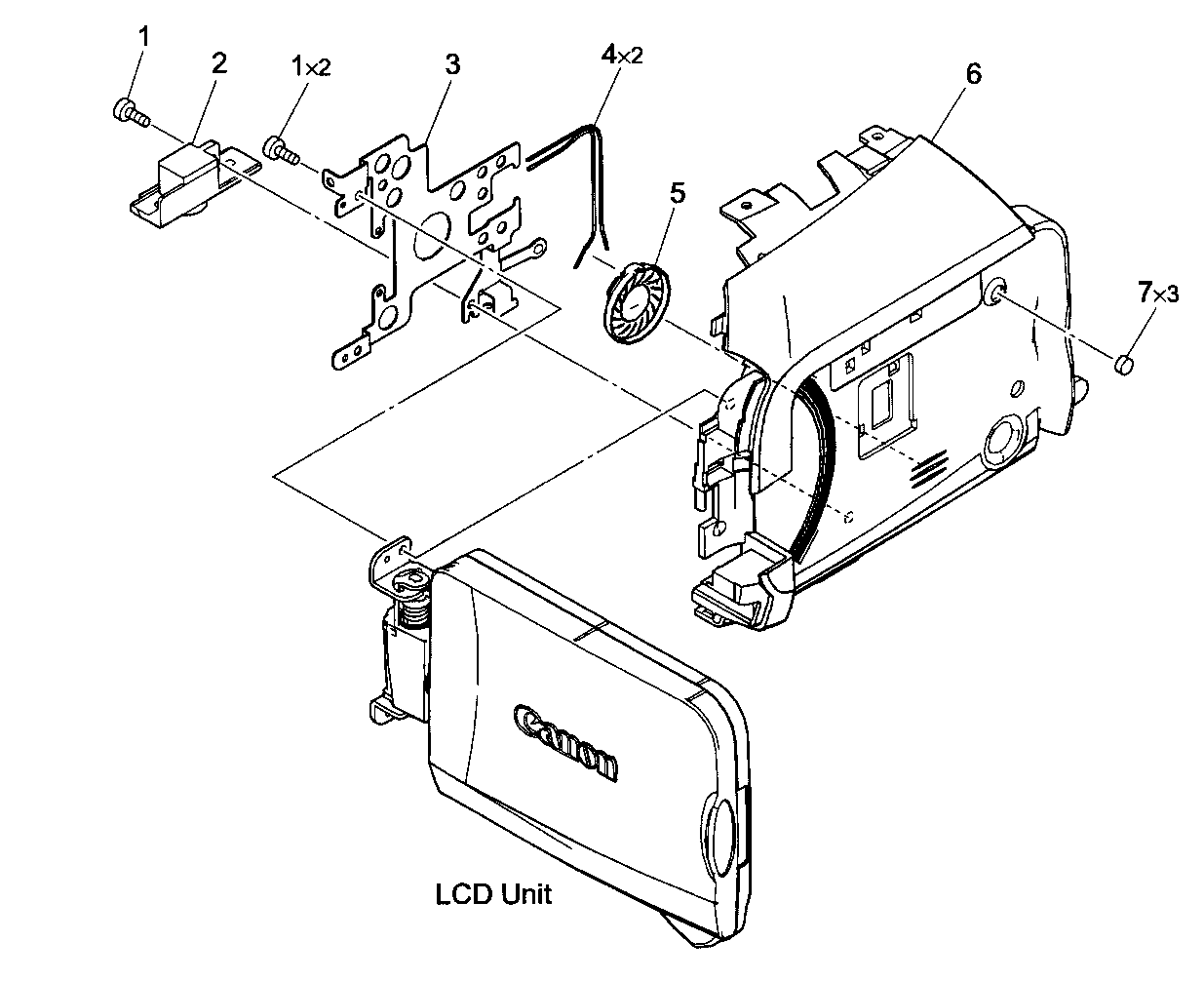

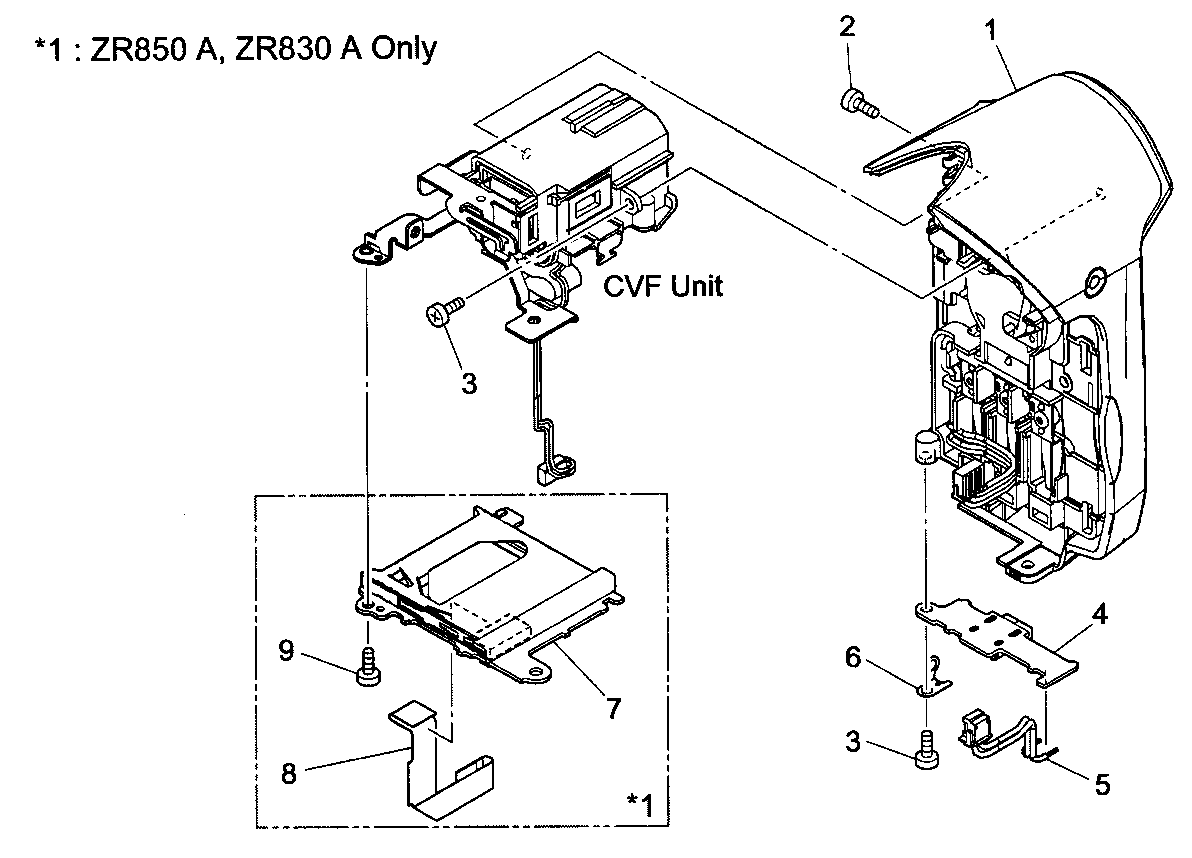

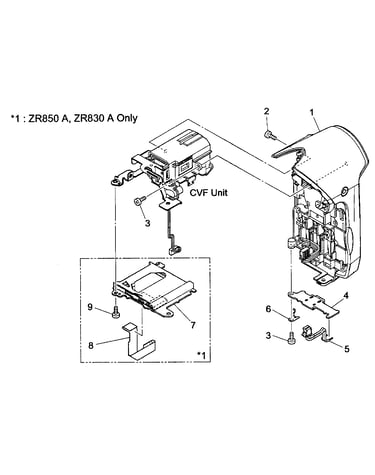

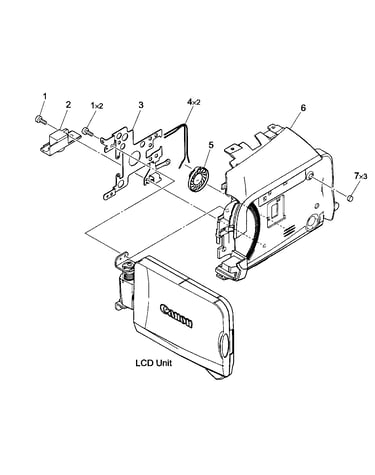

Rear cover unit diagram

Cover

Part #DA3-6195-000

The manufacturer no longer makes this part, and there's no substitute part

Lens YN1-3276-000
#9

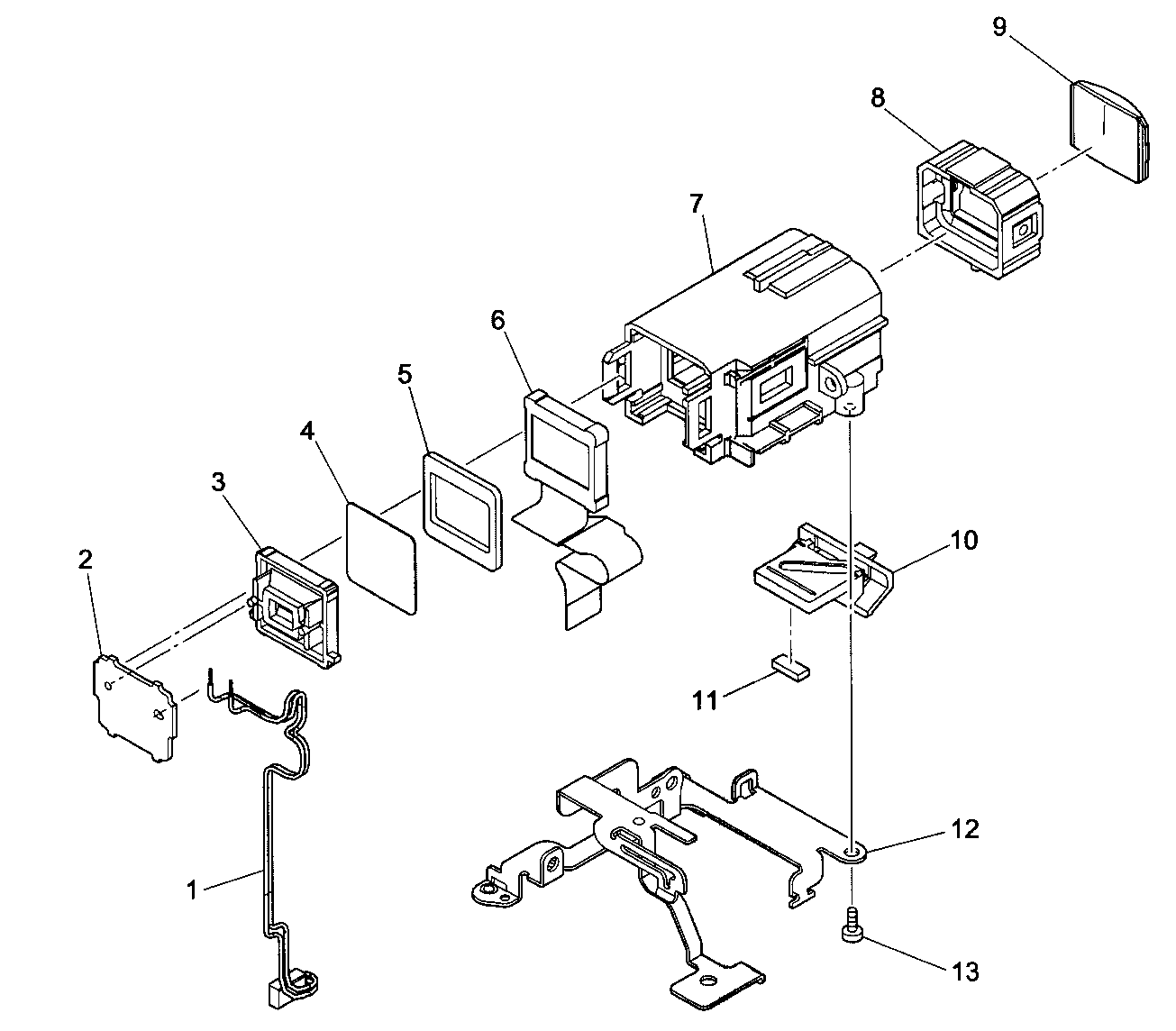

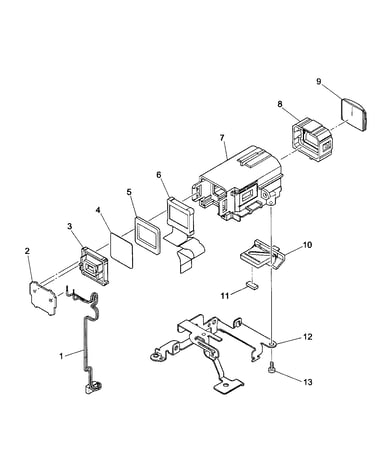

Cvf unit diagram

Lens

Part #YN1-3276-000

The manufacturer no longer makes this part, and there's no substitute part

Lcd Dsp DY1-8921-000
#8

Lcd unit diagram

Lcd dsp

Part #DY1-8921-000

The manufacturer no longer makes this part, and there's no substitute part

Cover DA3-6183-000
#14

Lcd unit diagram

Cover

Part #DA3-6183-000

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Speaker WR1-5128-000
#5

Rear cover unit diagram

Camcorder speaker

Part #WR1-5128-000

The manufacturer no longer makes this part, and there's no substitute part

Flex Cable DG3-1965-000
#15

Lcd unit diagram

Flex cable

Part #DG3-1965-000

The manufacturer no longer makes this part, and there's no substitute part

Belt DA2-2196-000
#NI

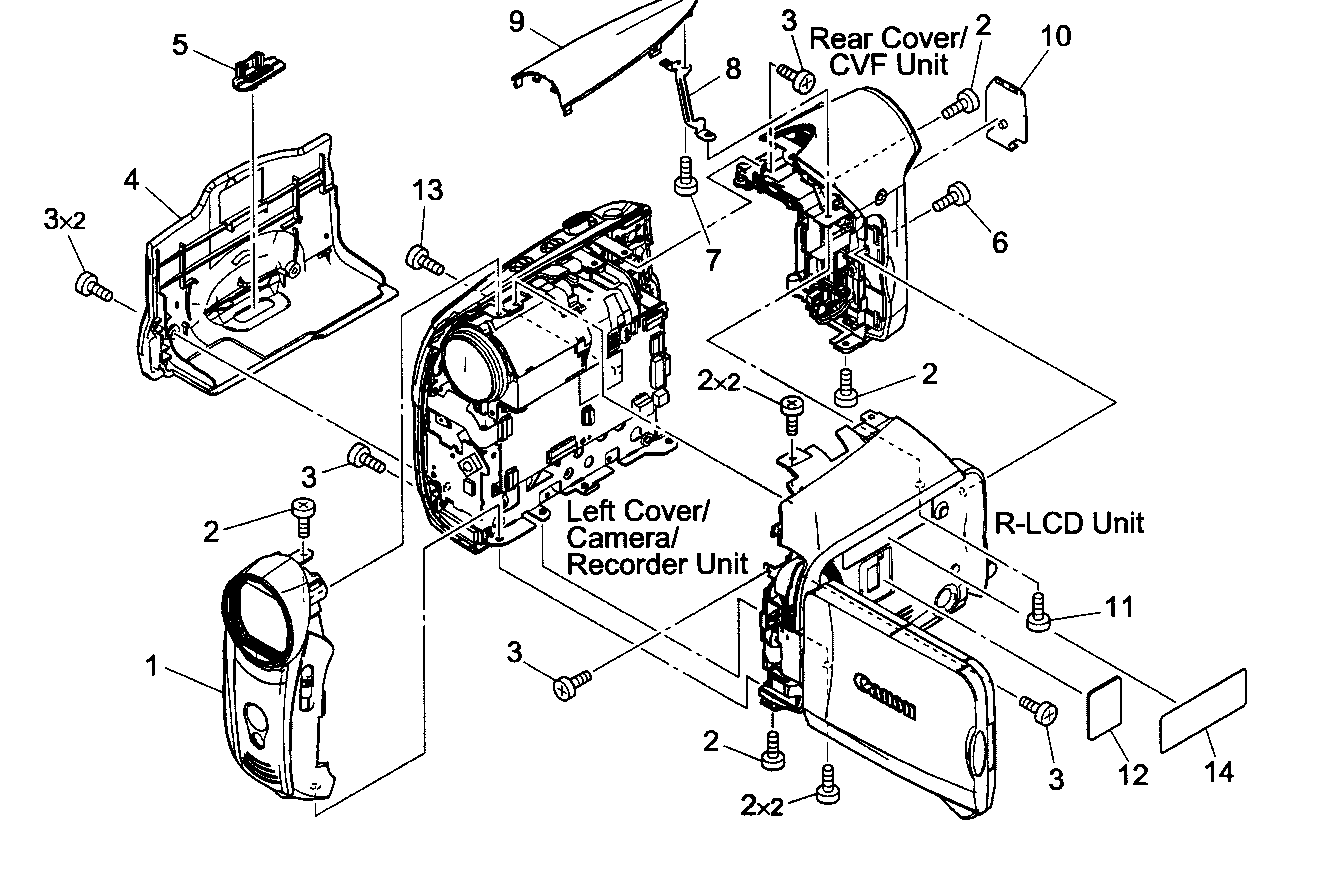

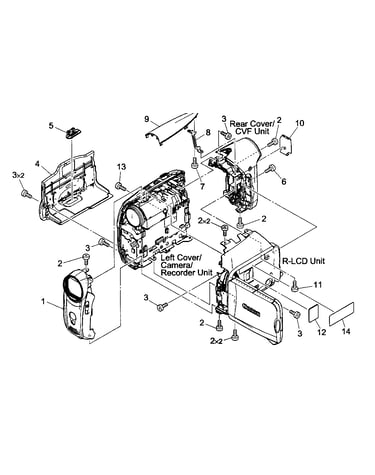

Casing parts 1 diagram

Belt

Part #DA2-2196-000

The manufacturer no longer makes this part, and there's no substitute part

Lcd Camera View Finder WG2-5303-000
#6

Cvf unit diagram

Lcd camera view finder

Part #WG2-5303-000

The manufacturer no longer makes this part, and there's no substitute part
