Whirlpool
Bottom-Mount Refrigerator

Model # WRF550CDHZ03 Official Whirlpool bottom-mount refrigerator

Here are the diagrams and repair parts for Official Whirlpool WRF550CDHZ03 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 240 parts  |
Drier Tube W10177049
#27

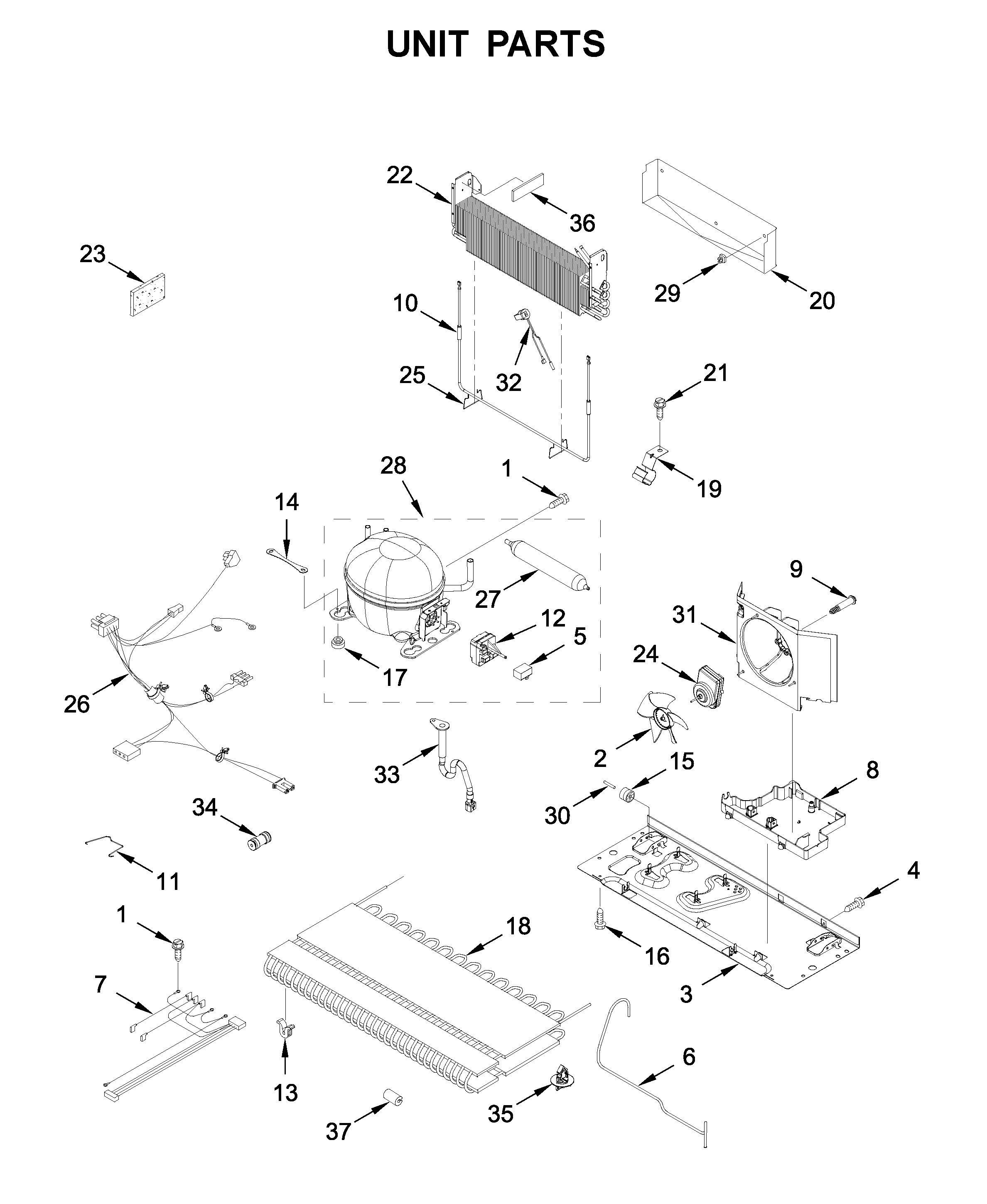

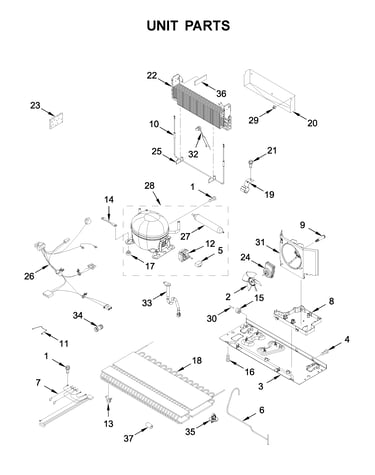

Unit parts diagram

Drier tube

Part #W10177049

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10177049. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker Assembly W10300024
#16

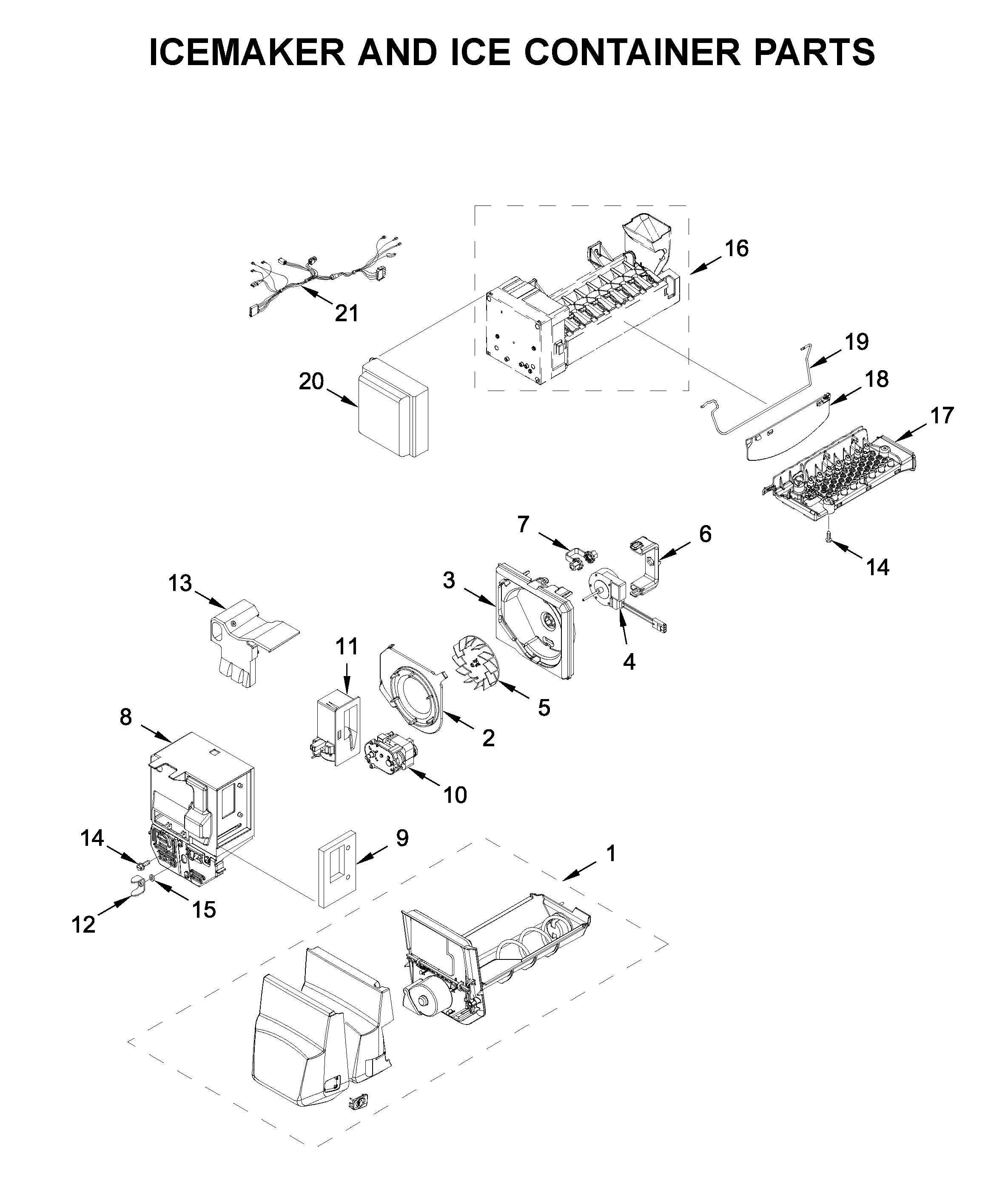

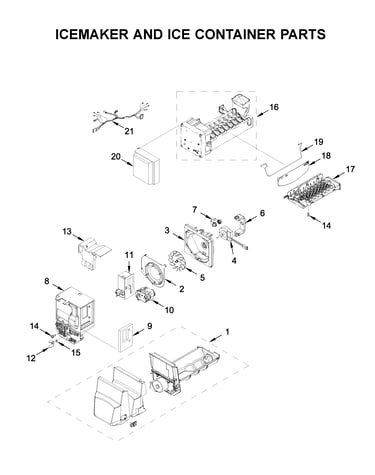

Icemaker and ice container parts diagram

Refrigerator ice maker assembly

Part #W10300024

Replaced by #WPW10300024

?
Manufacturer substitution
This part replaces W10300024. Substitute parts can look different from the original.
BEST SELLER
$172.28 |
7% OFF Phone Price : $184.28
In Stock
Refrigerator Led Light W11251749
Refrigerator led light

Part #W11251749

Replaced by #W11602886

?
Manufacturer substitution
This part replaces W11251749. Substitute parts can look different from the original.
BEST SELLER
$19.61 |
9% OFF Phone Price : $21.61
In Stock
Switch- Rock W10847848
#6

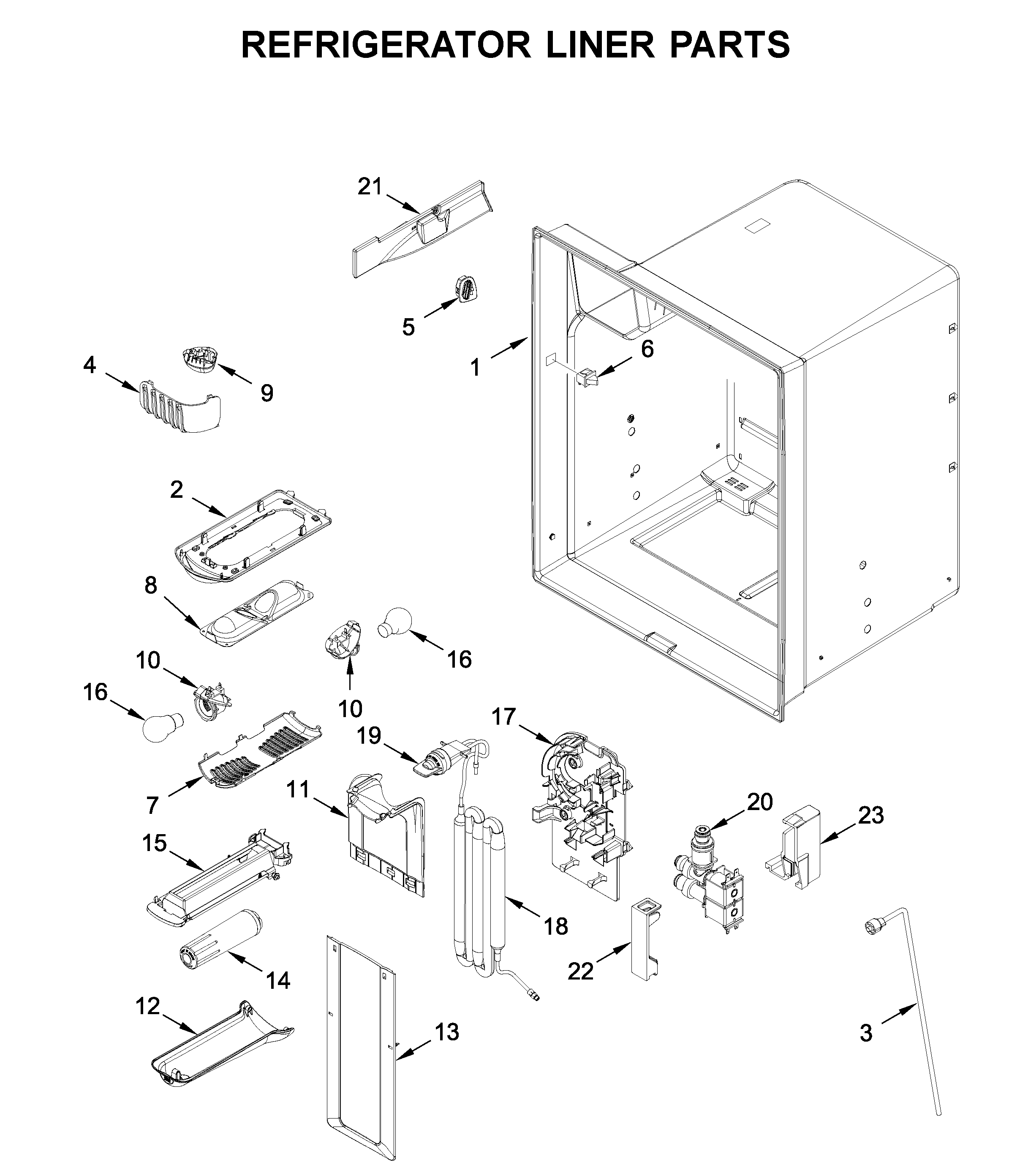

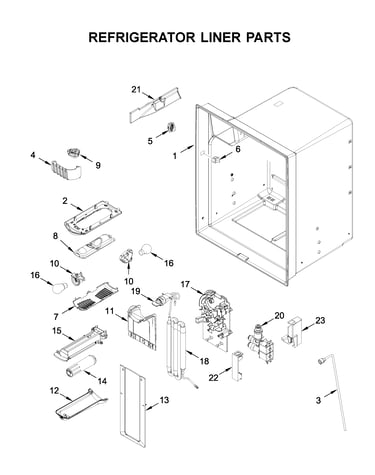

Refrigerator liner parts diagram

Switch- rock

Part #W10847848

Replaced by #W11396033

?
Manufacturer substitution
This part replaces W10847848. Substitute parts can look different from the original.
BEST SELLER
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Refrigerator Run Capacitor W10350564
#5

Unit parts diagram

Refrigerator run capacitor

Part #W10350564

Replaced by #WPW10350564

?
Manufacturer substitution
This part replaces W10350564. Substitute parts can look different from the original.
BEST SELLER
$46.40 |
11% OFF Phone Price : $52.40
In Stock
Pantry Lid 12656813
#28

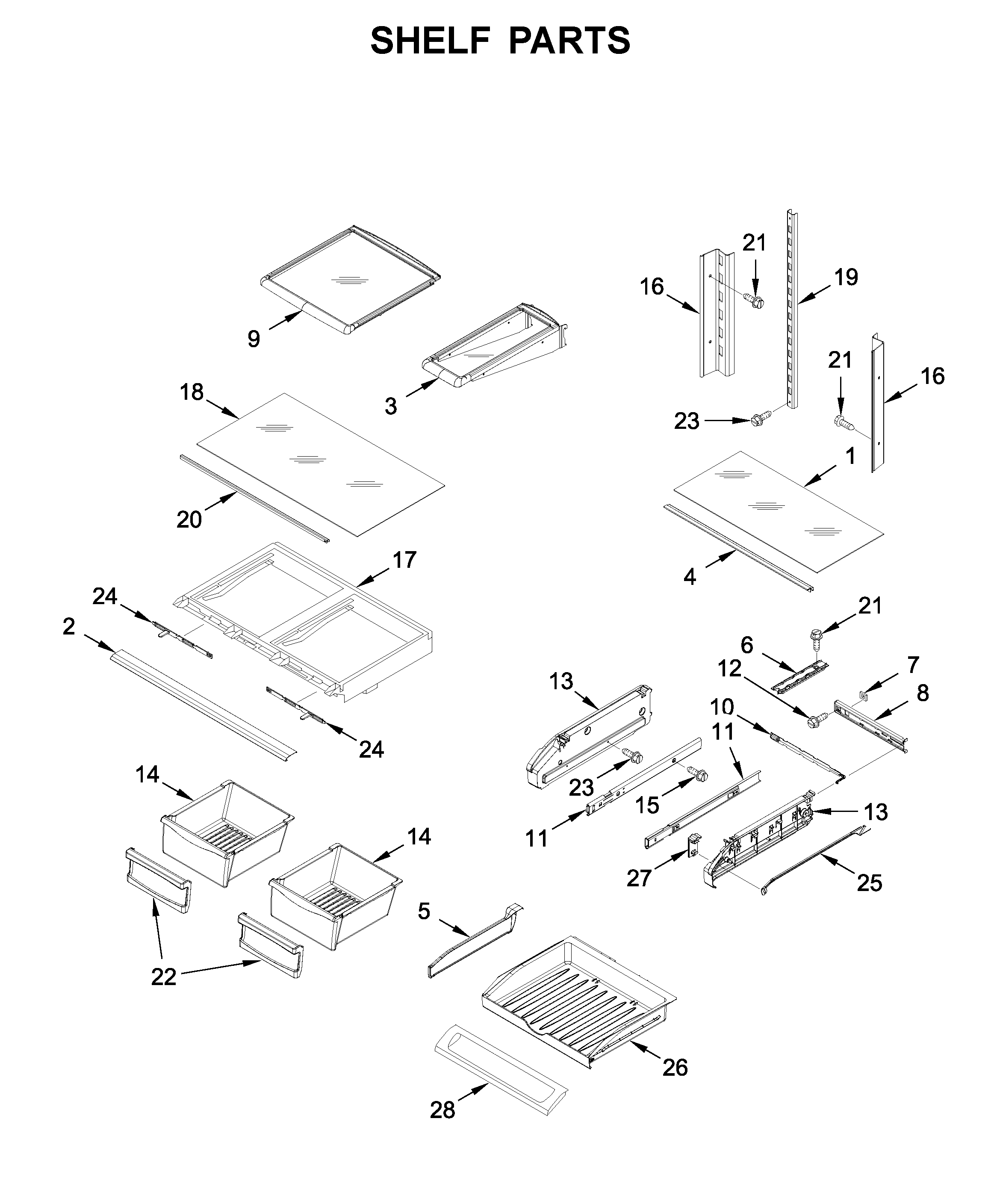

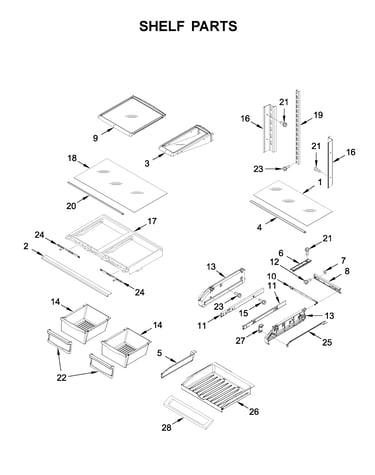

Shelf parts diagram

Pantry lid

Part #12656813

Replaced by #W10827015

?
Manufacturer substitution
This part replaces 12656813. Substitute parts can look different from the original.
BEST SELLER
$100.46 |
11% OFF Phone Price : $112.46
In Stock
Refrigerator Water Inlet Valve W10312696
#20

Refrigerator liner parts diagram

Refrigerator water inlet valve

Part #W10312696

Replaced by #WPW10312696

?
Manufacturer substitution
This part replaces W10312696. Substitute parts can look different from the original.
BEST SELLER
$102.85 |
10% OFF Phone Price : $114.85
In Stock
Refrigerator Coupling 63052A001
#12

Icemaker and ice container parts diagram

Refrigerator coupling

Part #63052A001

Replaced by #WP63052-2

?
Manufacturer substitution
This part replaces 63052A001. Substitute parts can look different from the original.
BEST SELLER
$33.77 |
15% OFF Phone Price : $39.77
In Stock
Refrigerator Thermistor 12791406SP
#6

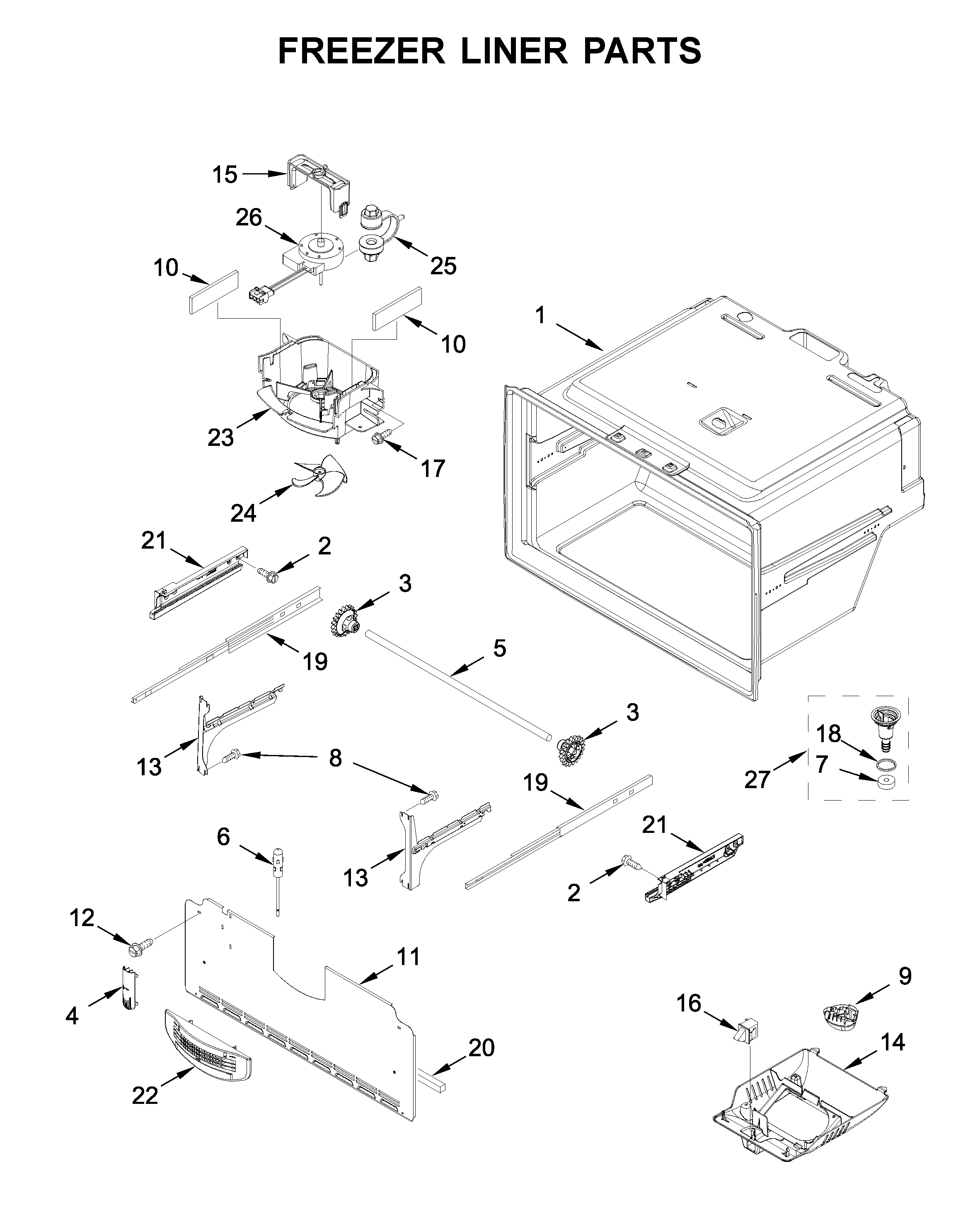

Freezer liner parts diagram

Refrigerator thermistor

Part #12791406SP

Replaced by #12002355

?
Manufacturer substitution
This part replaces 12791406SP. Substitute parts can look different from the original.
BEST SELLER
$33.33 |
15% OFF Phone Price : $39.33
In Stock
Refrigerator Electronic Control Board W10312695
#18

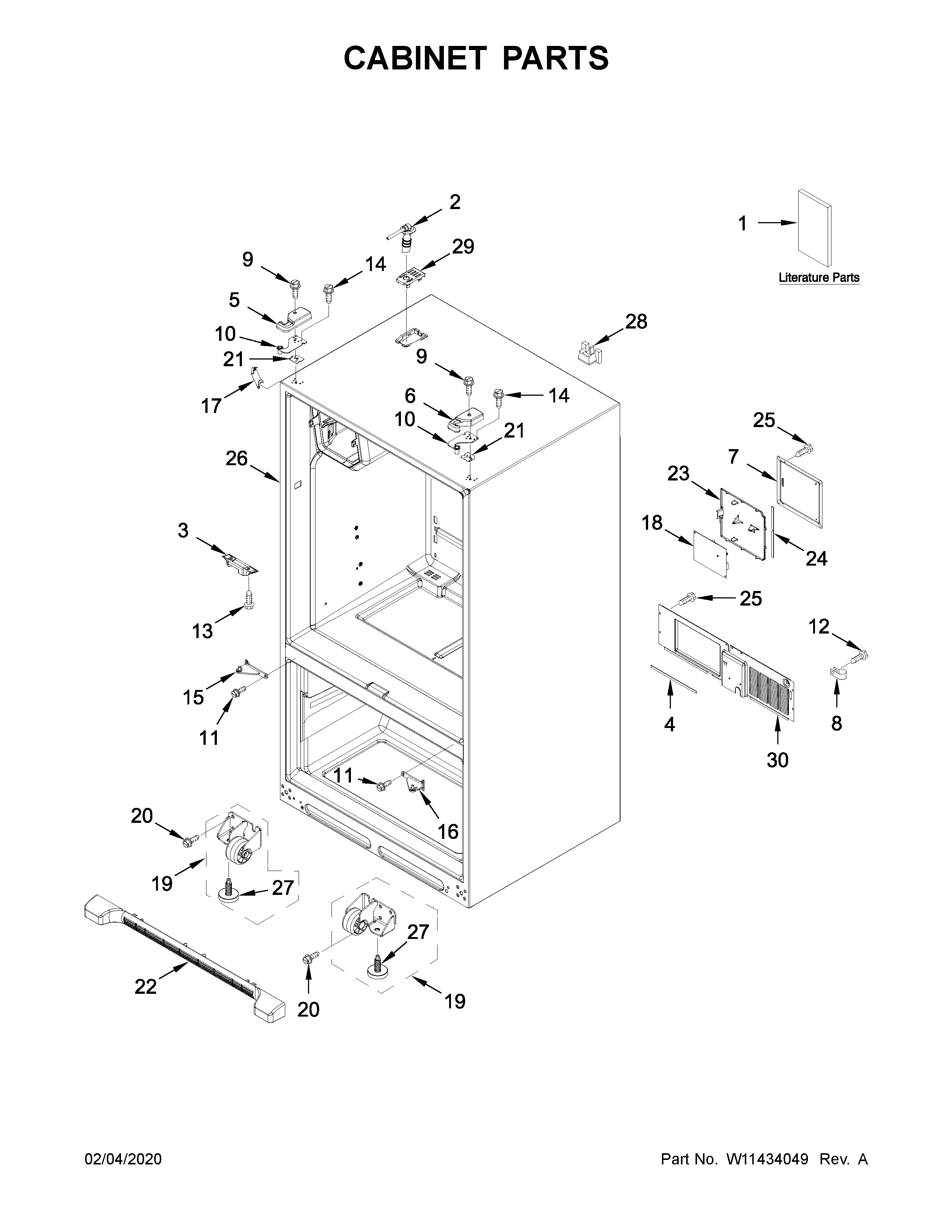

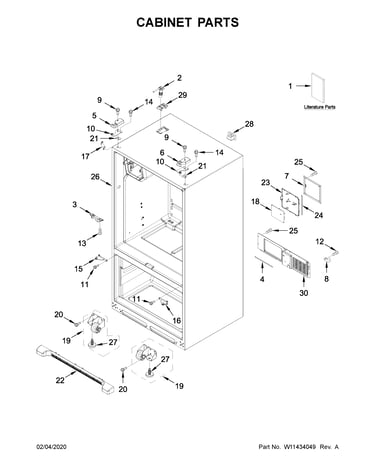

Cabinet parts diagram

Refrigerator electronic control board

Part #W10312695

Replaced by #WPW10312695

?
Manufacturer substitution
This part replaces W10312695. Substitute parts can look different from the original.
BEST SELLER
$132.47 |
8% OFF Phone Price : $144.47
In Stock
