Craftsman
Electric Line Trimmer

Model # 257798031 Official Craftsman trimmer

Here are the diagrams and repair parts for Official Craftsman 257798031 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search

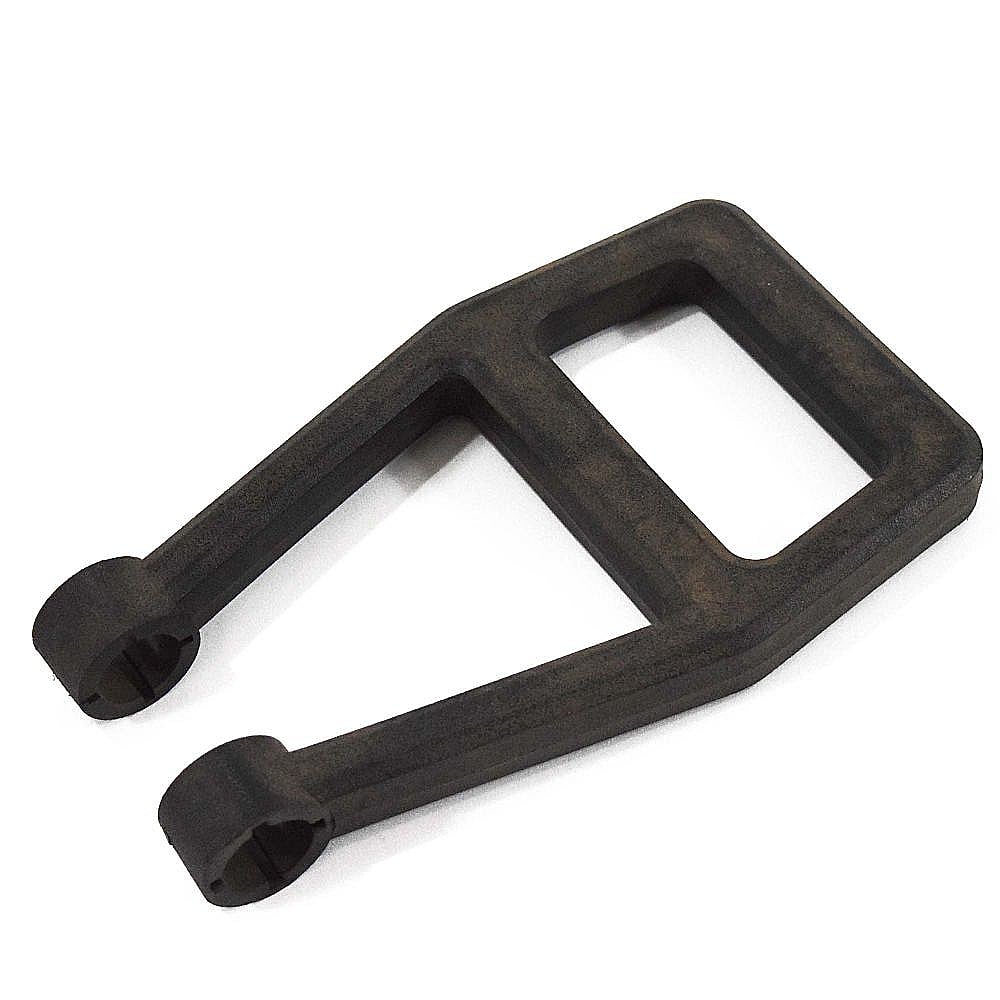

ALL PARTS
Showing 10 of 70 parts  |
Nut,10-24 Hy 534828300
#33

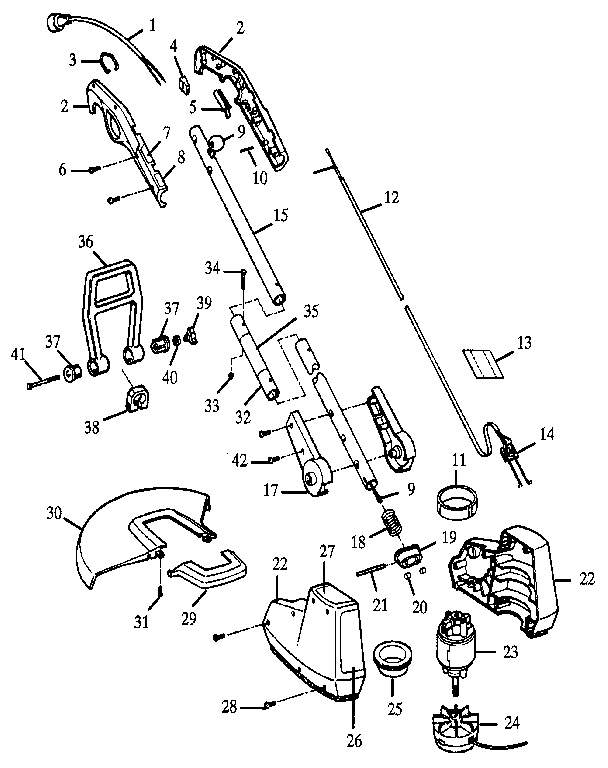

Drive shaft and head assembly diagram

Nut,10-24 hy

Part #534828300

Replaced by #530403094

?
Manufacturer substitution
This part replaces 534828300. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
Insulated Shield 534954300
#13

Drive shaft and head assembly diagram

Insulated shield

Part #534954300

The manufacturer no longer makes this part, and there's no substitute part

Washer,.065t 534828702
#40

Drive shaft and head assembly diagram

Washer,.065t

Part #534828702

The manufacturer no longer makes this part, and there's no substitute part

Brush Spring 534228000
#11

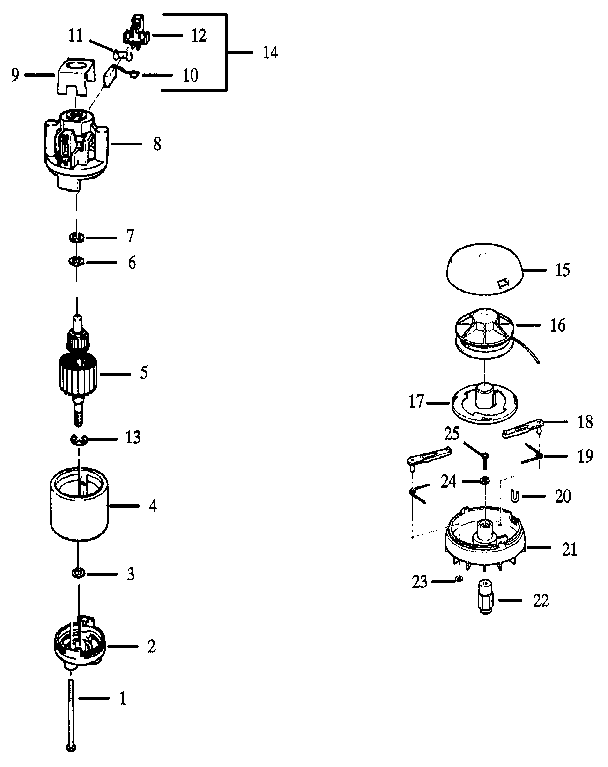

Motor assembly diagram

Brush spring

Part #534228000

The manufacturer no longer makes this part, and there's no substitute part

Head Leg Assembly 534907306
#24

Drive shaft and head assembly diagram

Head leg assembly

Part #534907306

The manufacturer no longer makes this part, and there's no substitute part

Label,sears 534861700
#8

Drive shaft and head assembly diagram

Label,sears

Part #534861700

The manufacturer no longer makes this part, and there's no substitute part

Retainer Ring 534246700
#13

Motor assembly diagram

Retainer ring

Part #534246700

The manufacturer no longer makes this part, and there's no substitute part

Cord Assy,pw 534895702
#1

Drive shaft and head assembly diagram

Cord assy,pw

Part #534895702

The manufacturer no longer makes this part, and there's no substitute part

Label,798030 534935900
#27

Drive shaft and head assembly diagram

Label,798030

Part #534935900

The manufacturer no longer makes this part, and there's no substitute part

Screw,10-16x 534790300
#28

Drive shaft and head assembly diagram

Screw,10-16x

Part #534790300

The manufacturer no longer makes this part, and there's no substitute part
