Amana
Side-By-Side Refrigerator

Model # SDI522F1-P7642502W Official Amana side-by-side refrigerator

Here are the diagrams and repair parts for Official Amana SDI522F1-P7642502W side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

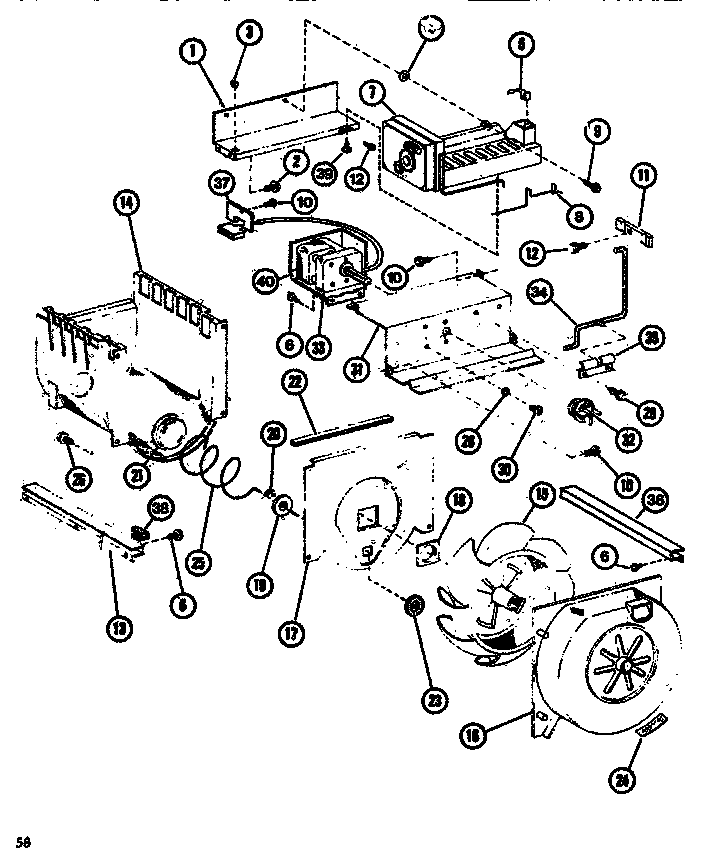

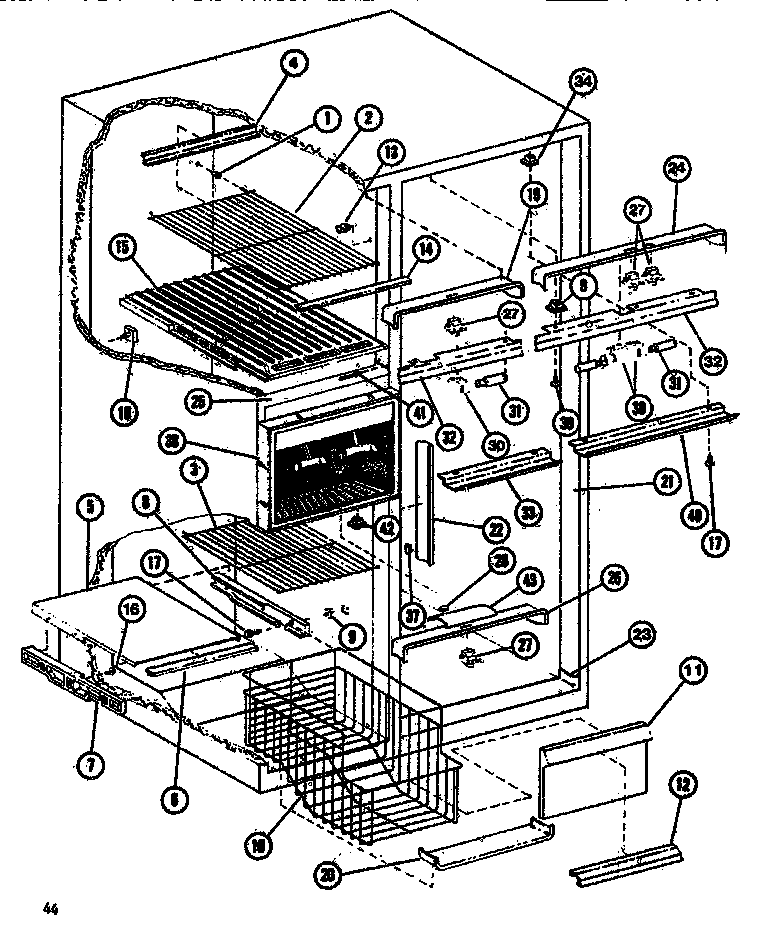

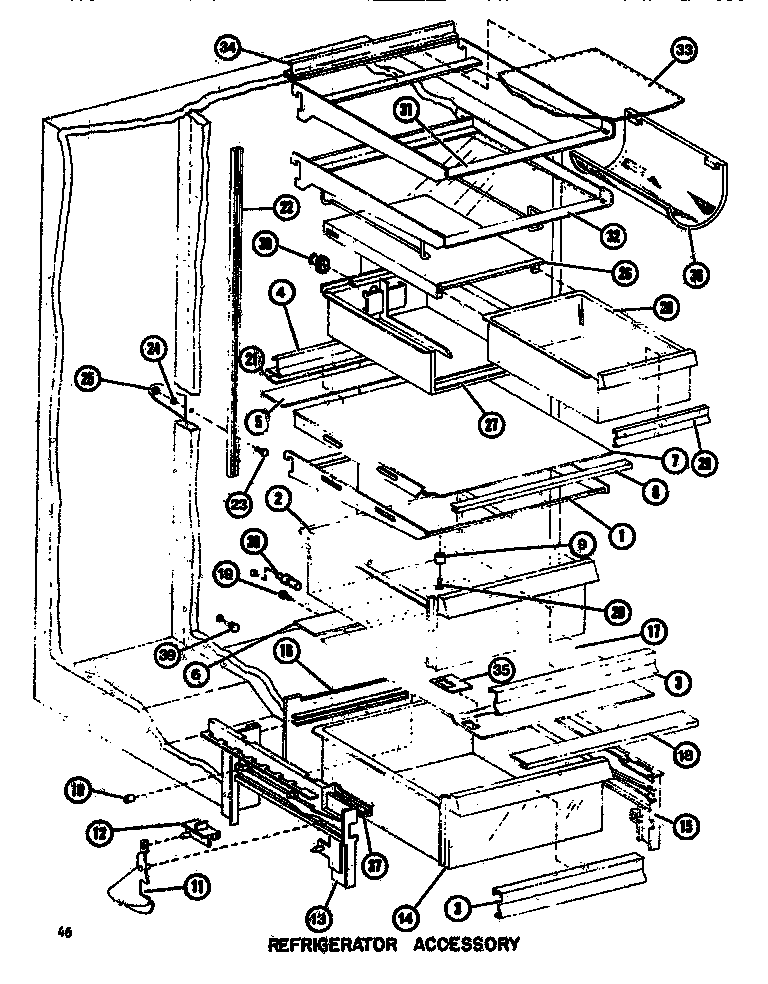

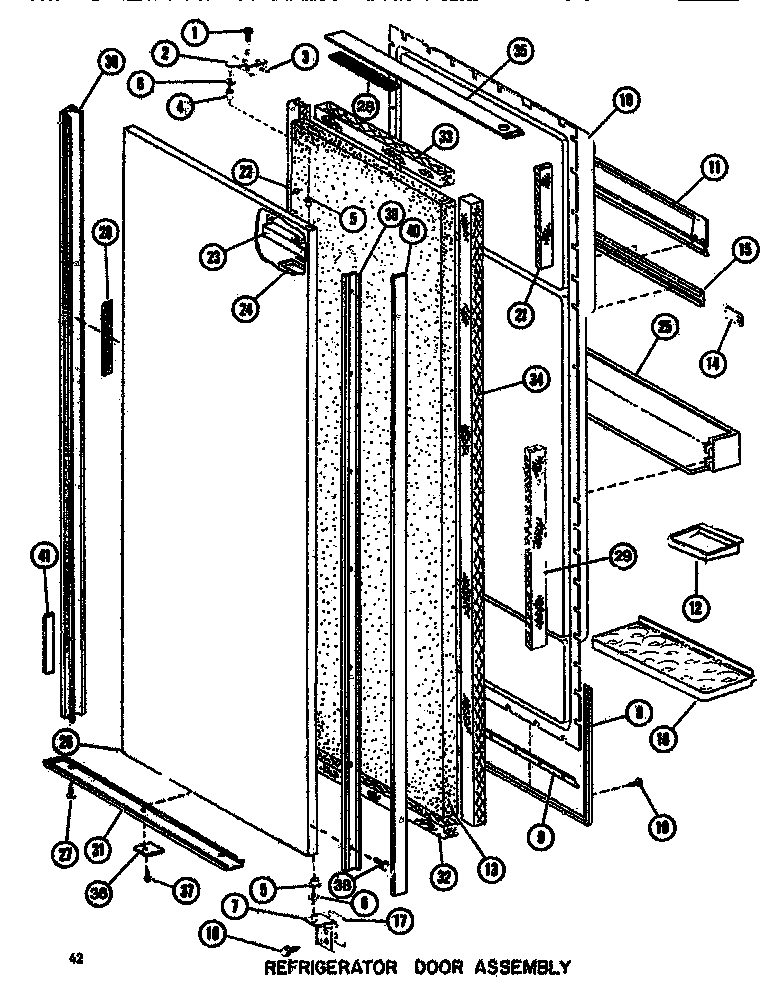

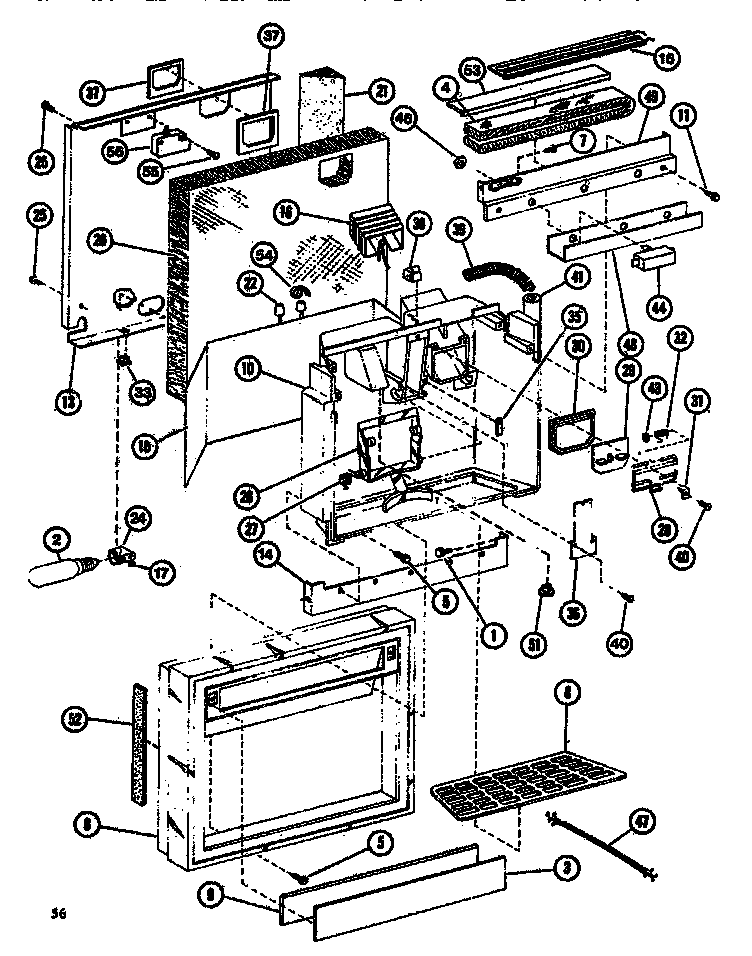

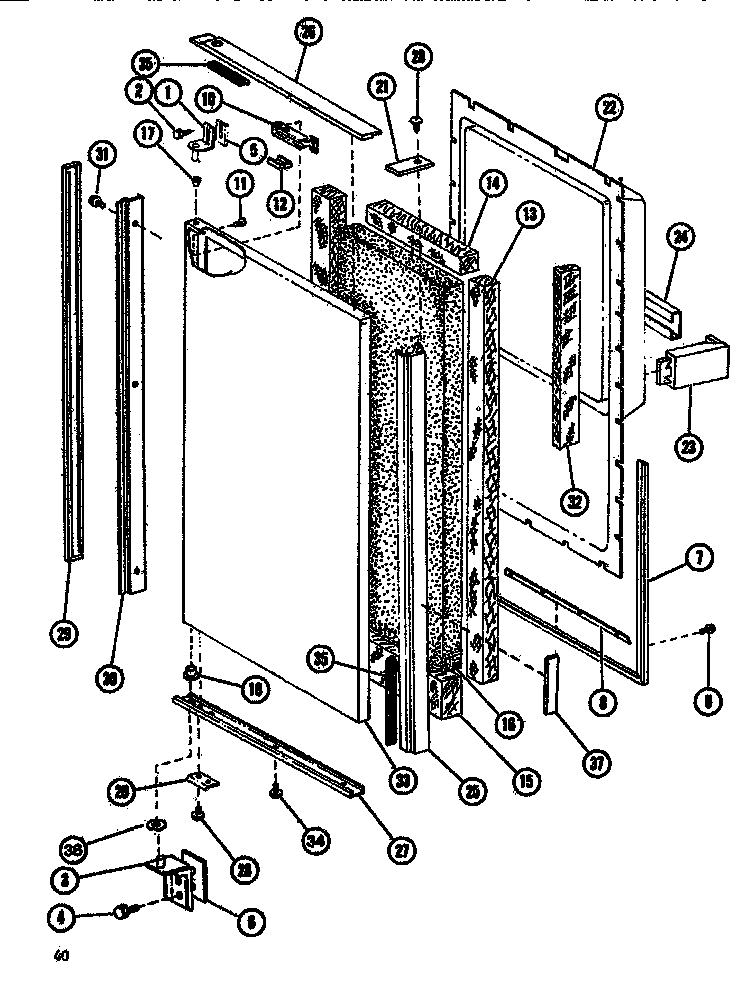

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 482 parts  |
Refrigerator Tubing B5705311
#18

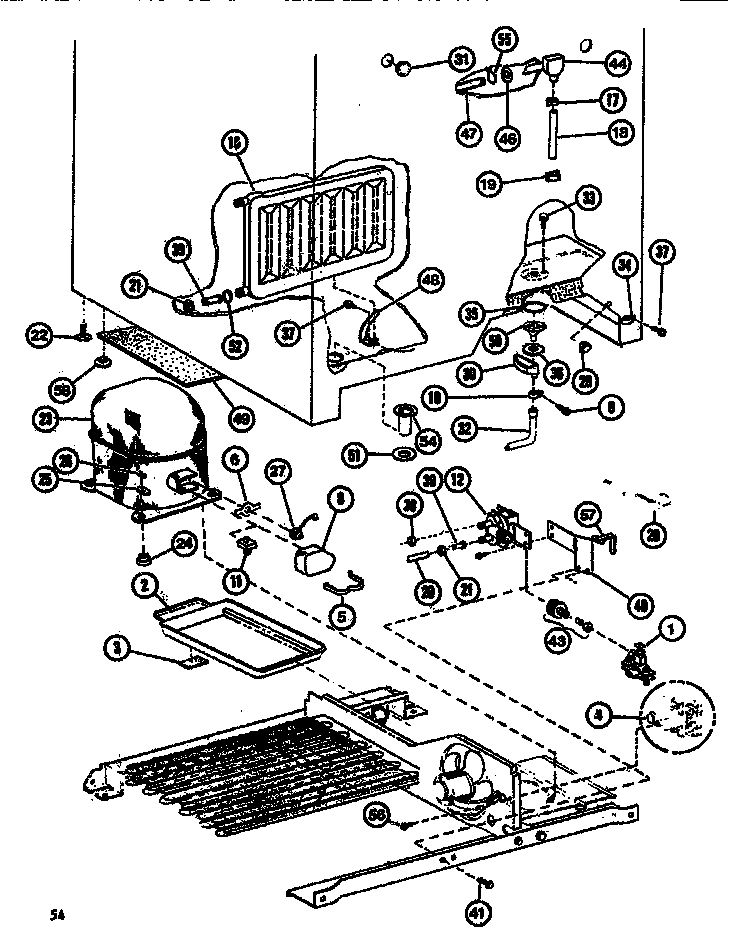

Compressor assembly diagram

Refrigerator tubing

Part #B5705311

Replaced by #W10823511

?
Manufacturer substitution
This part replaces B5705311. Substitute parts can look different from the original.
BEST SELLER
$33.27 |
15% OFF Phone Price : $39.27
In Stock
Refrigerator Screw M0210418
Refrigerator screw

Part #M0210418

Replaced by #W11233072

?
Manufacturer substitution
This part replaces M0210418. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw M0230917
Screw

Part #M0230917

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0230917. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Clamp M0117601
#17

Compressor assembly diagram

Clamp

Part #M0117601

Replaced by #WPM0114003

?
Manufacturer substitution
This part replaces M0117601. Substitute parts can look different from the original.
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Refrigerator Screw M0211019
Refrigerator screw

Part #M0211019

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0211019. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw-sm M0215318
#23

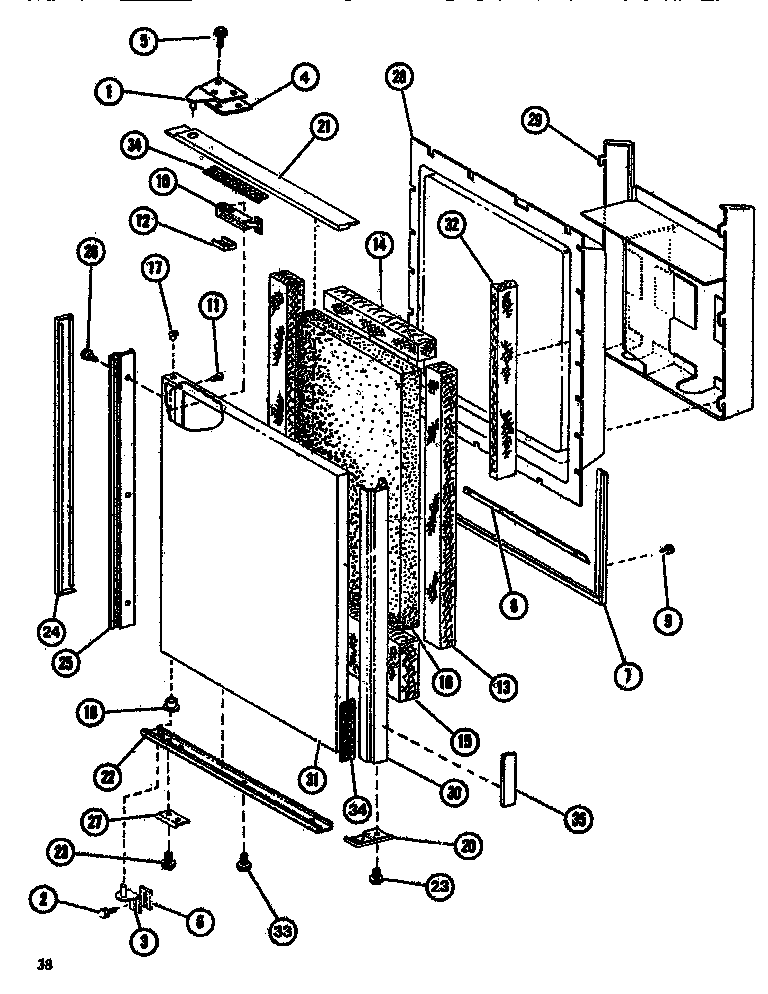

Upper freezer door assembly diagram

Screw-sm

Part #M0215318

Replaced by #8169479

?
Manufacturer substitution
This part replaces M0215318. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Clip M0117301
#22

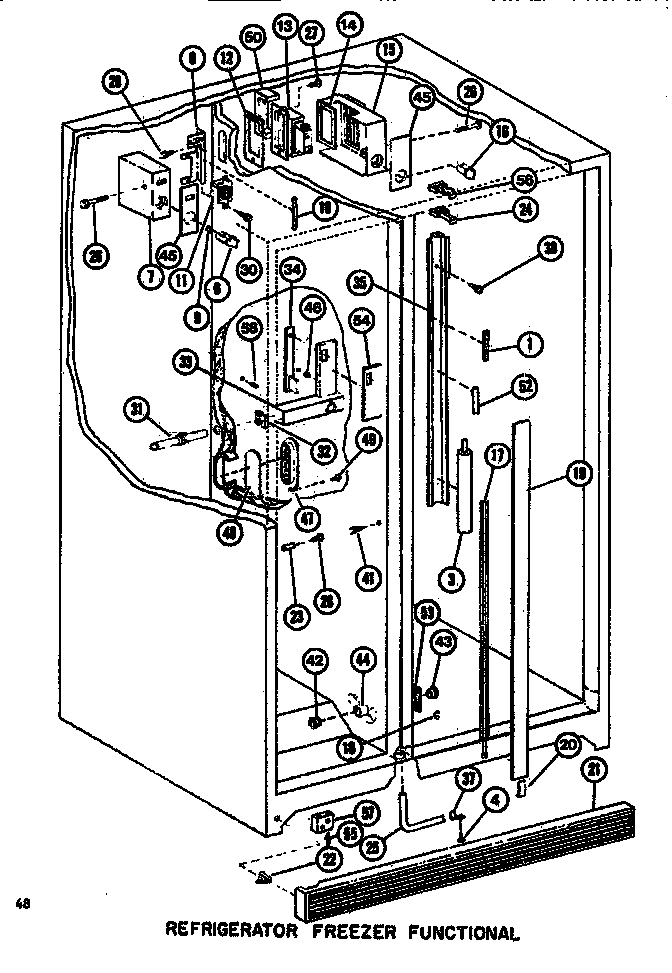

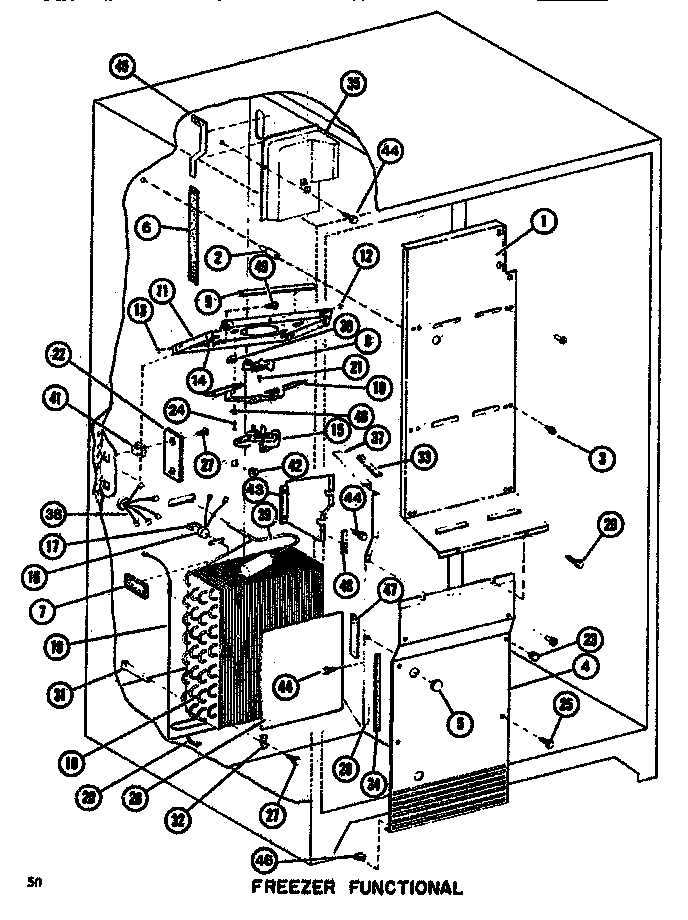

Functional parts (ref/frz) diagram

Clip

Part #M0117301

Replaced by #WPM0117303

?
Manufacturer substitution
This part replaces M0117301. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Machine Screw M0257244
Machine screw

Part #M0257244

Replaced by #R9800670

?
Manufacturer substitution
This part replaces M0257244. Substitute parts can look different from the original.
This item is not returnable
$4.97 |
17% OFF Phone Price : $5.97
In Stock
Screw M0211030
#2

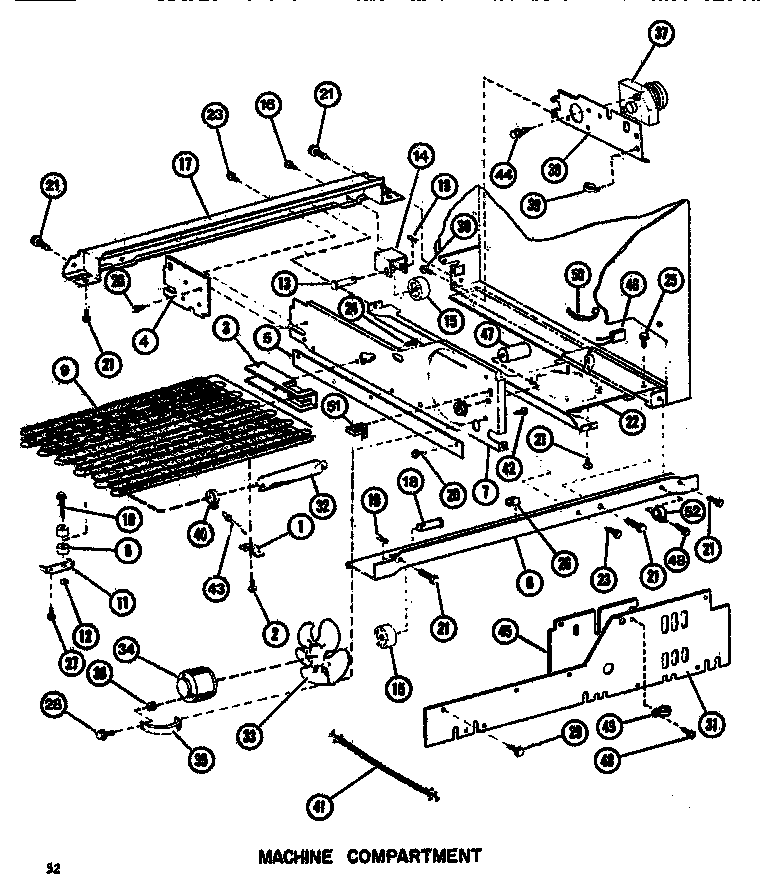

Machine compartment diagram

Screw

Part #M0211030

Replaced by #R9800670

?
Manufacturer substitution
This part replaces M0211030. Substitute parts can look different from the original.
This item is not returnable
$4.97 |
17% OFF Phone Price : $5.97
In Stock
Insulation B0523561
Insulation

Part #B0523561

Replaced by #876370

?
Manufacturer substitution
This part replaces B0523561. Substitute parts can look different from the original.
$68.79 |
8% OFF Phone Price : $74.79
In Stock
