Hoover
Upright Vacuum

Model # 1176 Official Hoover vacuum cleaner

Here are the diagrams and repair parts for Official Hoover 1176 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

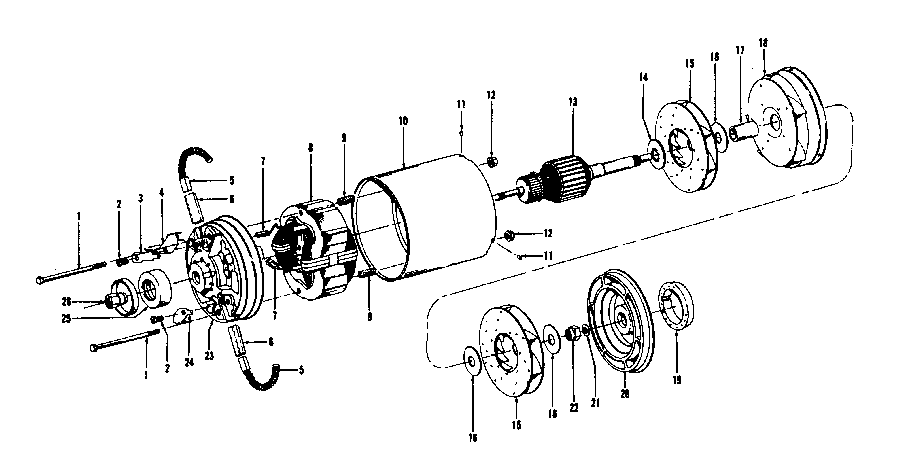

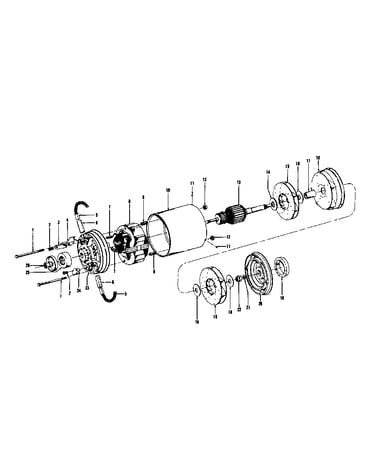

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |

Twist-on Wire Connector 048969--
#5

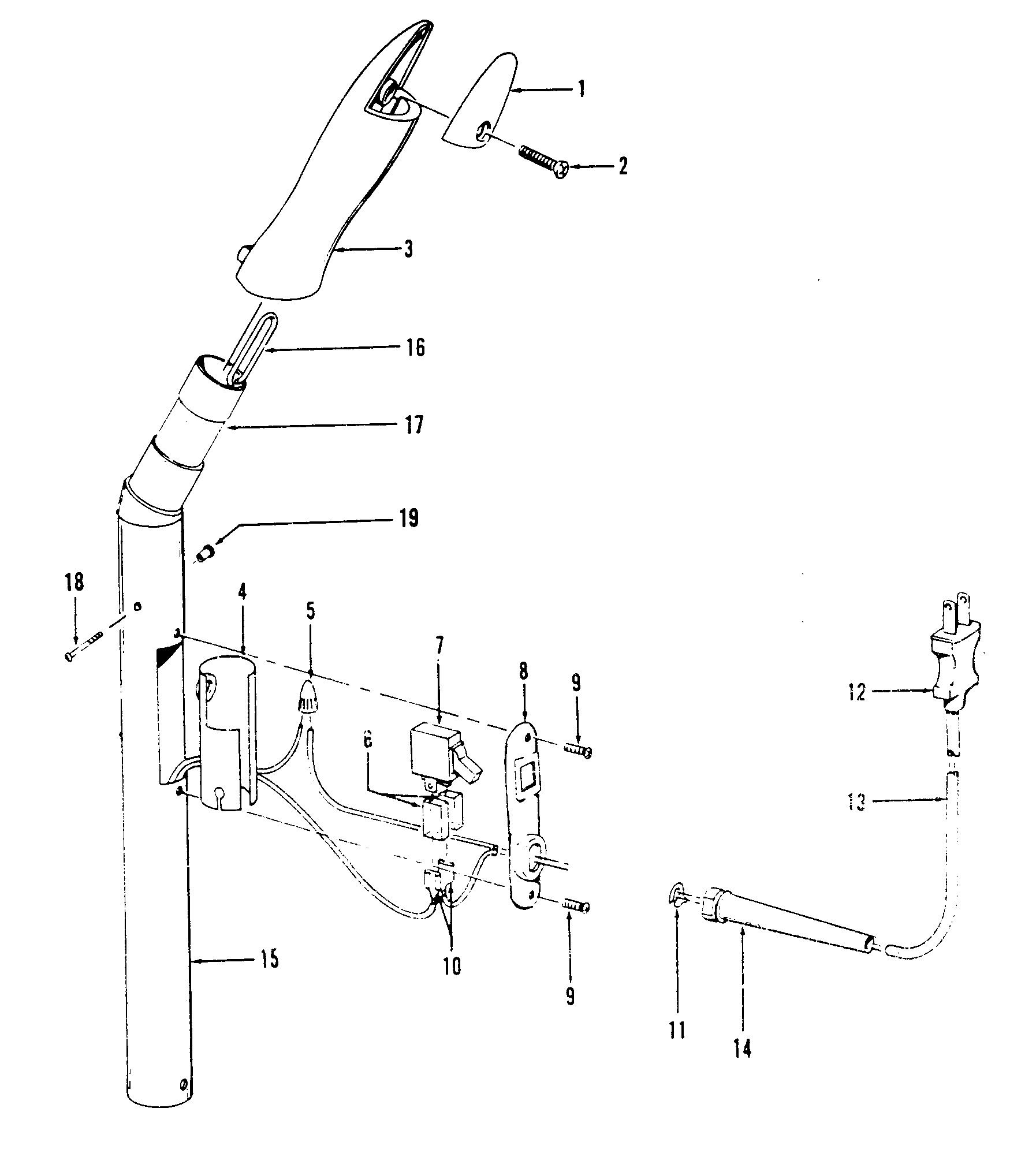

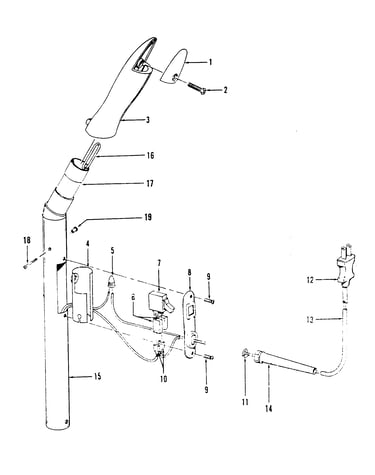

Handle diagram

Twist-on wire connector

Part #048969--

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Sleeve Hose 32156010
#4

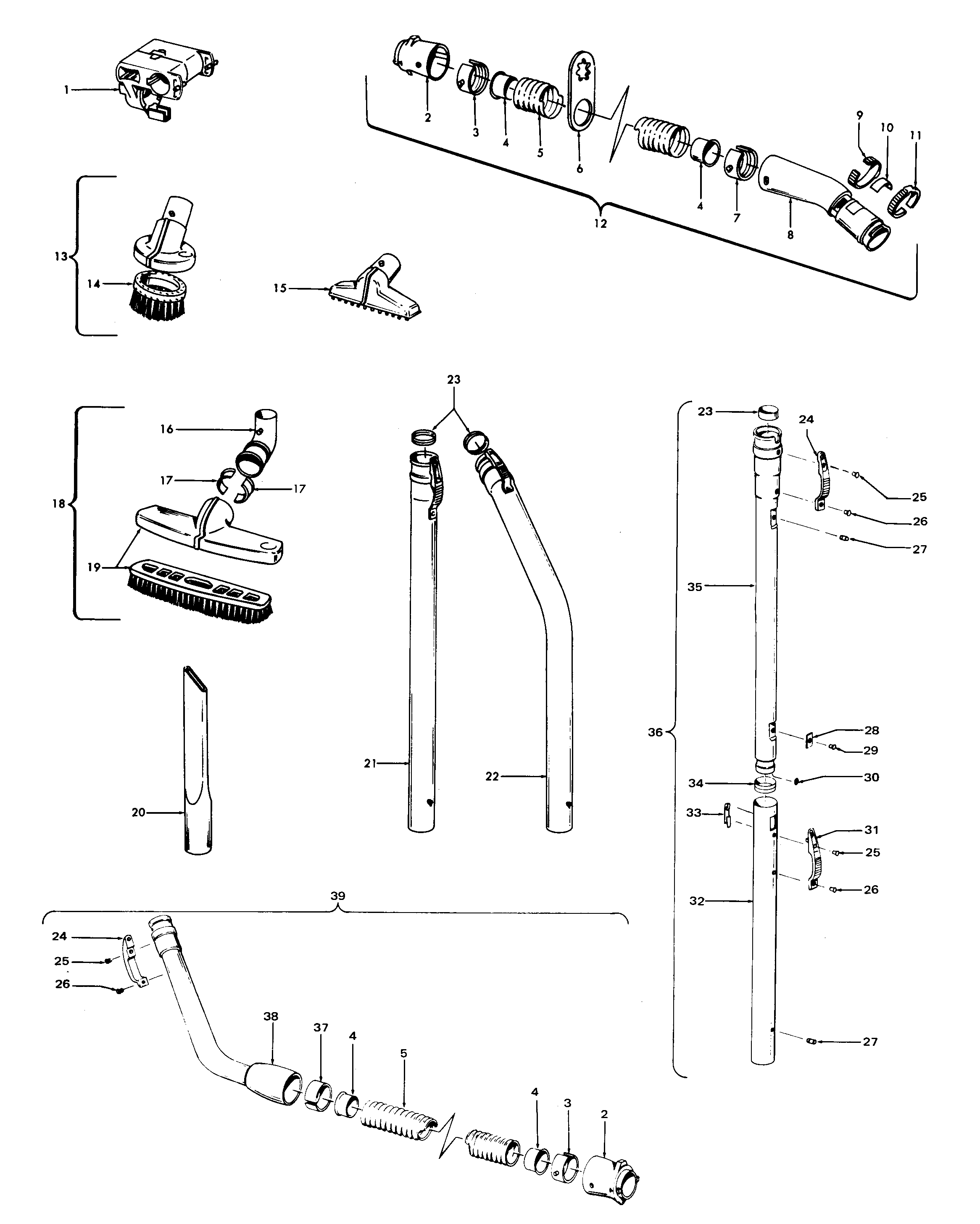

Cleaningtools diagram

Kenmore sleeve hose

Part #32156010

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Dust Brush 43414064
#13A

Cleaningtools diagram

Kenmore vacuum dust brush

Part #43414064

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Crevice Tool 38617017
#20

Cleaningtools diagram

Kenmore vacuum crevice tool

Part #38617017

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Upholstery Nozzle 43414057
#15

Cleaningtools diagram

Kenmore vacuum upholstery nozzle

Part #43414057

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447003
#15

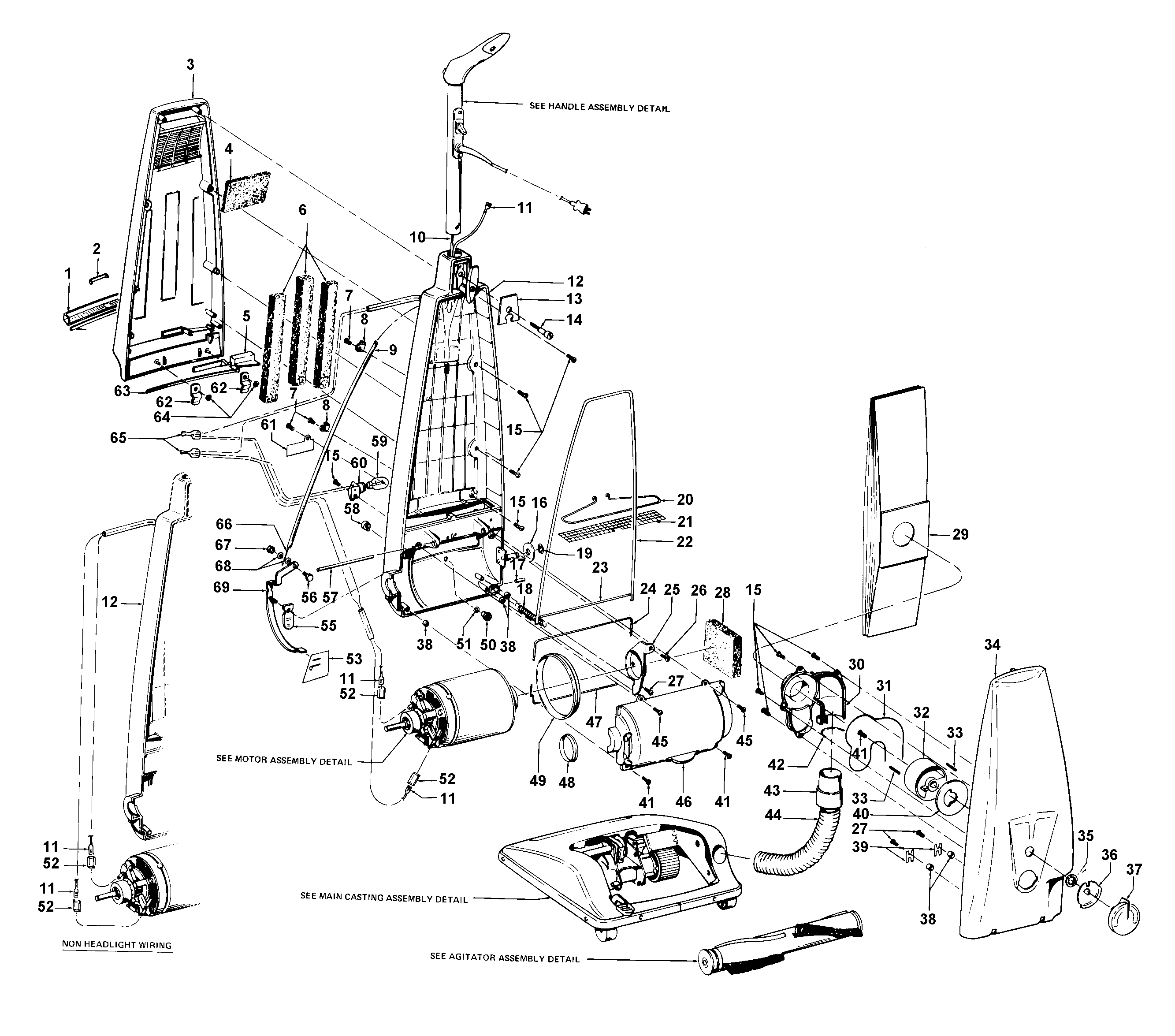

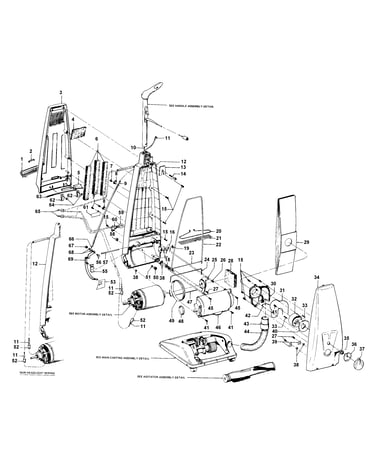

Mainbody, outerbag diagram

Regina vacuum screw

Part #21447003

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 012471AG
#11

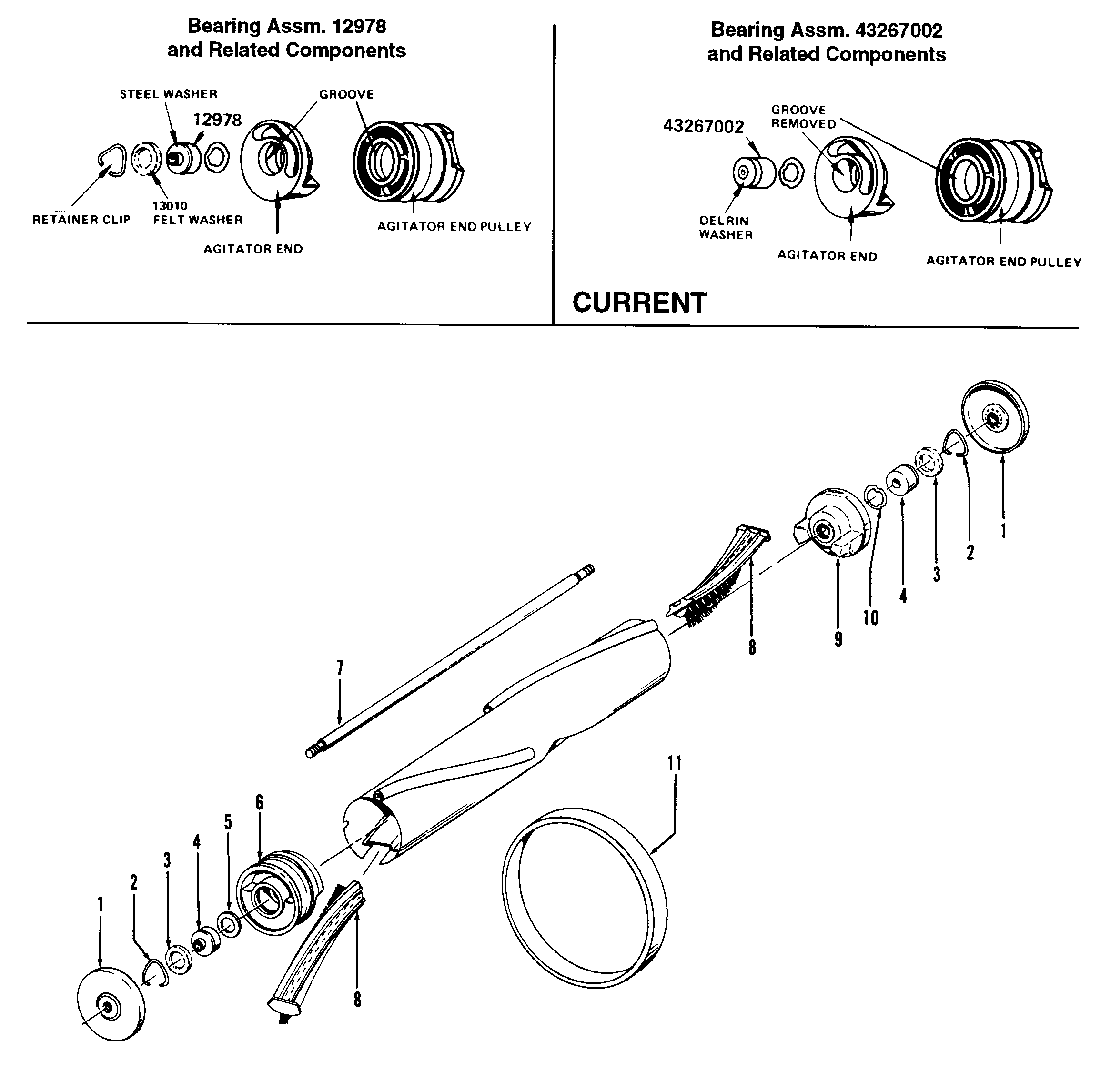

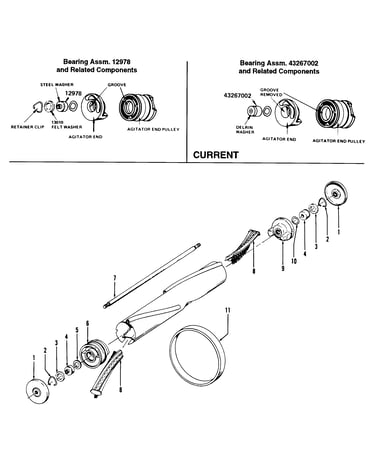

Agitator diagram

Vacuum beater bar belt

Part #012471AG

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Bearing 43267002
#4A

Agitator diagram

Vacuum beater bar bearing

Part #43267002

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Light Bulb 27317307
#59

Mainbody, outerbag diagram

Kenmore vacuum light bulb

Part #27317307

The manufacturer no longer makes this part, and there's no substitute part

Extension Tube 43453027
#21

Cleaningtools diagram

Extension tube

Part #43453027

The manufacturer no longer makes this part, and there's no substitute part
