Model # 536264470 Official Craftsman 42" snow blade kit

Here are the diagrams and repair parts for Official Craftsman 536264470 42" snow blade kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Carriage Bolt 998010
#31

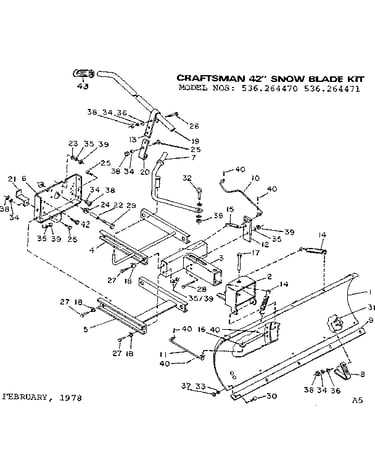

Replacement parts diagram

Carriage bolt

Part #998010

The manufacturer no longer makes this part, and there's no substitute part

Car Bolt 120518
#30

Replacement parts diagram

Car bolt

Part #120518

Replaced by #703101

?
Manufacturer substitution
This part replaces 120518. Substitute parts can look different from the original.
This item is not returnable
$6.89 |
13% OFF Phone Price : $7.89
In Stock
Strip 48974
#9

Replacement parts diagram

Strip

Part #48974

The manufacturer no longer makes this part, and there's no substitute part

Skid 48973
#8

Replacement parts diagram

Skid

Part #48973

The manufacturer no longer makes this part, and there's no substitute part

Split Lockwr 120638
#34

Replacement parts diagram

Split lockwr

Part #120638

The manufacturer no longer makes this part, and there's no substitute part

Rod 48982
#17

Replacement parts diagram

Rod

Part #48982

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 271190
#39

Replacement parts diagram

Lock nut

Part #271190

The manufacturer no longer makes this part, and there's no substitute part

Frame 48967
#6

Replacement parts diagram

Frame

Part #48967

The manufacturer no longer makes this part, and there's no substitute part

Latch 49087
#20

Replacement parts diagram

Latch

Part #49087

The manufacturer no longer makes this part, and there's no substitute part

Nut 496906
#41

Replacement parts diagram

Nut

Part #496906

The manufacturer no longer makes this part, and there's no substitute part
