Model # PP9830SR1SS Official GE electric counter unit

Here are the diagrams and repair parts for Official GE PP9830SR1SS electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Cooktop Downdraft Vent Fan Knob WB24X10174
#36

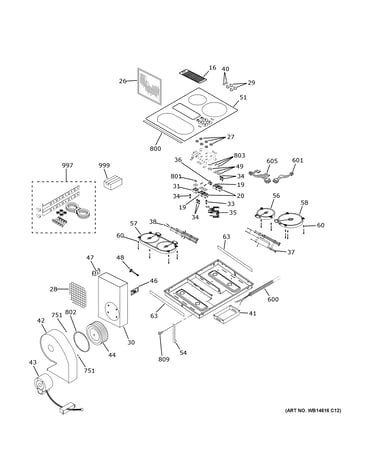

Control panel & cooktop diagram

Cooktop downdraft vent fan knob

Part #WB24X10174

BEST SELLER
$50.11 |
11% OFF Phone Price : $56.11
In Stock
Cooktop Element Control Switch WB24X10176
#20

Control panel & cooktop diagram

Cooktop element control switch

Part #WB24X10176

$98.80 |
11% OFF Phone Price : $110.80
In Stock
Cooktop Main Top Seal (replaces Wb2x9902) WB02X26088
#802

Control panel & cooktop diagram

Cooktop main top seal (replaces wb2x9902)

Part #WB02X26088

$51.24 |
10% OFF Phone Price : $57.24
In Stock
Cooktop Element Control Switch WB24X10175
#19

Control panel & cooktop diagram

Cooktop element control switch

Part #WB24X10175

$99.56 |
11% OFF Phone Price : $111.56
In Stock
Lock Switch WB24X10177
#31

Control panel & cooktop diagram

Lock switch

Part #WB24X10177

$181.02
In Stock
Buzzer WB18X24105
#48

Control panel & cooktop diagram

Buzzer

Part #WB18X24105

$26.13 |
19% OFF Phone Price : $32.13
In Stock
Heat Spring WB09X10035
#60

Control panel & cooktop diagram

Heat spring

Part #WB09X10035

$13.36 |
13% OFF Phone Price : $15.36
In Stock
Radiant Element 10 WB30X45058
#58

Control panel & cooktop diagram

Radiant element 10

Part #WB30X45058

$68.67
Back Order
Range Surface Burner Knob (replaces Wb03t10221) WB03T10272
#40

Control panel & cooktop diagram

Range surface burner knob (replaces wb03t10221)

Part #WB03T10272

This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Blower Plenum WB64X45039
#30

Control panel & cooktop diagram

Blower plenum

Part #WB64X45039

$298.55
In Stock
