GE
Top-Mount Refrigerator

Model # TB11SMB Official GE refrigerator

Here are the diagrams and repair parts for Official GE TB11SMB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

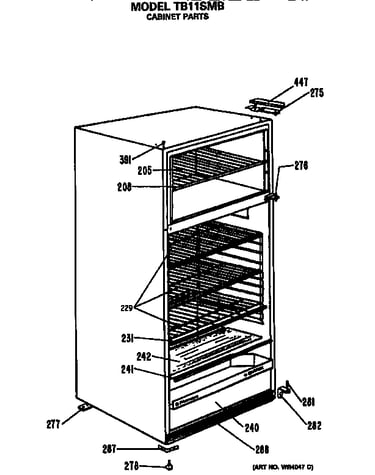

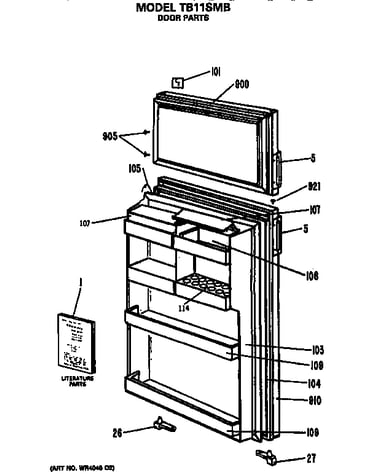

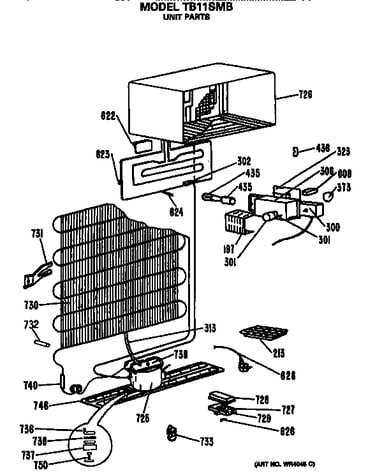

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Dryer Assembly WR86X86

#740

All parts diagram

Dryer assembly

Part #WR86X86

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X86. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Kenmore Socket WR23X5180

#435

All parts diagram

Kenmore socket

Part #WR23X5180

$40.00
In Stock
Refrigerator Use And Care Guide 49-6612

#1

All parts diagram

Refrigerator use and care guide

Part #49-6612

$8.49
In Stock
Foot WR2X8319

#287

All parts diagram

Foot

Part #WR2X8319

$25.01
In Stock
Lower Hinge WR13X5244

#282

All parts diagram

Lower hinge

Part #WR13X5244

The manufacturer no longer makes this part, and there's no substitute part

Grommet WR2X8339

#737

All parts diagram

Grommet

Part #WR2X8339

The manufacturer no longer makes this part, and there's no substitute part

Frz Od Panel WR78X8266

#900

All parts diagram

Frz od panel

Part #WR78X8266

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Control WR9X5235

#300

All parts diagram

Refrigerator control

Part #WR9X5235

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Support WR2X8328

#436

All parts diagram

Refrigerator support

Part #WR2X8328

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Trim WR38X5425

#241

All parts diagram

Refrigerator trim

Part #WR38X5425

The manufacturer no longer makes this part, and there's no substitute part
