Model # 13291923050 Official LXI 8-track cassette recorder player

Here are the diagrams and repair parts for Official LXI 13291923050 8-track cassette recorder player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

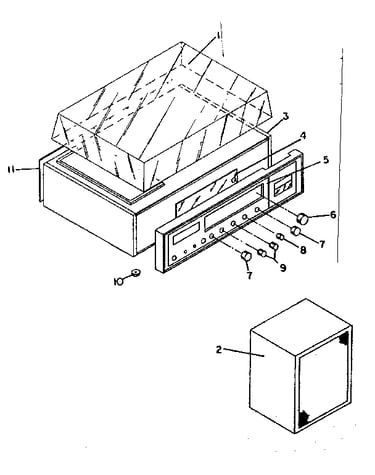

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 281 parts  |
Cable 95701-38

#NI

All parts diagram

Cable

Part #95701-38

The manufacturer no longer makes this part, and there's no substitute part

E-ring 2013019-127
#64

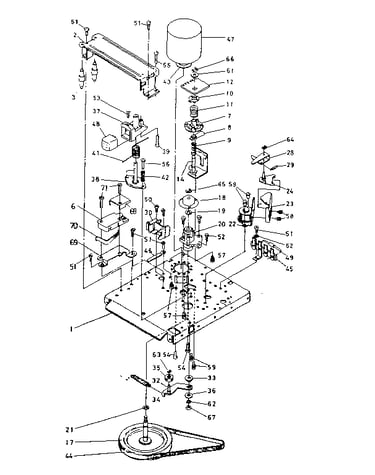

Chassis diagram

E-ring

Part #2013019-127

The manufacturer no longer makes this part, and there's no substitute part

E-ring 2013019-64
#65

Chassis diagram

E-ring

Part #2013019-64

The manufacturer no longer makes this part, and there's no substitute part

Plate 2017696-41
#42

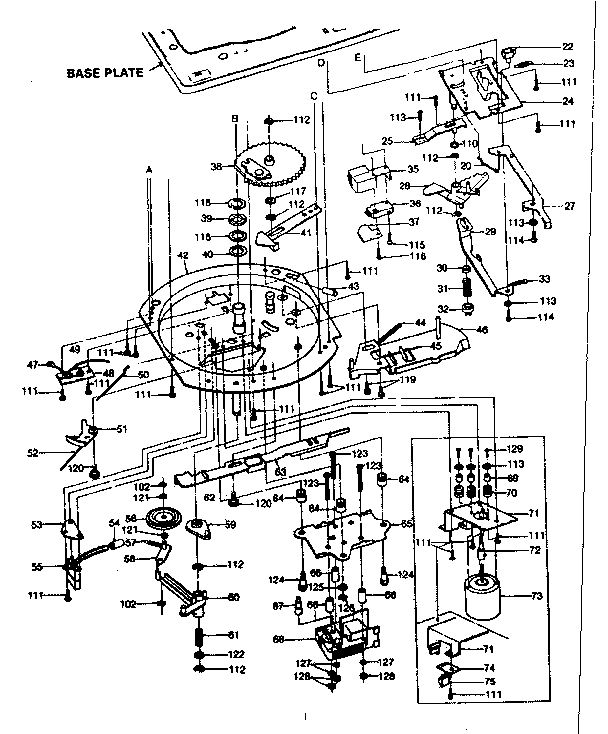

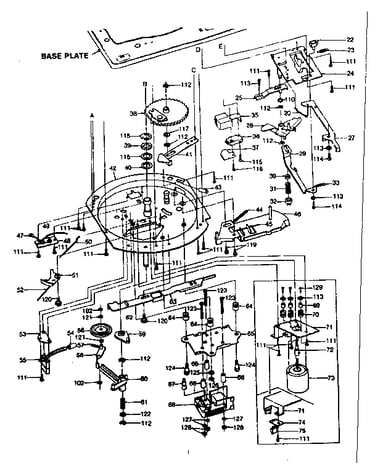

Changer diagram

Plate

Part #2017696-41

The manufacturer no longer makes this part, and there's no substitute part

Spring 2013019-182
#9

Chassis diagram

Spring

Part #2013019-182

The manufacturer no longer makes this part, and there's no substitute part

Auto Spindle 2017300-202
#50

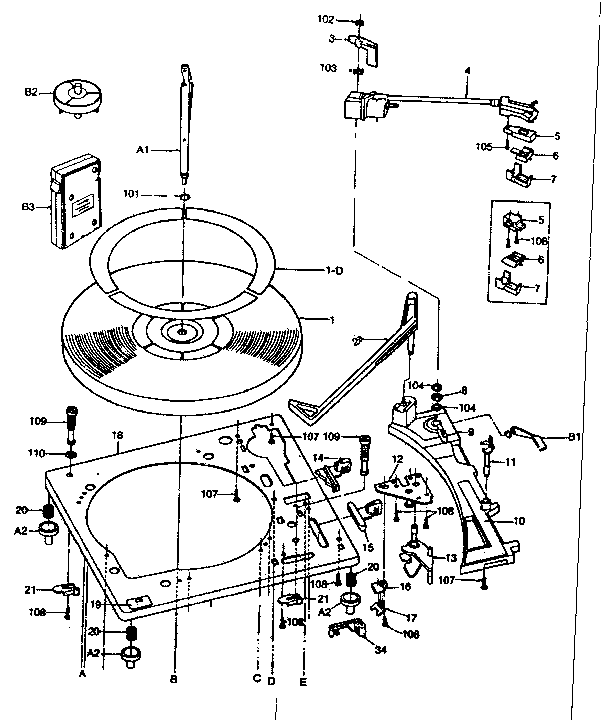

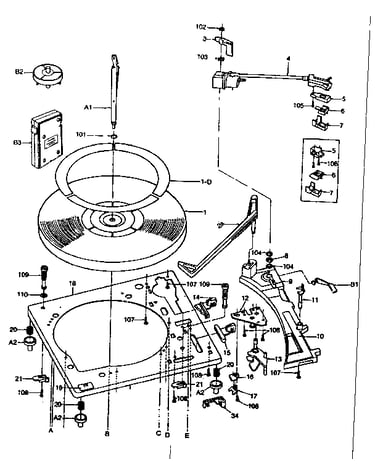

Turntable diagram

Auto spindle

Part #2017300-202

The manufacturer no longer makes this part, and there's no substitute part

E-ring 2015000-159
#117

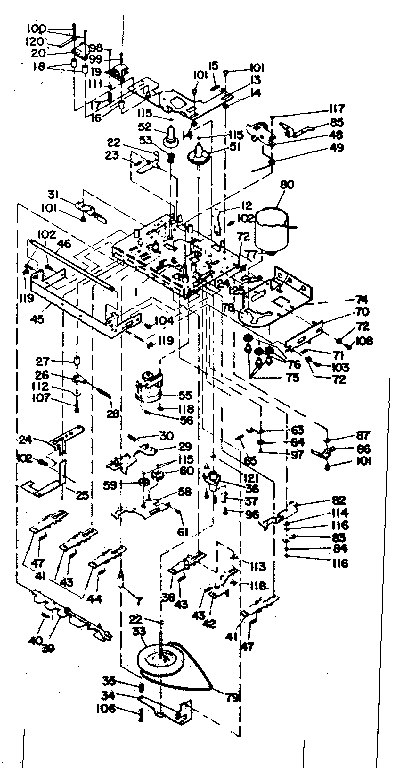

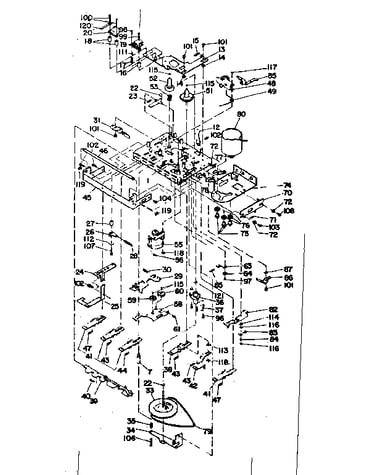

Internal replacement parts diagram

E-ring

Part #2015000-159

The manufacturer no longer makes this part, and there's no substitute part

Door 2017101-1

#NI

All parts diagram

Door

Part #2017101-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 2017696-74
#109

Turntable diagram

Screw

Part #2017696-74

The manufacturer no longer makes this part, and there's no substitute part

Pulley 2015000-294
#77

Internal replacement parts diagram

Pulley

Part #2015000-294

The manufacturer no longer makes this part, and there's no substitute part
