Model # CC1WF-P1133354N Official Amana electric range & oven

Here are the diagrams and repair parts for Official Amana CC1WF-P1133354N electric range & oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Thermal Blck 0089336
#18

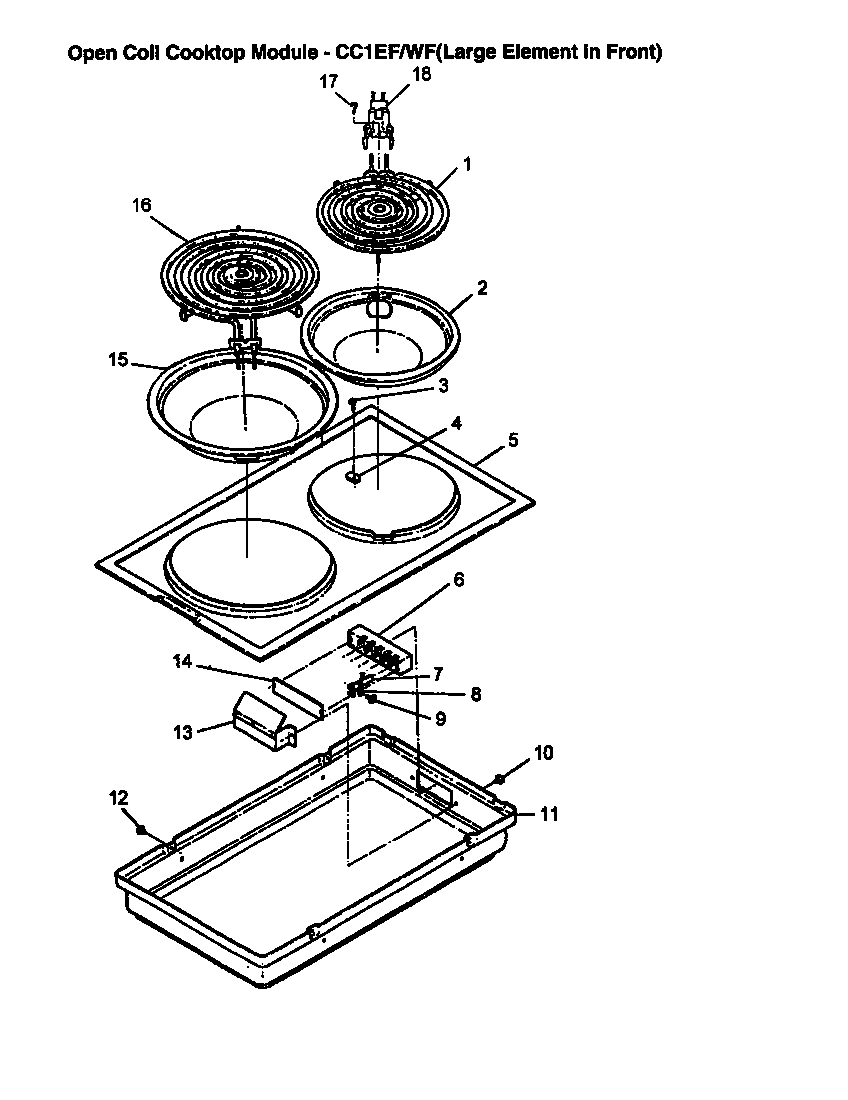

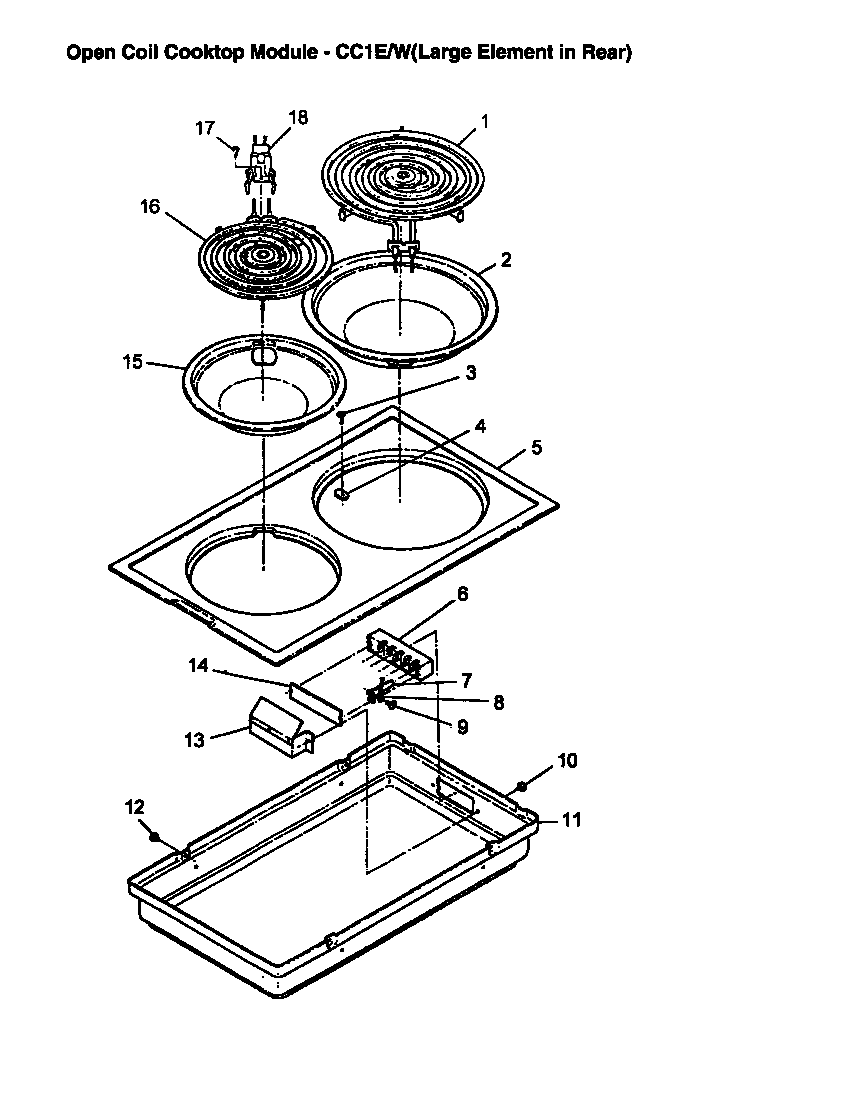

Op coil cookt mod-cc1ef/wf(lar e in fr) (cc1ef/p1133354n) (cc1wf/p1133354n) diagram

Thermal blck

Part #0089336

Replaced by #330031

?
Manufacturer substitution
This part replaces 0089336. Substitute parts can look different from the original.
BEST SELLER
$10.13 |
16% OFF Phone Price : $12.13
In Stock
Screw 0309016

#NI

All parts diagram

Screw

Part #0309016

Replaced by #WP693995

?
Manufacturer substitution
This part replaces 0309016. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Burner Bowl 305837T
#2

Op coil cookt mod-cc1ef/wf(lar e in fr) (cc1ef/p1133354n) (cc1wf/p1133354n) diagram

Burner bowl

Part #305837T

Replaced by #W10291024

?
Manufacturer substitution
This part replaces 305837T. Substitute parts can look different from the original.
$49.09 |
11% OFF Phone Price : $55.09
In Stock
Burner Bowl 305839T
#15

Op coil cookt mod-cc1ef/wf(lar e in fr) (cc1ef/p1133354n) (cc1wf/p1133354n) diagram

Burner bowl

Part #305839T

Replaced by #W10291024

?
Manufacturer substitution
This part replaces 305839T. Substitute parts can look different from the original.
$49.09 |
11% OFF Phone Price : $55.09
In Stock
Cleaner 0314274

#NI

All parts diagram

Cleaner

Part #0314274

The manufacturer no longer makes this part, and there's no substitute part

Screw 0041809
#10

Op coil cookt mod-cc1ef/wf(lar e in fr) (cc1ef/p1133354n) (cc1wf/p1133354n) diagram

Screw

Part #0041809

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 0041809. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Glass Tape 0078470
#12

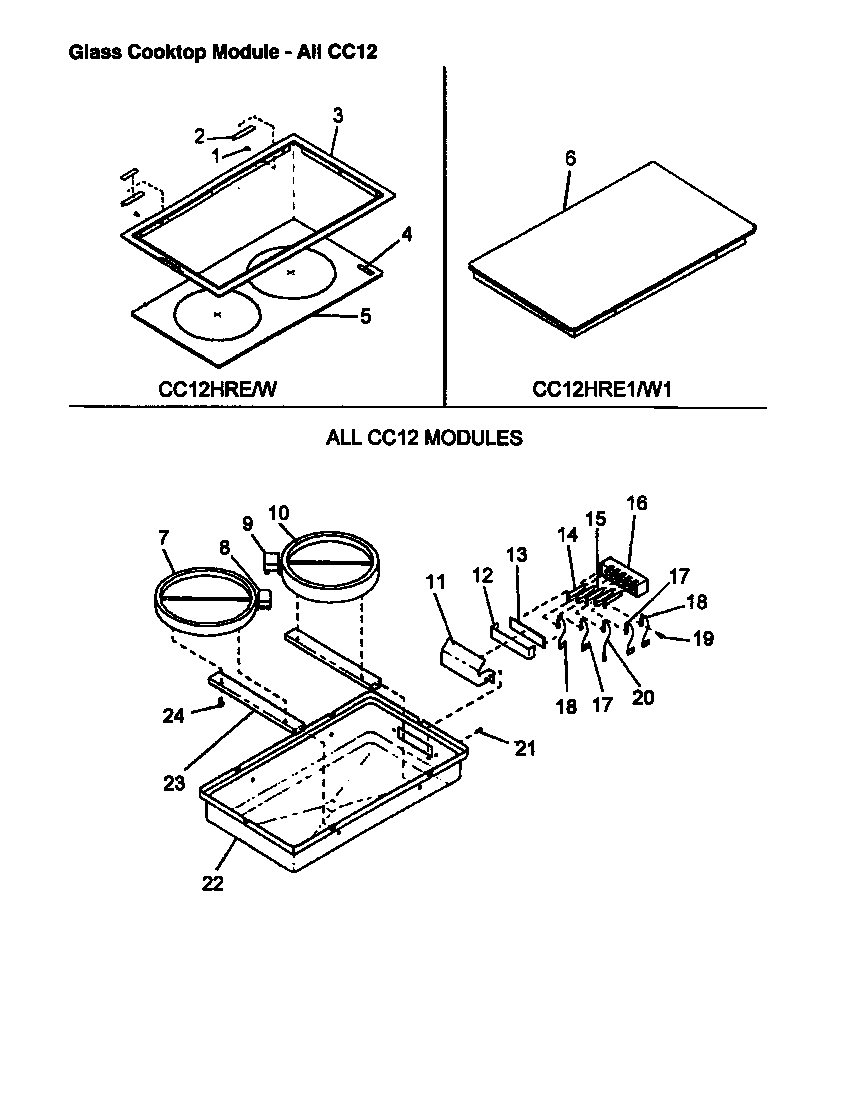

Glass cooktop module - all cc12 (cc12hre/p1133347n) (cc12hrw/p1133347n) diagram

Glass tape

Part #0078470

The manufacturer no longer makes this part, and there's no substitute part

Gasket Ring, Large 0061608
#21

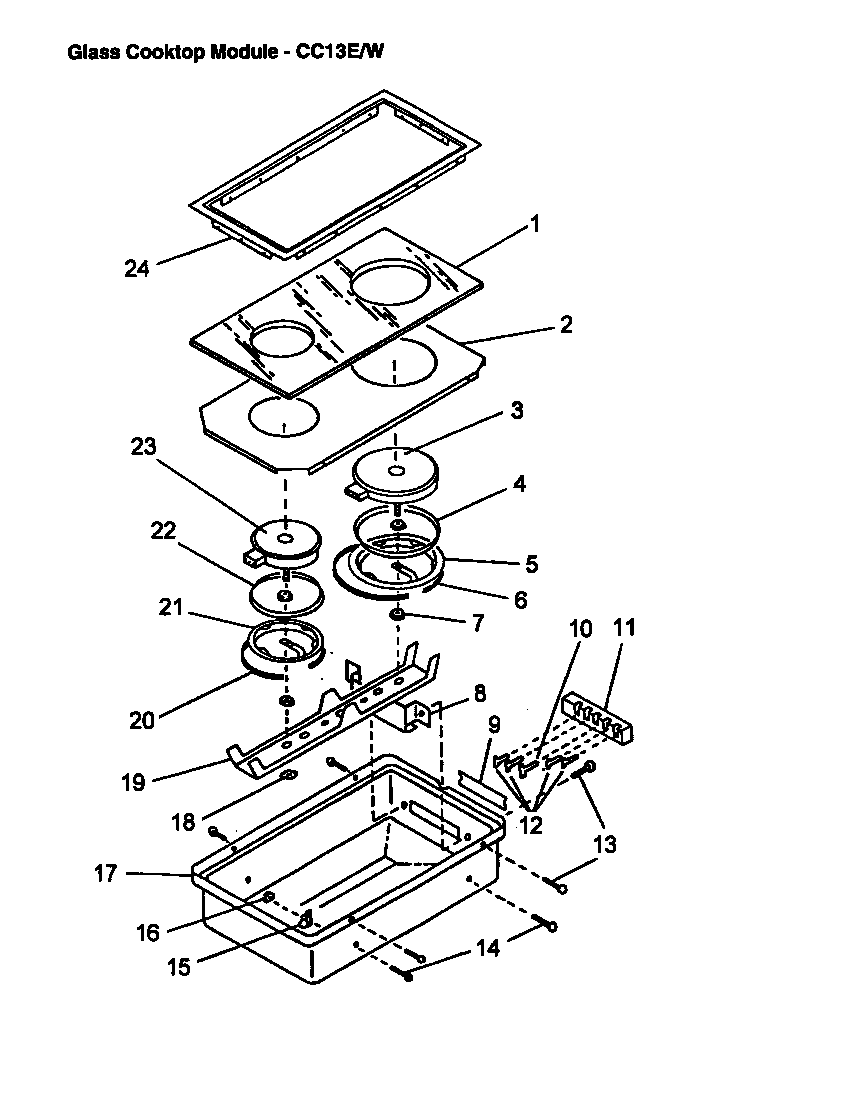

Glass cooktop module - cc13e/w (cc13e/p1133348n) (cc13w/p1133348n) (cc13w/p1155203s) diagram

Gasket ring, large

Part #0061608

The manufacturer no longer makes this part, and there's no substitute part

25.250" Gasket 0059632
#6

Glass cooktop module - cc13e/w (cc13e/p1133348n) (cc13w/p1133348n) (cc13w/p1155203s) diagram

25.250" gasket

Part #0059632

The manufacturer no longer makes this part, and there's no substitute part

Nut, Weld, 6 - 32 0041859
#4

Op coil cookt mod-cc1ef/wf(lar e in fr) (cc1ef/p1133354n) (cc1wf/p1133354n) diagram

Nut, weld, 6 - 32

Part #0041859

The manufacturer no longer makes this part, and there's no substitute part
