Model # 79041273000 Official Kenmore Elite cooktop

Here are the diagrams and repair parts for Official Kenmore Elite 79041273000 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

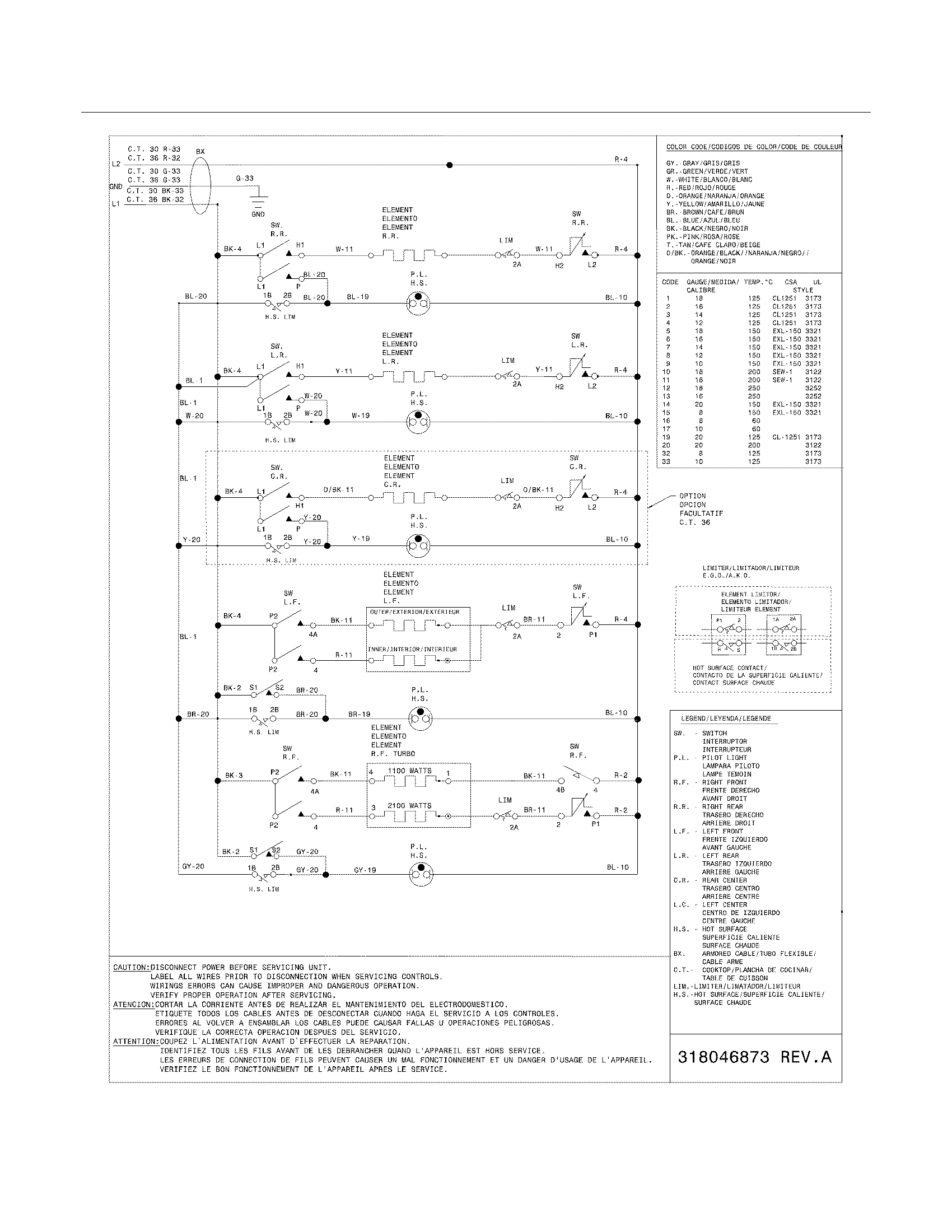

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Element 318198830
#15

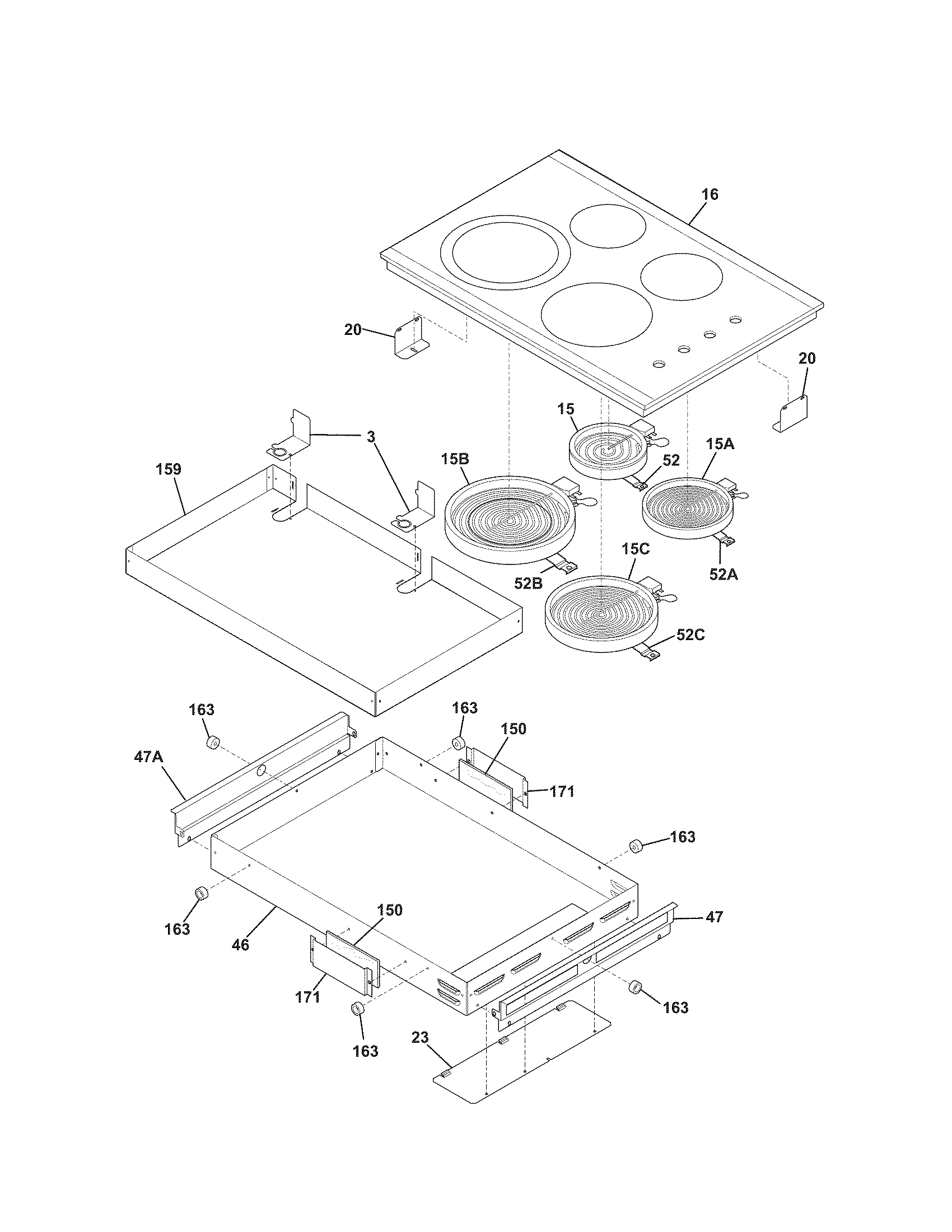

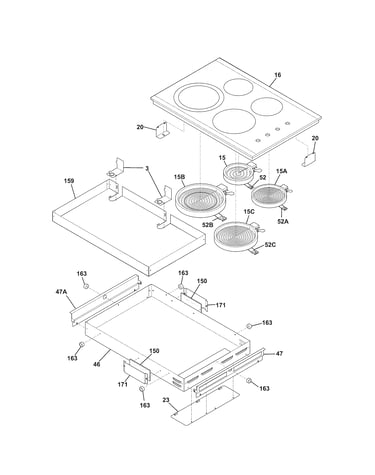

Maintop/surface units diagram

Element

Part #318198830

Replaced by #318178110

?
Manufacturer substitution
This part replaces 318198830. Substitute parts can look different from the original.
BEST SELLER
$149.34 |
7% OFF Phone Price : $161.34
In Stock
Range Surface Element Control Switch (replaces 903097-9050) 318191000
#54B

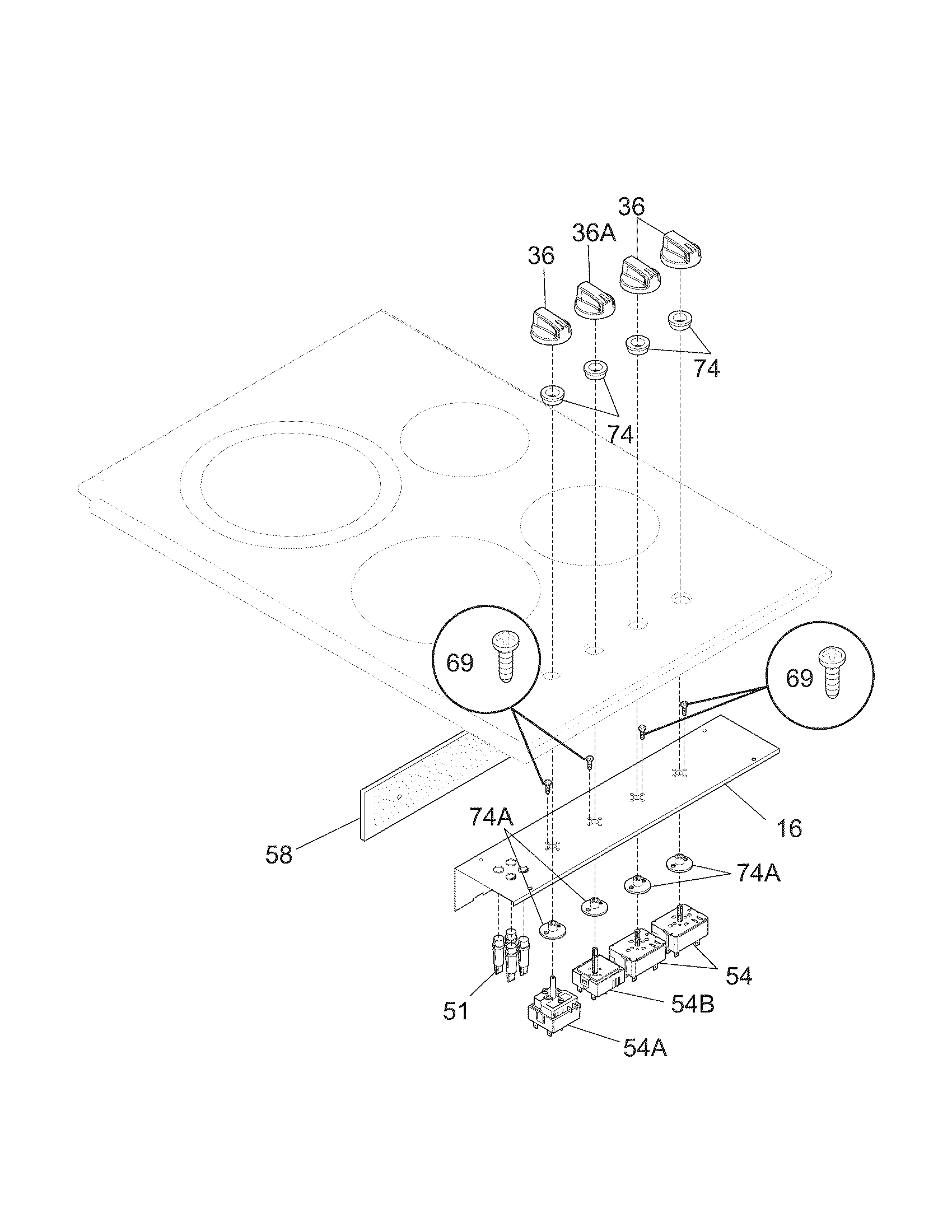

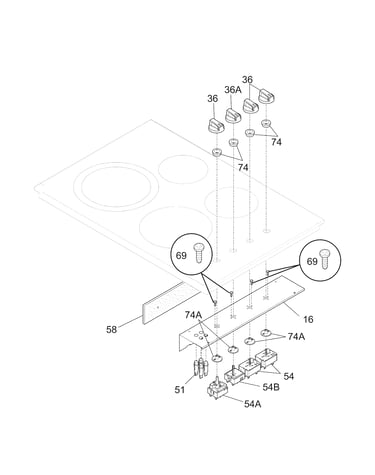

Control panel diagram

Range surface element control switch (replaces 903097-9050)

Part #318191000

BEST SELLER
$67.09 |
8% OFF Phone Price : $73.09
In Stock
Range Dual Radiant Surface Element 318198935
#15B

Maintop/surface units diagram

Range dual radiant surface element

Part #318198935

Replaced by #316282101

?
Manufacturer substitution
This part replaces 318198935. Substitute parts can look different from the original.
BEST SELLER
$163.94 |
7% OFF Phone Price : $175.94
In Stock
Range Surface Element Control Switch (replaces 318220011, 318369609) 318293824
#54

Control panel diagram

Range surface element control switch (replaces 318220011, 318369609)

Part #318293824

BEST SELLER
$70.51 |
8% OFF Phone Price : $76.51
In Stock
Range Screw 5303323134
#69

Control panel diagram

Range screw

Part #5303323134

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 5303323134. Substitute parts can look different from the original.
This item is not returnable
$3.43
In Stock
Electrolux Appliance Stainless Steel Cleaner, 1-oz 316136900
#NI

Maintop/surface units diagram

Electrolux appliance stainless steel cleaner, 1-oz

Part #316136900

$22.75 |
21% OFF Phone Price : $28.75
In Stock
Cooktop Element Control Knob Bushing 318146010
#74A

Control panel diagram

Cooktop element control knob bushing

Part #318146010

$18.86
In Stock
Range Screw, #10-24 X 0.375-in 08011955
#NI

Control panel diagram

Range screw, #10-24 x 0.375-in

Part #08011955

Replaced by #5303311174

?
Manufacturer substitution
This part replaces 08011955. Substitute parts can look different from the original.
This item is not returnable
$16.46 |
11% OFF Phone Price : $18.46
In Stock
Cooktop Surface Element 318198836
#15A

Maintop/surface units diagram

Cooktop surface element

Part #318198836

Replaced by #318198851

?
Manufacturer substitution
This part replaces 318198836. Substitute parts can look different from the original.
$128.89 |
9% OFF Phone Price : $140.89
In Stock
Kenmore Pro Range Screw, 10 X 24 X 29/32-in 5303323130
#NI

Control panel diagram

Kenmore pro range screw, 10 x 24 x 29/32-in

Part #5303323130

$14.69
In Stock
