Model # WM2411HW Official LG washer

Here are the diagrams and repair parts for Official LG WM2411HW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Washer Single-solenoid Water Inlet Valve (replaces 5220fr1280f, 5220fr2006l) 5220FR2006H
#F170

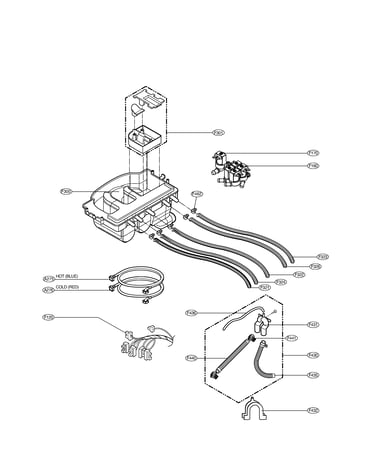

Dispenser assembly diagram

Washer single-solenoid water inlet valve (replaces 5220fr1280f, 5220fr2006l)

Part #5220FR2006H

BEST SELLER
$20.53 |
23% OFF Phone Price : $26.53
In Stock
Washer Door Lock Switch 6601ER1004C
#A440

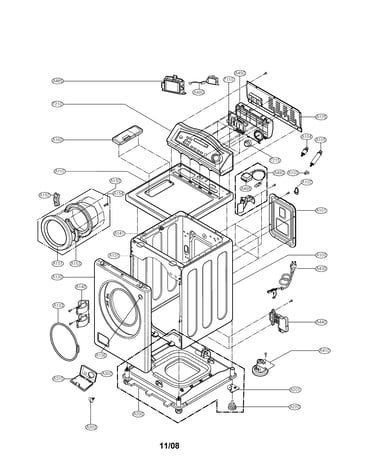

Cabinet & control panel diagram

Washer door lock switch

Part #6601ER1004C

Replaced by #EBF49827801

?
Manufacturer substitution
This part replaces 6601ER1004C. Substitute parts can look different from the original.
BEST SELLER
$57.02 |
10% OFF Phone Price : $63.02
In Stock
Washer Motor Stator 4417FA1994G
#K350

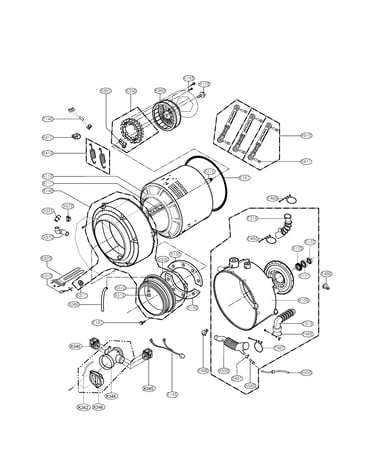

Drum & tub diagram

Washer motor stator

Part #4417FA1994G

Replaced by #4417EA1002Y

?
Manufacturer substitution
This part replaces 4417FA1994G. Substitute parts can look different from the original.
BEST SELLER
$188.05 |
6% OFF Phone Price : $200.05
In Stock
Washer Drain Hose 5215ER2002F
#F430

Dispenser assembly diagram

Washer drain hose

Part #5215ER2002F

Replaced by #5215ER2002G

?
Manufacturer substitution
This part replaces 5215ER2002F. Substitute parts can look different from the original.
BEST SELLER
$35.53 |
14% OFF Phone Price : $41.53
In Stock
Washer Outer Tub Gasket 4036ER4001B
#K141

Drum & tub diagram

Washer outer tub gasket

Part #4036ER4001B

BEST SELLER
$20.97 |
22% OFF Phone Price : $26.97
In Stock
Washer Drain Pump Filter Drain Hose 5214FR4006L
#K342

Drum & tub diagram

Washer drain pump filter drain hose

Part #5214FR4006L

Replaced by #5214FR4006G

?
Manufacturer substitution
This part replaces 5214FR4006L. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.56 |
13% OFF Phone Price : $7.56
In Stock
Lg Washer Tub Inner Rear Bearing (replaces 4280fr4048l, 4280fr4048d, 4280fr4048s, Map62554001) 4280FR4048N
#K121

Drum & tub diagram

Lg washer tub inner rear bearing (replaces 4280fr4048l, 4280fr4048d, 4280fr4048s, map62554001)

Part #4280FR4048N

BEST SELLER
$38.97 |
13% OFF Phone Price : $44.97
In Stock
Washer Drive Motor 4681EA2001C
#K345

Drum & tub diagram

Washer drive motor

Part #4681EA2001C

Replaced by #EAU61383503

?
Manufacturer substitution
This part replaces 4681EA2001C. Substitute parts can look different from the original.
BEST SELLER
$90.92 |
6% OFF Phone Price : $96.92
In Stock
Bearing 4280FR4048J
#K122

Drum & tub diagram

Bearing

Part #4280FR4048J

Replaced by #MAP61913707

?
Manufacturer substitution
This part replaces 4280FR4048J. Substitute parts can look different from the original.
BEST SELLER
$34.16 |
15% OFF Phone Price : $40.16
In Stock
Washer Tub-to-pump Hose 4738ER1002A
#K520

Drum & tub diagram

Washer tub-to-pump hose

Part #4738ER1002A

BEST SELLER
$44.60 |
12% OFF Phone Price : $50.60
In Stock
