Model # WNSB9080B0WW Official GE washer

Here are the diagrams and repair parts for Official GE WNSB9080B0WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

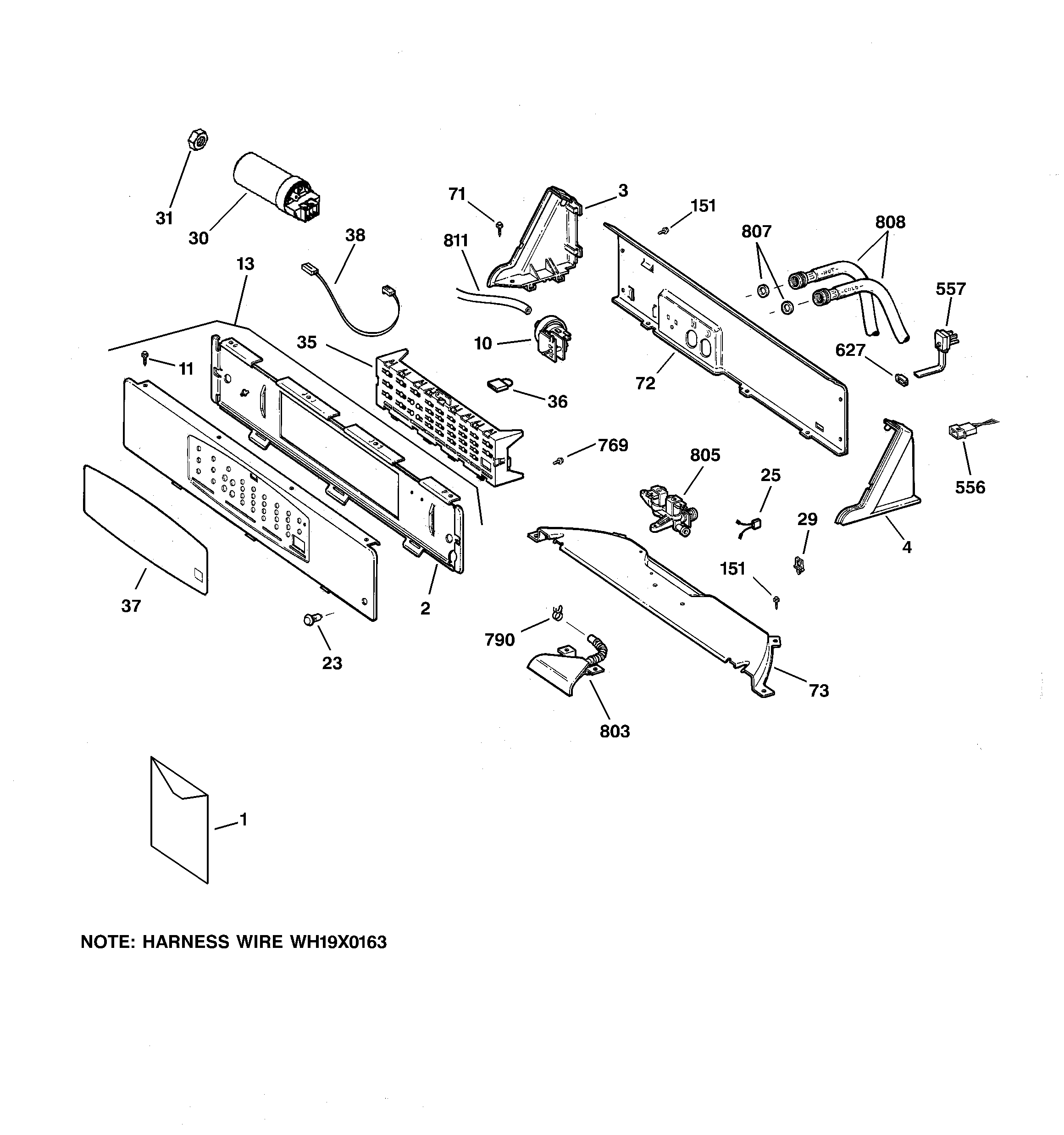

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Hub Nut WH02X1193
#325

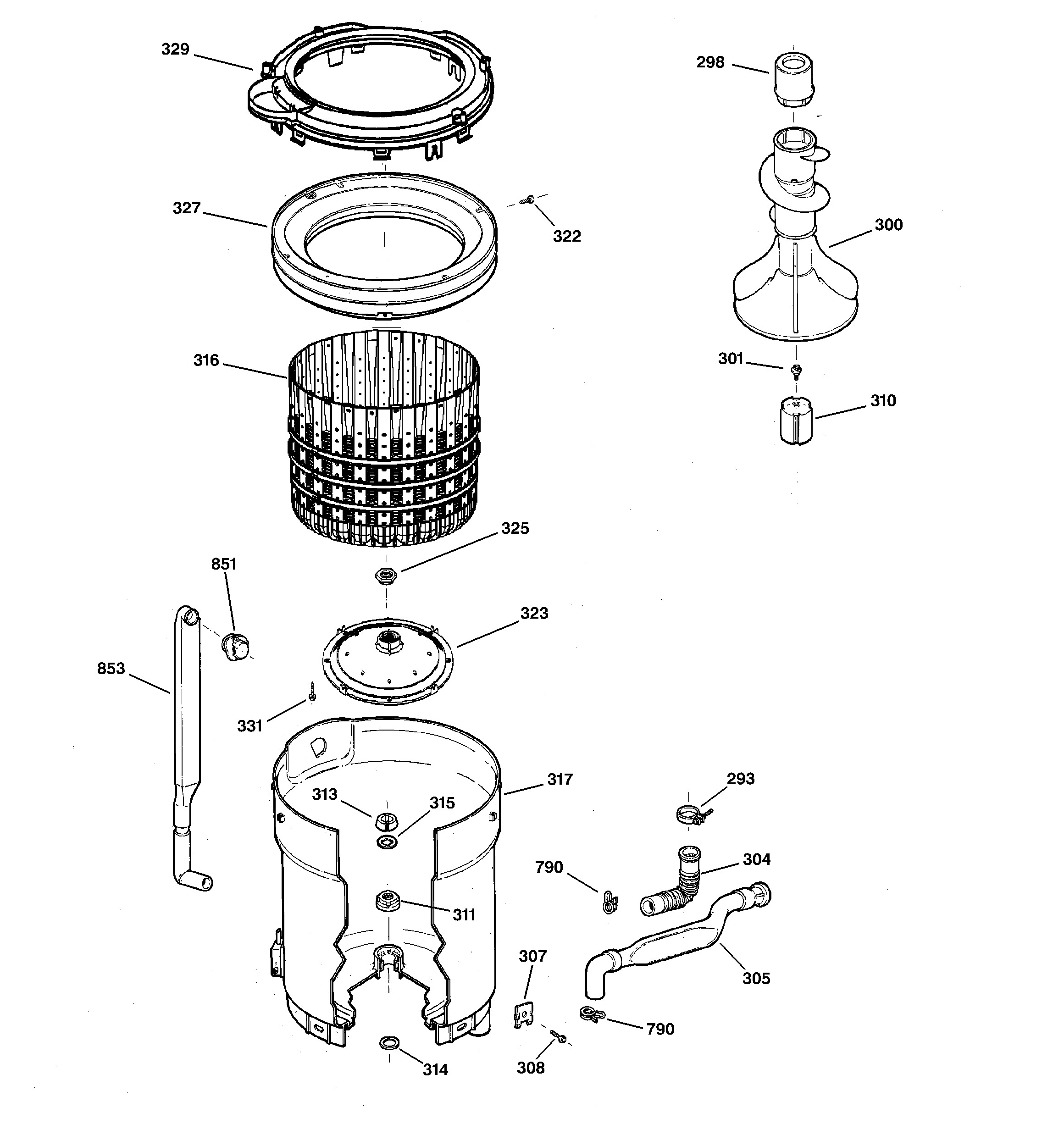

Tub, basket & agitator diagram

Hub nut

Part #WH02X1193

Replaced by #WH2X1193

?
Manufacturer substitution
This part replaces WH02X1193. Substitute parts can look different from the original.
BEST SELLER
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Washer Tub Seal WH02X10032
#311

Tub, basket & agitator diagram

Washer tub seal

Part #WH02X10032

Replaced by #WH02X10383

?
Manufacturer substitution
This part replaces WH02X10032. Substitute parts can look different from the original.
BEST SELLER
$10.51 |
16% OFF Phone Price : $12.51
In Stock
Hub Washer WH02X1199
#315

Tub, basket & agitator diagram

Hub washer

Part #WH02X1199

Replaced by #WH2X1199

?
Manufacturer substitution
This part replaces WH02X1199. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Extra Large Tub Assembly WH45X10024
#317

Tub, basket & agitator diagram

Extra large tub assembly

Part #WH45X10024

Replaced by #WH45X20473

?
Manufacturer substitution
This part replaces WH45X10024. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$100.87 |
11% OFF Phone Price : $112.87
In Stock
Pump Label WH23X10003
#655

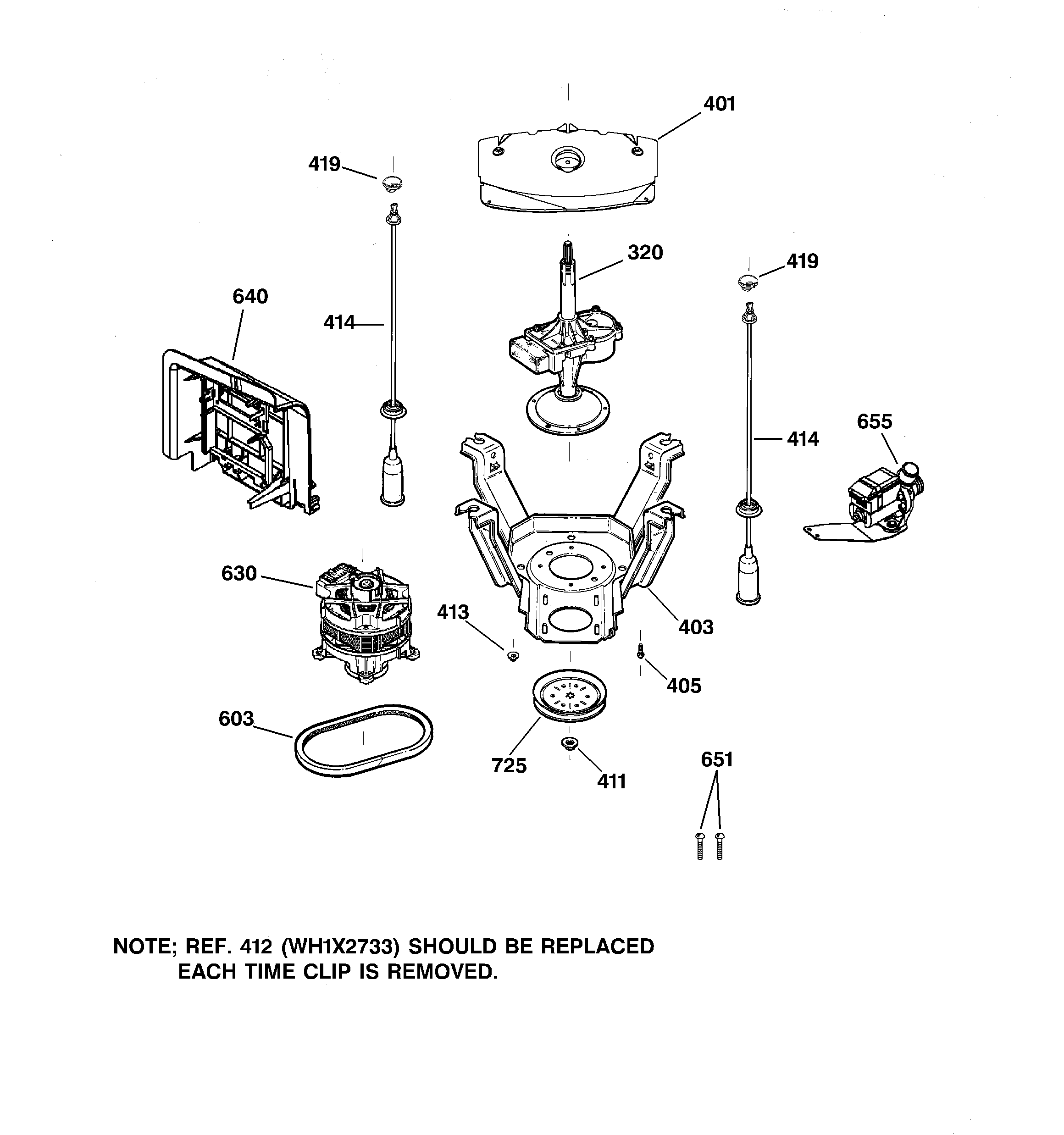

Suspension, pump & drive components diagram

Pump label

Part #WH23X10003

Replaced by #WH23X10030

?
Manufacturer substitution
This part replaces WH23X10003. Substitute parts can look different from the original.
BEST SELLER
$67.97 |
8% OFF Phone Price : $73.97
In Stock
Rod/sprg Blk WH16X0544
#414

Suspension, pump & drive components diagram

Rod/sprg blk

Part #WH16X0544

Replaced by #WH16X544

?
Manufacturer substitution
This part replaces WH16X0544. Substitute parts can look different from the original.
BEST SELLER
$35.27 |
15% OFF Phone Price : $41.27
In Stock
Rod Spring WH16X0545
#414

Suspension, pump & drive components diagram

Rod spring

Part #WH16X0545

Replaced by #WH16X10141

?
Manufacturer substitution
This part replaces WH16X0545. Substitute parts can look different from the original.
BEST SELLER
$30.80 |
16% OFF Phone Price : $36.80
In Stock
Washer Top WH44X10027
#391

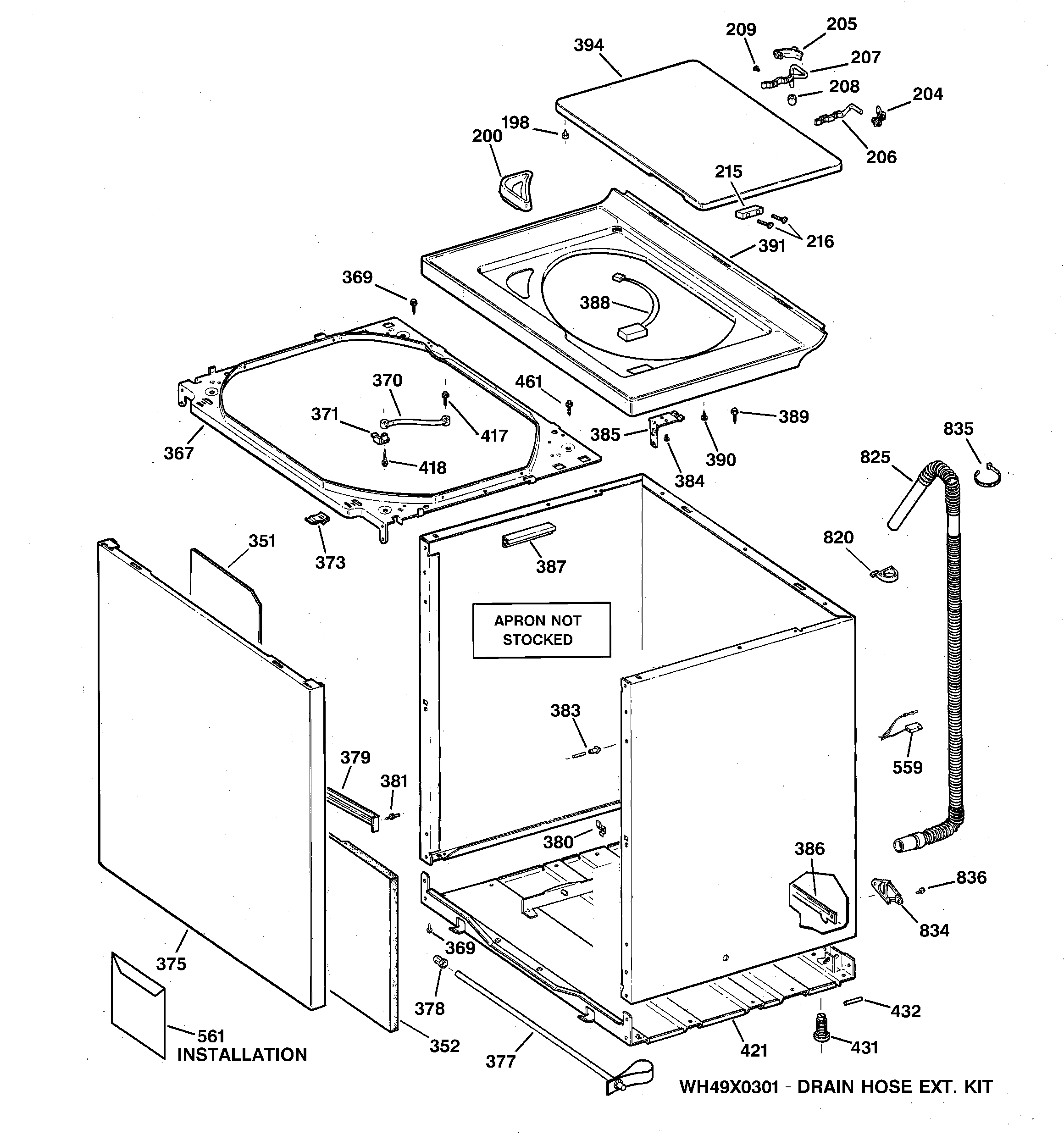

Cabinet, cover & front panel diagram

Washer top

Part #WH44X10027

Replaced by #WH44X21834

?
Manufacturer substitution
This part replaces WH44X10027. Substitute parts can look different from the original.
BEST SELLER
$62.35 |
9% OFF Phone Price : $68.35
In Stock
Drive Extension Hose WH41X0367
#825

Cabinet, cover & front panel diagram

Drive extension hose

Part #WH41X0367

Replaced by #WH41X10096

?
Manufacturer substitution
This part replaces WH41X0367. Substitute parts can look different from the original.
BEST SELLER
$22.74 |
21% OFF Phone Price : $28.74
In Stock
Scr 1/4-20 M WH02X10037
#301

Tub, basket & agitator diagram

Scr 1/4-20 m

Part #WH02X10037

Replaced by #WH49X10042

?
Manufacturer substitution
This part replaces WH02X10037. Substitute parts can look different from the original.
BEST SELLER
$21.12 |
22% OFF Phone Price : $27.12
In Stock
