Model # 57-9956 Official LXI sp-1000 speaker system

Here are the diagrams and repair parts for Official LXI 57-9956 sp-1000 speaker system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
(r1) Resistor, 2 Ohm/10 Watts 401-R02-010
#6

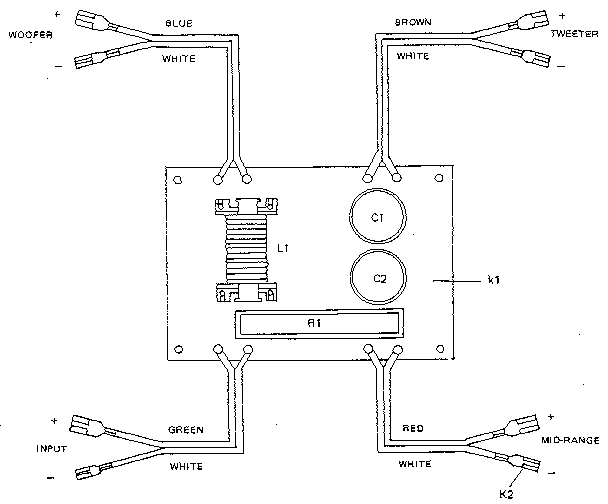

Crossover assy diagram

(r1) resistor, 2 ohm/10 watts

Part #401-R02-010

The manufacturer no longer makes this part, and there's no substitute part

(a13) Specifications Label 181-AL2-100
#14

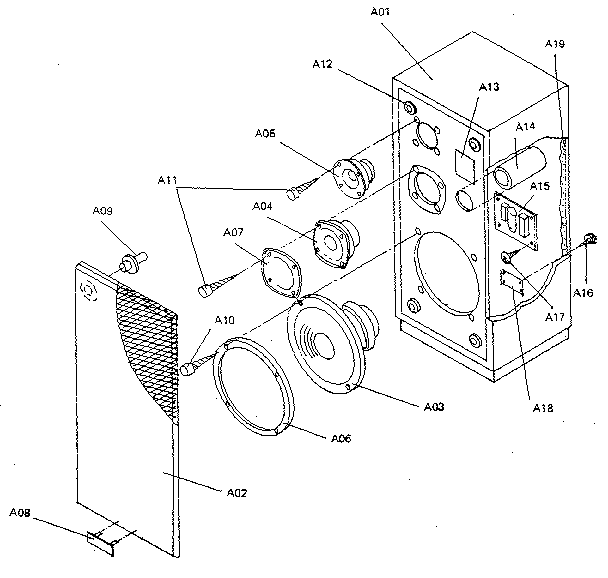

Cabinet assy diagram

(a13) specifications label

Part #181-AL2-100

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 184-MRZ-100

#NI

All parts diagram

Owner's manual

Part #184-MRZ-100

The manufacturer no longer makes this part, and there's no substitute part

(a01) Cabinet Assy 130-P12-100
#1

Cabinet assy diagram

(a01) cabinet assy

Part #130-P12-100

The manufacturer no longer makes this part, and there's no substitute part

(l1) Inductor, 0.6 Mh-iron Core 301-L06-045
#5

Crossover assy diagram

(l1) inductor, 0.6 mh-iron core

Part #301-L06-045

The manufacturer no longer makes this part, and there's no substitute part

(a07) Clamp Ring, 4 In 162-M04-100
#7

Cabinet assy diagram

(a07) clamp ring, 4 in

Part #162-M04-100

The manufacturer no longer makes this part, and there's no substitute part

(a09) Push Terminal 164-PL2-894
#19

Cabinet assy diagram

(a09) push terminal

Part #164-PL2-894

The manufacturer no longer makes this part, and there's no substitute part

(a11) Screw 3x12mm Black 191-THB-312
#17

Cabinet assy diagram

(a11) screw 3x12mm black

Part #191-THB-312

The manufacturer no longer makes this part, and there's no substitute part

(c1) Capacitor, 4.7 Mf/63v 201-C47-063
#3

Crossover assy diagram

(c1) capacitor, 4.7 mf/63v

Part #201-C47-063

The manufacturer no longer makes this part, and there's no substitute part

(a15) Crossover Assembly 171-N04-100
#16

Cabinet assy diagram

(a15) crossover assembly

Part #171-N04-100

The manufacturer no longer makes this part, and there's no substitute part
