Kenmore
Gas Cooktop

Model # 79033022100 Official Kenmore gas cooktop

Here are the diagrams and repair parts for Official Kenmore 79033022100 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Range Screw (replaces 5304472956, 7316240600) 316240600

#NI

All parts diagram

Range screw (replaces 5304472956, 7316240600)

Part #316240600

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Range Sealed Burner Assembly 316206400
#10B

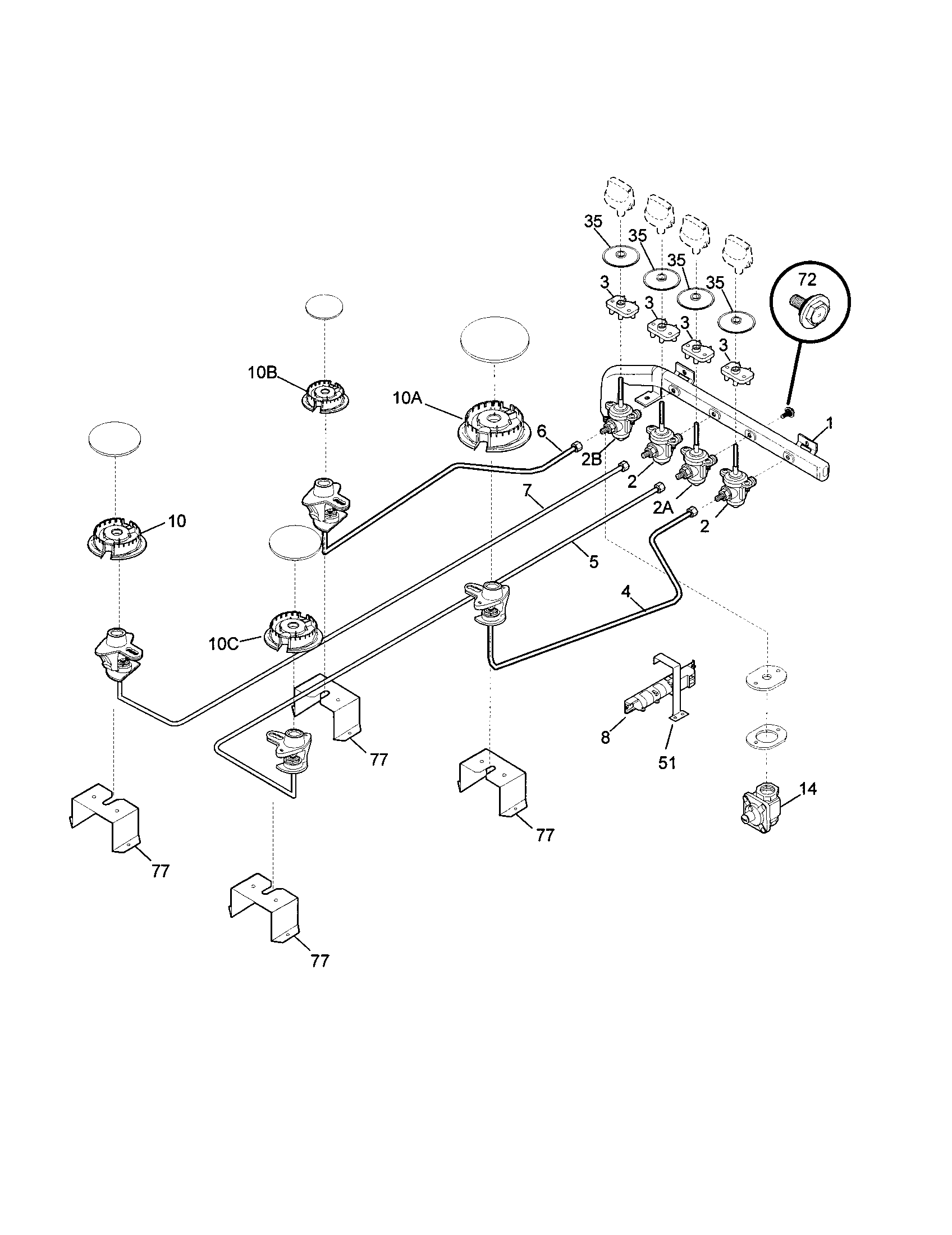

Burner diagram

Range sealed burner assembly

Part #316206400

Replaced by #316206401

?
Manufacturer substitution
This part replaces 316206400. Substitute parts can look different from the original.
BEST SELLER
$58.89 |
9% OFF Phone Price : $64.89
In Stock
Cooktop Burner Seal 316242001
#31

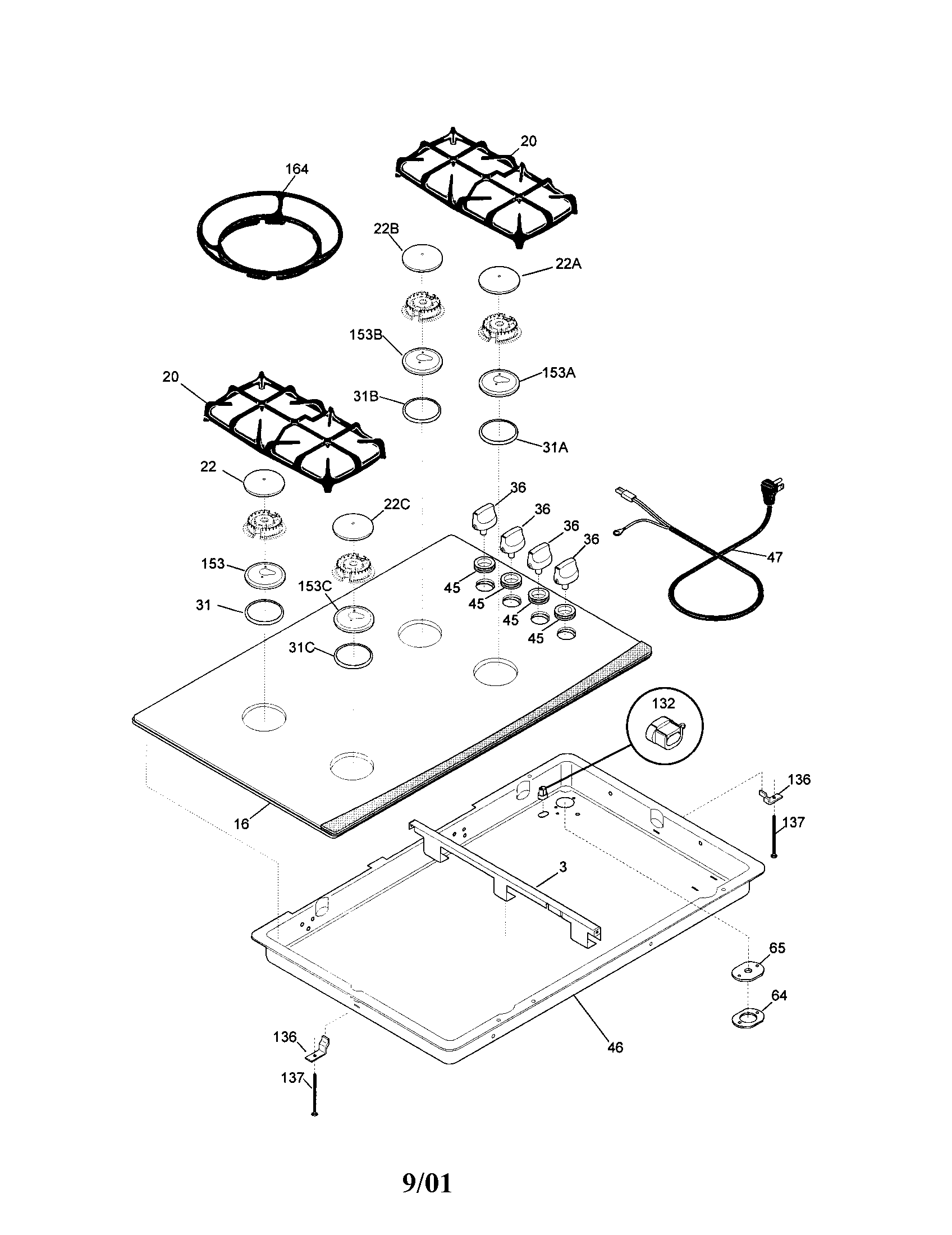

Cooktop diagram

Cooktop burner seal

Part #316242001

$16.18 |
11% OFF Phone Price : $18.18
In Stock
Cooktop Burner Skirt 316241701
#153

Cooktop diagram

Cooktop burner skirt

Part #316241701

Replaced by #316241704

?
Manufacturer substitution
This part replaces 316241701. Substitute parts can look different from the original.
$100.49 |
11% OFF Phone Price : $112.49
In Stock
Range Surface Burner Igniter And Orifice Holder, 9,500-btu 316224500
#5

Burner diagram

Range surface burner igniter and orifice holder, 9,500-btu

Part #316224500

$180.40
In Stock
Range Screw, #10-24 X 0.375-in 08011955

#NI

All parts diagram

Range screw, #10-24 x 0.375-in

Part #08011955

Replaced by #5303311174

?
Manufacturer substitution
This part replaces 08011955. Substitute parts can look different from the original.
This item is not returnable
$16.46 |
11% OFF Phone Price : $18.46
In Stock
Cooktop Burner Knob 316121804
#36C

Cooktop diagram

Cooktop burner knob

Part #316121804

$111.14 |
10% OFF Phone Price : $123.14
In Stock
Range Surface Burner Seal, 9,500-btu 316242002
#31C

Cooktop diagram

Range surface burner seal, 9,500-btu

Part #316242002

$18.92 |
10% OFF Phone Price : $20.92
In Stock
Cooktop Igniter Switch 318163400
#3

Burner diagram

Cooktop igniter switch

Part #318163400

$67.09 |
8% OFF Phone Price : $73.09
In Stock
Range Surface Burner Head (replaces 5304444403) 316212300
#10

Burner diagram

Range surface burner head (replaces 5304444403)

Part #316212300

$70.65 |
8% OFF Phone Price : $76.65
In Stock
