Frigidaire
Electric Wall Oven

Model # FCWD3027ADB Official Frigidaire electric wall oven

Here are the diagrams and repair parts for Official Frigidaire FCWD3027ADB electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

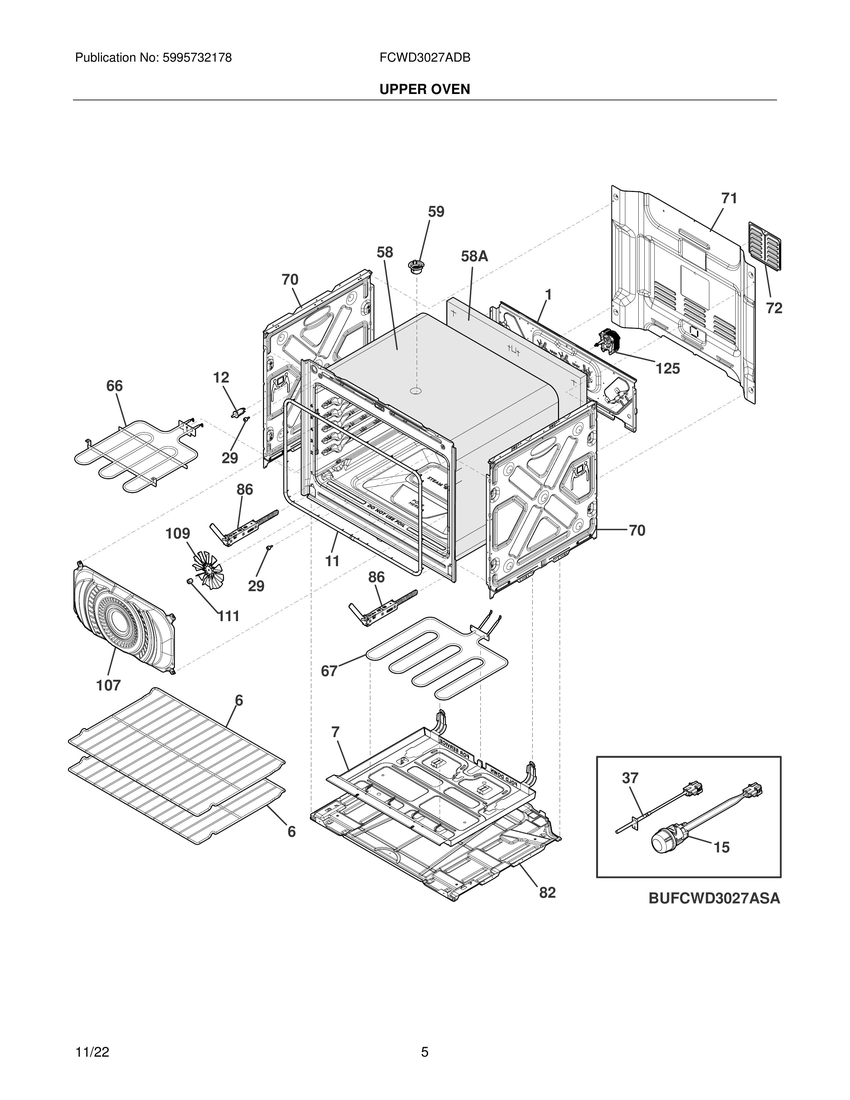

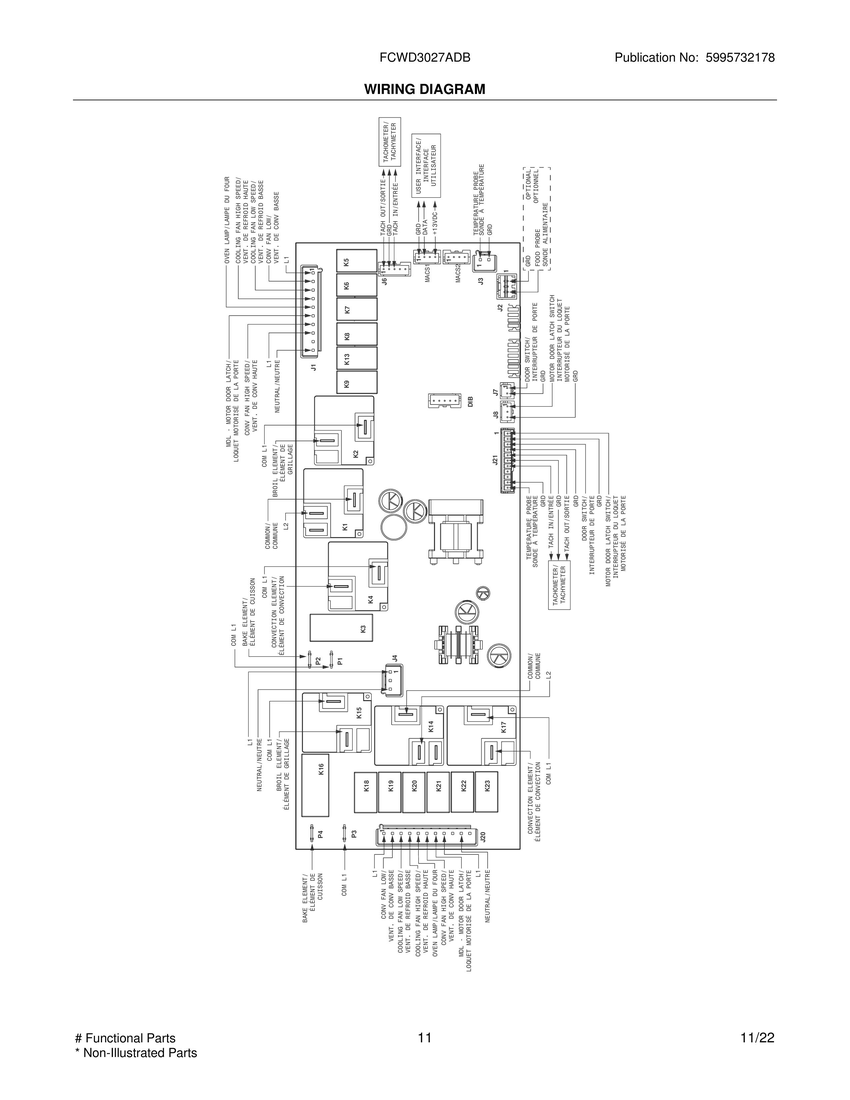

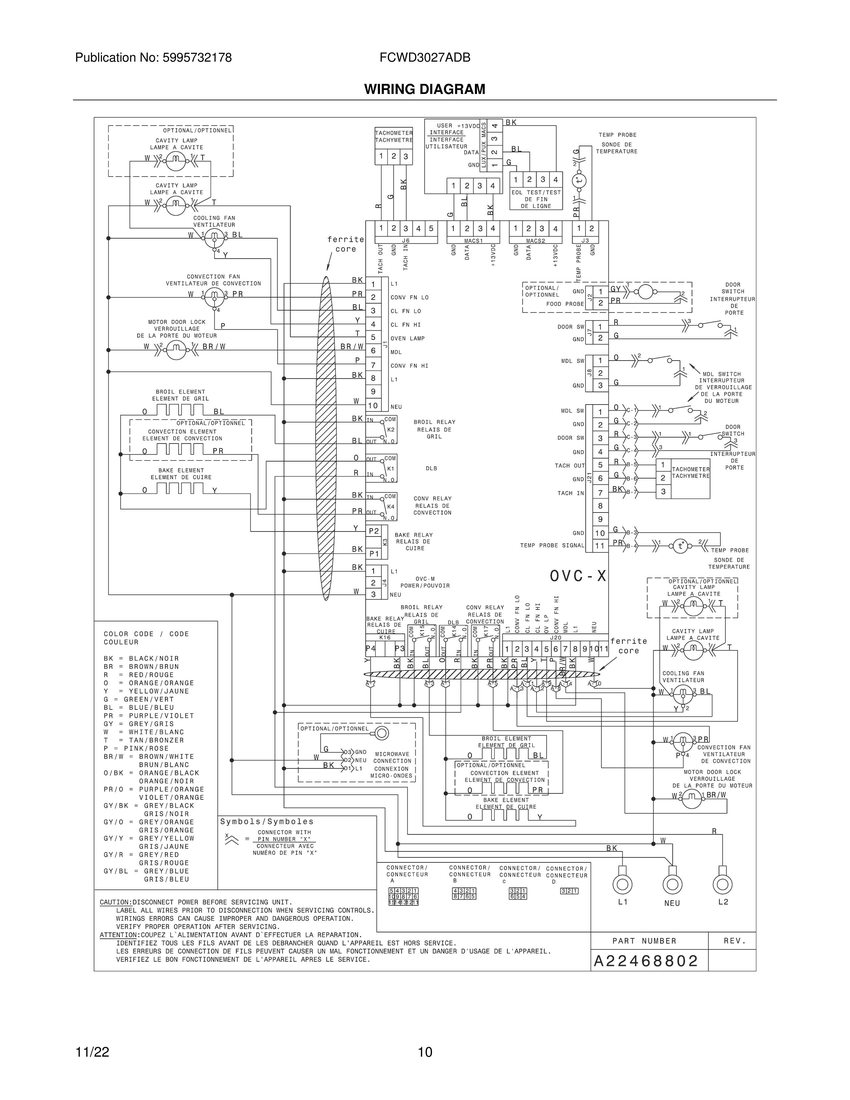

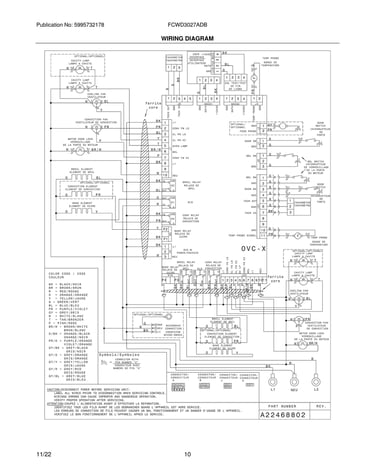

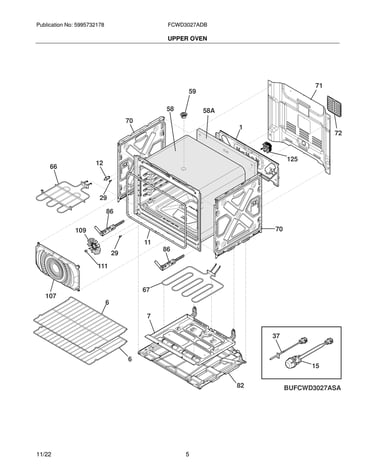

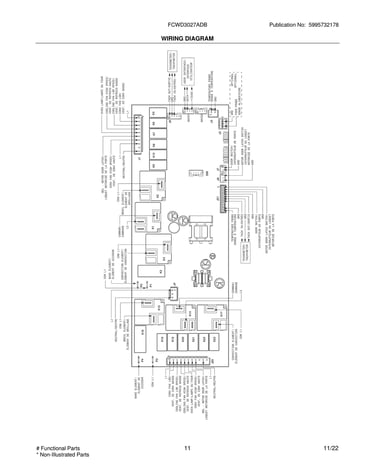

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Terminal Block 316056000
#62

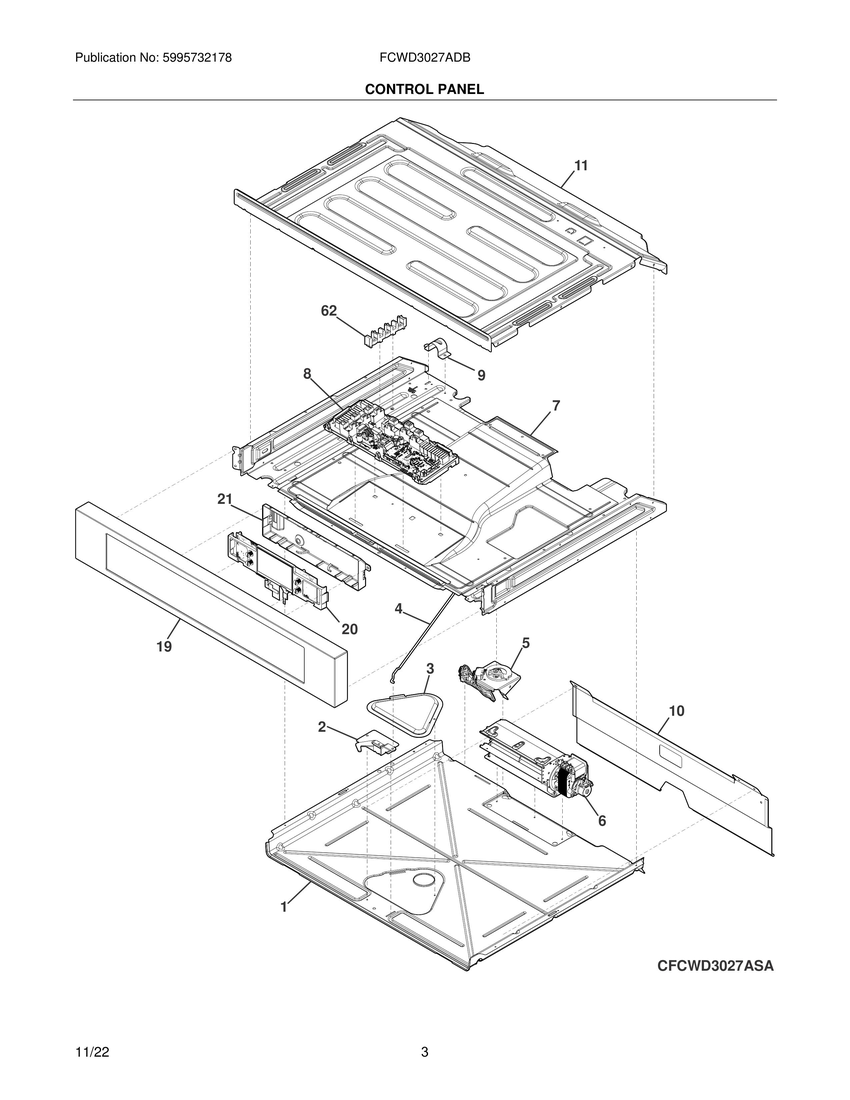

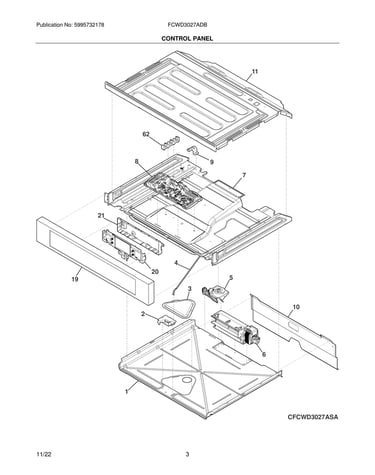

Control panel diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Door Light Switch 318394802
Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
$32.29 |
16% OFF Phone Price : $38.29
In Stock
Blower Assem 5304530369
#9

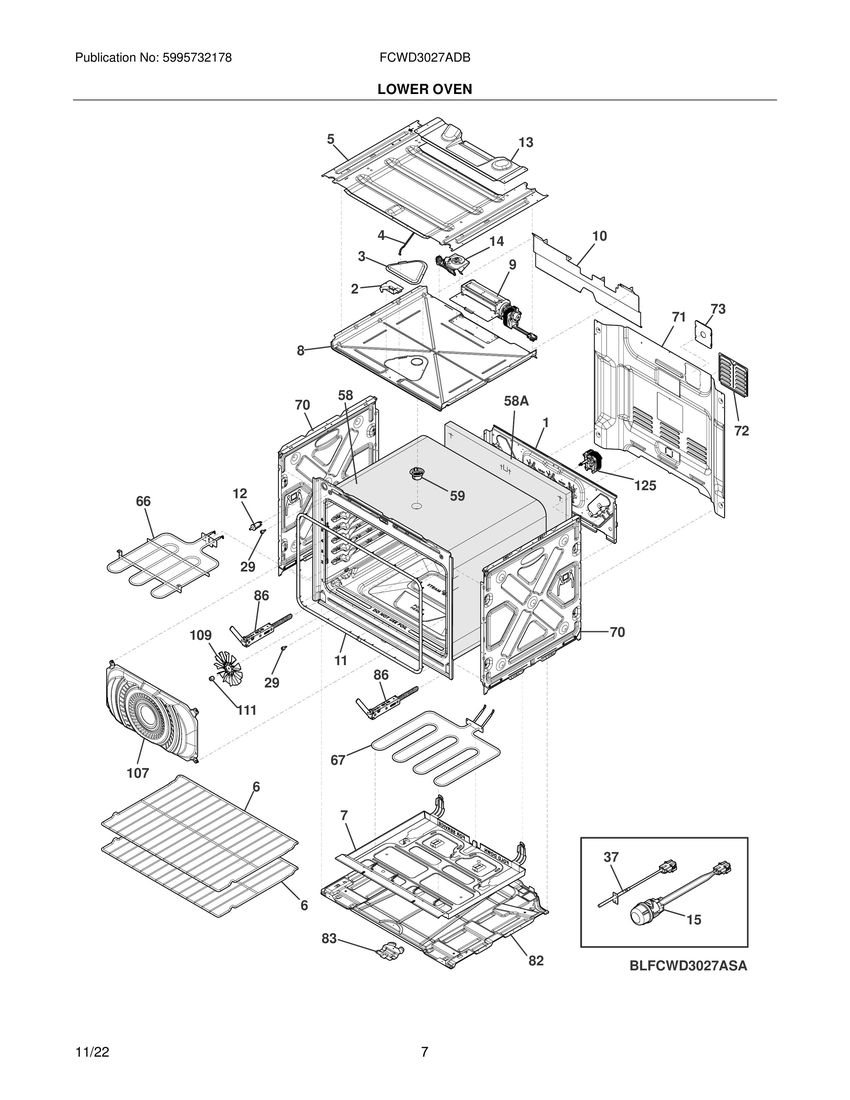

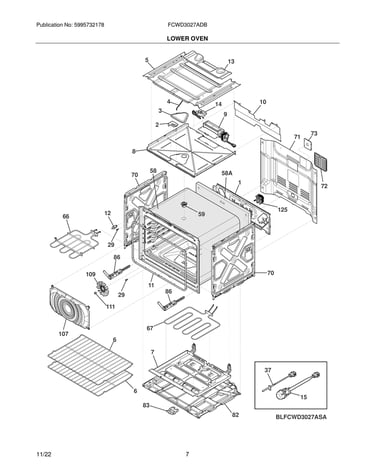

Lower oven diagram

Blower assem

Part #5304530369

$132.76
In Stock
Motor 5304526375
Motor

Part #5304526375

$125.94
In Stock
Insulation 5304526530
#7B

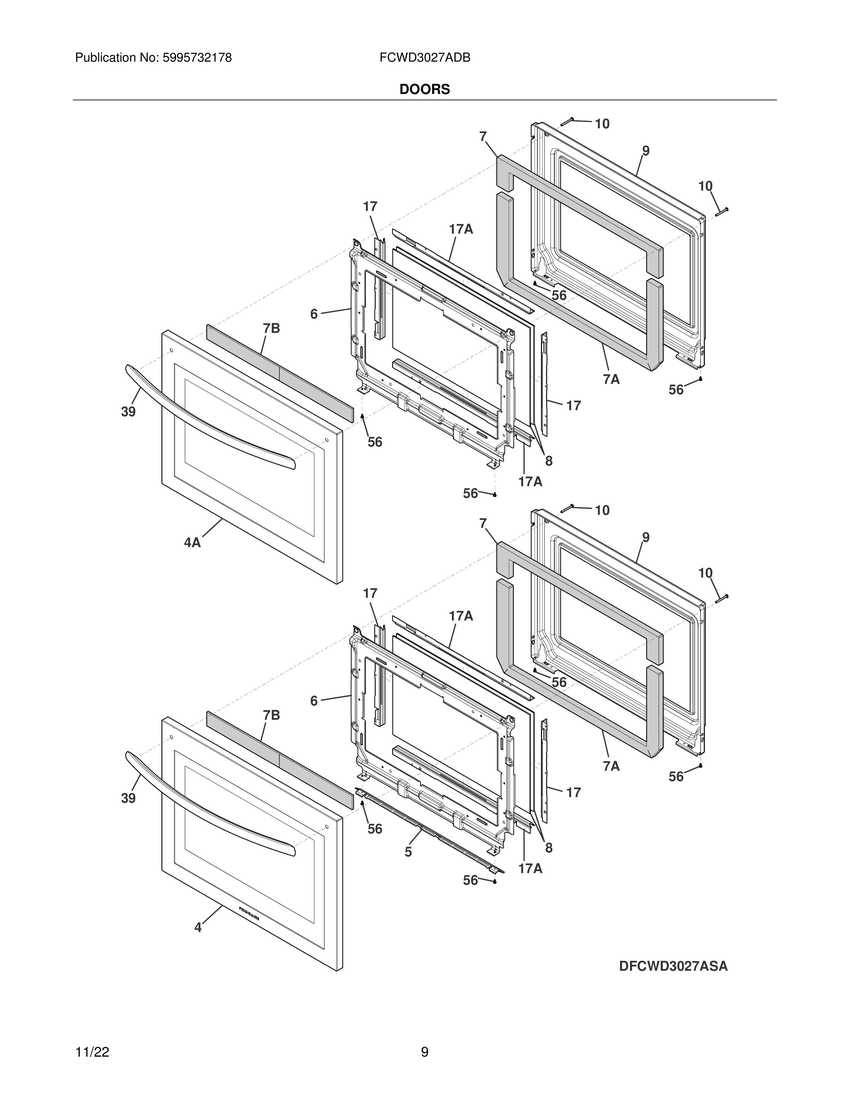

Door diagram

Insulation

Part #5304526530

$16.66
In Stock
Latch 5304526367
Latch

Part #5304526367

$16.63
In Stock
Screw 5304526234
Screw

Part #5304526234

This item is not returnable
$2.16
In Stock
Wall Oven Door Outer Panel 5304526642
#4

Door diagram

Wall oven door outer panel

Part #5304526642

$182.09
In Stock
Insulation 5304526656
#7

Door diagram

Insulation

Part #5304526656

$9.09
In Stock
Seal 5304526242
Seal

Part #5304526242

$110.76
In Stock
