Model # PLHV36W6CC Official Electrolux range hood
Here are the diagrams and repair parts for Official Electrolux PLHV36W6CC range hood, as well as links to manuals and error code tables, if available.

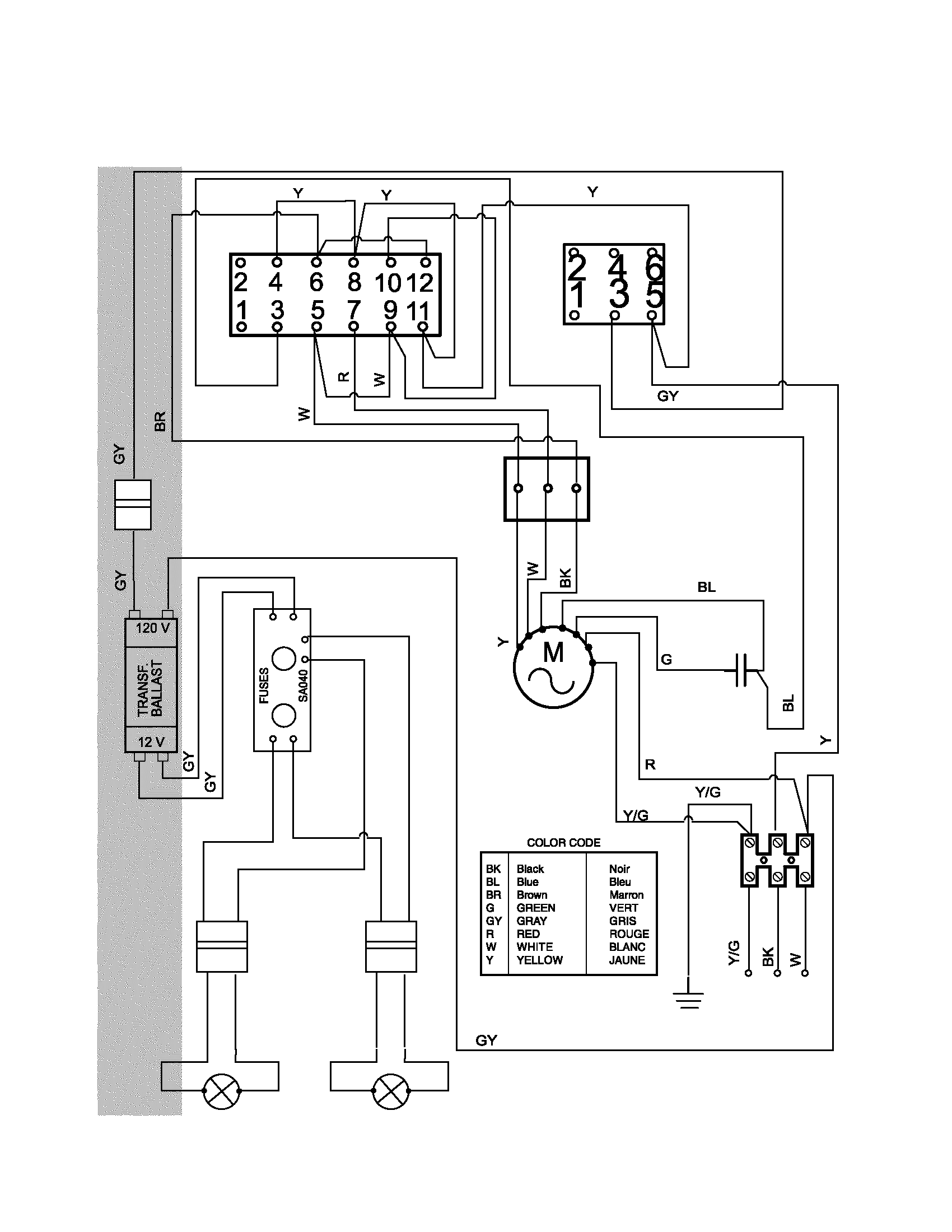

Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
PLHV36W6CC Range Hood
#46

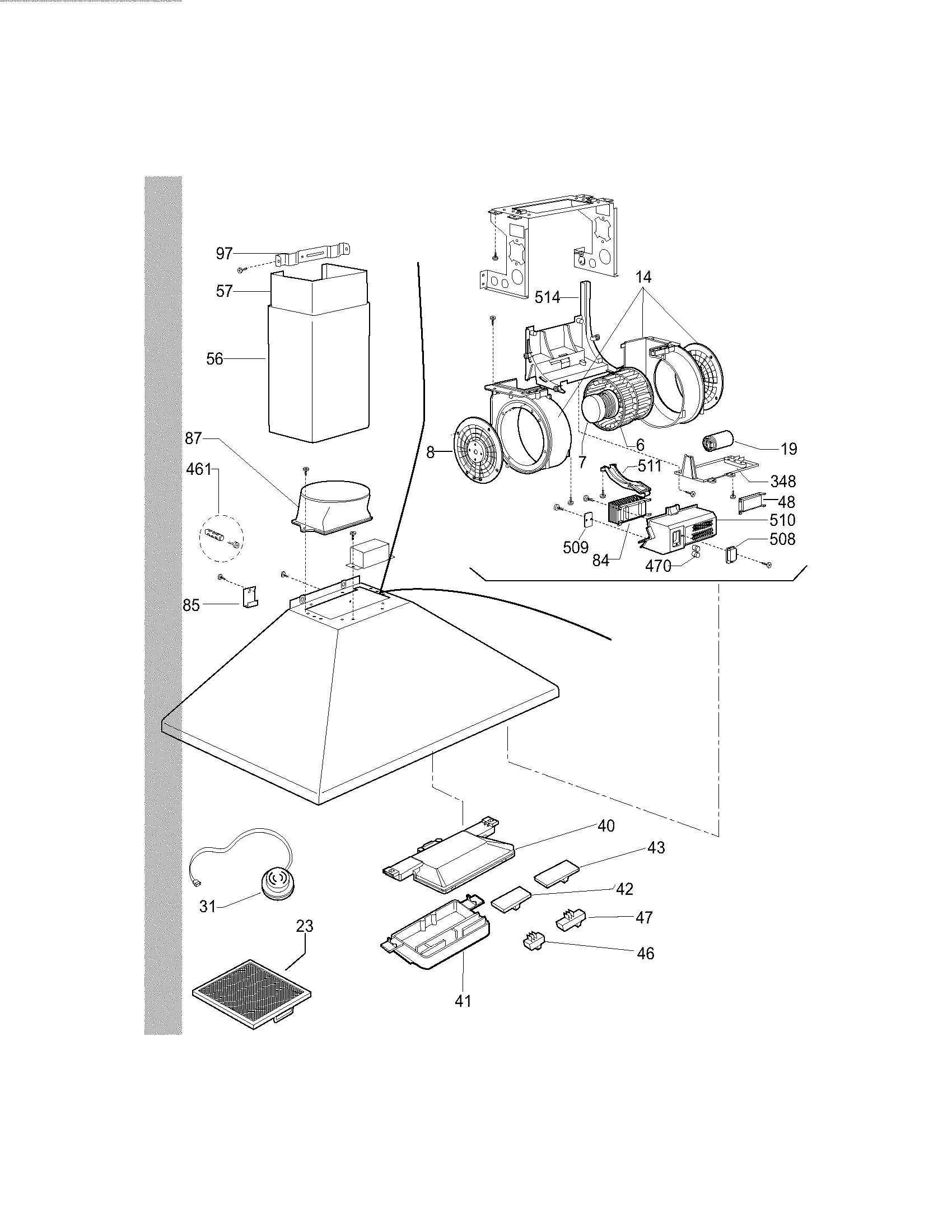

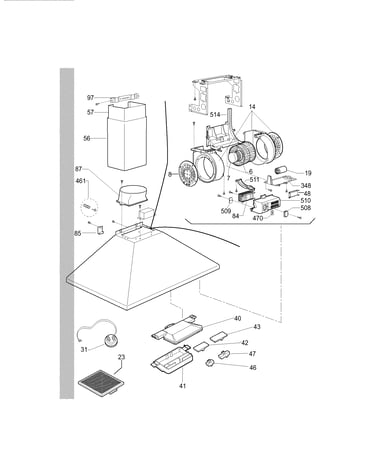

Replacement parts diagram
Electrolux range hood light switch
Part #5304425247
The manufacturer no longer makes this part, and there's no substitute part
#47
Replacement parts diagram
Range hood blower switch
Part #5304425248
The manufacturer no longer makes this part, and there's no substitute part
#348
Replacement parts diagram
Cover
Part #5304425256
The manufacturer no longer makes this part, and there's no substitute part
#41
Replacement parts diagram
Range hood control panel
Part #5304425244
The manufacturer no longer makes this part, and there's no substitute part
#470
Replacement parts diagram
Lamp fuse
Part #5304425258
The manufacturer no longer makes this part, and there's no substitute part
#23
Replacement parts diagram
Filter
Part #5304425241
The manufacturer no longer makes this part, and there's no substitute part
#510
Replacement parts diagram
Housing,transformer box
Part #5304425261
The manufacturer no longer makes this part, and there's no substitute part
#97
Replacement parts diagram
Chmy sprt
Part #5304425255
The manufacturer no longer makes this part, and there's no substitute part
#84
Replacement parts diagram
Transformer
Part #5304425252
The manufacturer no longer makes this part, and there's no substitute part
#31
Replacement parts diagram
Halogen bulb
Part #5304425242
The manufacturer no longer makes this part, and there's no substitute part
