Frigidaire
Dishwasher

Model # FDB4315LFC2 Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire FDB4315LFC2 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Gasket 154561001
#3

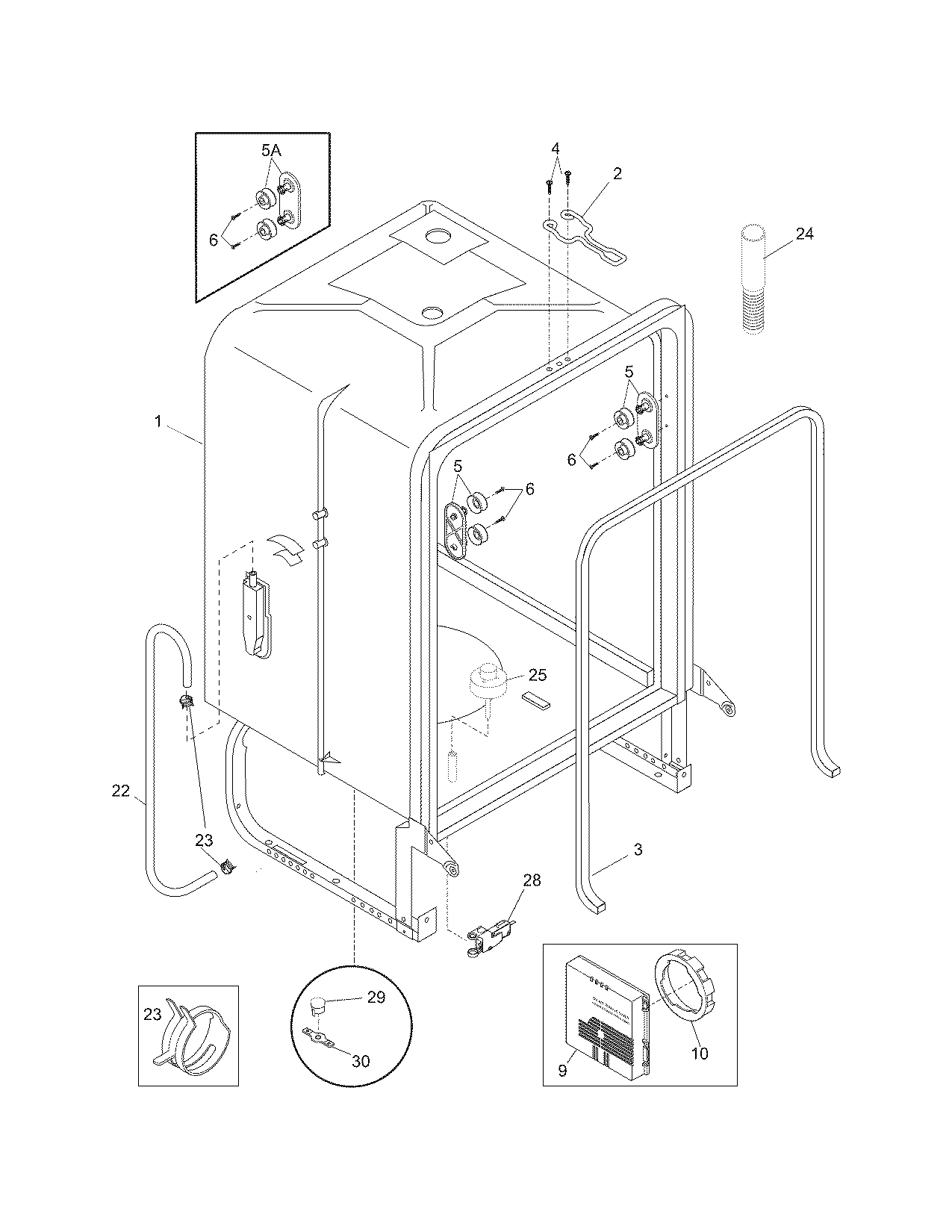

Tub diagram

Gasket

Part #154561001

Replaced by #154827601

?
Manufacturer substitution
This part replaces 154561001. Substitute parts can look different from the original.
BEST SELLER
$31.02 |
16% OFF Phone Price : $37.02
In Stock
Gasket 154588201
#49

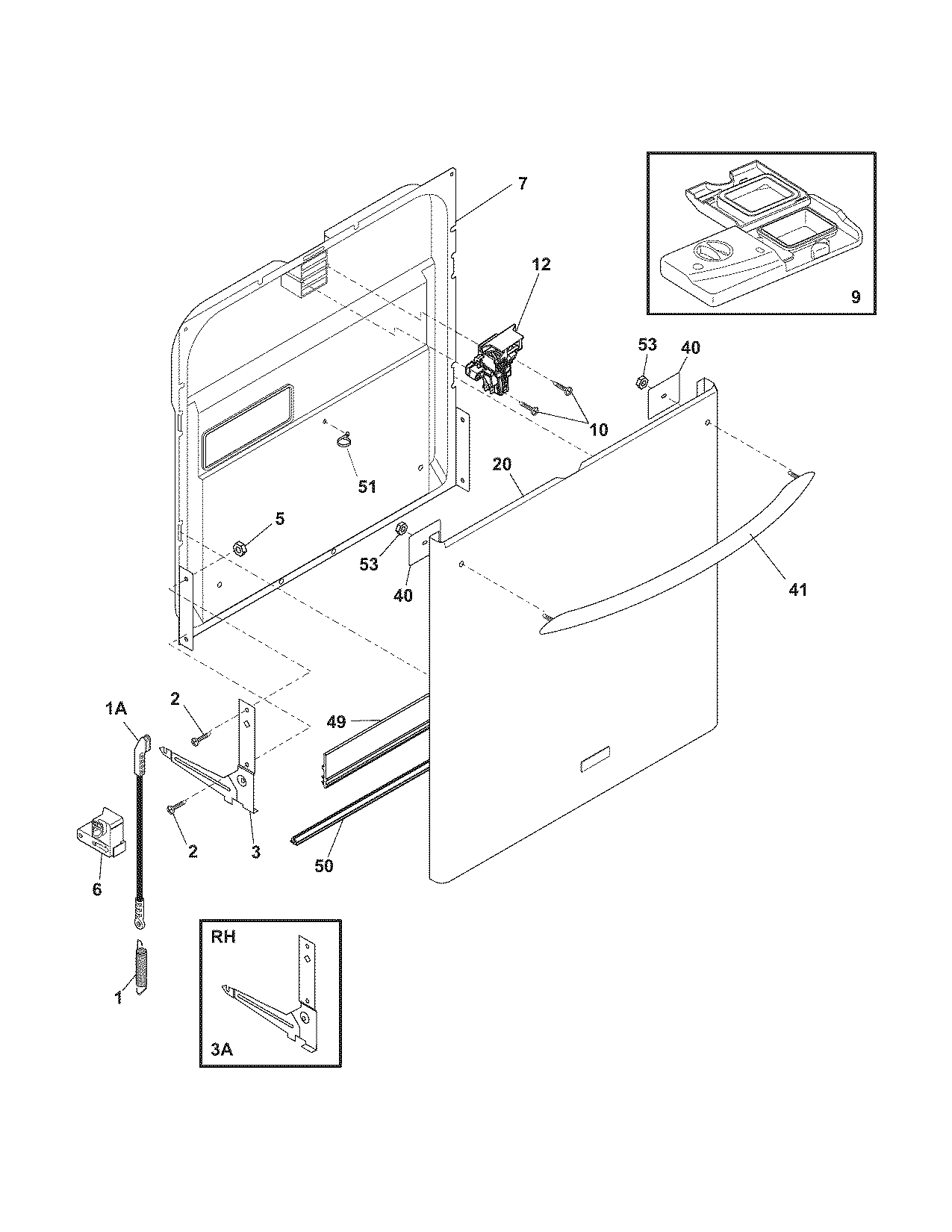

Door diagram

Gasket

Part #154588201

Replaced by #809006501

?
Manufacturer substitution
This part replaces 154588201. Substitute parts can look different from the original.
BEST SELLER
$22.58 |
21% OFF Phone Price : $28.58
In Stock
Dishwasher Electronic Control Board 154543602
#3

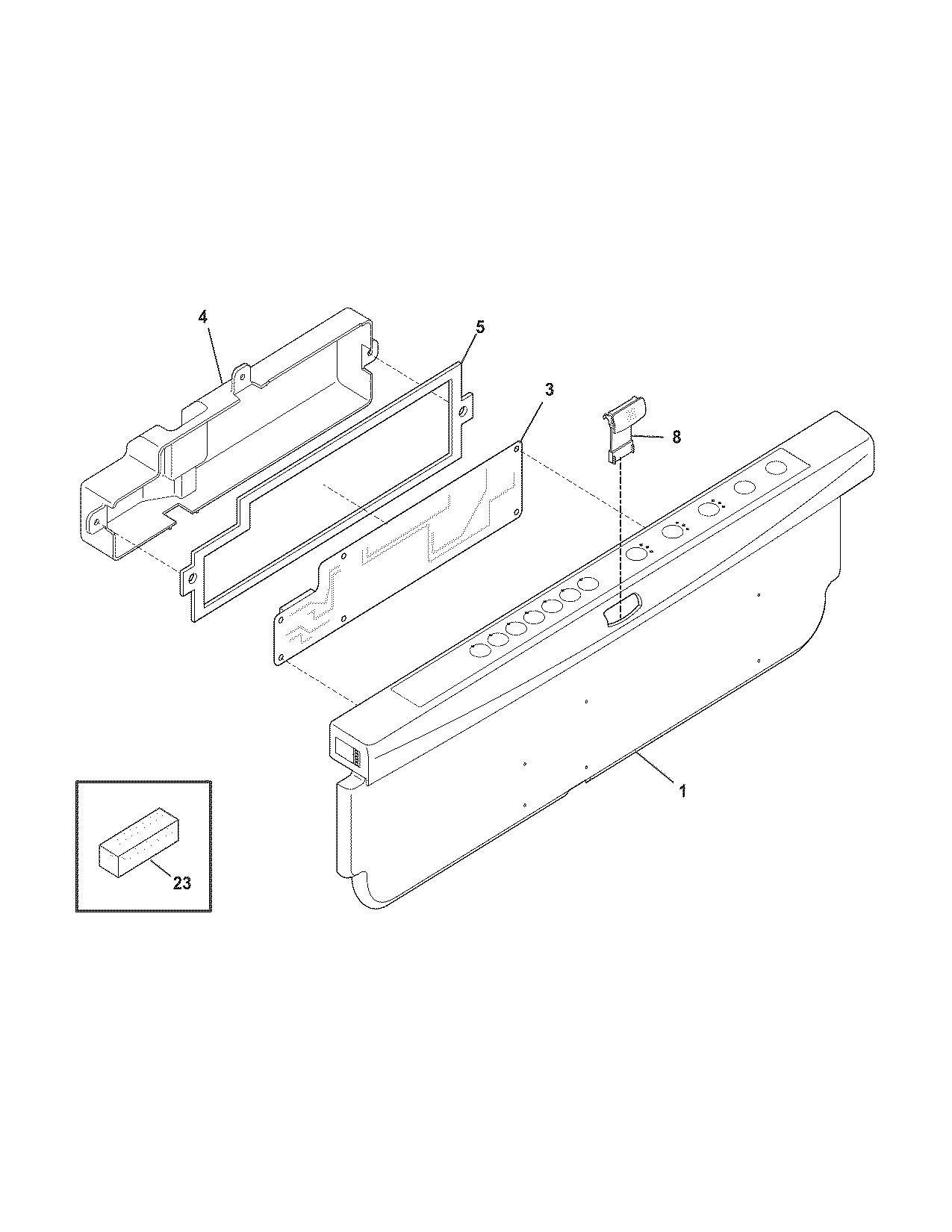

Control panel diagram

Dishwasher electronic control board

Part #154543602

Replaced by #5304514670

?
Manufacturer substitution
This part replaces 154543602. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$127.54 |
9% OFF Phone Price : $139.54
In Stock
Heater 154482901
#1

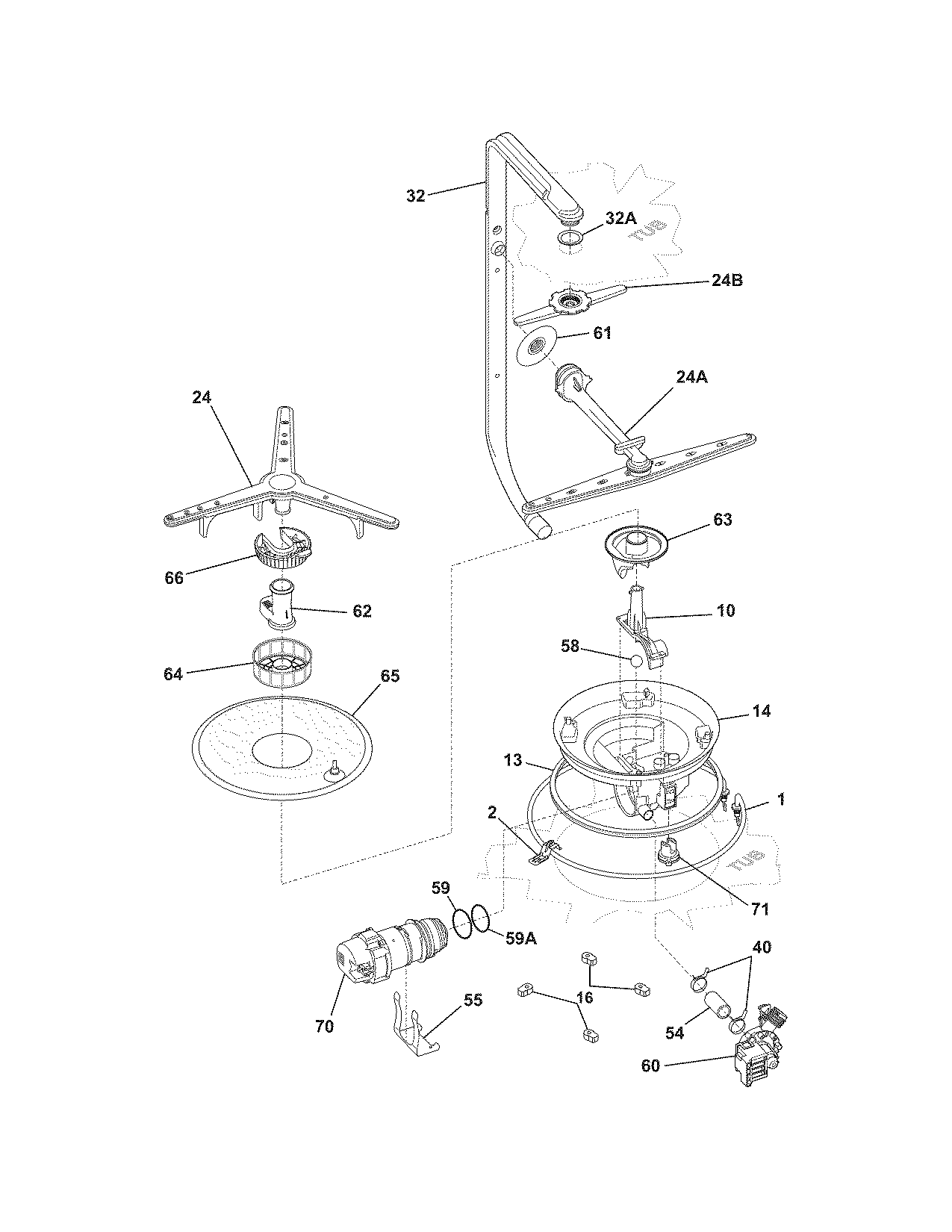

Motor & pump diagram

Heater

Part #154482901

Replaced by #154825001

?
Manufacturer substitution
This part replaces 154482901. Substitute parts can look different from the original.
BEST SELLER
$58.92 |
9% OFF Phone Price : $64.92
In Stock
Dishwasher Water Inlet Valve (replaces 154359802, 154476101) 154637401
#3

Frame diagram

Dishwasher water inlet valve (replaces 154359802, 154476101)

Part #154637401

BEST SELLER
$60.54 |
9% OFF Phone Price : $66.54
In Stock
Dishwasher Pump O-ring, Front 154247001
#59A

Motor & pump diagram

Dishwasher pump o-ring, front

Part #154247001

BEST SELLER
$38.87 |
13% OFF Phone Price : $44.87
In Stock
Dishwasher Dishrack Roller, Lower 154174503
#7

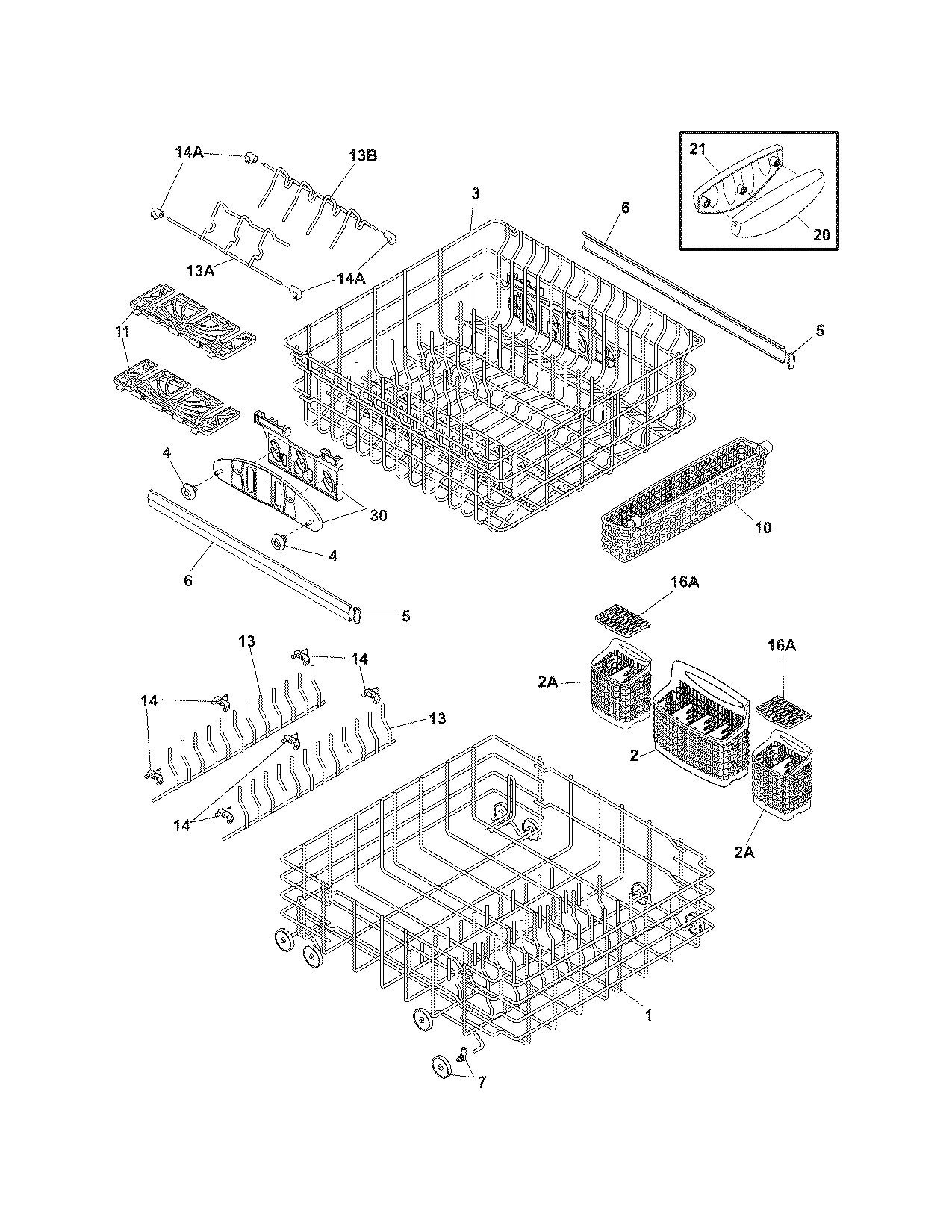

Racks diagram

Dishwasher dishrack roller, lower

Part #154174503

Replaced by #5304532229

?
Manufacturer substitution
This part replaces 154174503. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.74 |
17% OFF Phone Price : $5.74
In Stock
Dishwasher Filter 154252702
#66

Motor & pump diagram

Dishwasher filter

Part #154252702

Replaced by #5304506518

?
Manufacturer substitution
This part replaces 154252702. Substitute parts can look different from the original.
BEST SELLER
$13.71 |
13% OFF Phone Price : $15.71
In Stock
Dishwasher Door Spring 154579101
#1

Door diagram

Dishwasher door spring

Part #154579101

BEST SELLER
$31.85 |
16% OFF Phone Price : $37.85
In Stock
Base 154252201
#63

Motor & pump diagram

Base

Part #154252201

Replaced by #5304506533

?
Manufacturer substitution
This part replaces 154252201. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.64 |
10% OFF Phone Price : $20.64
In Stock
