Electric Cooktop

Model # NKT716EUC Official Bosch electric cooktop

Here are the diagrams and repair parts for Official Bosch NKT716EUC electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Clip 069488
#15

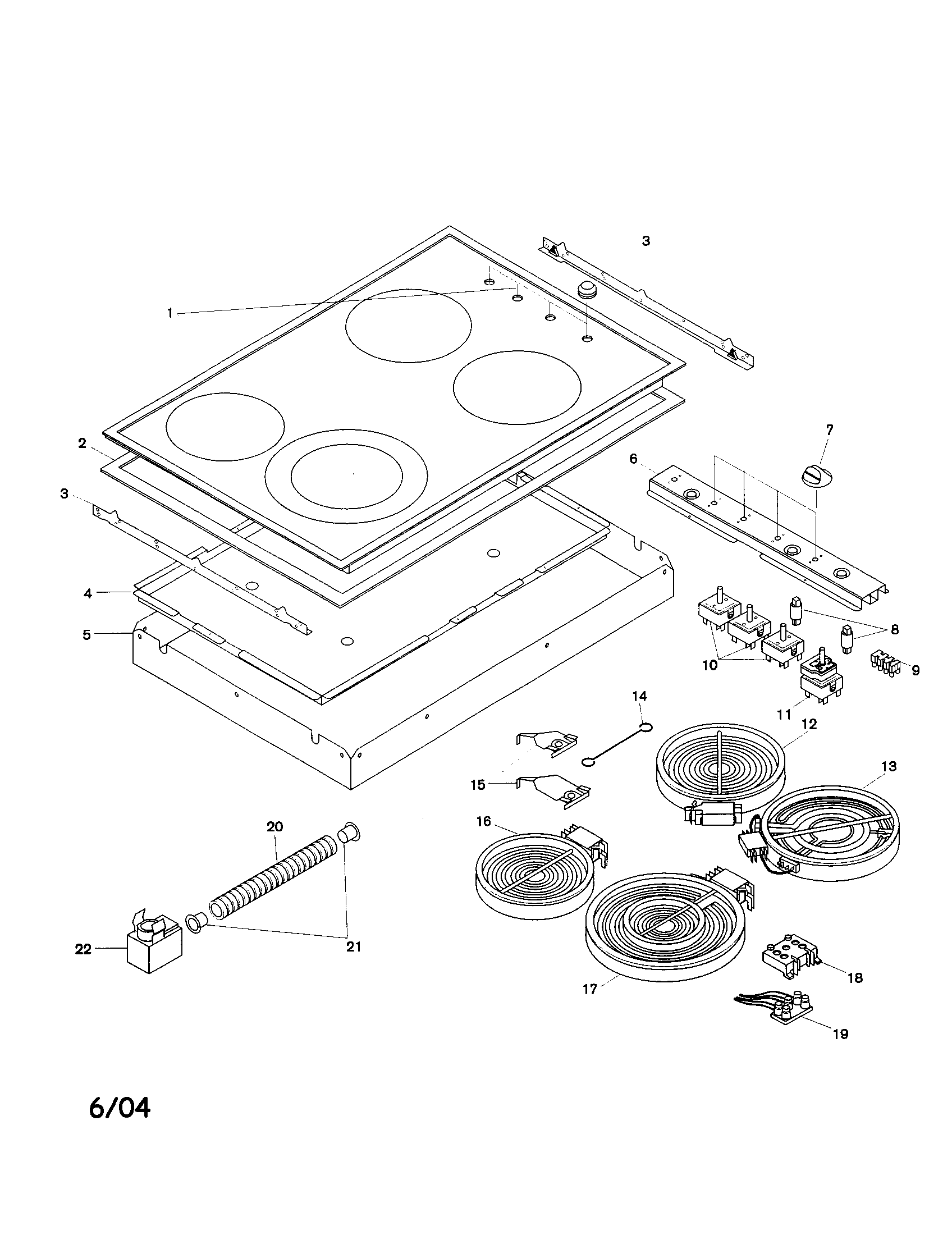

Electric cooktop diagram

Clip

Part #069488

Replaced by #00184210

?
Manufacturer substitution
This part replaces 069488. Substitute parts can look different from the original.
$57.38
In Stock
Cooktop Seal 041316
#2

Electric cooktop diagram

Cooktop seal

Part #041316

Replaced by #00041316

?
Manufacturer substitution
This part replaces 041316. Substitute parts can look different from the original.
$22.91
In Stock
Rail 285139
#3

Electric cooktop diagram

Rail

Part #285139

Replaced by #00355988

?
Manufacturer substitution
This part replaces 285139. Substitute parts can look different from the original.
$27.69
In Stock
Stabilizer 263100
#14

Electric cooktop diagram

Stabilizer

Part #263100

Replaced by #00184210

?
Manufacturer substitution
This part replaces 263100. Substitute parts can look different from the original.
$57.38
In Stock
Cooktop Knob 162729
#7A

Electric cooktop diagram

Cooktop knob

Part #162729

The manufacturer no longer makes this part, and there's no substitute part

Body 162724
#18

Electric cooktop diagram

Body

Part #162724

The manufacturer no longer makes this part, and there's no substitute part

Connector 165340
#22

Electric cooktop diagram

Connector

Part #165340

The manufacturer no longer makes this part, and there's no substitute part

Glass 212515
#1A

Electric cooktop diagram

Glass

Part #212515

The manufacturer no longer makes this part, and there's no substitute part

Glass 212513
#1

Electric cooktop diagram

Glass

Part #212513

The manufacturer no longer makes this part, and there's no substitute part

Element 296755
#17

Electric cooktop diagram

Element

Part #296755

The manufacturer no longer makes this part, and there's no substitute part
