Model # 917372252 Official Craftsman 22" power-propelled lawn mower

Here are the diagrams and repair parts for Official Craftsman 917372252 22" power-propelled lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Blade 69334
#62

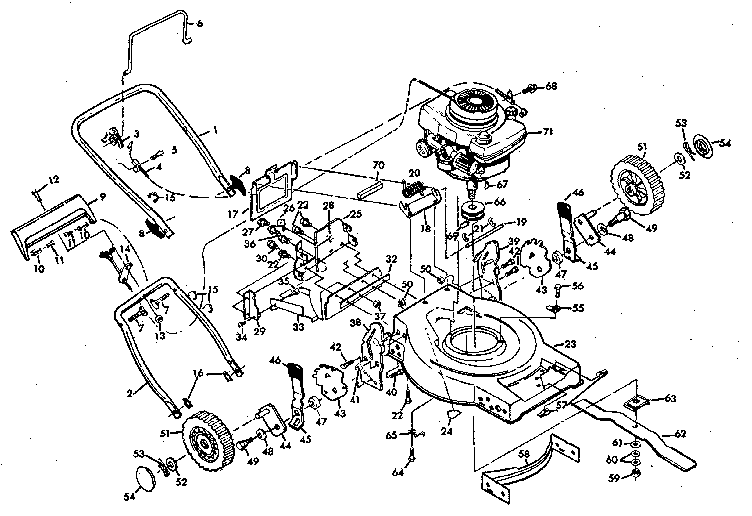

Main frame diagram

Blade

Part #69334

Replaced by #532406713

?
Manufacturer substitution
This part replaces 69334. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Walk-behind Lawn Mower Selector Knob 87877
Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Carriage Bolt, 5/16-18 X 3/4-in STD533107
#40

Main frame diagram

Carriage bolt, 5/16-18 x 3/4-in

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Nut 63124
#41

Main frame diagram

Nut

Part #63124

The manufacturer no longer makes this part, and there's no substitute part

Handle Knob 63688
#8

Main frame diagram

Handle knob

Part #63688

Replaced by #532183724

?
Manufacturer substitution
This part replaces 63688. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Selctr Sprng 84888
#45

Main frame diagram

Selctr sprng

Part #84888

Replaced by #532401621

?
Manufacturer substitution
This part replaces 84888. Substitute parts can look different from the original.
$8.54
In Stock
Bolt 58714
#7

Main frame diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Lock Nut 69180
#37

Main frame diagram

Lock nut

Part #69180

Replaced by #532069180

?
Manufacturer substitution
This part replaces 69180. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Lawn & Garden Equipment Bearing 77881
#7

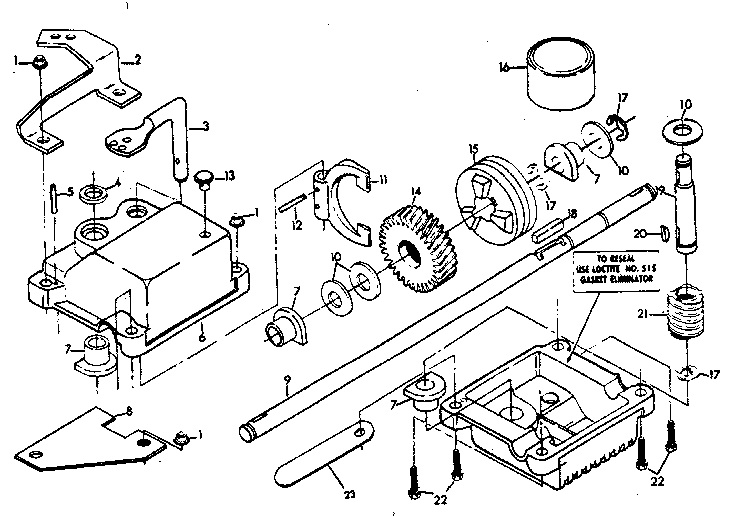

Gear case assembly 86617 diagram

Lawn & garden equipment bearing

Part #77881

Replaced by #532077881

?
Manufacturer substitution
This part replaces 77881. Substitute parts can look different from the original.
$33.31
In Stock
Spring 83632
#30

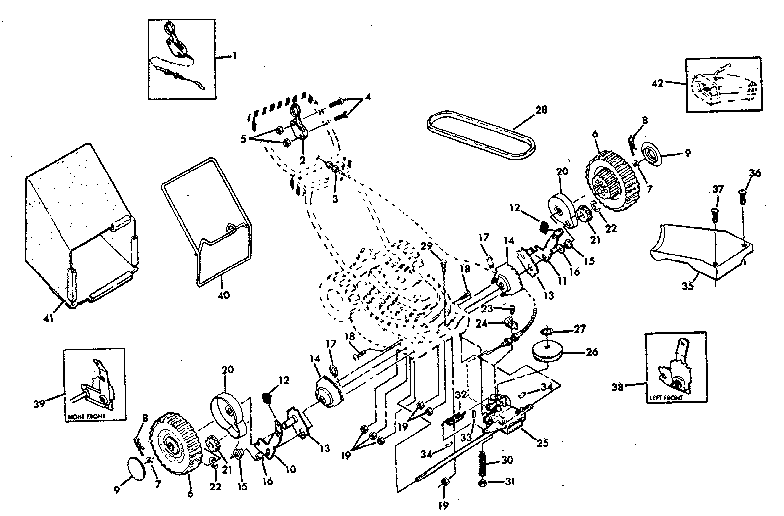

Drive assembly diagram

Spring

Part #83632

Replaced by #532137090

?
Manufacturer substitution
This part replaces 83632. Substitute parts can look different from the original.
$8.54
In Stock
