KitchenAid
Blender

Model # 5KSB1565BWH0 Official KitchenAid electric blender

Here are the diagrams and repair parts for Official KitchenAid 5KSB1565BWH0 electric blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Blender Base (black) W10497274
#11

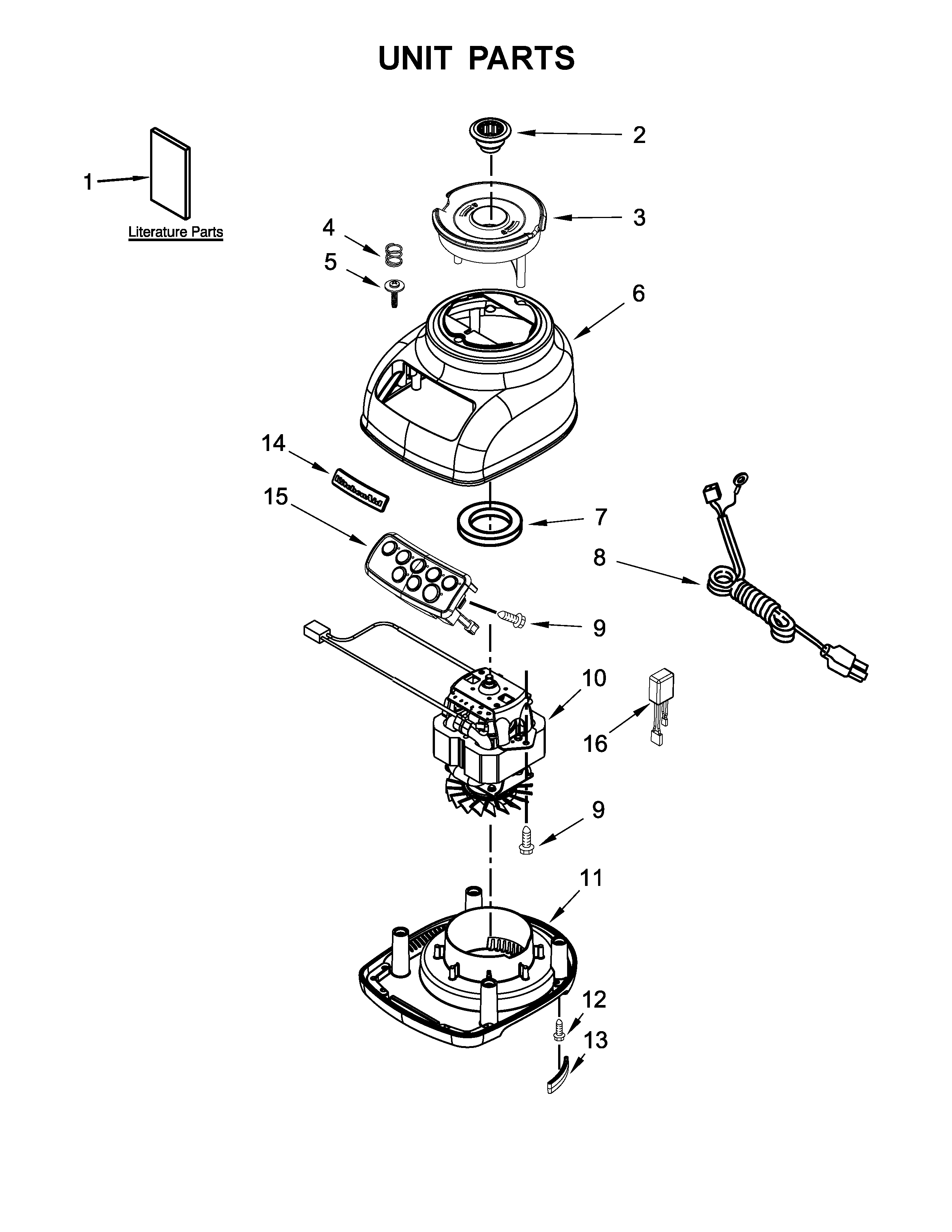

Unit parts diagram

Blender base (black)

Part #W10497274

$36.47
In Stock
Housing-pain W10646510
#6A

Unit parts diagram

Housing-pain

Part #W10646510

$85.31
In Stock
Blender Nameplate W10514169
#14

Unit parts diagram

Blender nameplate

Part #W10514169

$27.79 |
18% OFF Phone Price : $33.79
In Stock
Power Cord 9708929
#8

Unit parts diagram

Power cord

Part #9708929

$39.89
In Stock
Housing-pain W10646512
#6

Unit parts diagram

Housing-pain

Part #W10646512

$85.31
In Stock
Blender Jar Lock Spring W10573822
#4

Unit parts diagram

Blender jar lock spring

Part #W10573822

$21.49
In Stock
Jar Assembly W10514649
#2

Attachment parts diagram

Jar assembly

Part #W10514649

Replaced by #WPW10514649

?
Manufacturer substitution
This part replaces W10514649. Substitute parts can look different from the original.
$81.01 |
7% OFF Phone Price : $87.01
In Stock
Lock Jar W10497275
#3

Unit parts diagram

Lock jar

Part #W10497275

Replaced by #WPW10497275

?
Manufacturer substitution
This part replaces W10497275. Substitute parts can look different from the original.
This item is not returnable
$23.69 |
20% OFF Phone Price : $29.69
In Stock
Coupling W10279262
#4

Attachment parts diagram

Coupling

Part #W10279262

Replaced by #W10917062

?
Manufacturer substitution
This part replaces W10279262. Substitute parts can look different from the original.
This item is not returnable
$8.19 |
11% OFF Phone Price : $9.19
In Stock
Power Cord (black (europe)) W10705129
#8A

Unit parts diagram

Power cord (black (europe))

Part #W10705129

Replaced by #W11319629

?
Manufacturer substitution
This part replaces W10705129. Substitute parts can look different from the original.
$17.23
In Stock
