Frigidaire
Room Air Conditioner

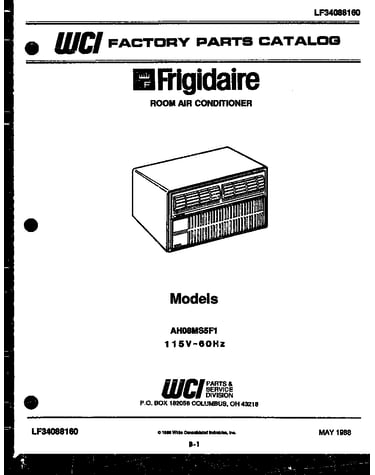

Model # AH08MS5F1 Official Frigidaire room air conditioner - lf34088160

Here are the diagrams and repair parts for Official Frigidaire AH08MS5F1 room air conditioner - lf34088160, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

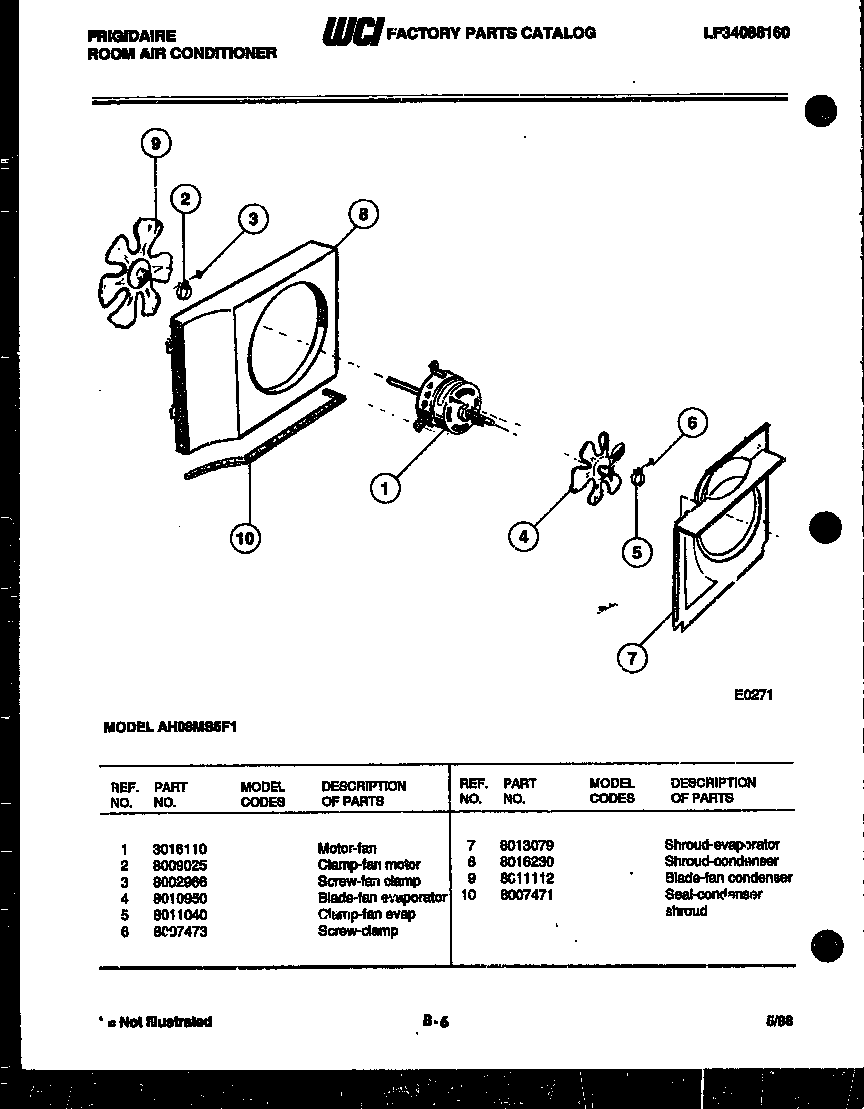

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Gasket 3002603
#9

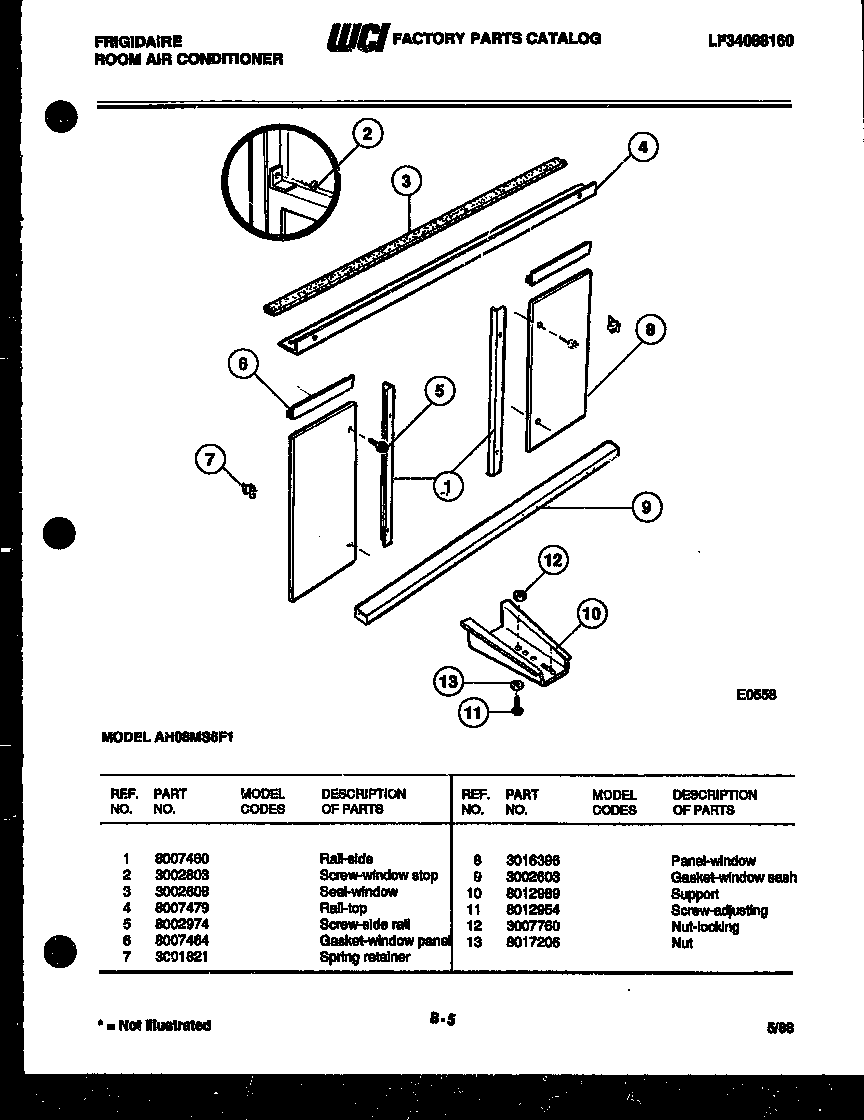

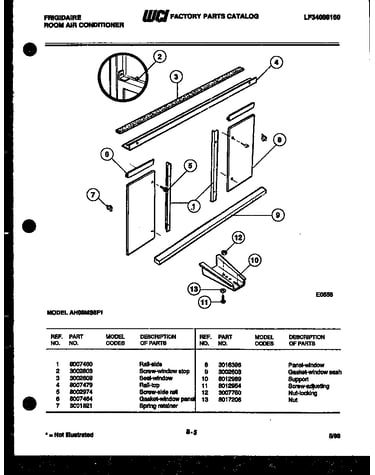

Window mounting parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Capacitor 3001907
#10

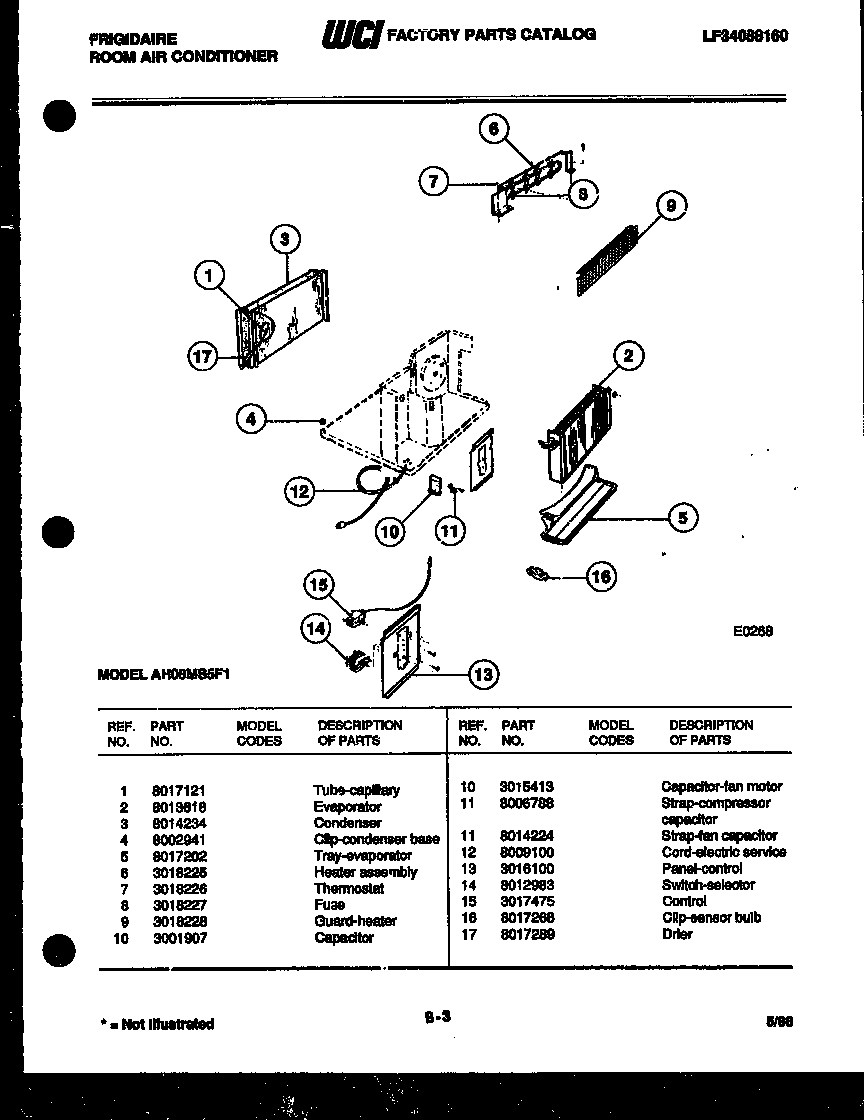

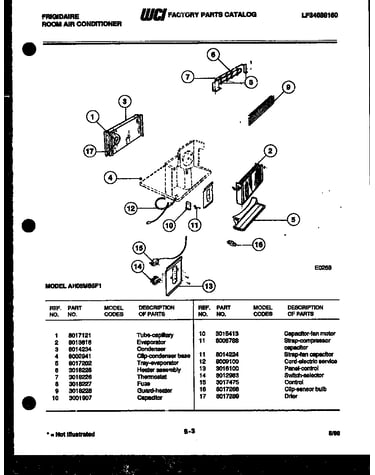

Unit parts diagram

Capacitor

Part #3001907

The manufacturer no longer makes this part, and there's no substitute part

Nut 3015946
#2

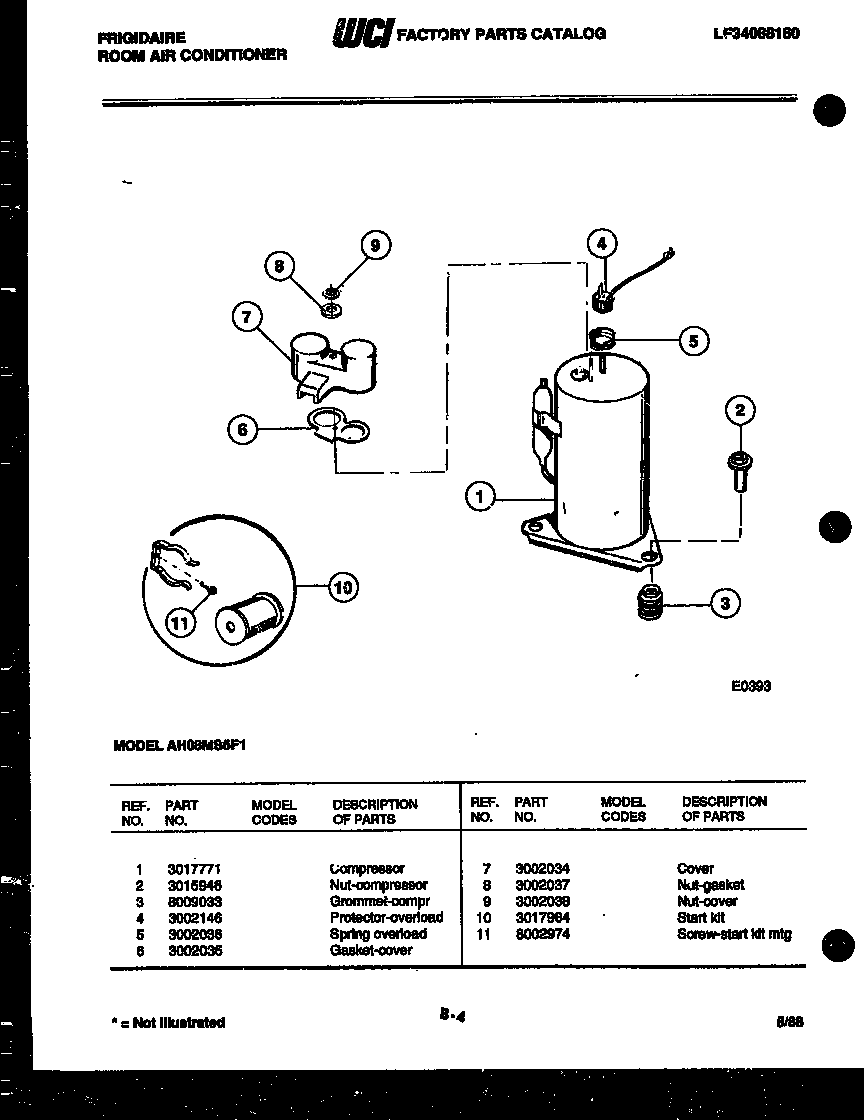

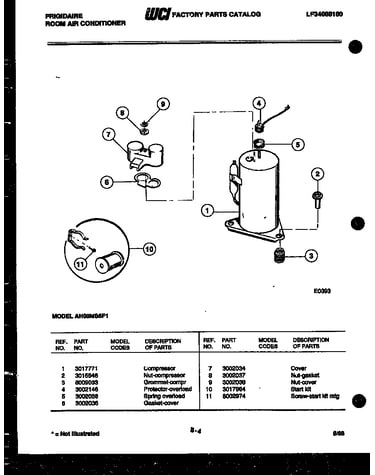

Compressor parts diagram

Nut

Part #3015946

The manufacturer no longer makes this part, and there's no substitute part

Front 3018223
#14

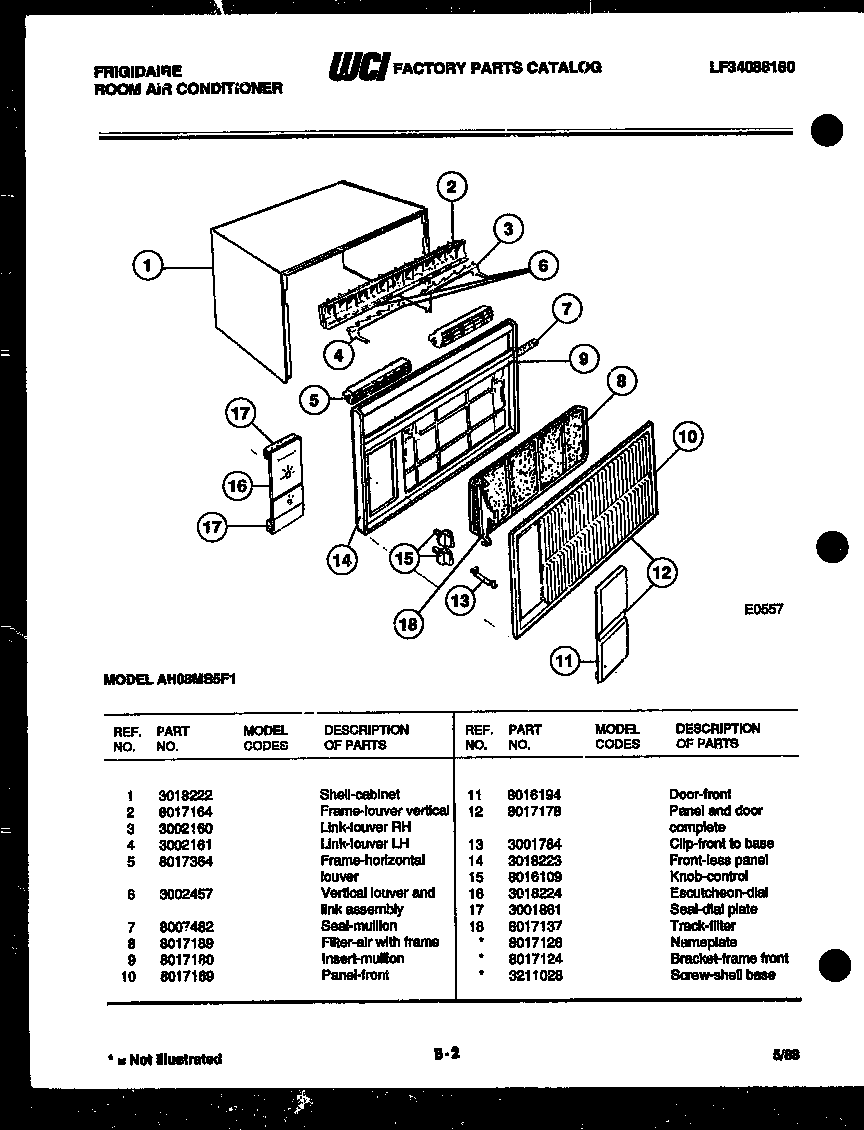

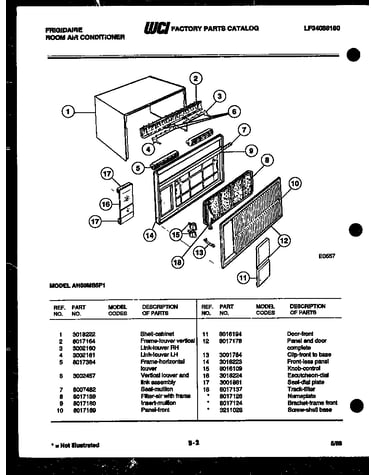

Cabinet parts diagram

Front

Part #3018223

The manufacturer no longer makes this part, and there's no substitute part

Screw 3002803
#2

Window mounting parts diagram

Screw

Part #3002803

The manufacturer no longer makes this part, and there's no substitute part

Gasket 3002037
#8

Compressor parts diagram

Gasket

Part #3002037

The manufacturer no longer makes this part, and there's no substitute part

Insert-mullion 8017180
#9

Cabinet parts diagram

Insert-mullion

Part #8017180

The manufacturer no longer makes this part, and there's no substitute part

Screw 8012954
#11

Window mounting parts diagram

Screw

Part #8012954

The manufacturer no longer makes this part, and there's no substitute part

Shell 3018222
#1

Cabinet parts diagram

Shell

Part #3018222

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 8017126

#NI

All parts diagram

Nameplate

Part #8017126

The manufacturer no longer makes this part, and there's no substitute part
