GE
Dehumidifier

Model # AHG40LAG1 Official GE dehumidifier

Here are the diagrams and repair parts for Official GE AHG40LAG1 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Evaporator WK87X10007
#120

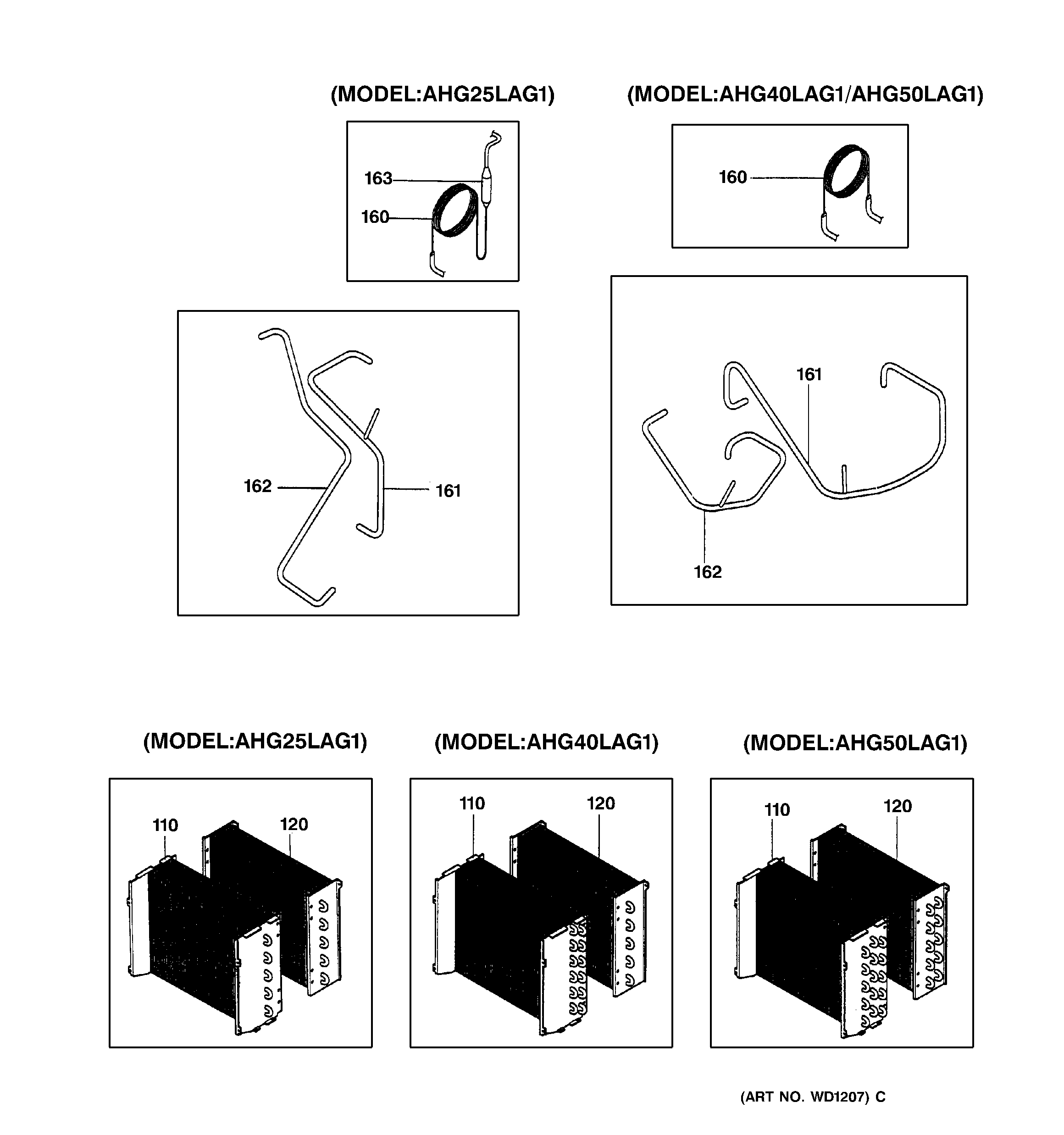

Unit parts diagram

Evaporator

Part #WK87X10007

$58.99
In Stock
Dehumidifier 49-7379-1
#9999

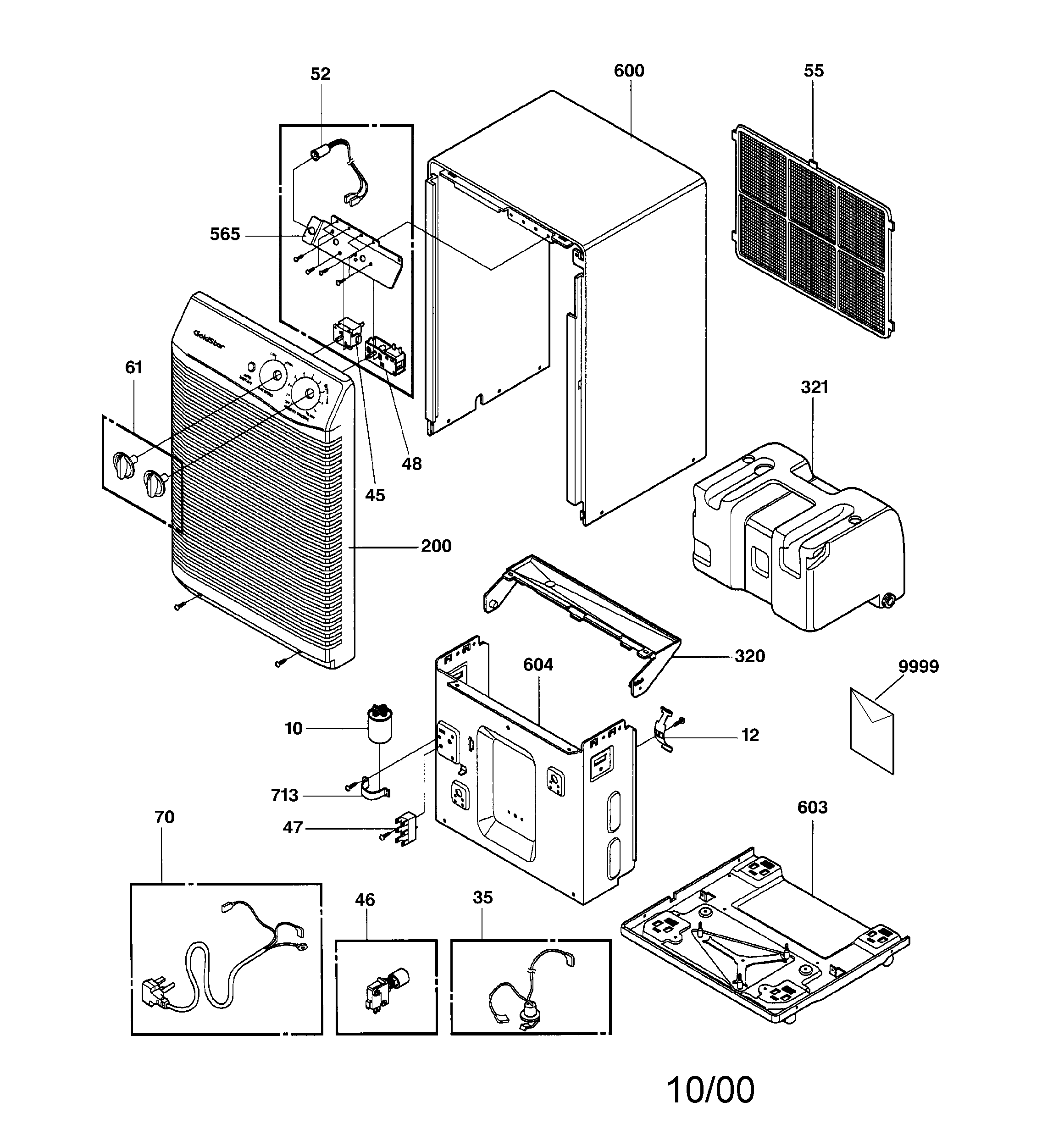

Outer case & control parts diagram

Dehumidifier

Part #49-7379-1

Replaced by #49-7379-2

?
Manufacturer substitution
This part replaces 49-7379-1. Substitute parts can look different from the original.
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Shroud WK76X10004
#605

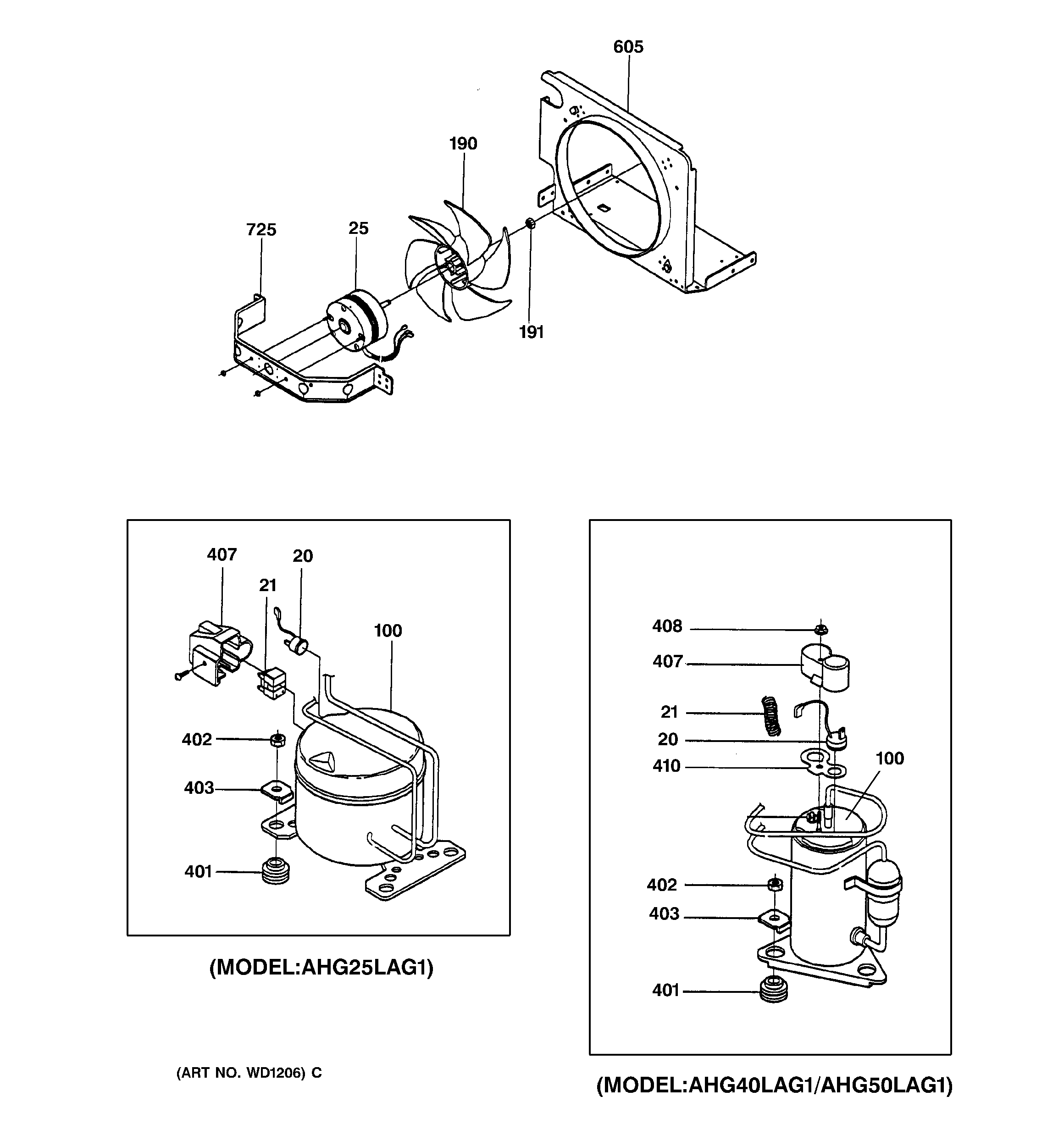

Fan & compressor diagram

Shroud

Part #WK76X10004

The manufacturer no longer makes this part, and there's no substitute part

Ioslator, Co WK01X10011
#401

Fan & compressor diagram

Ioslator, co

Part #WK01X10011

The manufacturer no longer makes this part, and there's no substitute part

Washer WJ01X10065
#403

Fan & compressor diagram

Washer

Part #WJ01X10065

The manufacturer no longer makes this part, and there's no substitute part

Discharge Tube WK53X10009
#162

Unit parts diagram

Discharge tube

Part #WK53X10009

The manufacturer no longer makes this part, and there's no substitute part

Suction Tube WK57X10002
#161

Unit parts diagram

Suction tube

Part #WK57X10002

The manufacturer no longer makes this part, and there's no substitute part

Fan Nut WK01X10014
#191

Fan & compressor diagram

Fan nut

Part #WK01X10014

The manufacturer no longer makes this part, and there's no substitute part

Discharge Tube WK53X10005
#162

Unit parts diagram

Discharge tube

Part #WK53X10005

The manufacturer no longer makes this part, and there's no substitute part

Terminal Nut WJ01X10068
#408

Fan & compressor diagram

Terminal nut

Part #WJ01X10068

The manufacturer no longer makes this part, and there's no substitute part
