Model # 167430500 Official Sears swimming pool water filter

Here are the diagrams and repair parts for Official Sears 167430500 swimming pool water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

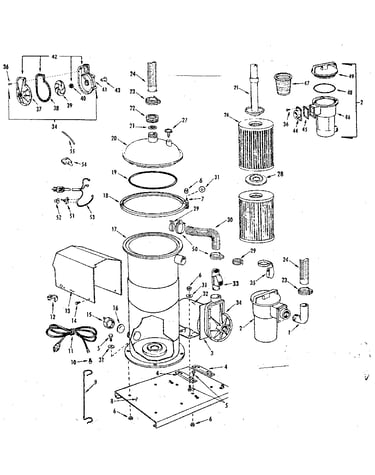

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 56 parts |

Hose Clamp 066-6216

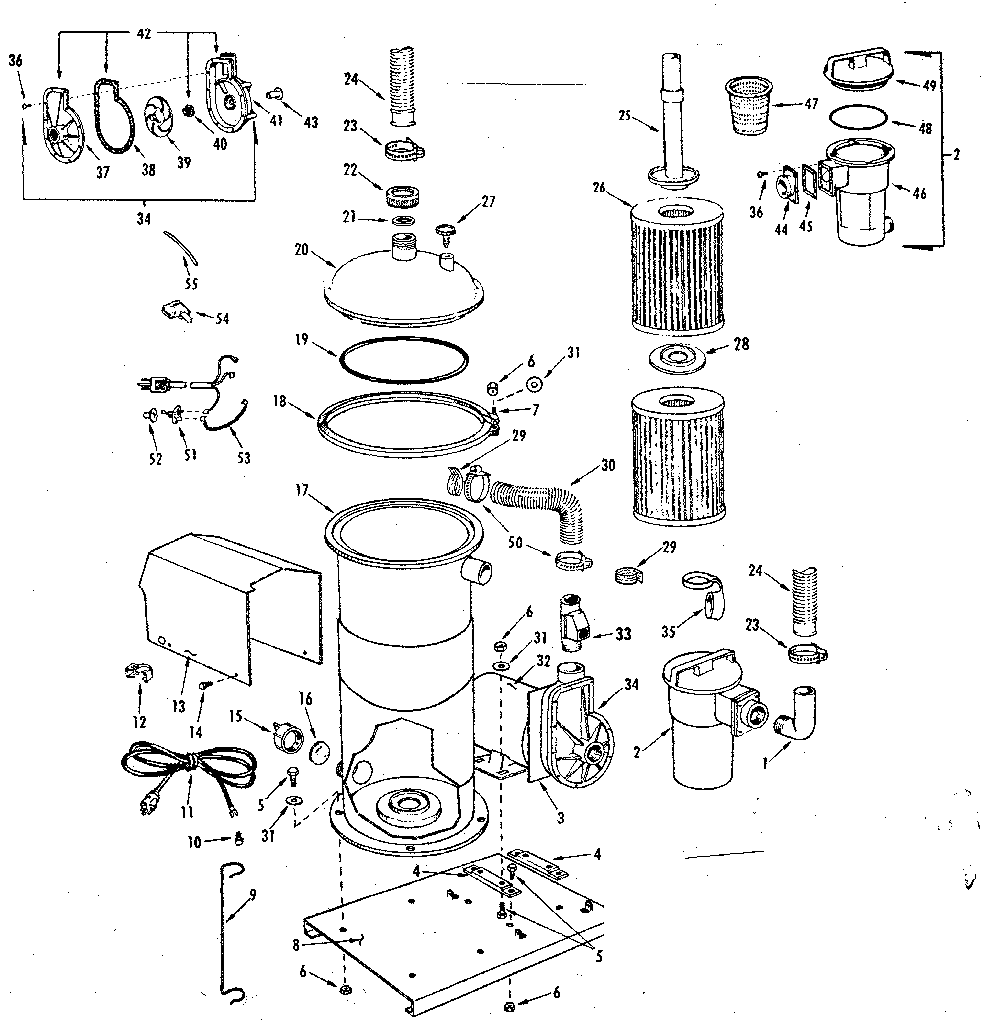

Replacement parts diagram

Hose clamp

Part #066-6216

The manufacturer no longer makes this part, and there's no substitute part

Tank 08-6083

Replacement parts diagram

Tank

Part #08-6083

The manufacturer no longer makes this part, and there's no substitute part

Motor 3/4 Hp 010-3078

Replacement parts diagram

Motor 3/4 hp

Part #010-3078

The manufacturer no longer makes this part, and there's no substitute part

Indicator 12-2054

Replacement parts diagram

Indicator

Part #12-2054

The manufacturer no longer makes this part, and there's no substitute part

Pump Gasket 038-3435

Replacement parts diagram

Pump gasket

Part #038-3435

The manufacturer no longer makes this part, and there's no substitute part

Slip Nut 098-6957

Replacement parts diagram

Slip nut

Part #098-6957

The manufacturer no longer makes this part, and there's no substitute part

Screw 054-3700

Replacement parts diagram

Screw

Part #054-3700

The manufacturer no longer makes this part, and there's no substitute part

Screw 054-3773

Replacement parts diagram

Screw

Part #054-3773

The manufacturer no longer makes this part, and there's no substitute part

Hood 05-3063

Replacement parts diagram

Hood

Part #05-3063

The manufacturer no longer makes this part, and there's no substitute part

Cover V Clam 08-5016

Replacement parts diagram

Cover v clam

Part #08-5016

The manufacturer no longer makes this part, and there's no substitute part
