Kenmore
Furnace

Model # 867772631 Official Kenmore power miser gas-fired space saver furnace

Here are the diagrams and repair parts for Official Kenmore 867772631 power miser gas-fired space saver furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

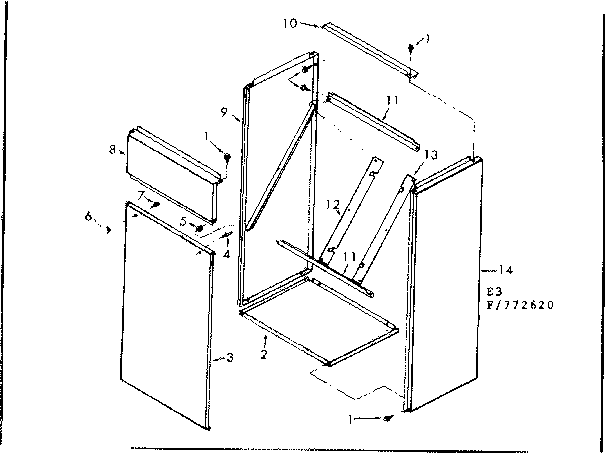

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 179 parts  |

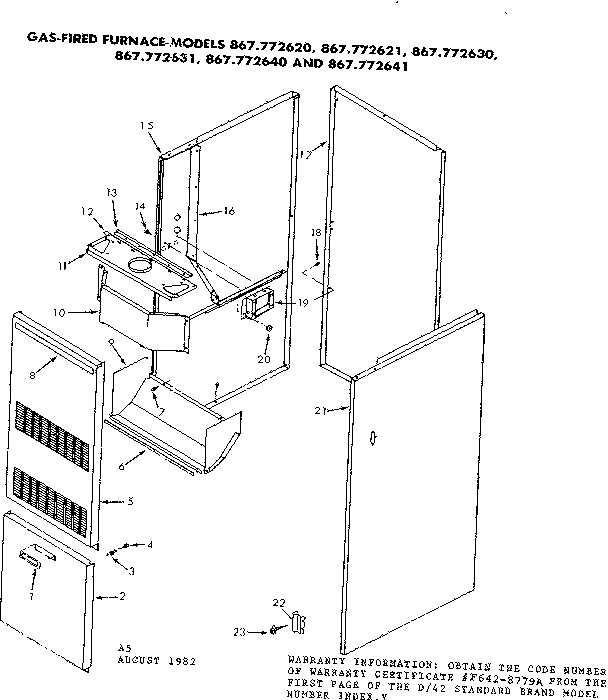

Door Strike 610904
Door strike

Part #610904

Replaced by #279570

?
Manufacturer substitution
This part replaces 610904. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Catch Door 610905
Catch door

Part #610905

Replaced by #279570

?
Manufacturer substitution
This part replaces 610905. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#18B

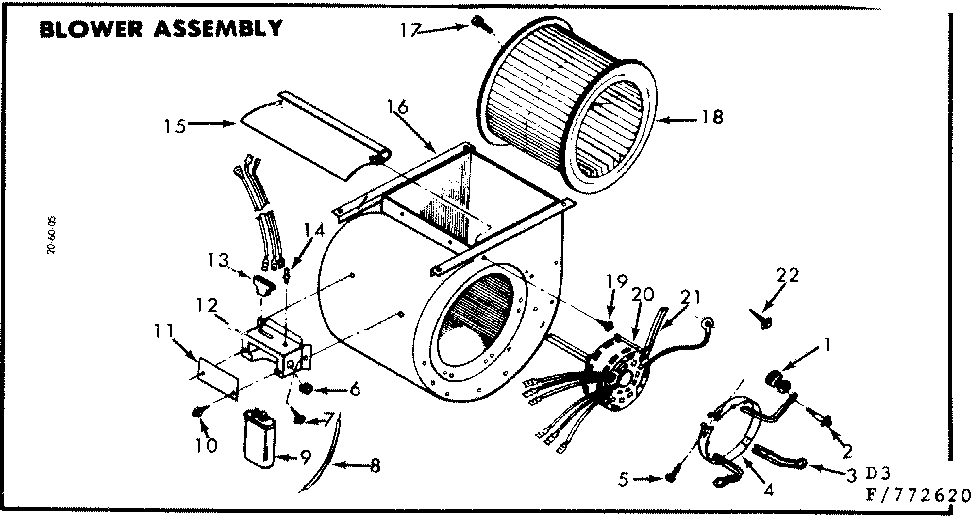

Blower assembly diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
8% OFF Phone Price : $142.20
In Stock
Blower Motor 604006
#20

Blower assembly diagram

Blower motor

Part #604006

Replaced by #1012514

?
Manufacturer substitution
This part replaces 604006. Substitute parts can look different from the original.
$345.23 |
$12.00 OFF Phone Price : $357.23
In Stock
Furnace Blower Fan Motor Mounting Kit 609227

#NI

All parts diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Furnace Door Switch 607900
#22

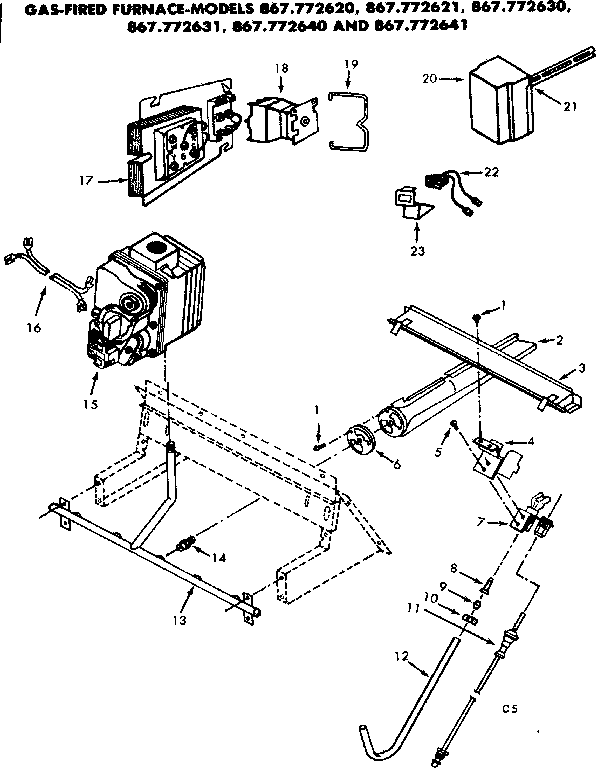

Gas burners and manifold diagram

Furnace door switch

Part #607900

$26.43 |
19% OFF Phone Price : $32.43
In Stock
Exchanger 610416
#18C

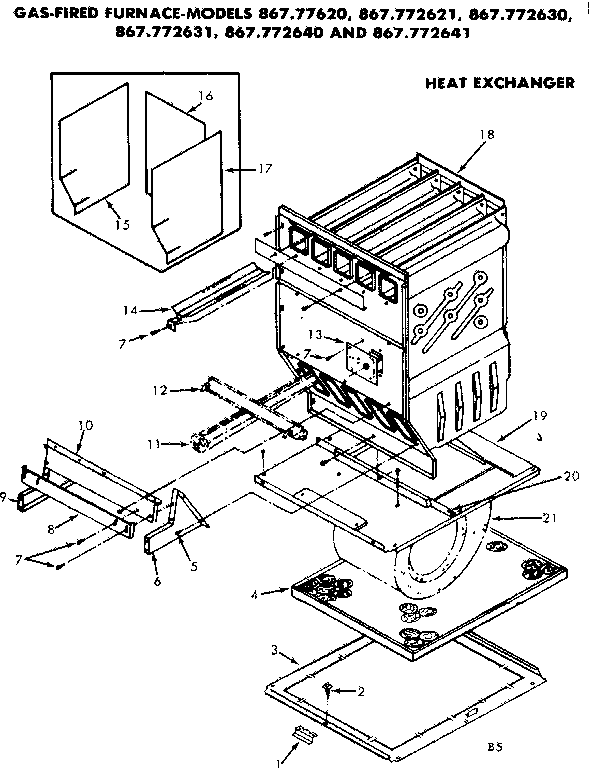

Heat exchanger diagram

Exchanger

Part #610416

The manufacturer no longer makes this part, and there's no substitute part

Filter 603759
#4A

Heat exchanger diagram

Filter

Part #603759

$66.64
In Stock
Furnace Blower Fan Wheel 600586
#18A

Blower assembly diagram

Furnace blower fan wheel

Part #600586

$127.13 |
9% OFF Phone Price : $139.13
In Stock
Central Air Conditioner Air Handler Blower Wheel 96839
#18C

Blower assembly diagram

Central air conditioner air handler blower wheel

Part #96839

$148.95 |
7% OFF Phone Price : $160.95
In Stock
