Charcoal Grill

Model # 2581049590 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2581049590 gas outdoor grill, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
2581049590 Outdoor Grills
Container Assembly 10440-335-2
#37

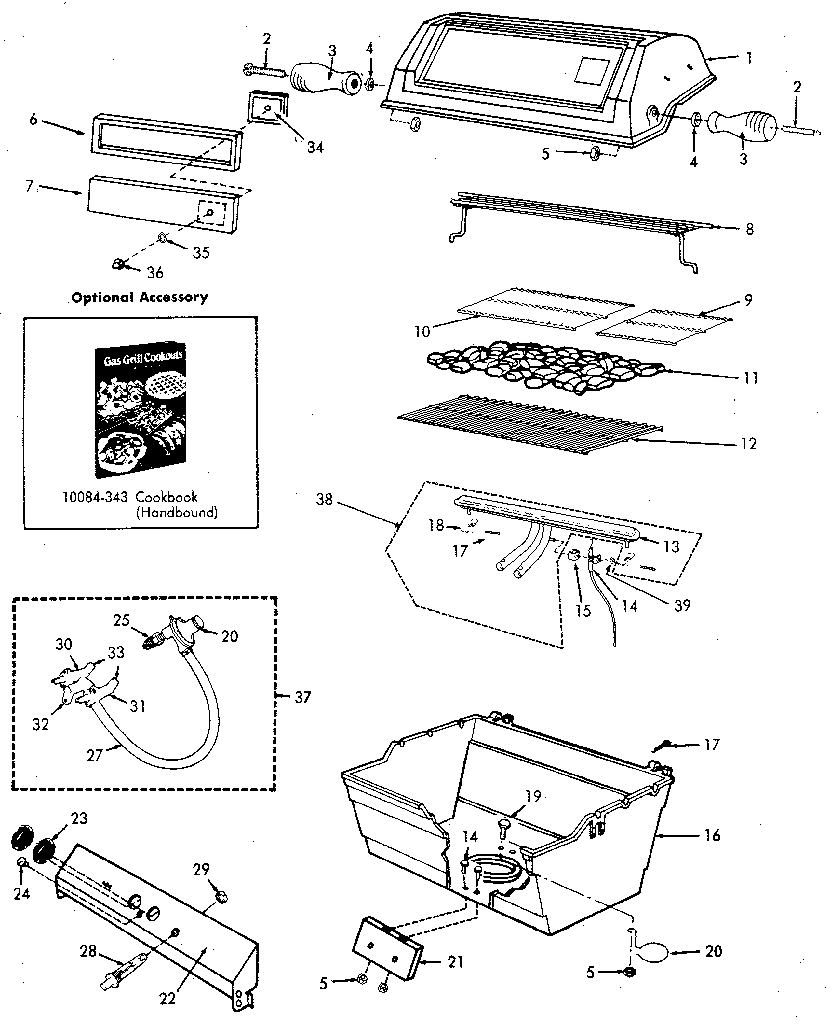

Grill and burner section diagram

Container assembly

Part #10440-335-2

The manufacturer no longer makes this part, and there's no substitute part

Briq Grate 10222-21
#12

Grill and burner section diagram

Briq grate

Part #10222-21

The manufacturer no longer makes this part, and there's no substitute part

Handle 10338-142-1
#53

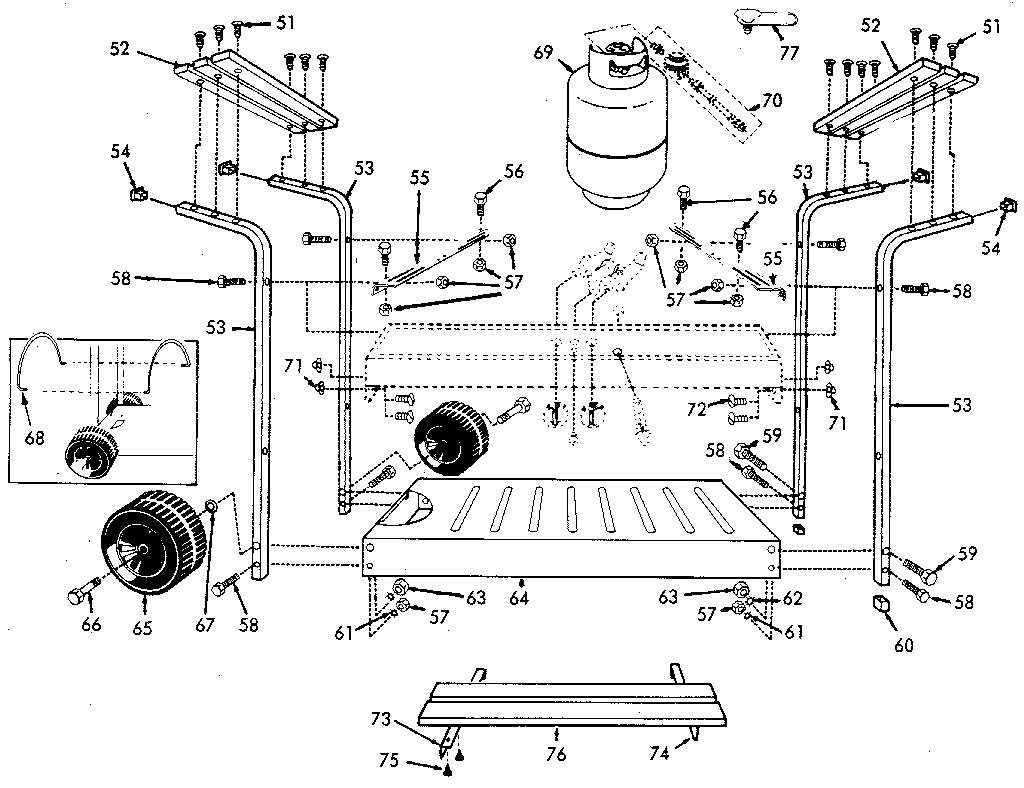

Cart diagram

Handle

Part #10338-142-1

The manufacturer no longer makes this part, and there's no substitute part

Conversion Label 10084-450

#NI

All parts diagram

Conversion label

Part #10084-450

The manufacturer no longer makes this part, and there's no substitute part

Support 10184-296
#68

Cart diagram

Support

Part #10184-296

The manufacturer no longer makes this part, and there's no substitute part

Valve 10691-147-2
#30

Grill and burner section diagram

Valve

Part #10691-147-2

The manufacturer no longer makes this part, and there's no substitute part

Support 10184-307-1
#55

Cart diagram

Support

Part #10184-307-1

The manufacturer no longer makes this part, and there's no substitute part

Washer Y-12852
#62

Cart diagram

Washer

Part #Y-12852

The manufacturer no longer makes this part, and there's no substitute part

Screw Y-12873
#51

Cart diagram

Screw

Part #Y-12873

The manufacturer no longer makes this part, and there's no substitute part

Hose 10111-44-1
#27

Grill and burner section diagram

Hose

Part #10111-44-1

The manufacturer no longer makes this part, and there's no substitute part

Effective articles & videos to help repair your outdoor grills

View all
What are the main parts of a gas BBQ grill?

What are the main parts of a gas BBQ grill?

Learn about the main parts of gas grills and get DIY tips for replacing gas grill parts.…

Read more
