Kenmore
Central Air Conditioner

Model # 769810291 Official Kenmore mobile home air conditioner

Here are the diagrams and repair parts for Official Kenmore 769810291 mobile home air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Contactor 8401-267
#31B

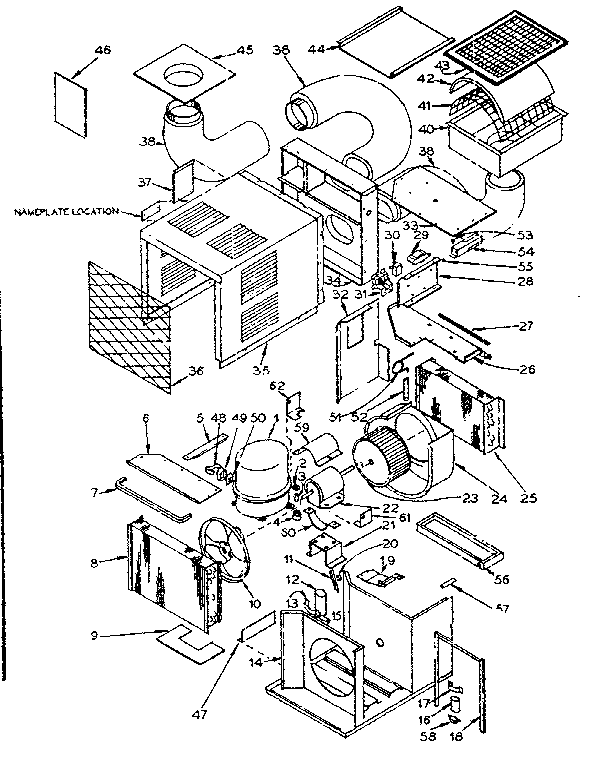

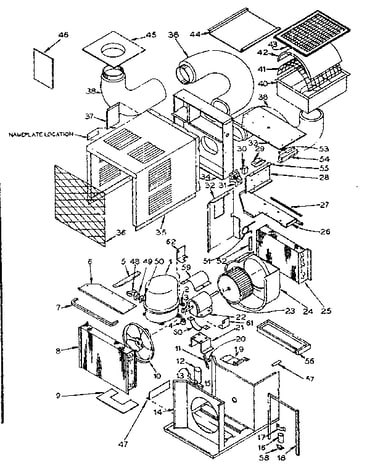

Unit parts diagram

Contactor

Part #8401-267

Replaced by #90-244

?
Manufacturer substitution
This part replaces 8401-267. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Contactor 8401-258
#31A

Unit parts diagram

Contactor

Part #8401-258

Replaced by #90-244

?
Manufacturer substitution
This part replaces 8401-258. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Fan Relay 8201-103
#30

Unit parts diagram

Fan relay

Part #8201-103

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 42-9283

#NI

All parts diagram

Thermostat

Part #42-9283

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 8552-10
#12A

Unit parts diagram

Capacitor

Part #8552-10

The manufacturer no longer makes this part, and there's no substitute part

Transformer 8406-14
#29

Unit parts diagram

Transformer

Part #8406-14

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 8552-37
#16

Unit parts diagram

Capacitor

Part #8552-37

Replaced by #PAKTRCF7.5

?
Manufacturer substitution
This part replaces 8552-37. Substitute parts can look different from the original.
This item is not returnable
$2.89 |
26% OFF Phone Price : $3.89
In Stock
Relay 8201-165

#NI

All parts diagram

Relay

Part #8201-165

Replaced by #42-25105-02

?
Manufacturer substitution
This part replaces 8201-165. Substitute parts can look different from the original.
$166.50
In Stock
Start Kit 7600-161A

#NI

All parts diagram

Start kit

Part #7600-161A

The manufacturer no longer makes this part, and there's no substitute part

Shield Rh 7011-585
#62

Unit parts diagram

Shield rh

Part #7011-585

The manufacturer no longer makes this part, and there's no substitute part
