Model # 609214611 Official Sears bar sink faucet

Here are the diagrams and repair parts for Official Sears 609214611 bar sink faucet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

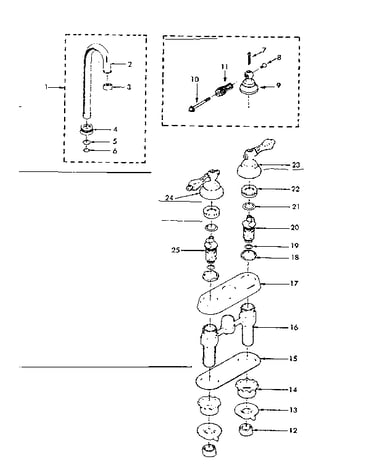

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 27 parts |

O-ring S2497

Unit parts diagram

O-ring

Part #S2497

The manufacturer no longer makes this part, and there's no substitute part

Spout P9063

Unit parts diagram

Spout

Part #P9063

The manufacturer no longer makes this part, and there's no substitute part

Wire Lck Rng A742

Unit parts diagram

Wire lck rng

Part #A742

The manufacturer no longer makes this part, and there's no substitute part

Screw P8847

Unit parts diagram

Screw

Part #P8847

The manufacturer no longer makes this part, and there's no substitute part

Cold Base P8875

Unit parts diagram

Cold base

Part #P8875

The manufacturer no longer makes this part, and there's no substitute part

Spout Assembly 9064

Unit parts diagram

Spout assembly

Part #9064

The manufacturer no longer makes this part, and there's no substitute part

Cap 7983

Unit parts diagram

Cap

Part #7983

The manufacturer no longer makes this part, and there's no substitute part

Insert Handl P9294

Unit parts diagram

Insert handl

Part #P9294

The manufacturer no longer makes this part, and there's no substitute part

O-ring S2526

Unit parts diagram

O-ring

Part #S2526

The manufacturer no longer makes this part, and there's no substitute part

Cartridge 7339

Unit parts diagram

Cartridge

Part #7339

The manufacturer no longer makes this part, and there's no substitute part
