Model # 706101320 Official Craftsman workbench

Here are the diagrams and repair parts for Official Craftsman 706101320 workbench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 8 of 8 parts  |

Tool Chest Nameplate M15865
#3

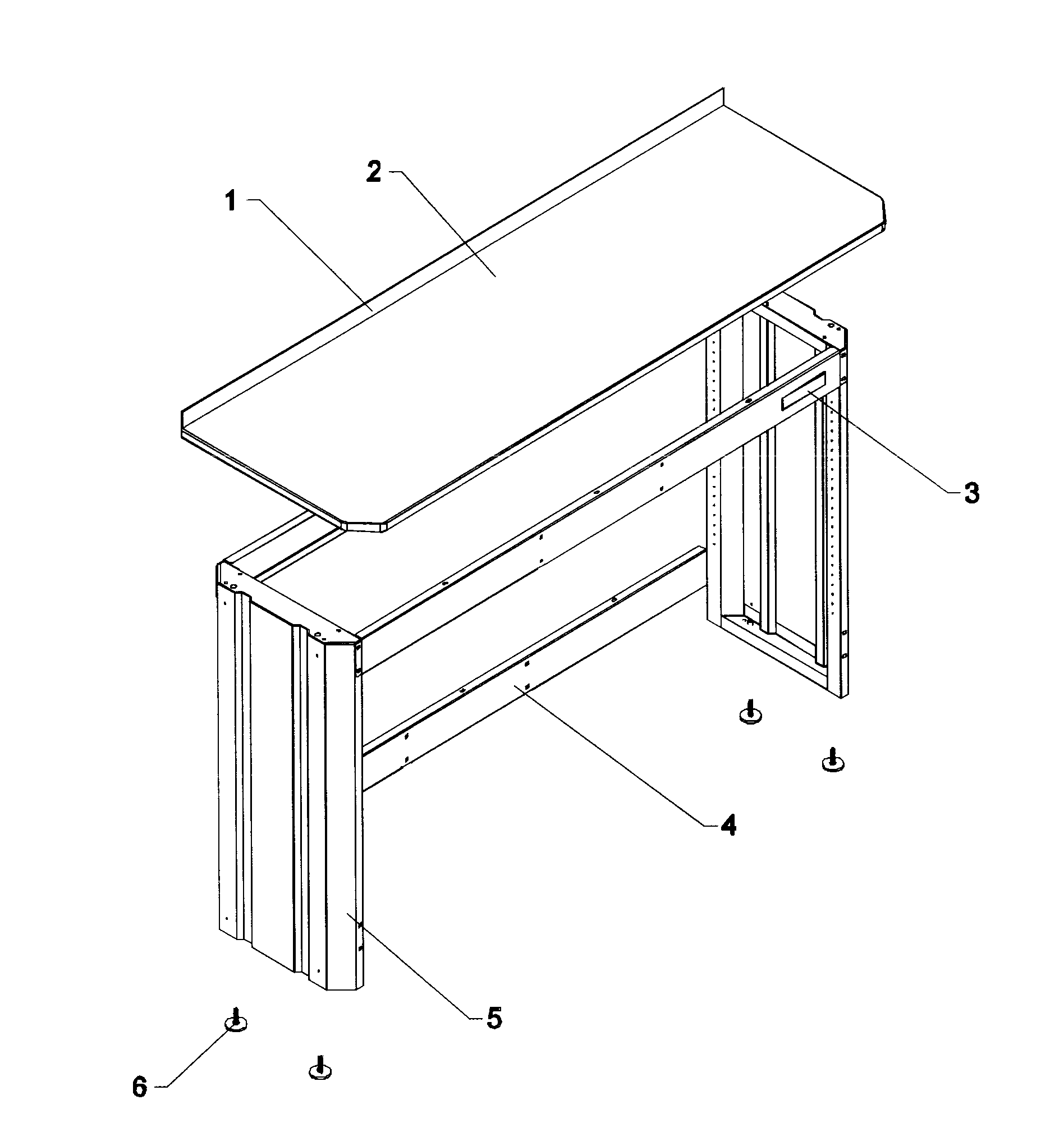

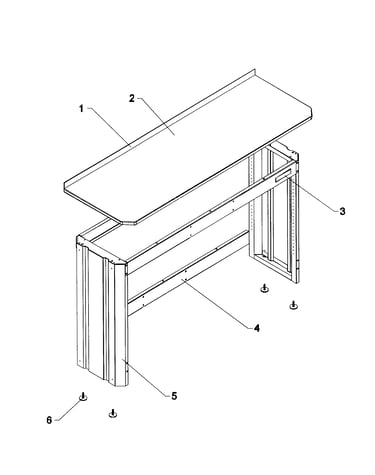

Cabinet assy diagram

Tool chest nameplate

Part #M15865

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Side Panel (red) 1000232-ERED
#5

Cabinet assy diagram

Tool chest side panel (red)

Part #1000232-ERED

The manufacturer no longer makes this part, and there's no substitute part

Workbench Backsplash (red) 1000228-ERED
#1

Cabinet assy diagram

Workbench backsplash (red)

Part #1000228-ERED

The manufacturer no longer makes this part, and there's no substitute part

Tool Cabinet Leveling Leg 27563A2-PN
#6

Cabinet assy diagram

Tool cabinet leveling leg

Part #27563A2-PN

The manufacturer no longer makes this part, and there's no substitute part

Workbench Rail Panel (red) 1000229-ERED
#4

Cabinet assy diagram

Workbench rail panel (red)

Part #1000229-ERED

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Workbench Hardware Bag 1000440
#NI

Cabinet assy diagram

Craftsman workbench hardware bag

Part #1000440

The manufacturer no longer makes this part, and there's no substitute part

Workbench Top 1000227
#2

Cabinet assy diagram

Workbench top

Part #1000227

The manufacturer no longer makes this part, and there's no substitute part

Workbench Owner's Manual F1649
#NI

Cabinet assy diagram

Workbench owner's manual

Part #F1649

The manufacturer no longer makes this part, and there's no substitute part
