Model # 200583111 Official Craftsman 2-cycle engine

Here are the diagrams and repair parts for Official Craftsman 200583111 2-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

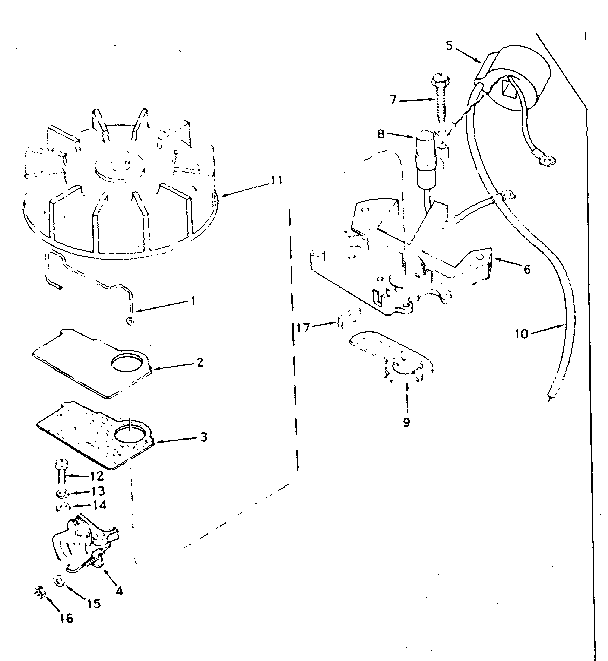

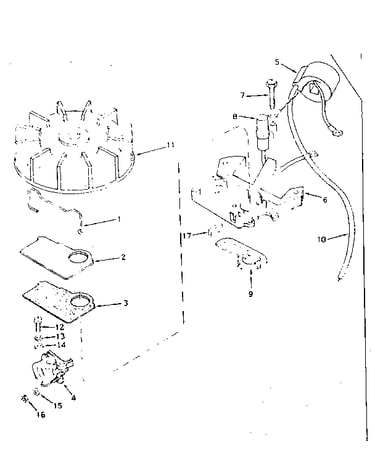

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Fuel Line 29774
#43

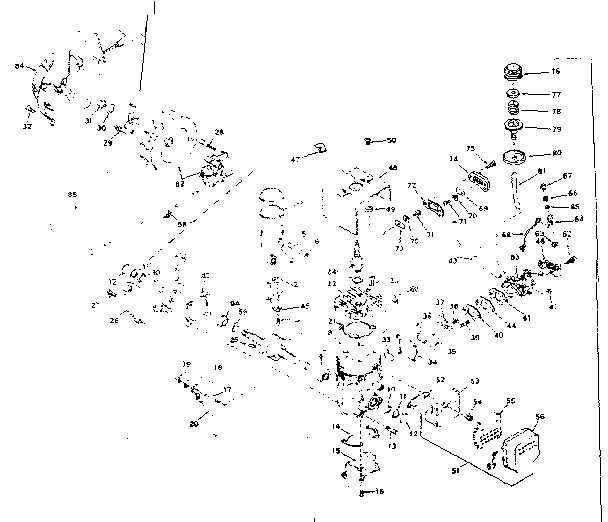

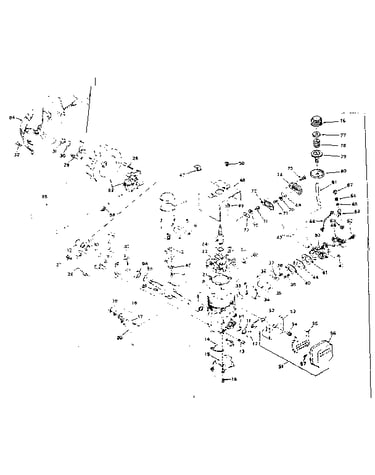

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Primer Line 32180
#81

Basic engine diagram

Primer line

Part #32180

The manufacturer no longer makes this part, and there's no substitute part

Seal 510105
#10

Basic engine diagram

Seal

Part #510105

The manufacturer no longer makes this part, and there's no substitute part

Diap/gaskt 630978
#22

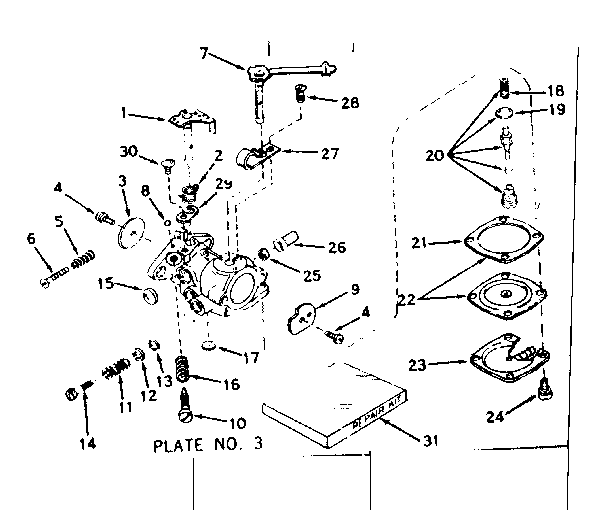

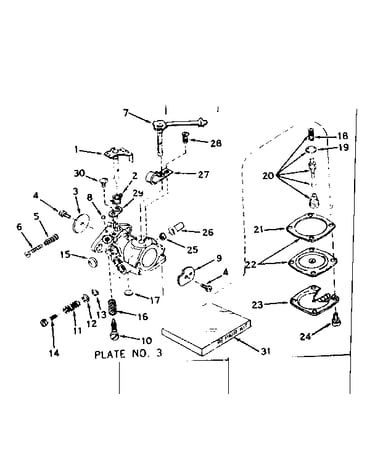

Carburetor no. 631384 diagram

Diap/gaskt

Part #630978

The manufacturer no longer makes this part, and there's no substitute part

Spring 510109
#12

Basic engine diagram

Spring

Part #510109

The manufacturer no longer makes this part, and there's no substitute part

Retainer 510106
#11

Basic engine diagram

Retainer

Part #510106

The manufacturer no longer makes this part, and there's no substitute part

Washer 630739
#12

Carburetor no. 631384 diagram

Washer

Part #630739

The manufacturer no longer makes this part, and there's no substitute part

Tecumseh Lawn & Garden Equipment Engine Owner's Manual 740047

#NI

All parts diagram

Tecumseh lawn & garden equipment engine owner's manual

Part #740047

$9.67
In Stock
Primer Bulb 570442
#76

Basic engine diagram

Primer bulb

Part #570442

The manufacturer no longer makes this part, and there's no substitute part

Reed 470136
#73

Basic engine diagram

Reed

Part #470136

The manufacturer no longer makes this part, and there's no substitute part
